〔SKR〕Linear Module

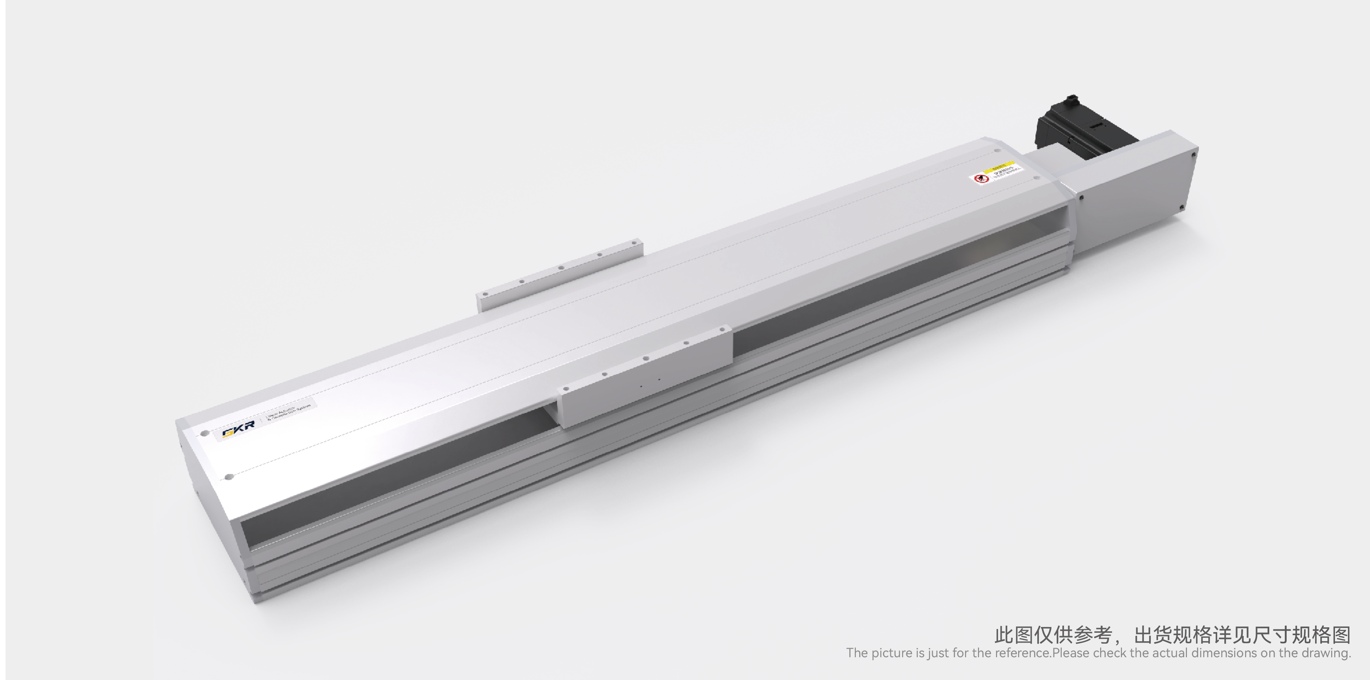

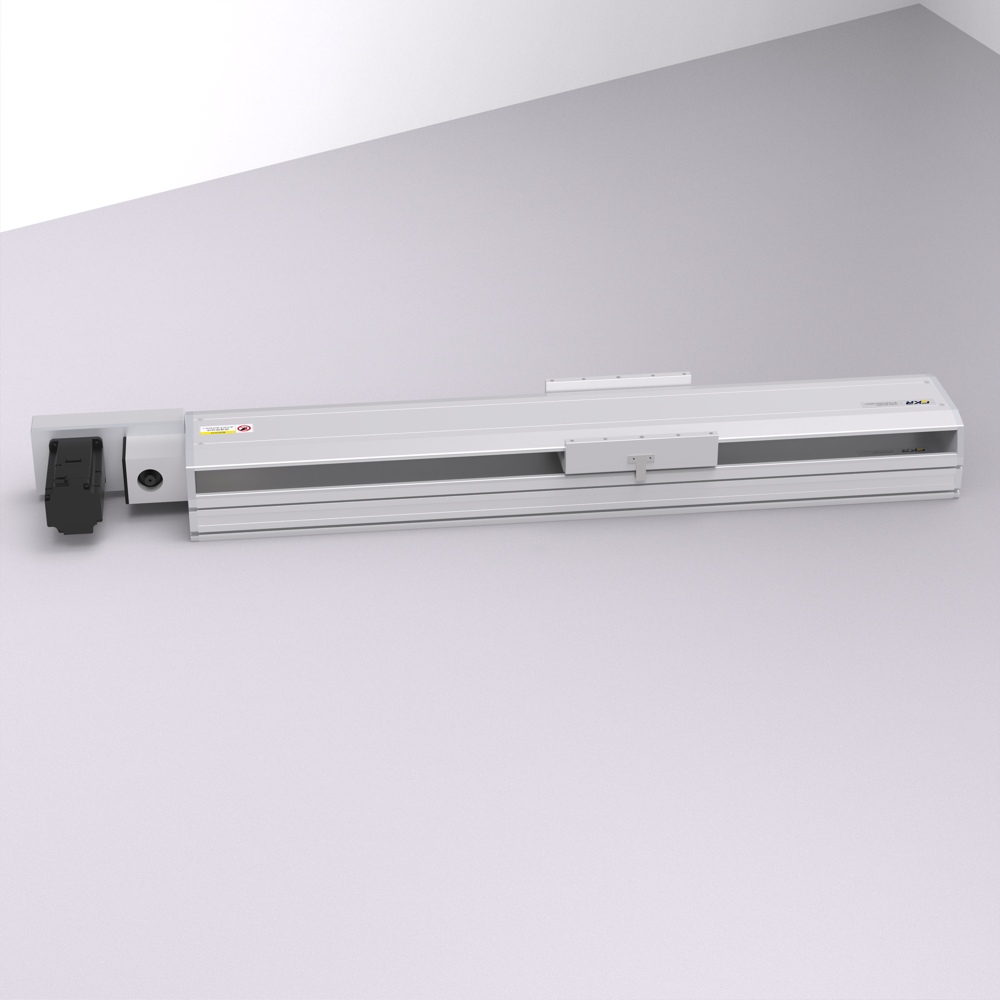

PBS220 Series, brand new synchronous belt semi-closed module

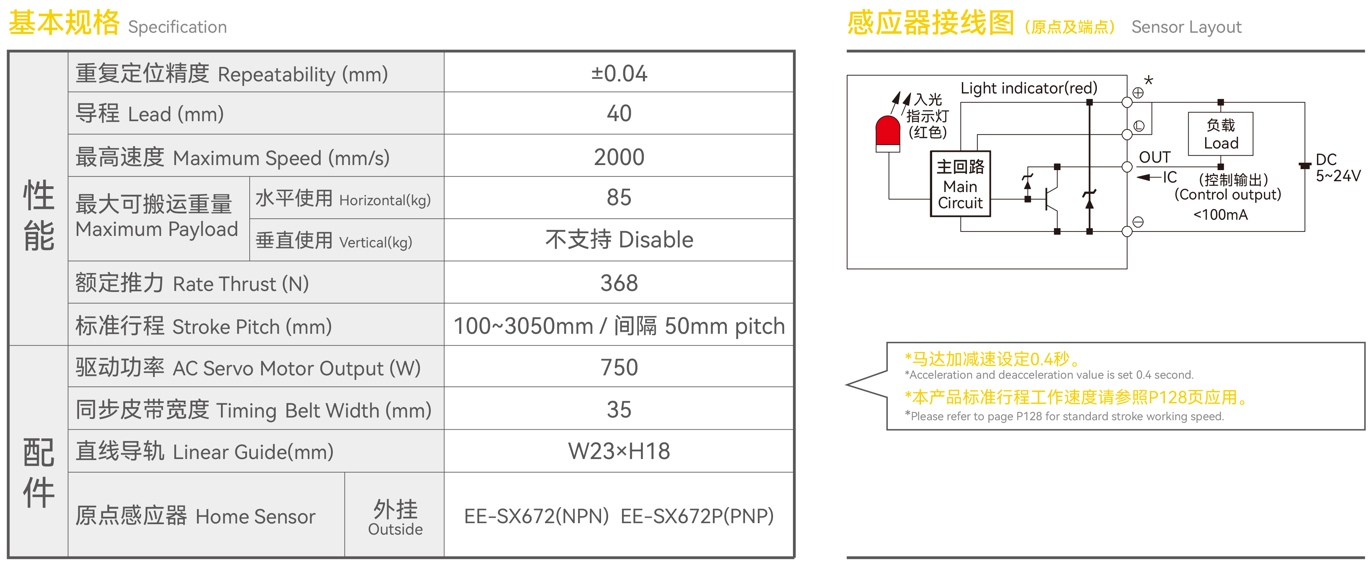

PBS’s largest specification synchronous belt product, with a base width of 220mm- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm
- Horizontal Handling Weight85kg
- Vertical Handling WeightThis series is not supported

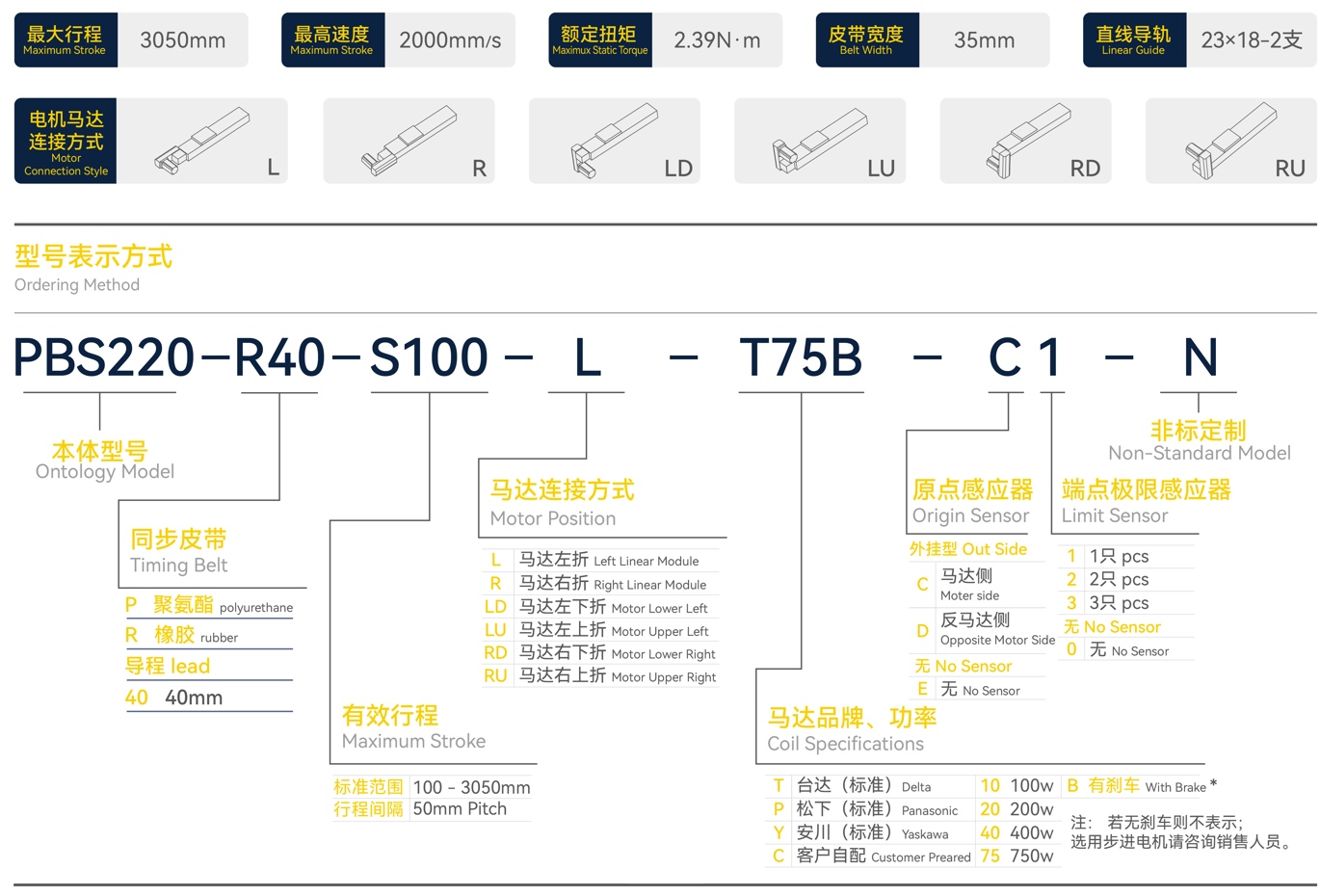

- Motor Connection Method

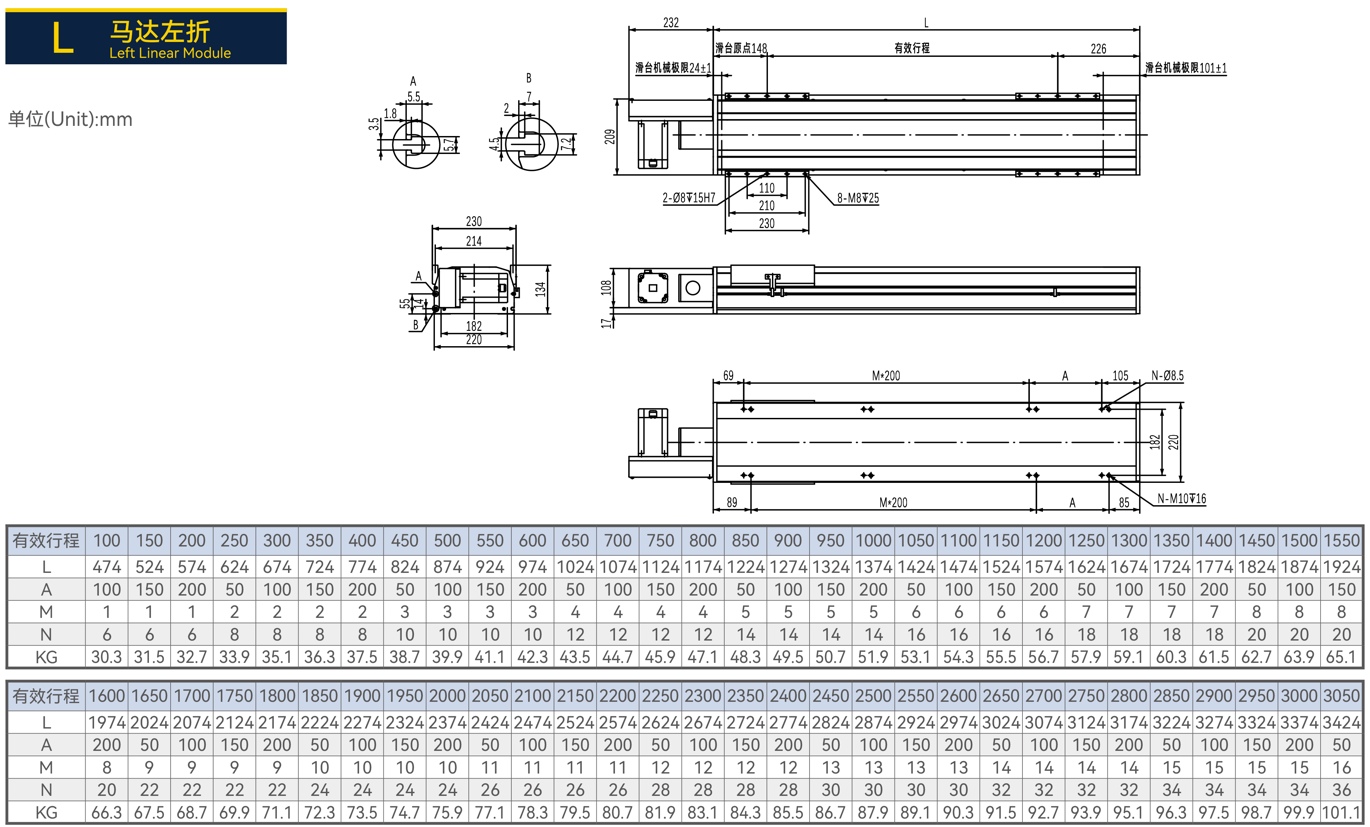

L Motor Left Bend

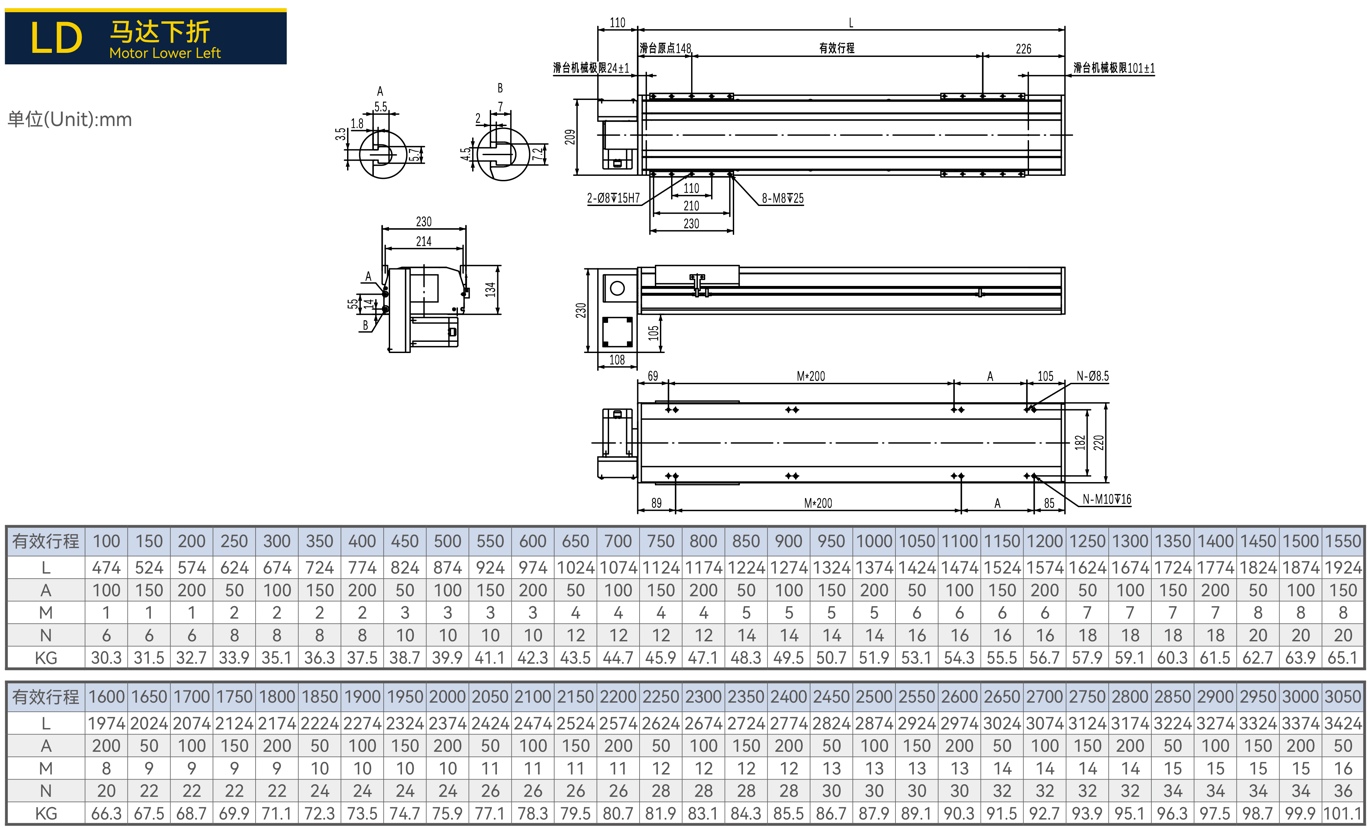

LDMotor bottom left fold

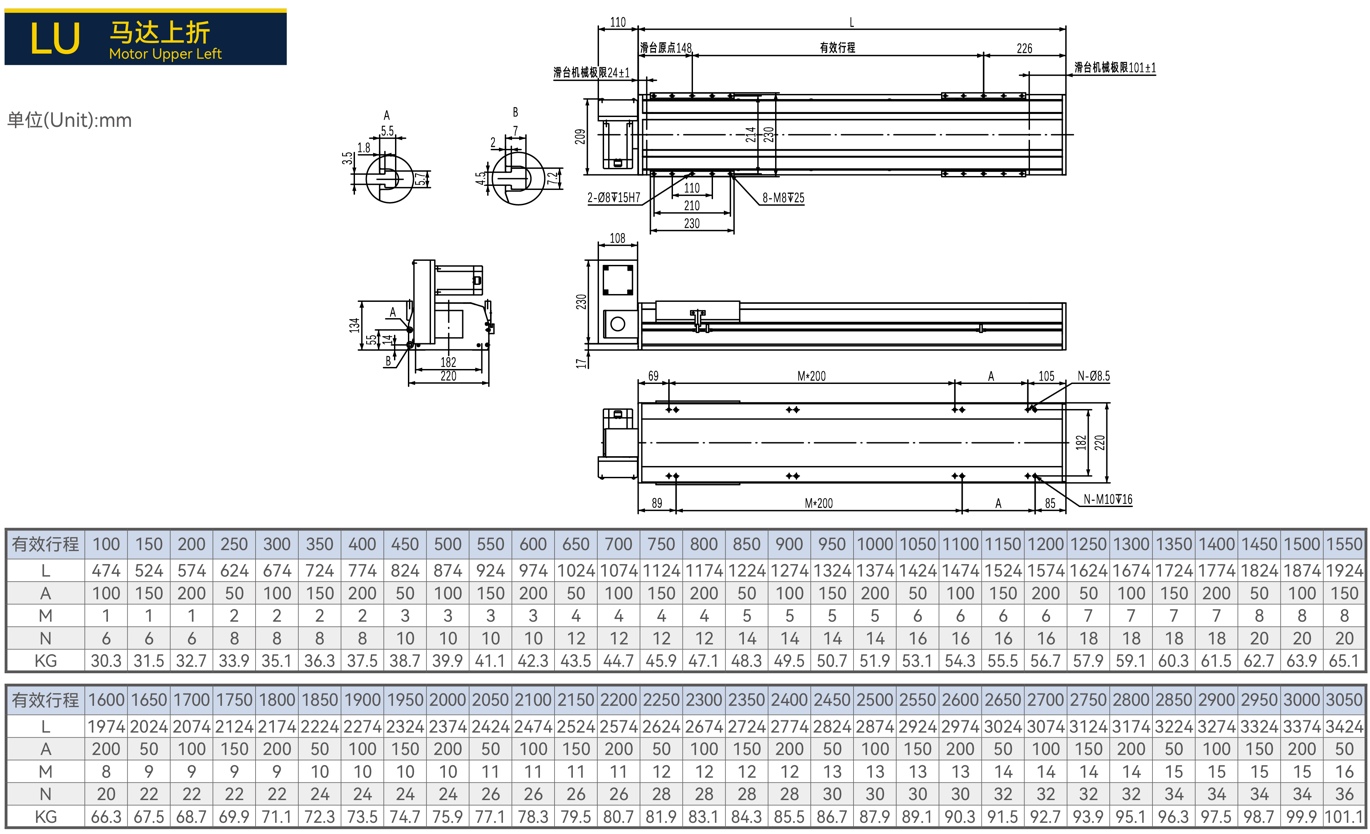

LUMotor top left fold
R Motor Right Bend

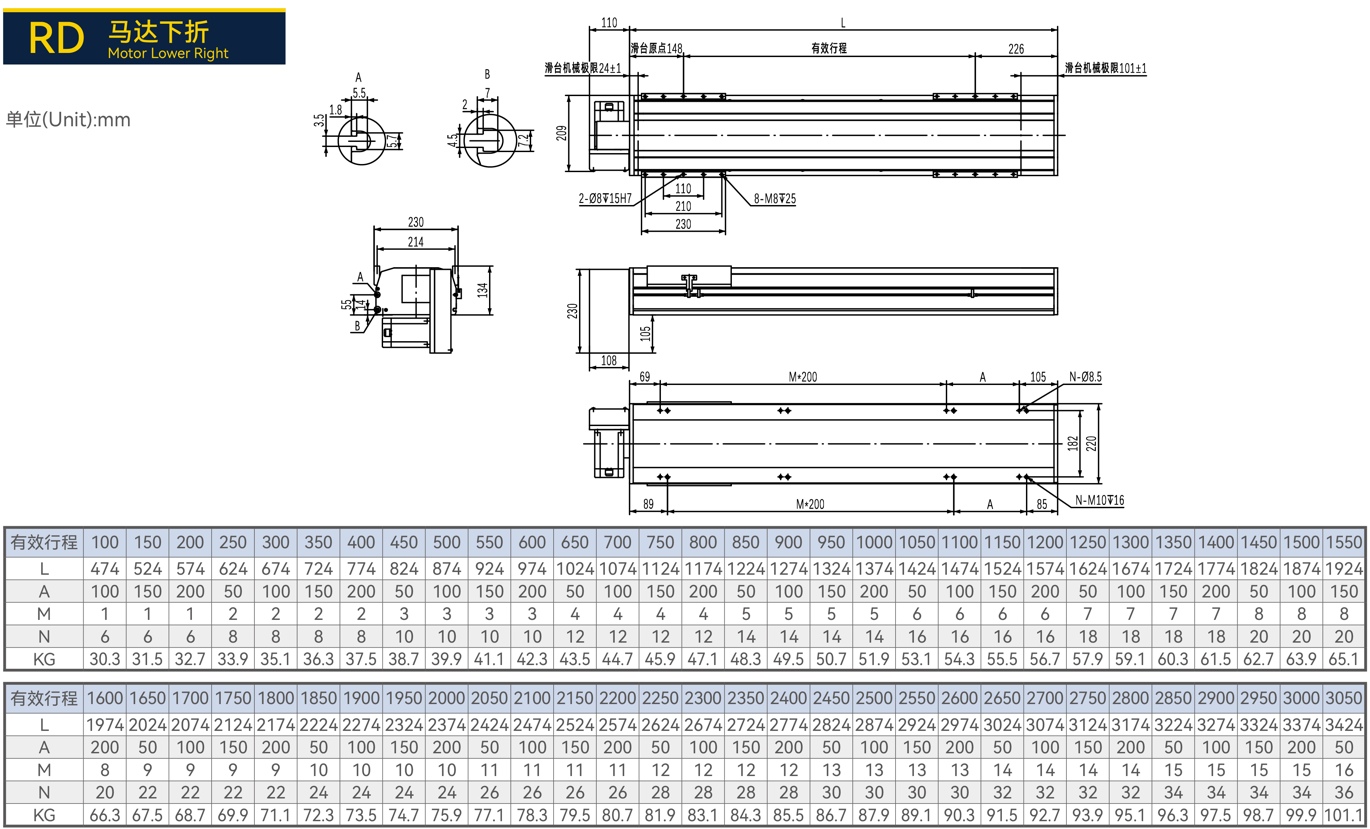

RDMotor bottom right fold

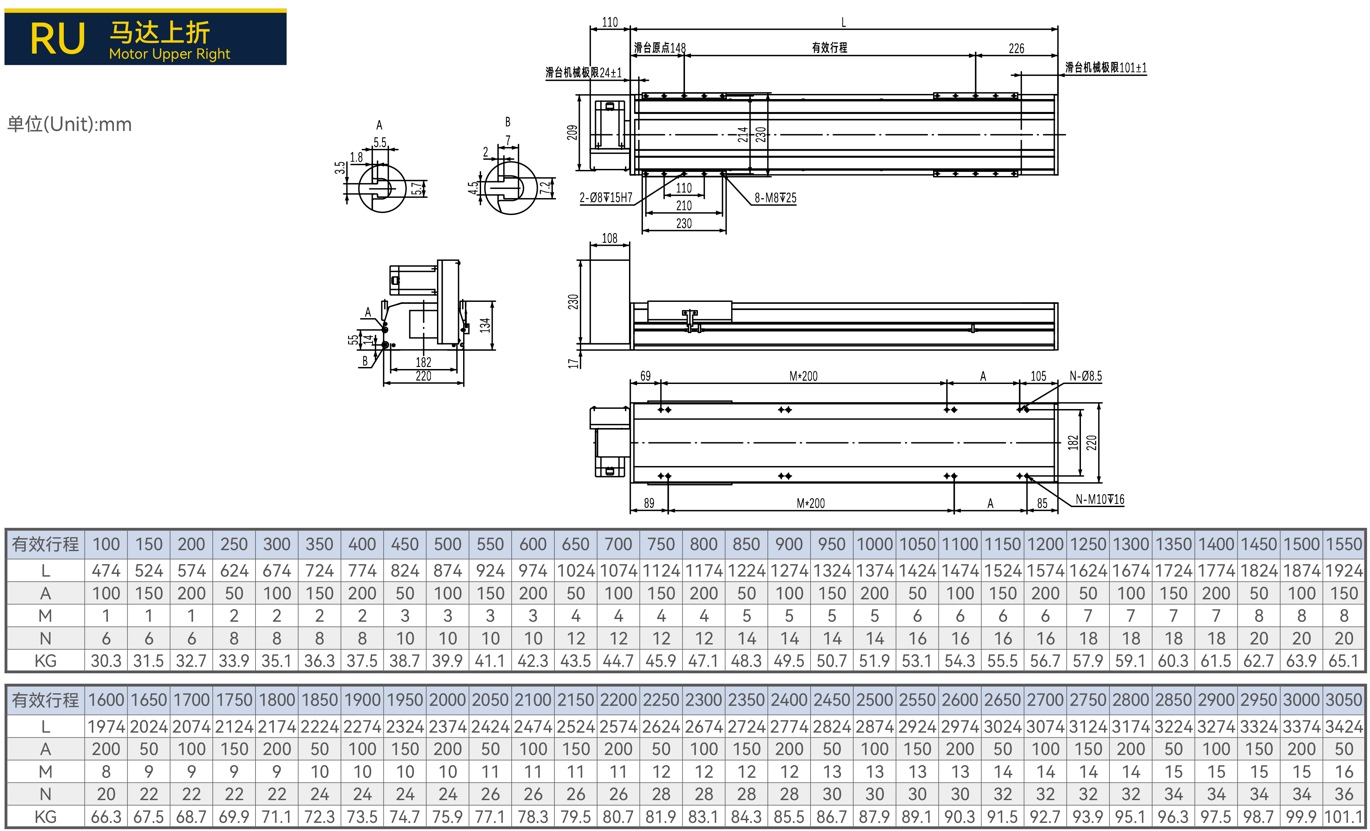

RUMotor top right fold - Linear Guide Model23×18-2pcs
- Body Size Reference Width:220mm， Height:134mm

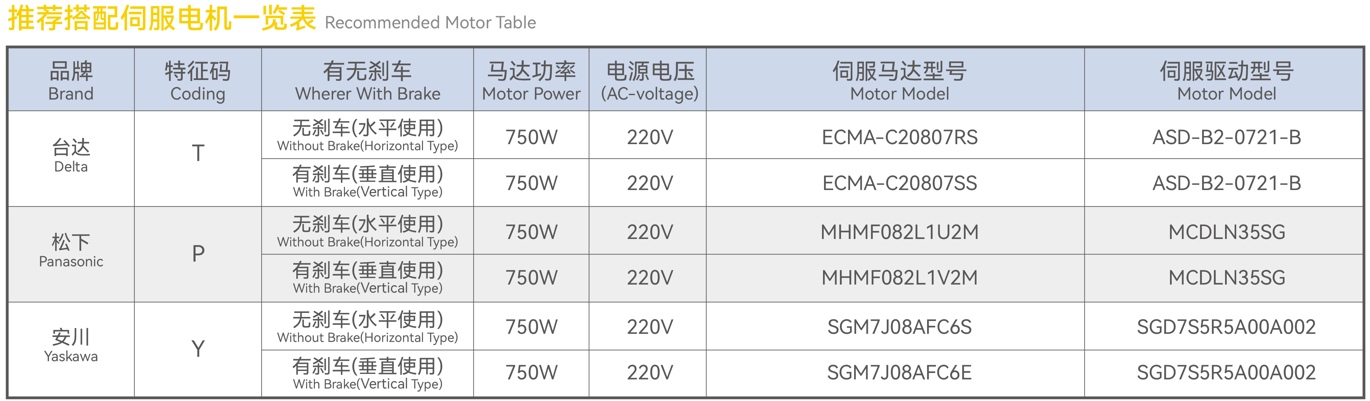

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
Product Description
