〔SKR〕Linear Module

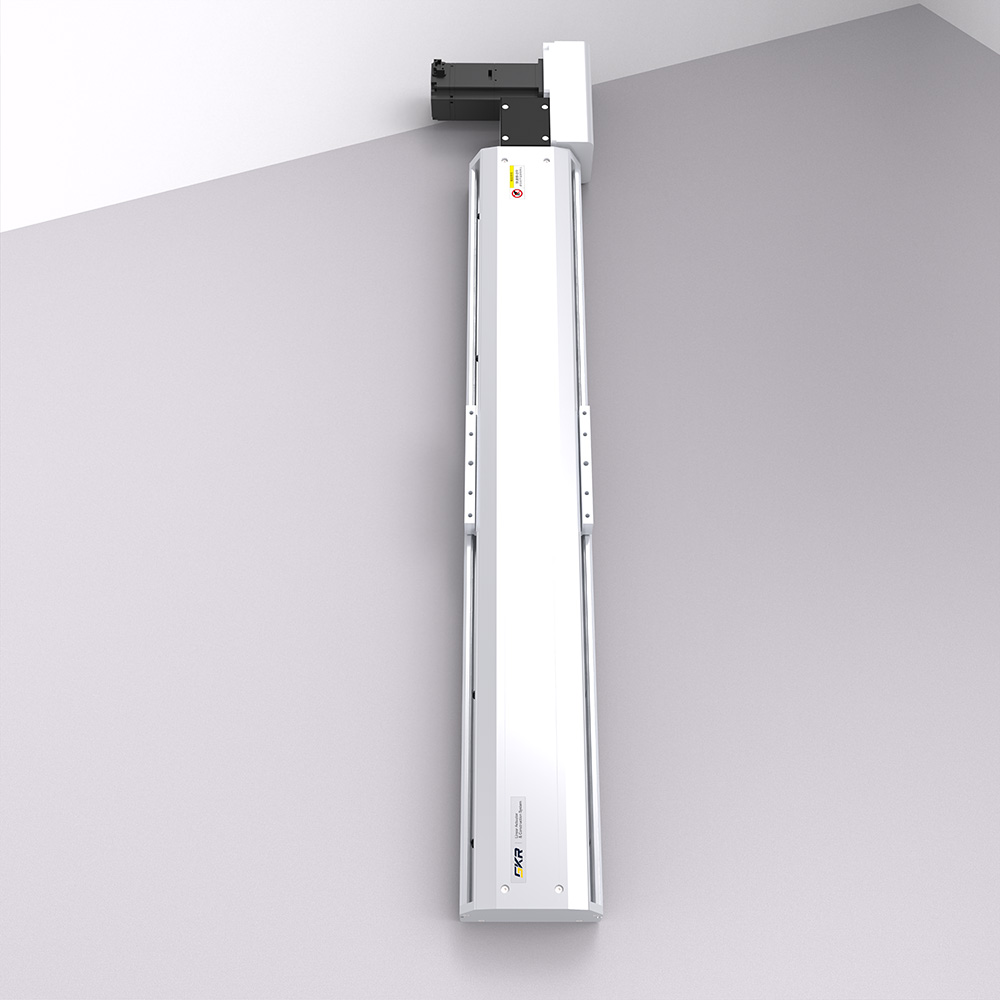

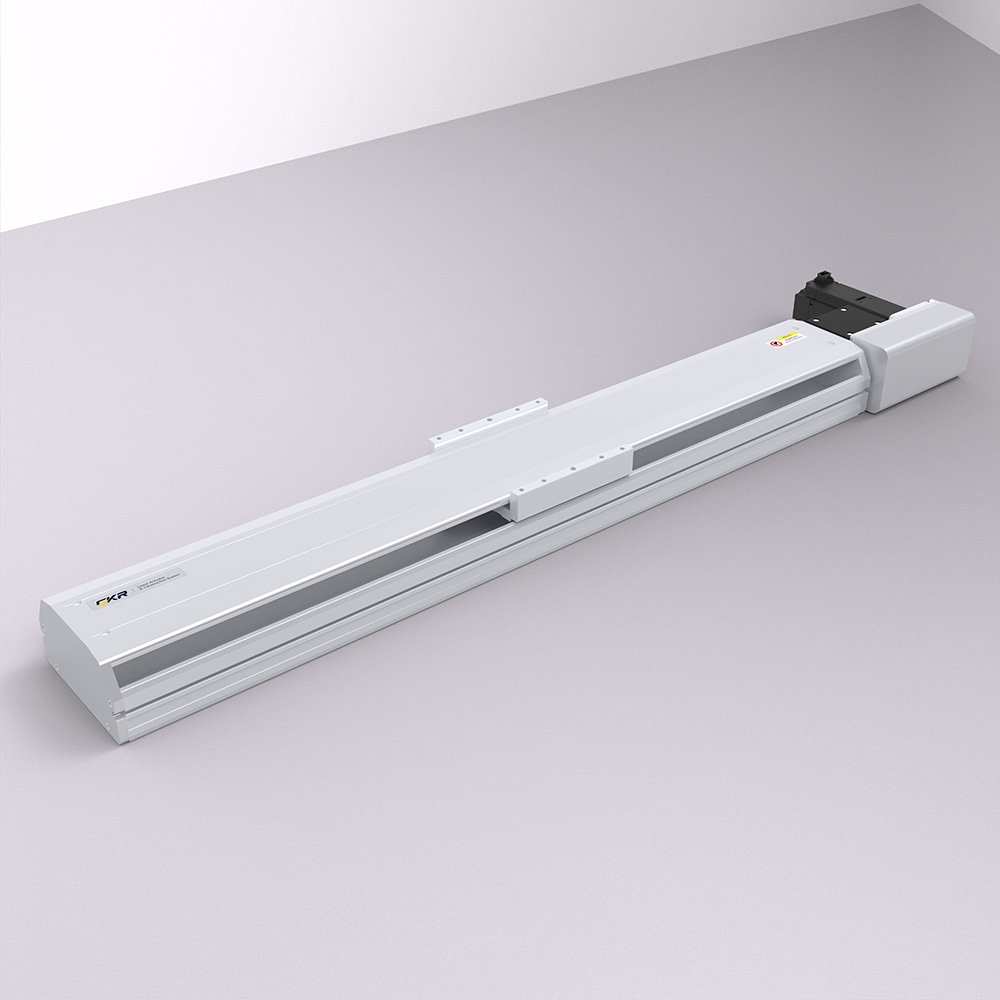

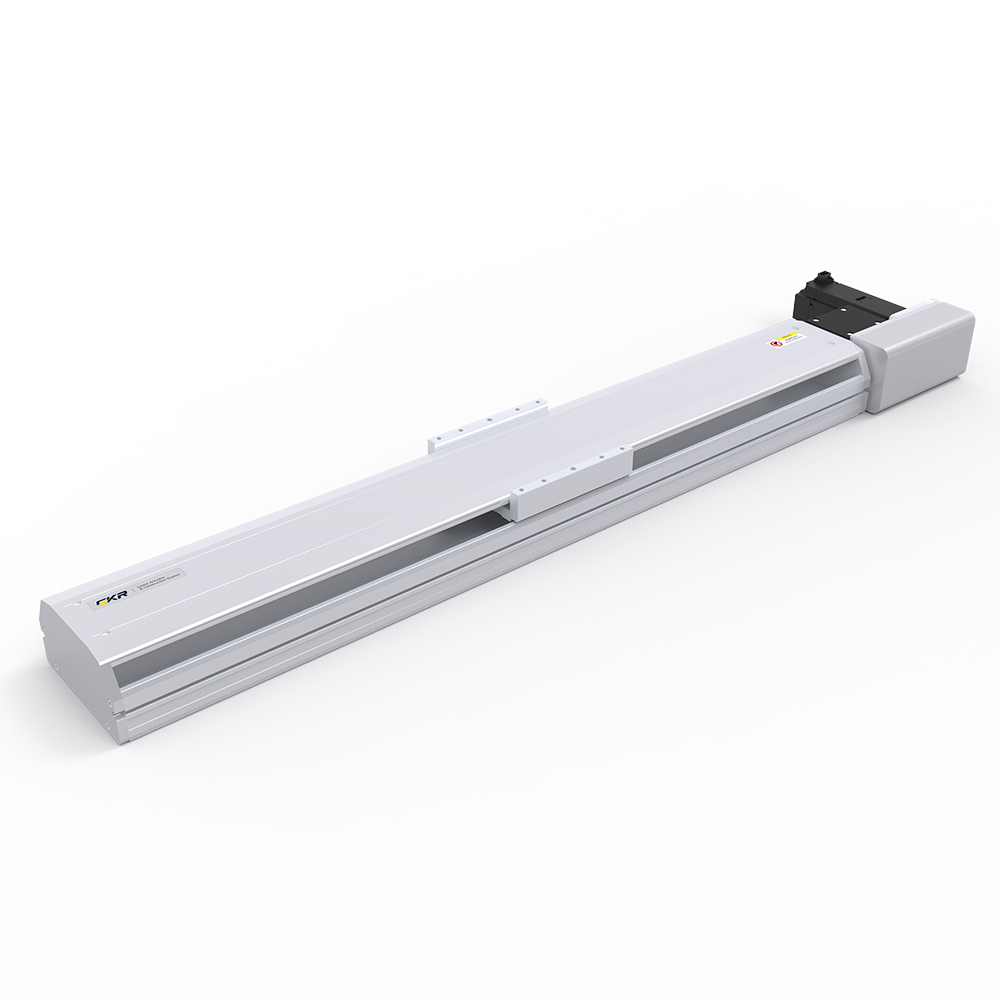

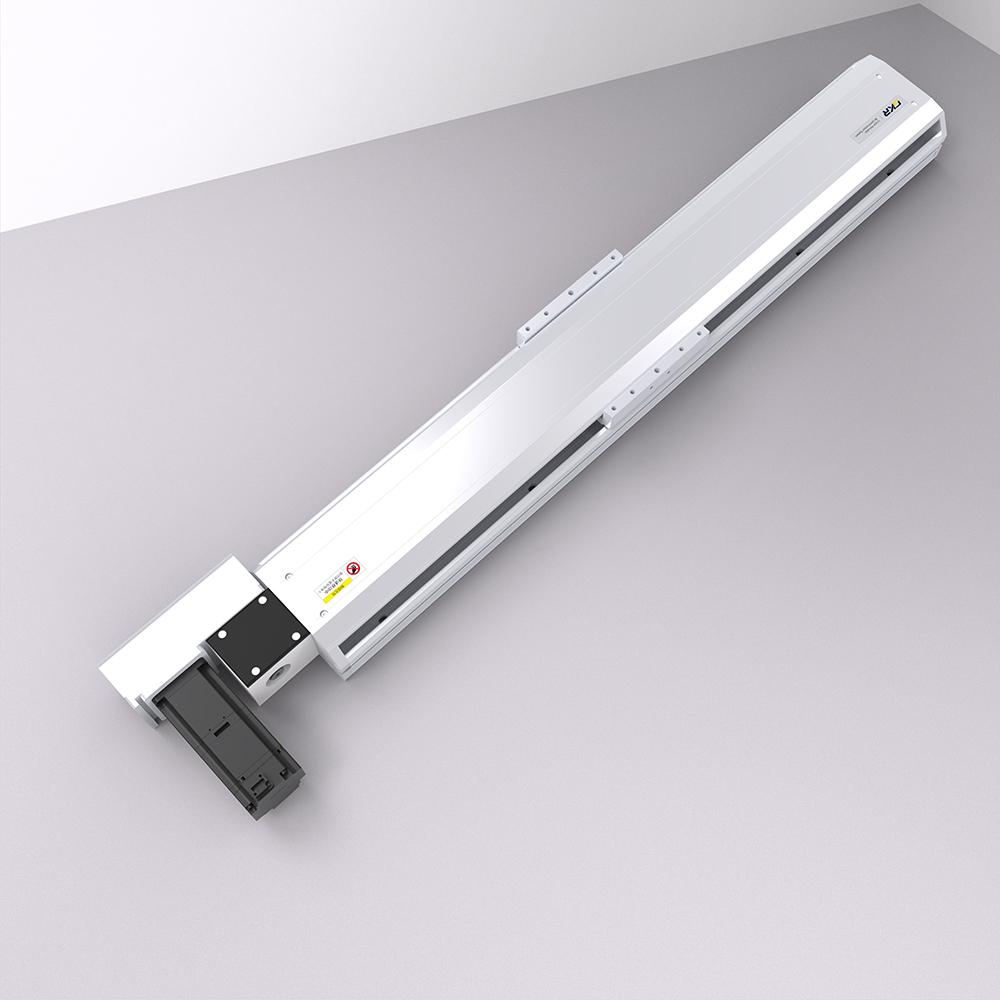

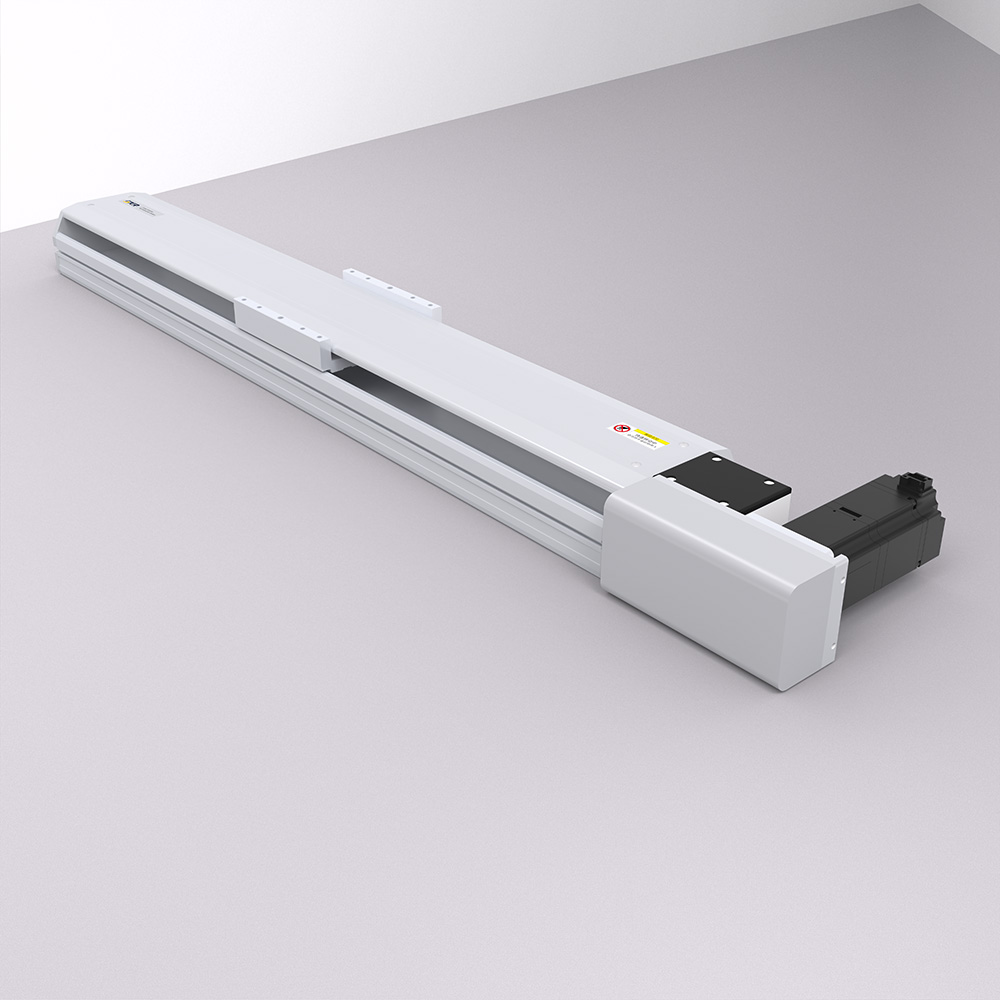

PBS140S Series, brand new synchronous belt semi-closed module
PBS140 upgraded model, overall height increased. Resolving Interference.- Repeatability±0.04mm
- Synchronous Belt Diameter20mm
- Lead40mm
- Horizontal Handling Weight35kg
- Vertical Handling WeightThis series is not supported
- Motor Connection Method
L Motor Left Bend
LDMotor bottom left fold
LUMotor top left fold
R Motor Right Bend
RDMotor bottom right fold
RUMotor top right fold - Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm， Height:93mm
- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
Product Description
