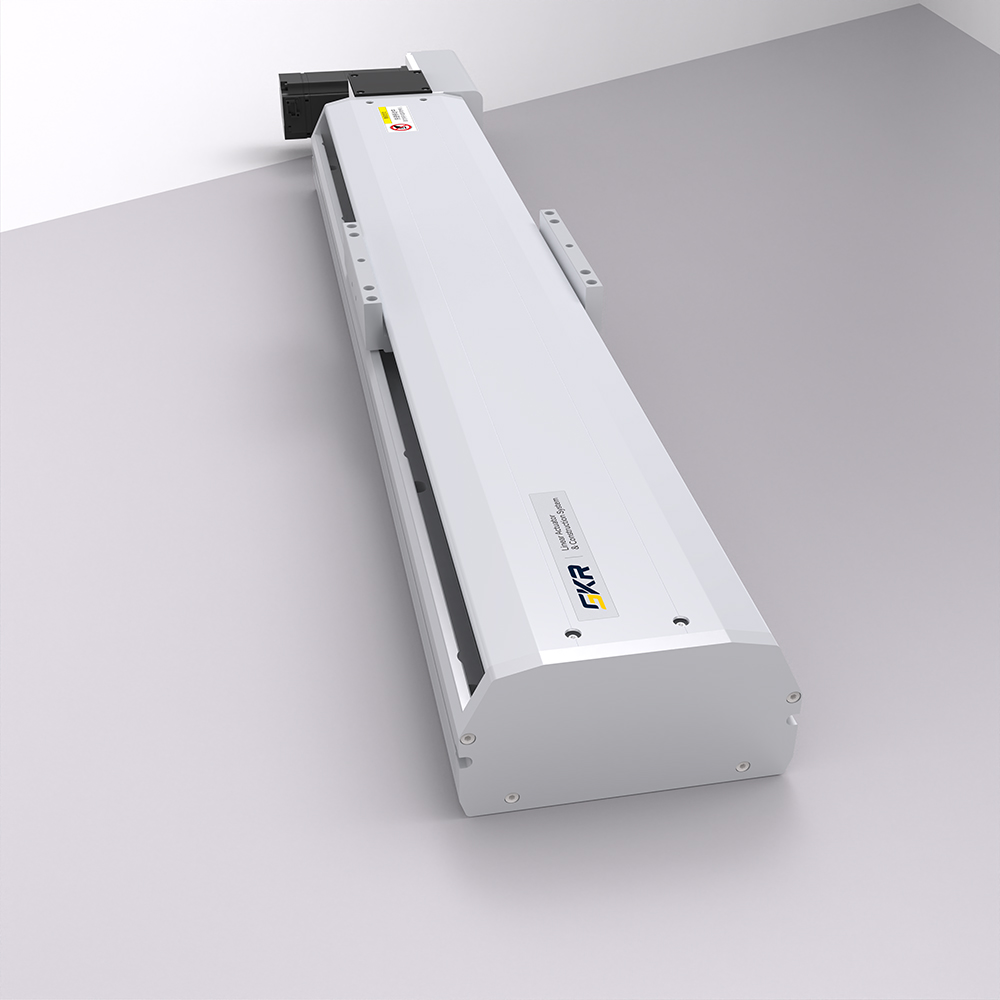

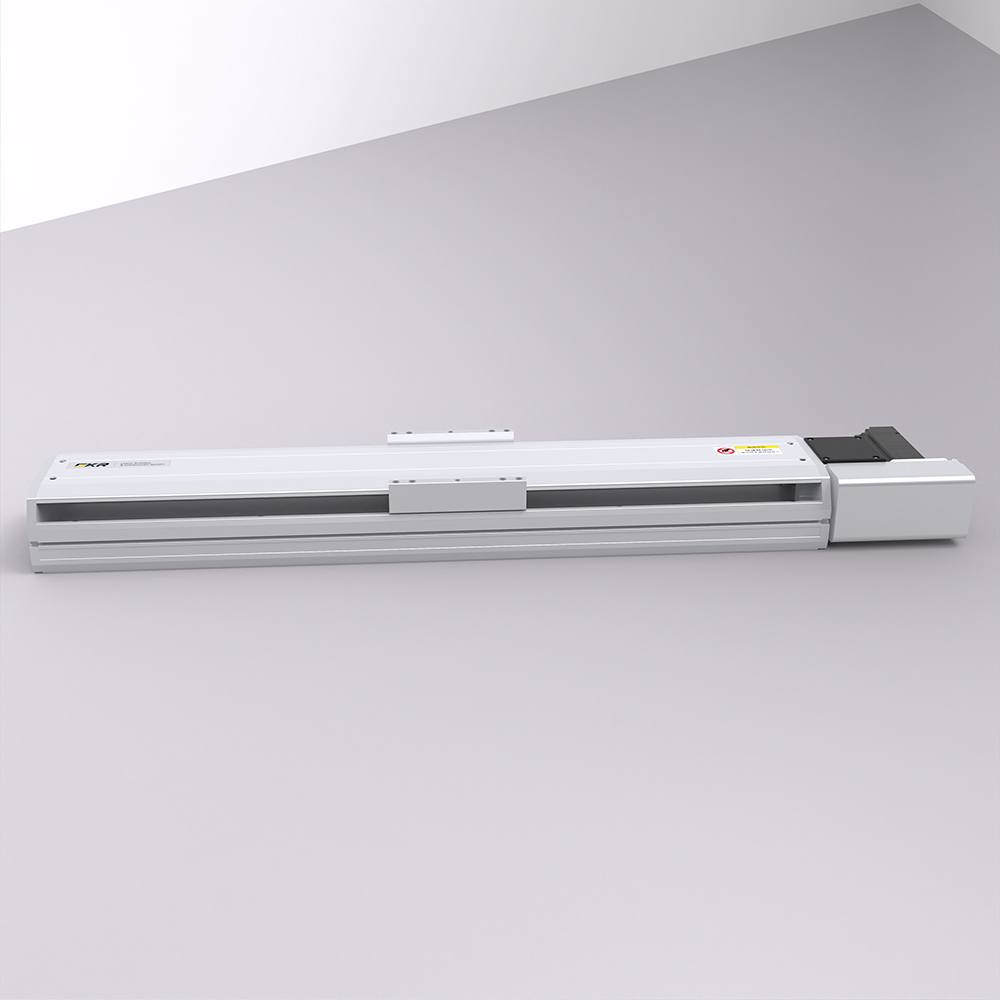

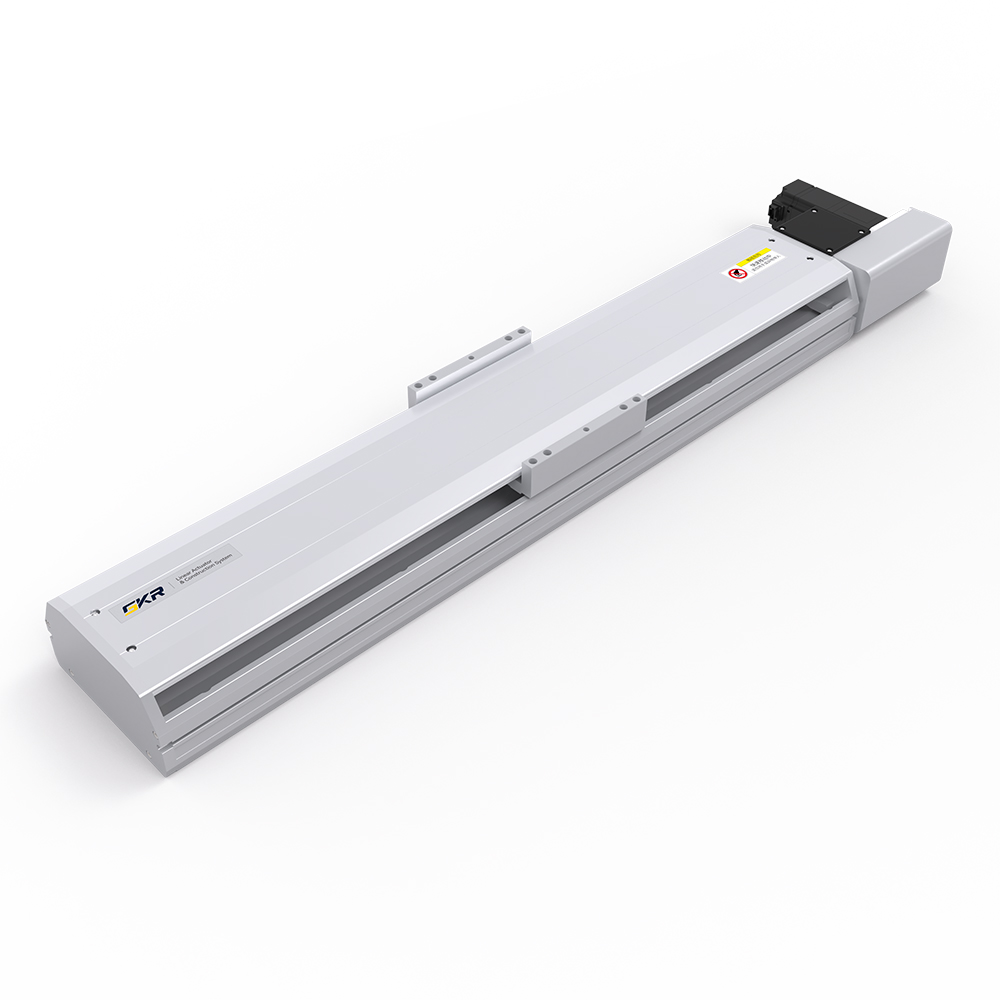

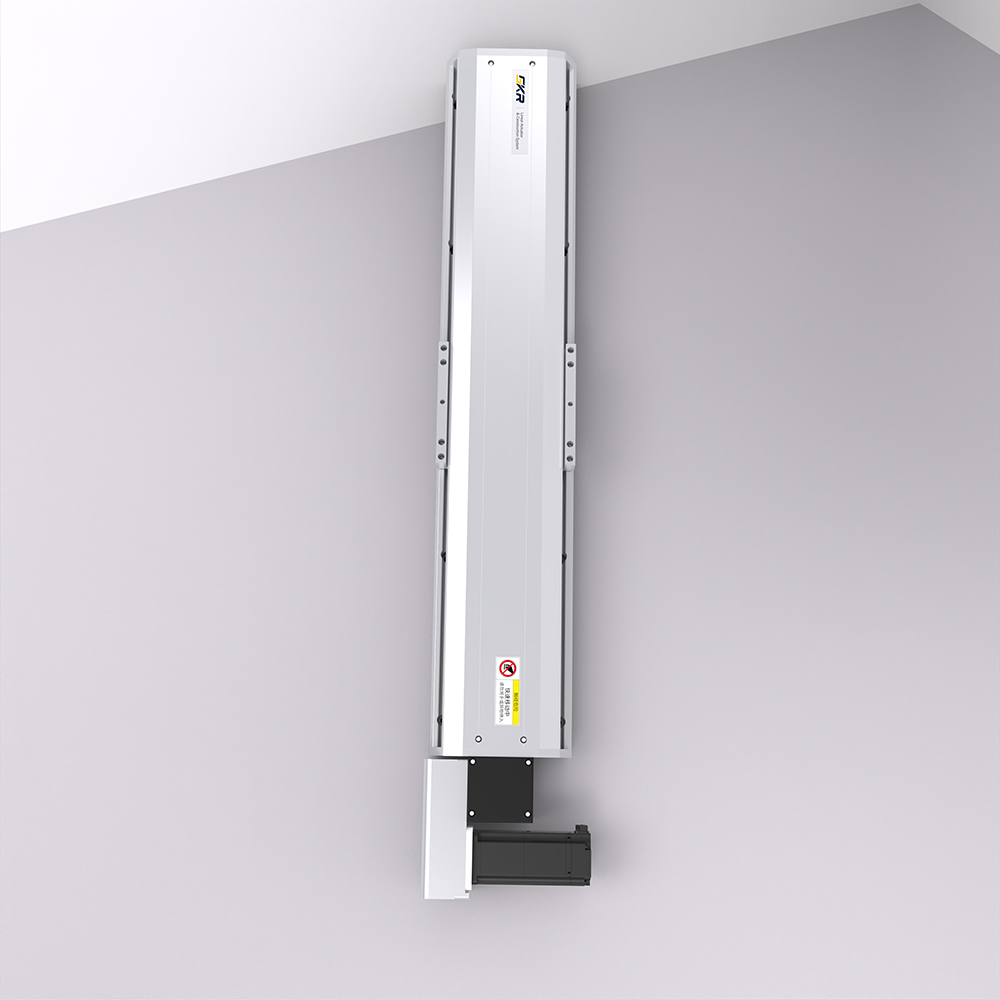

〔SKR〕Linear Module
PBS170S Series, brand new synchronous belt semi-closed module
- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm
- Horizontal Handling Weight65kg
- Vertical Handling WeightThis series is not supported
- Motor Connection Method

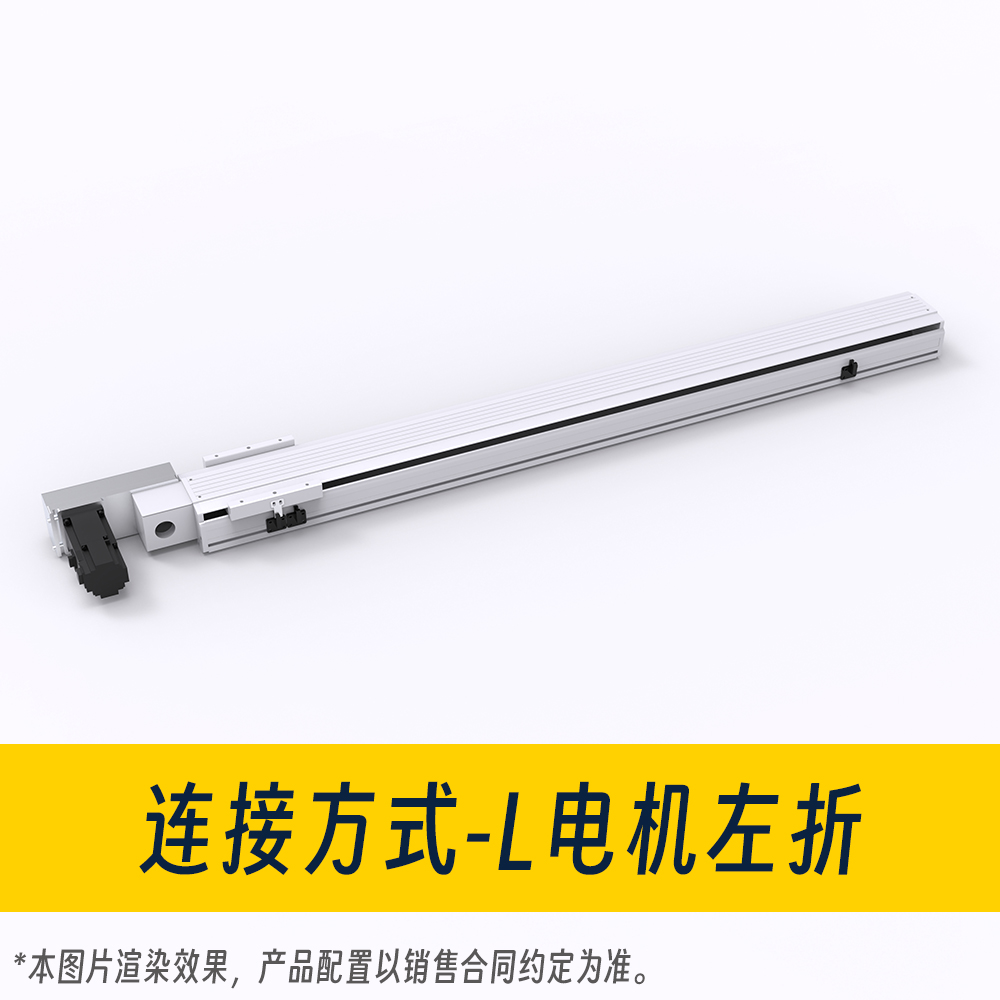

L Motor Left Bend

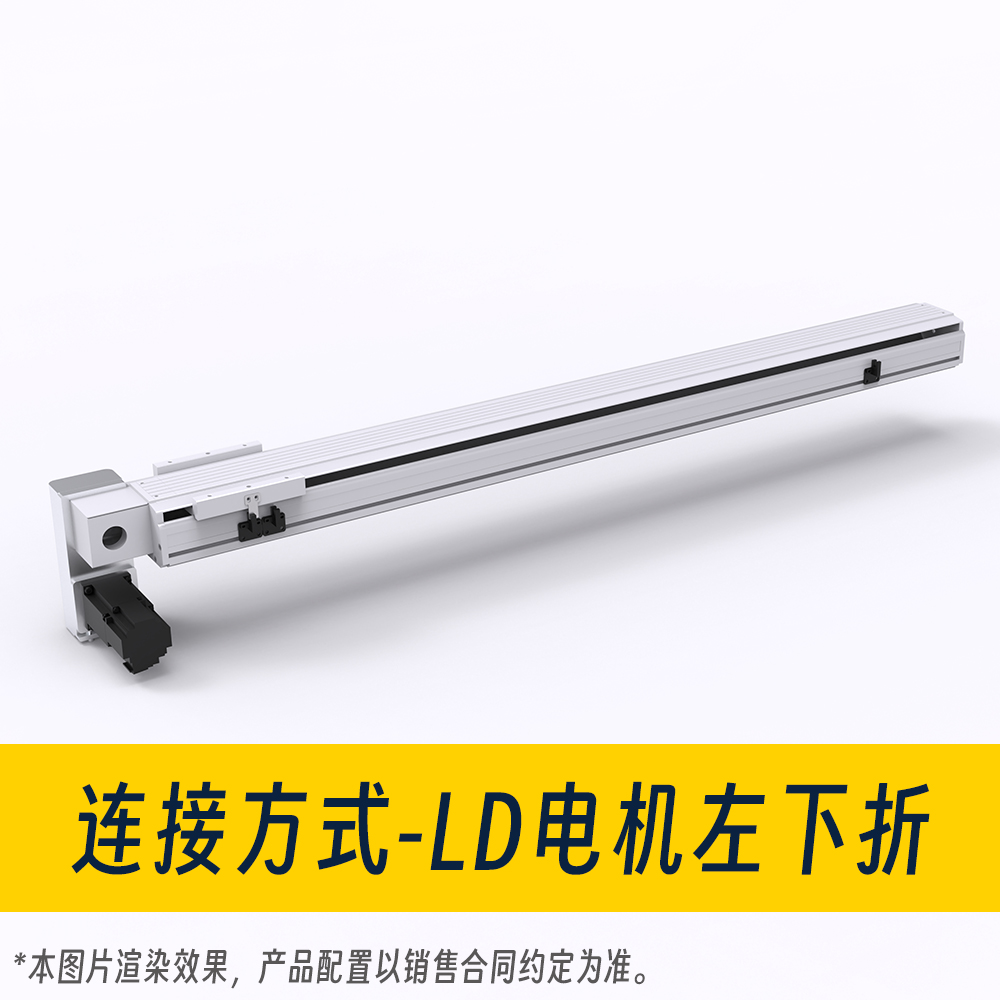

LDMotor bottom left fold

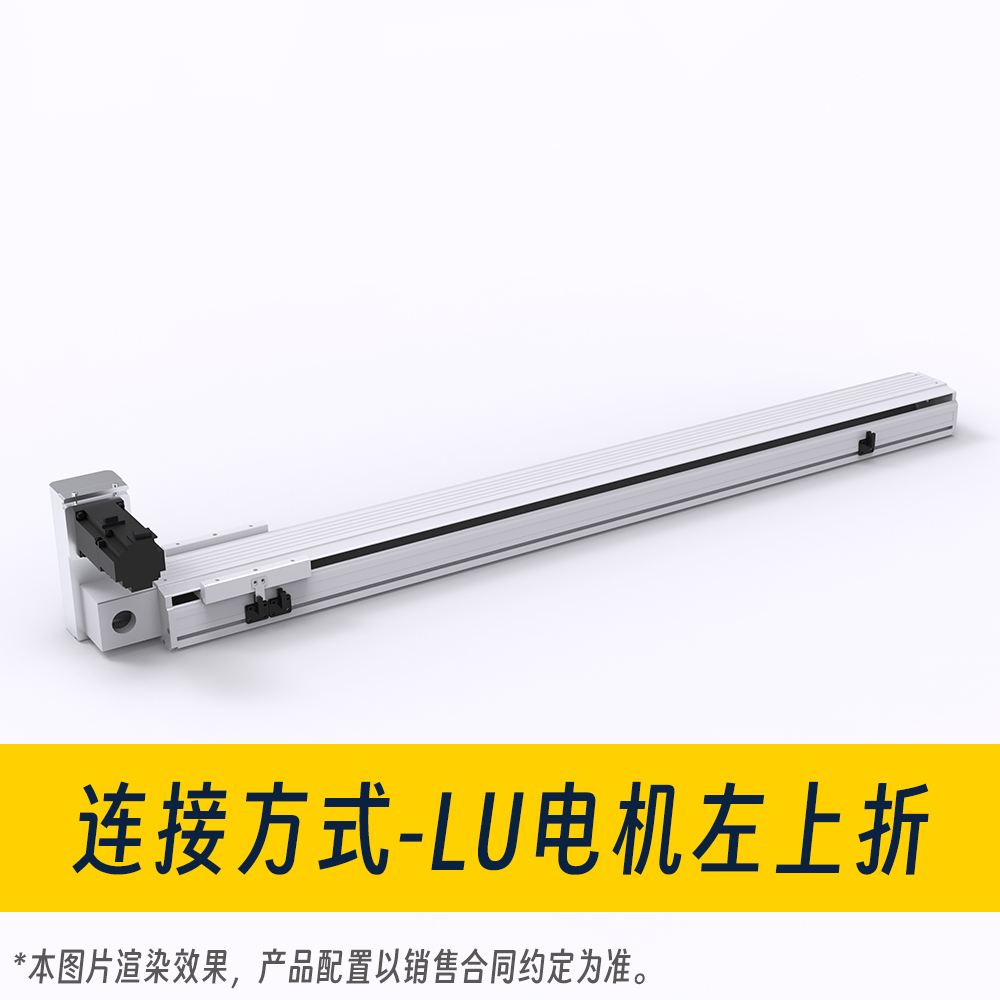

LUMotor top left fold

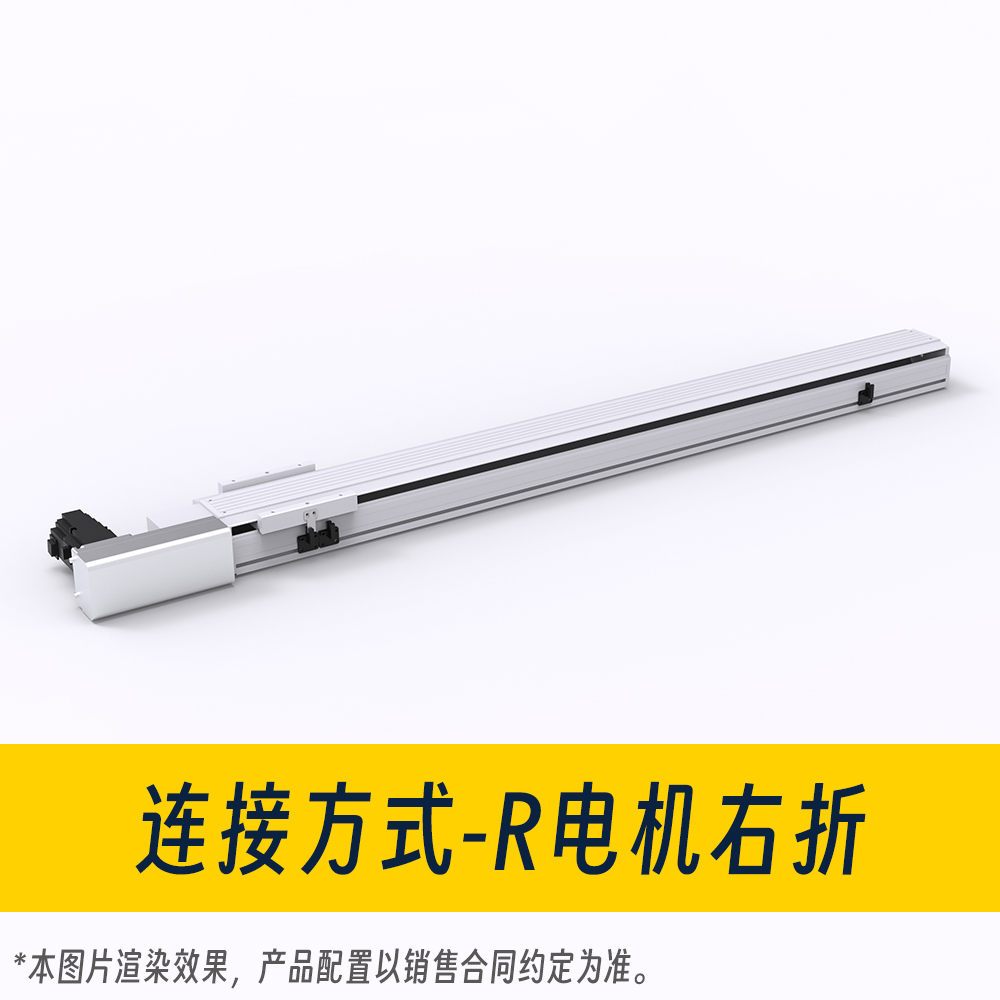

R Motor Right Bend

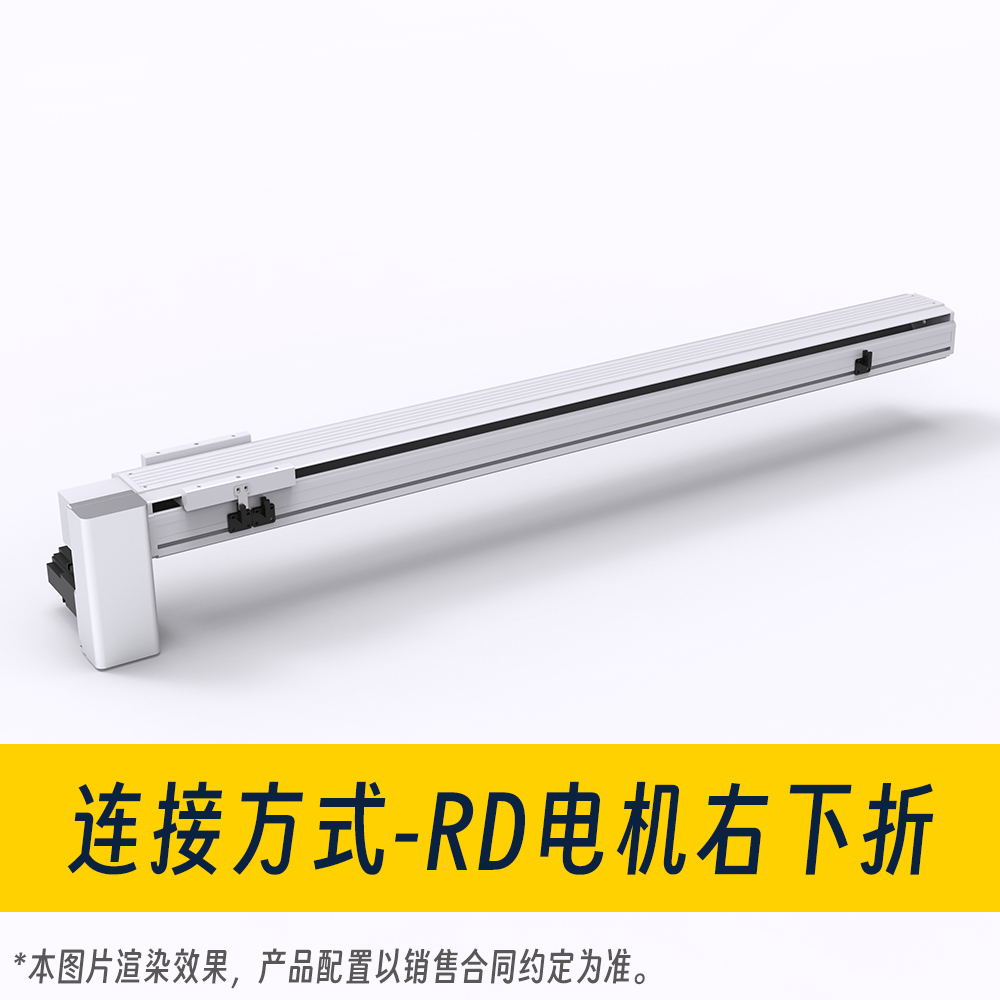

RDMotor bottom right fold

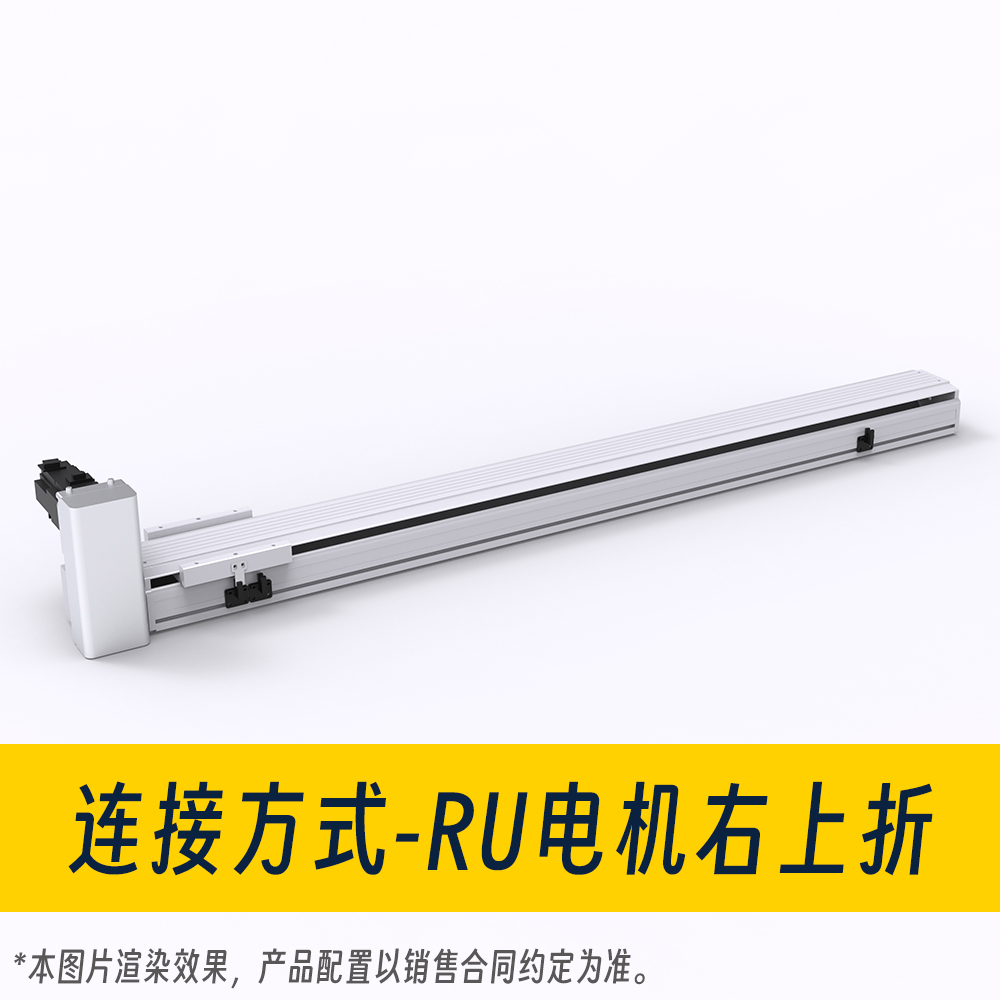

RUMotor top right fold - Linear Guide Model20×15-2pcs
- Body Size Reference Width:170mm， Height:108mm
- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
Product Description
PBS SeriesOther Products
Here are other models in this series！
- View Details
PBS220 Series, brand new synchronous belt semi-closed module
- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm
- Horizontal Handling Weight85kg
PBS’s largest specification synchronous belt product, with a base width of 220mm
- View Details
PBS140S Series, brand new synchronous belt semi-closed module
- Repeatability±0.04mm
- Synchronous Belt Diameter20mm
- Lead40mm
- Horizontal Handling Weight35kg
PBS140 upgraded model, overall height increased. Resolving Interference
- View Details
PBS200 Series, brand new synchronous belt semi-closed module
- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm
- Horizontal Handling Weight85kg
NBS175 improved upgrade product, with consistent base width
- View Details
PBS170 Series, brand new synchronous belt semi-closed module
- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm
- Horizontal Handling Weight65kg
PBS170 large specification synchronous belt product
