〔SKR〕Linear Module

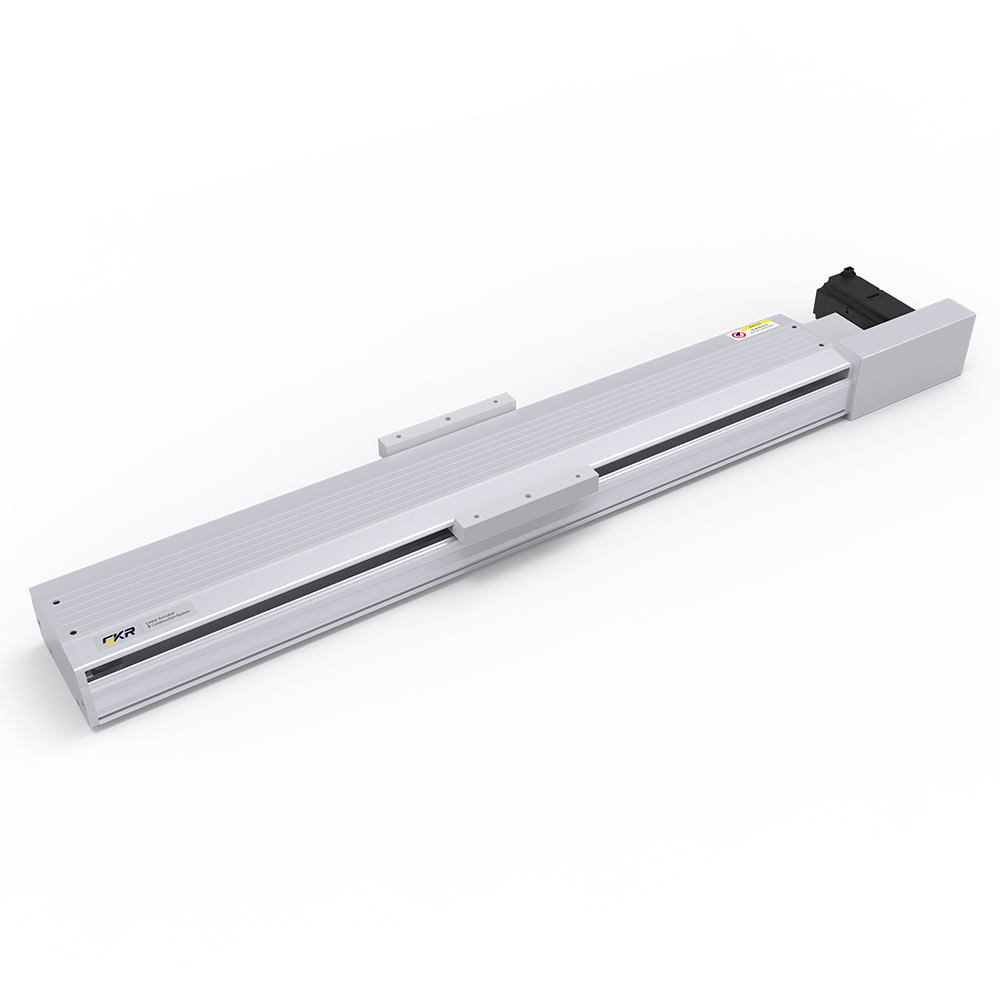

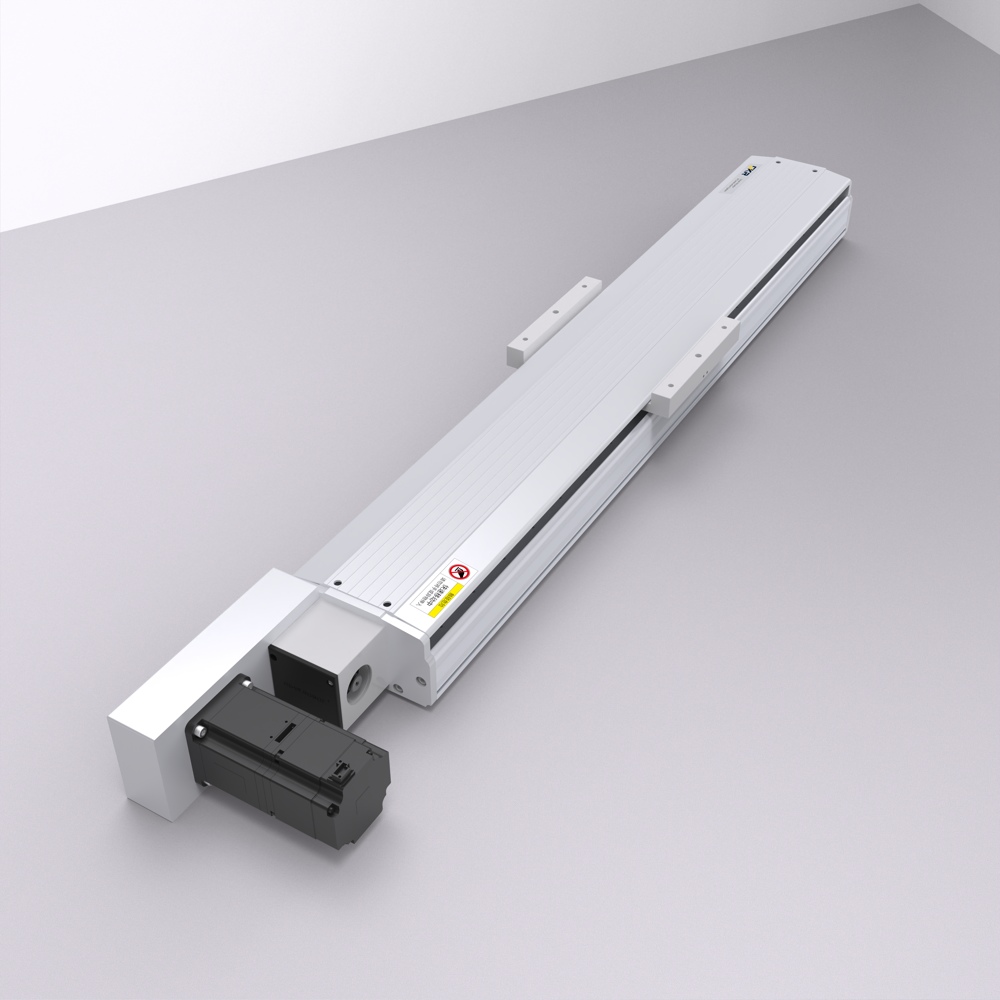

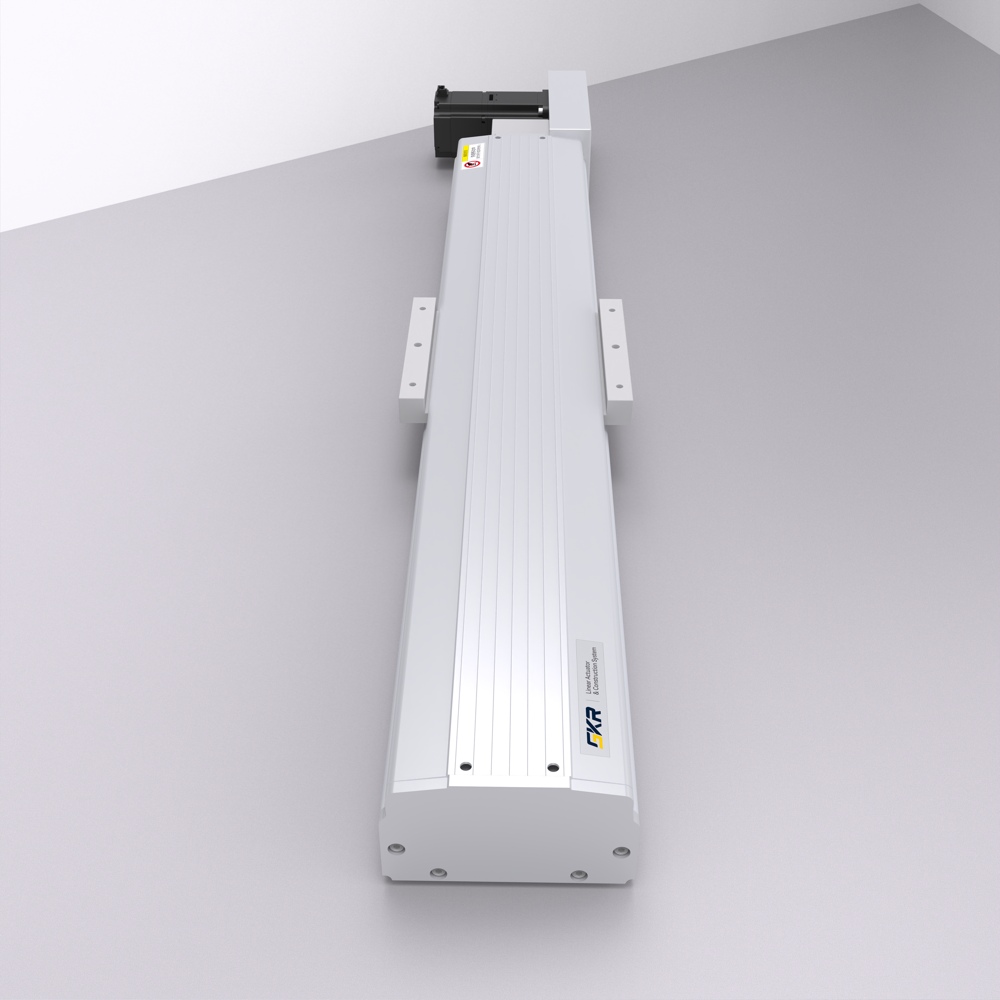

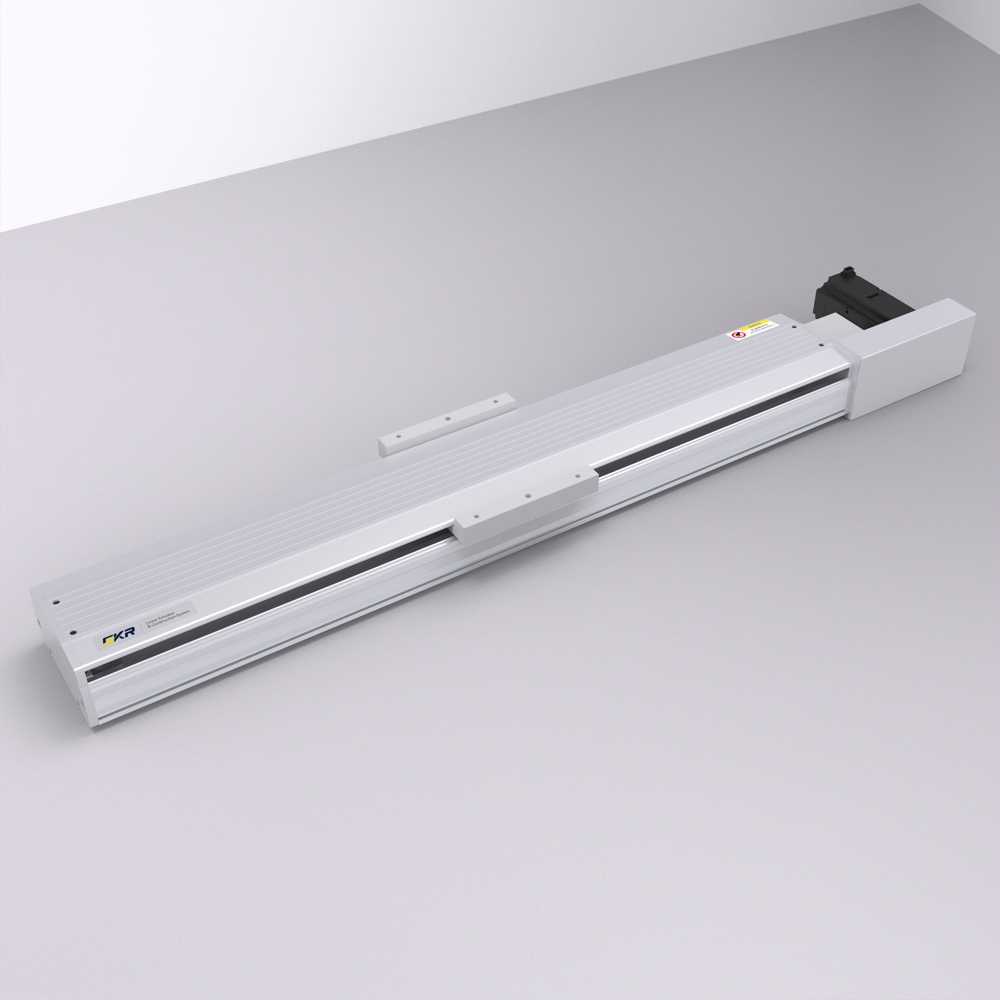

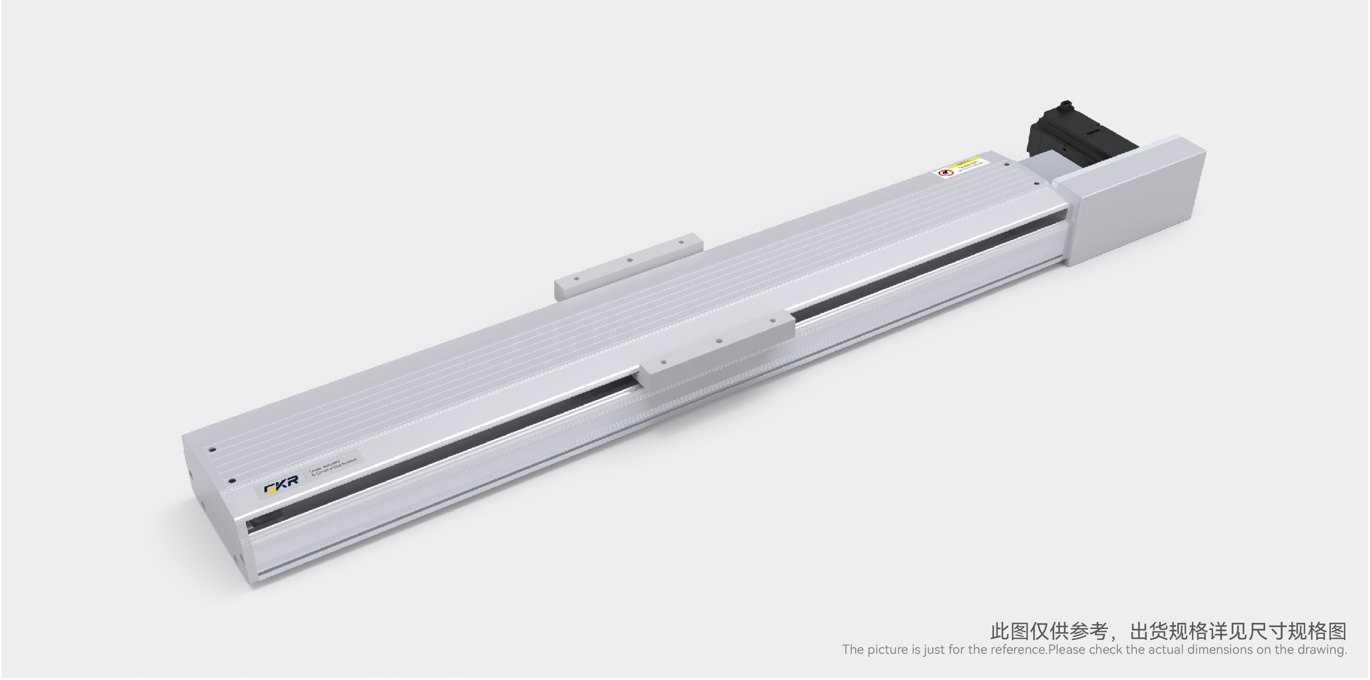

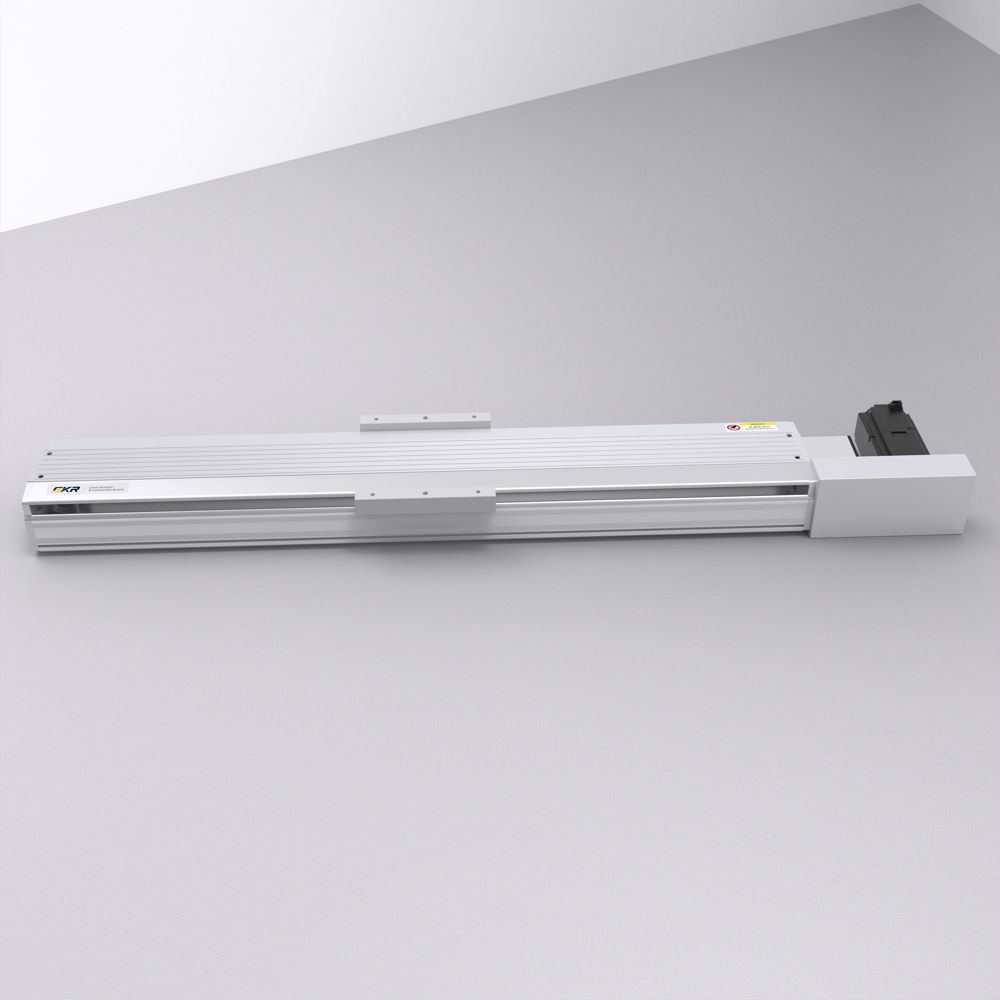

PBS200 Series, brand new synchronous belt semi-closed module

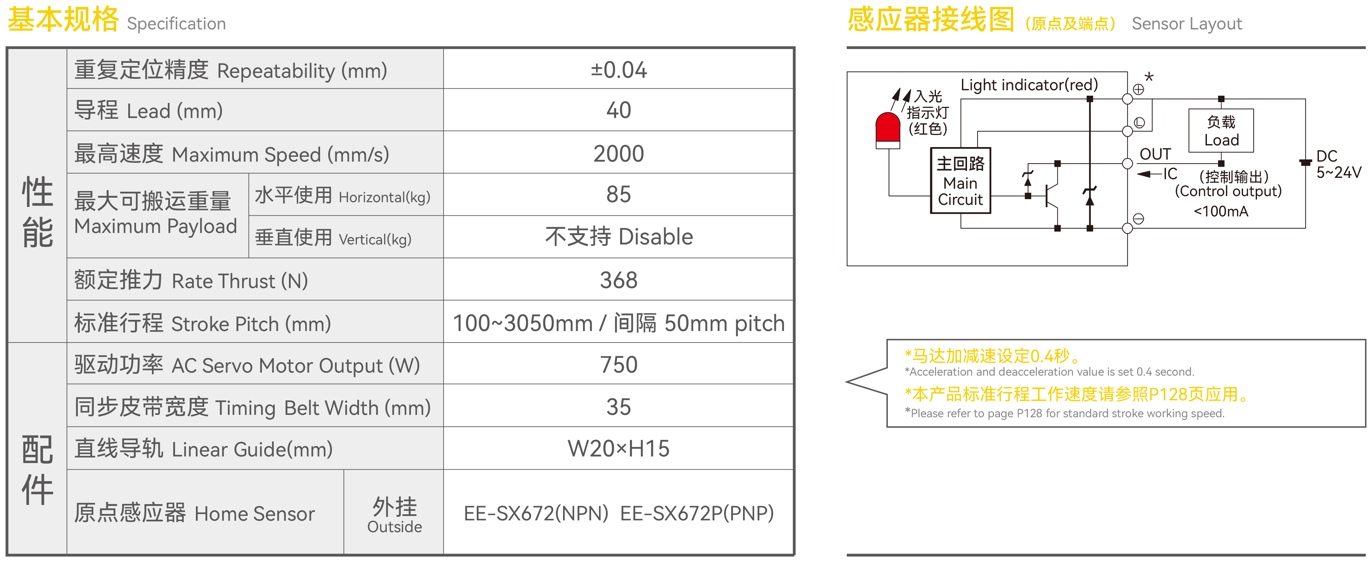

NBS175 improved upgrade product, with consistent base width.- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm

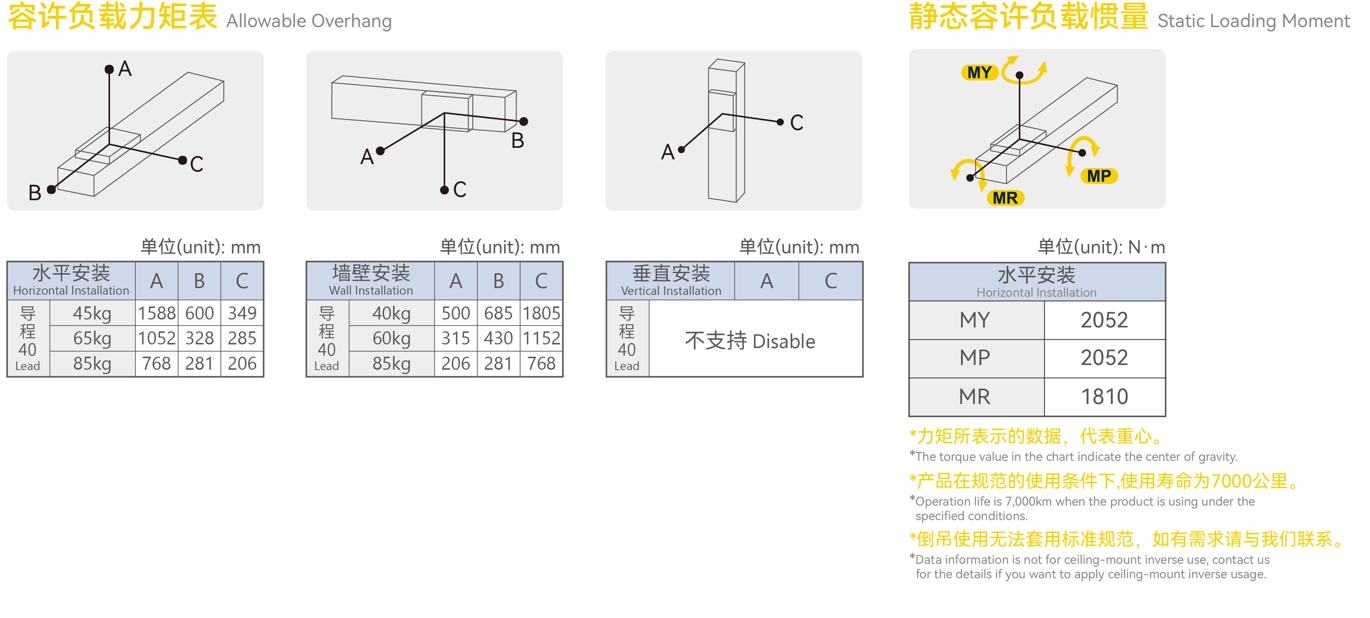

- Horizontal Handling Weight85kg
- Vertical Handling WeightThis series is not supported

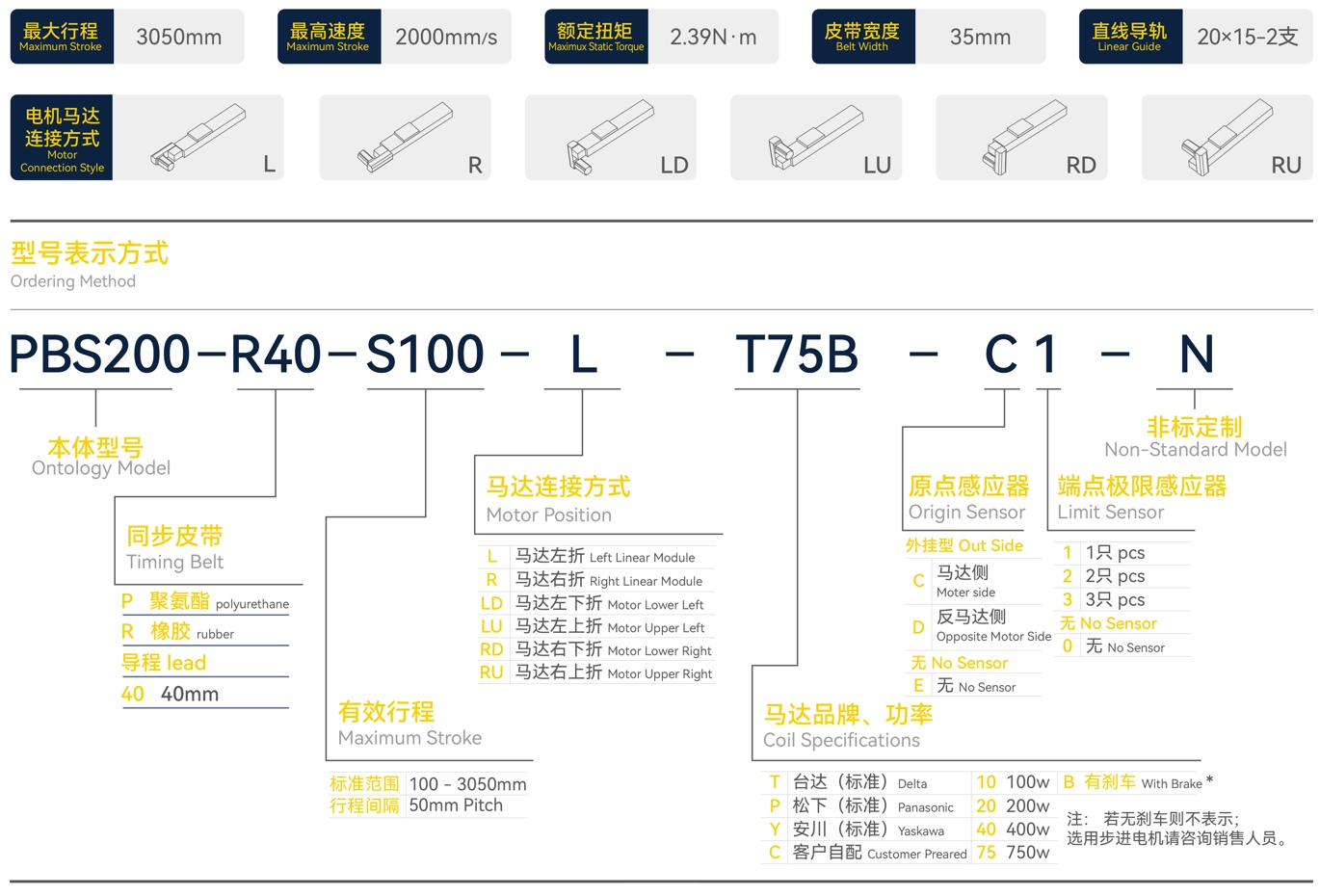

- Motor Connection Method

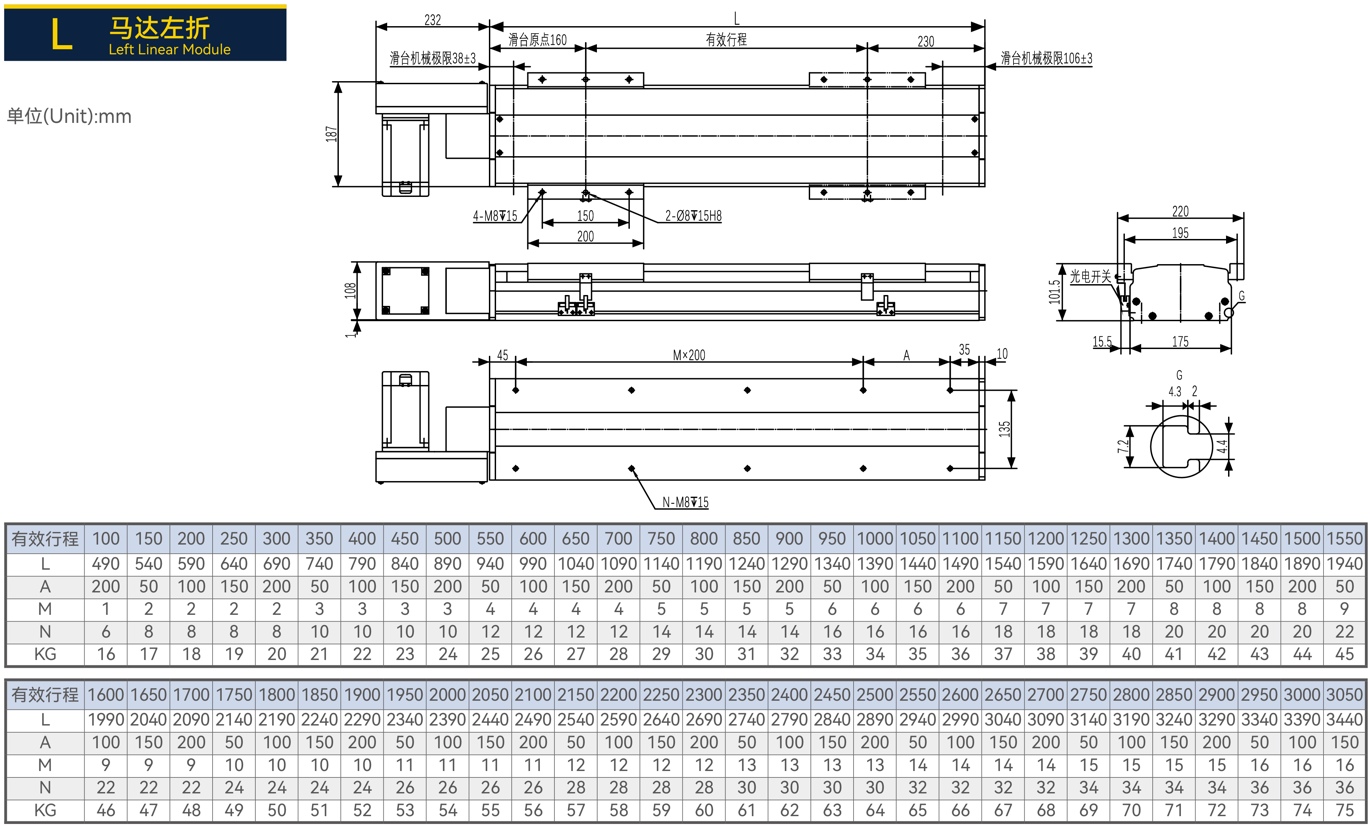

L Motor Left Bend

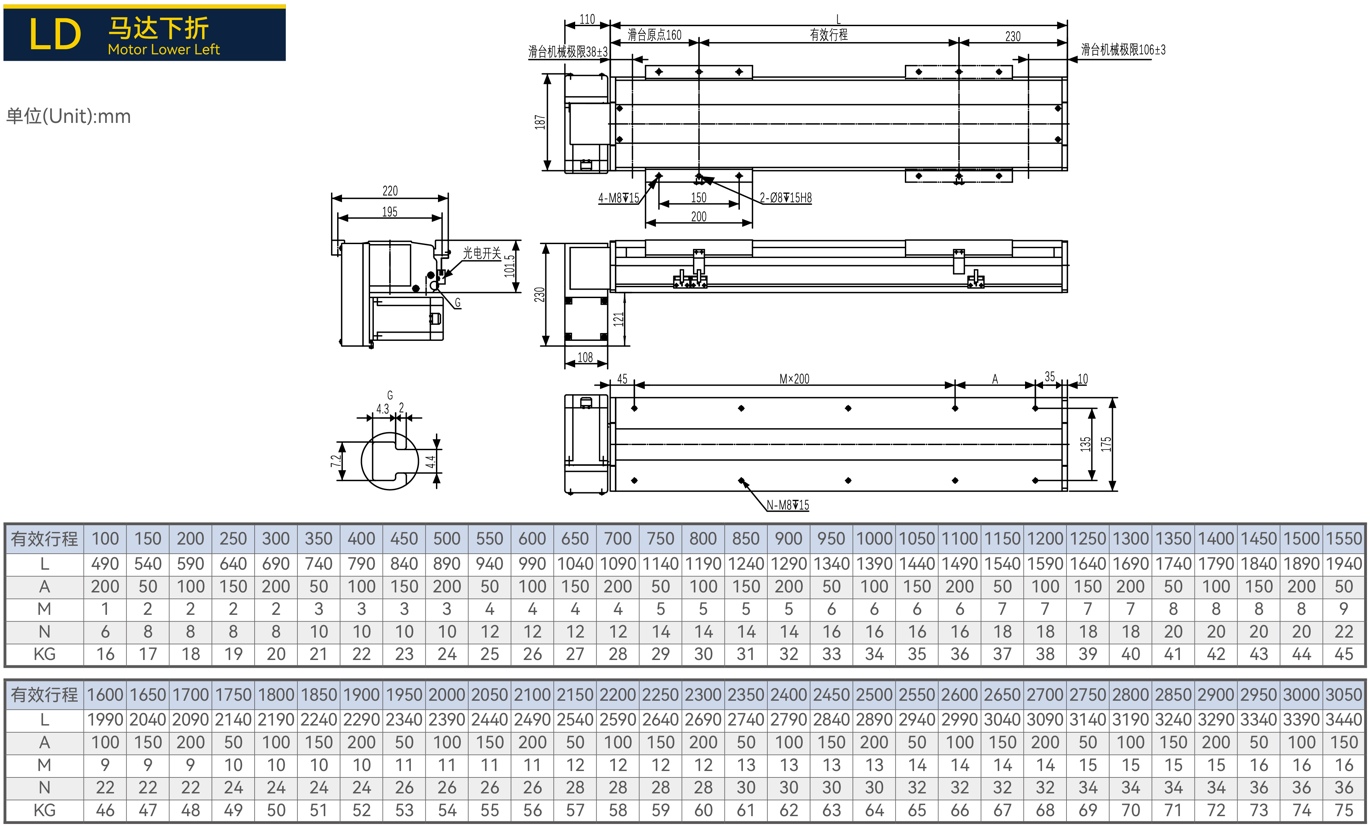

LDMotor bottom left fold

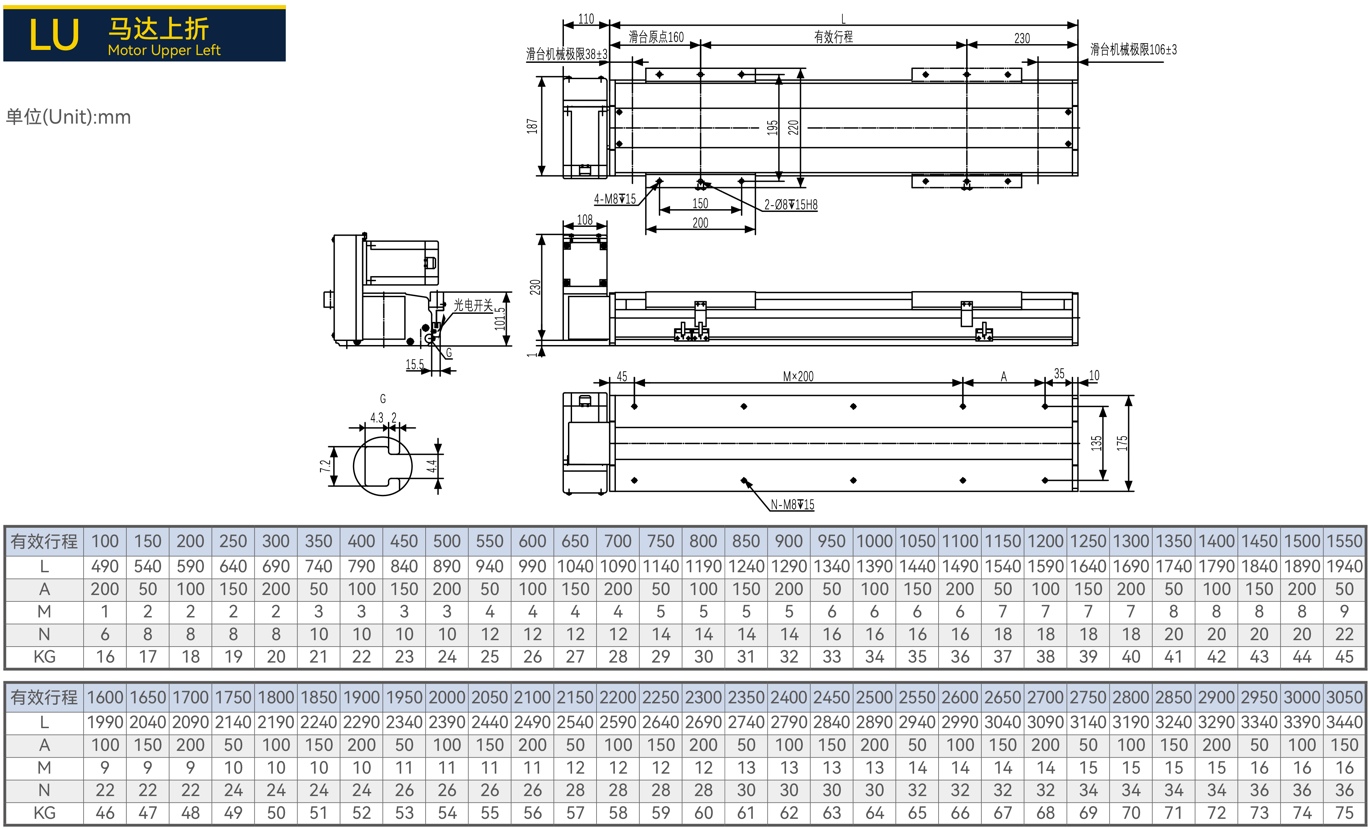

LUMotor top left fold

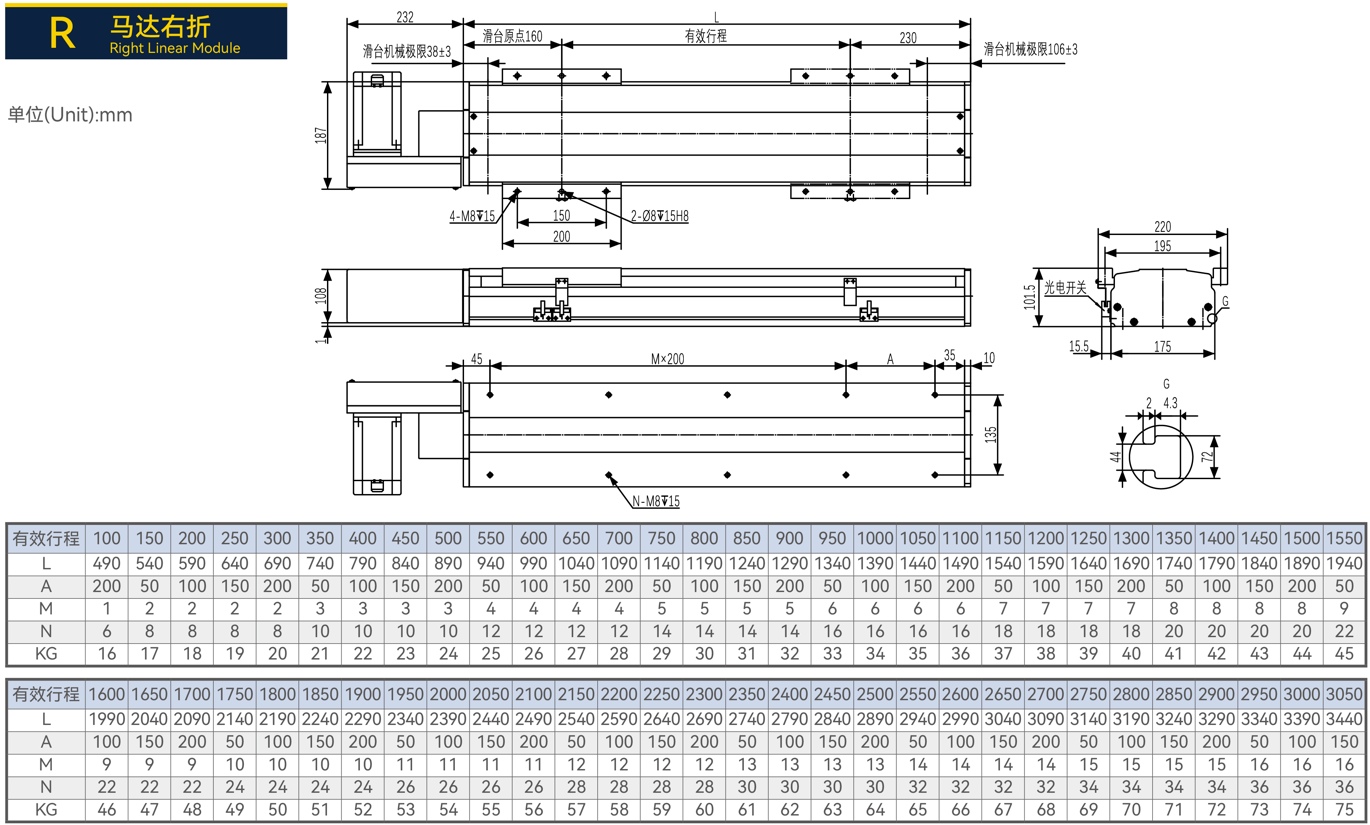

R Motor Right Bend
RDMotor bottom right fold
RUMotor top right fold - Linear Guide Model20×15-2pcs
- Body Size Reference Width:175mm， Height:101.5mm

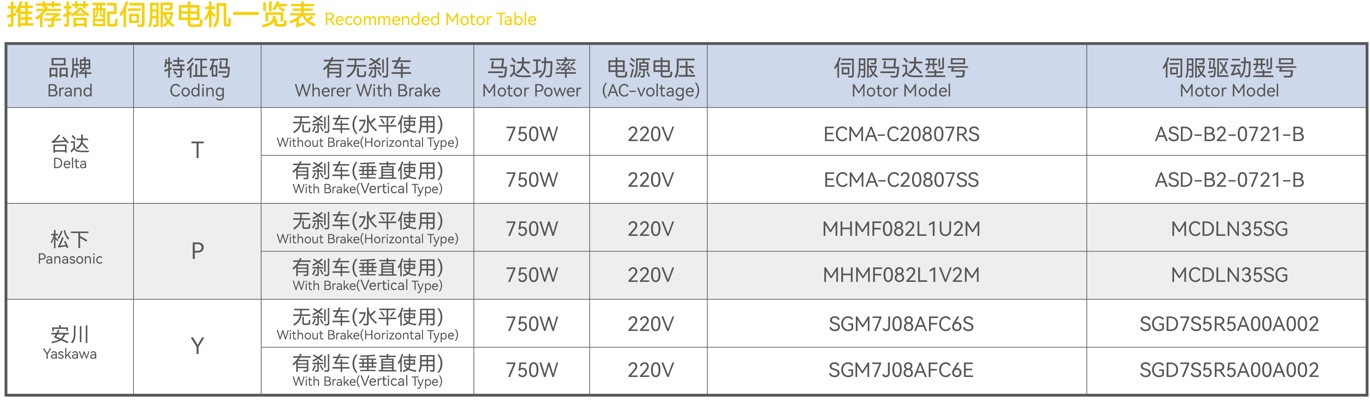

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
Product Description
