〔SKR〕Linear Module

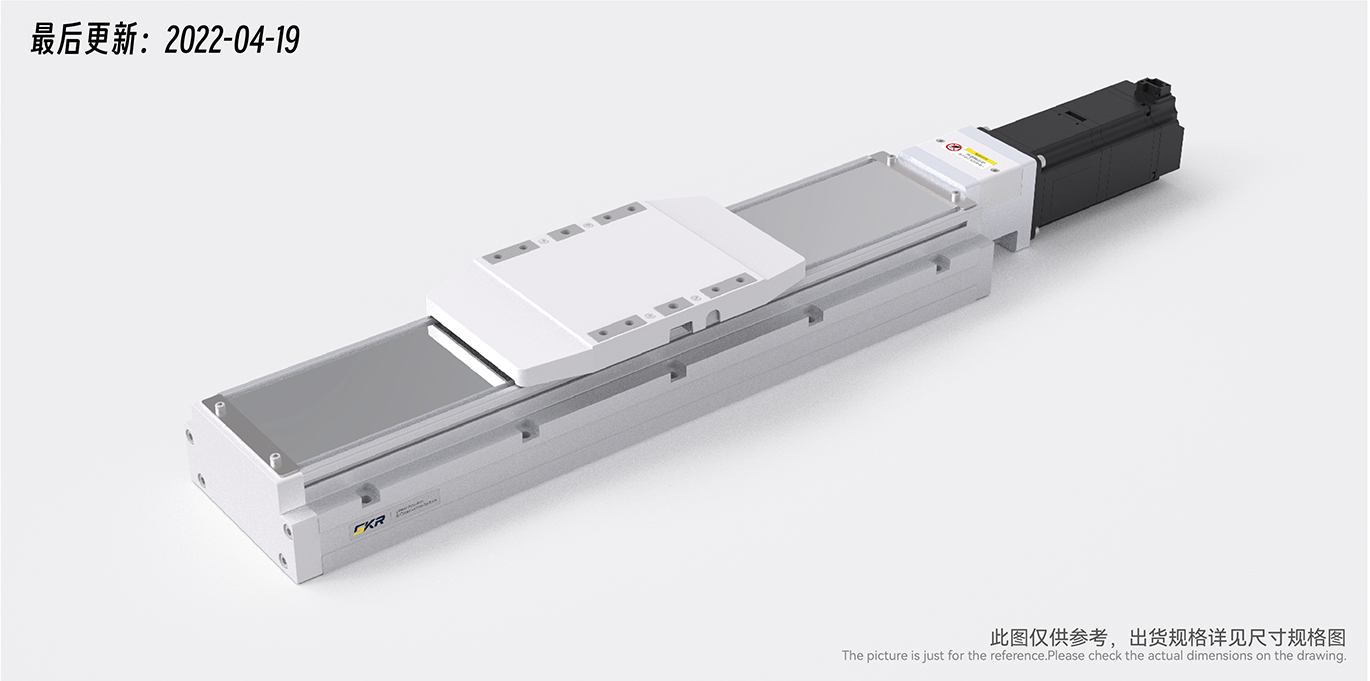

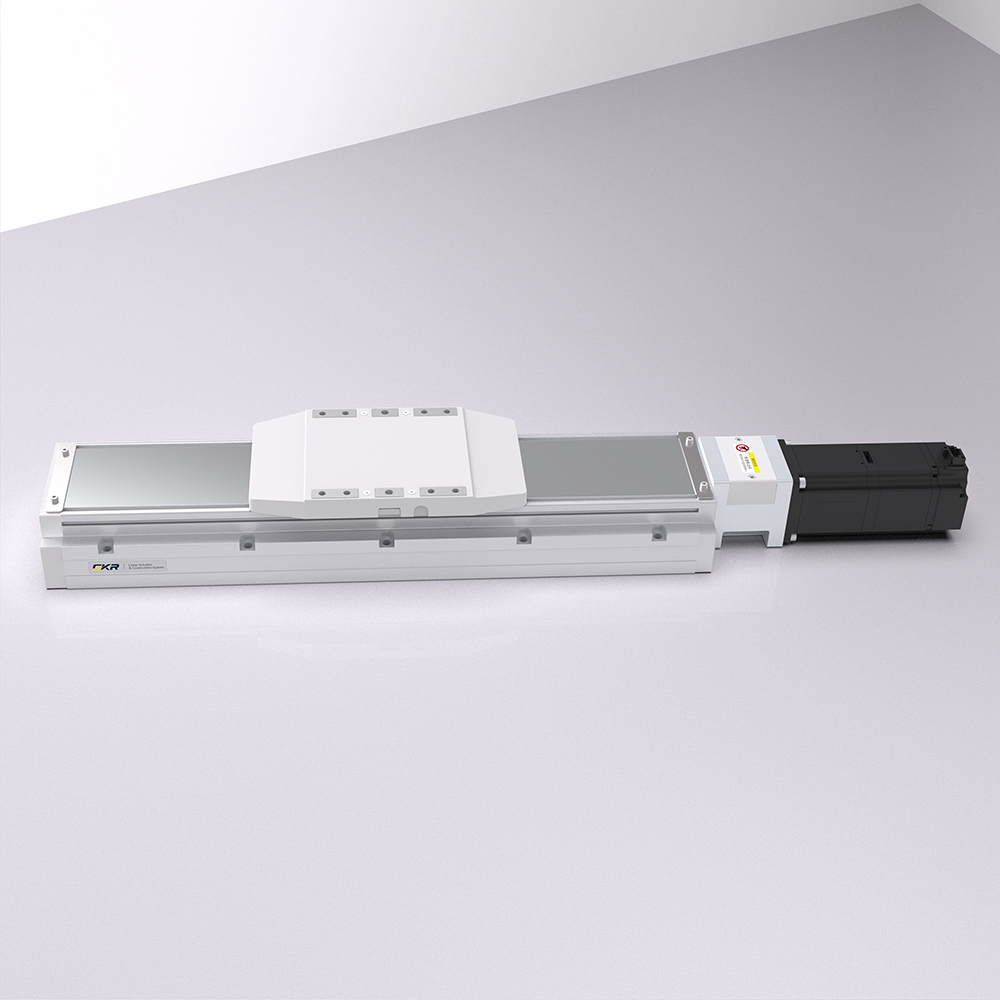

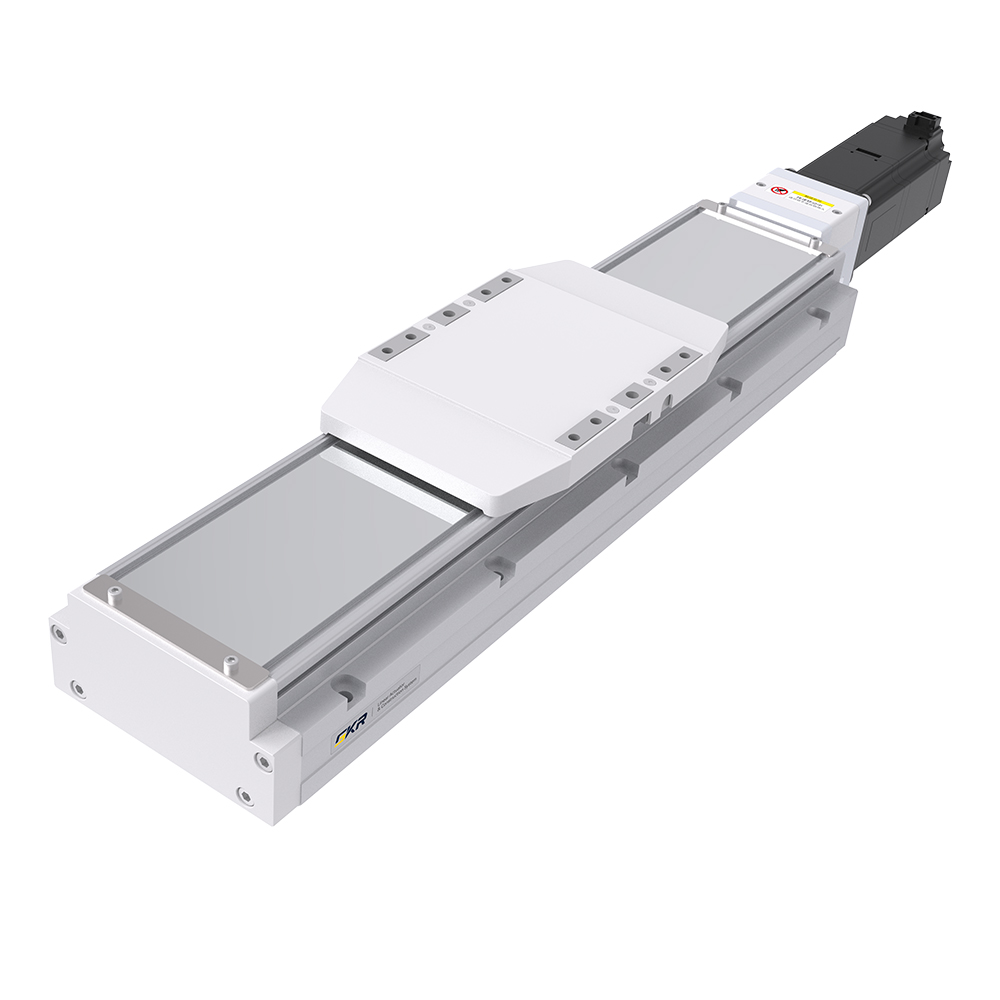

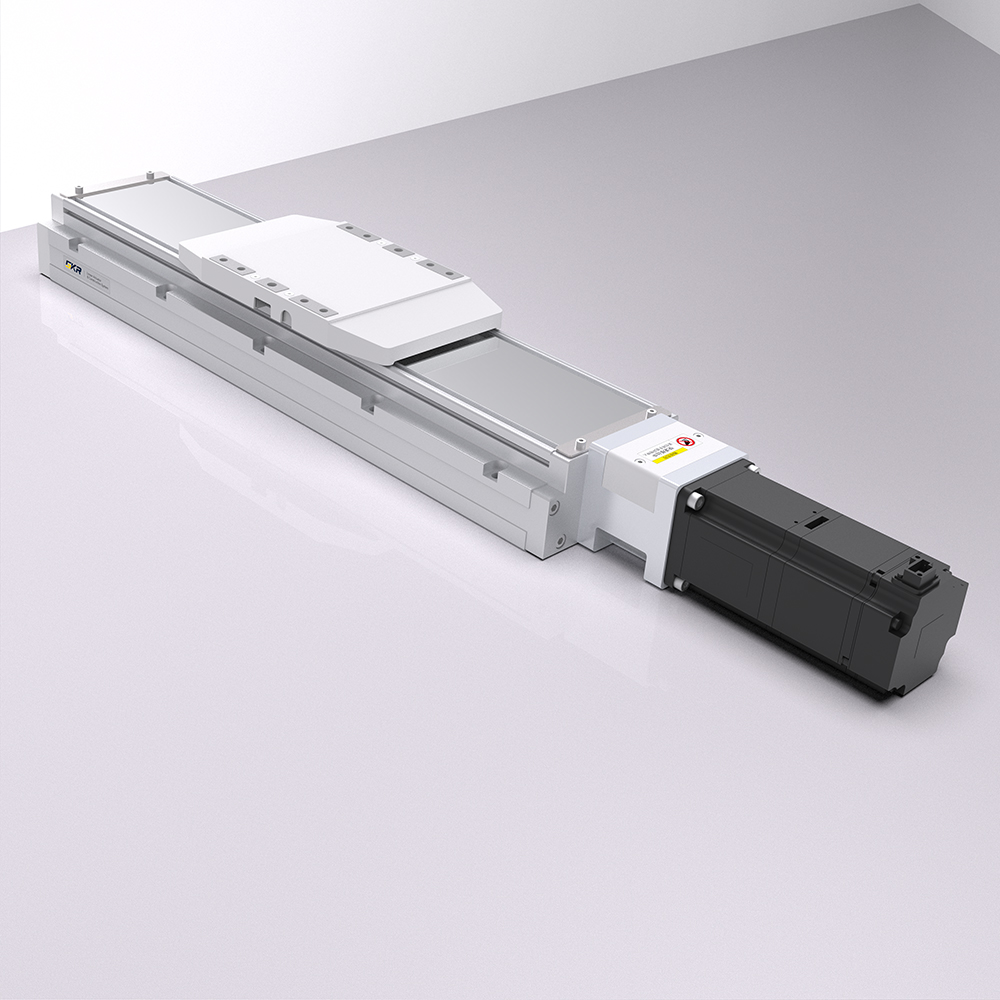

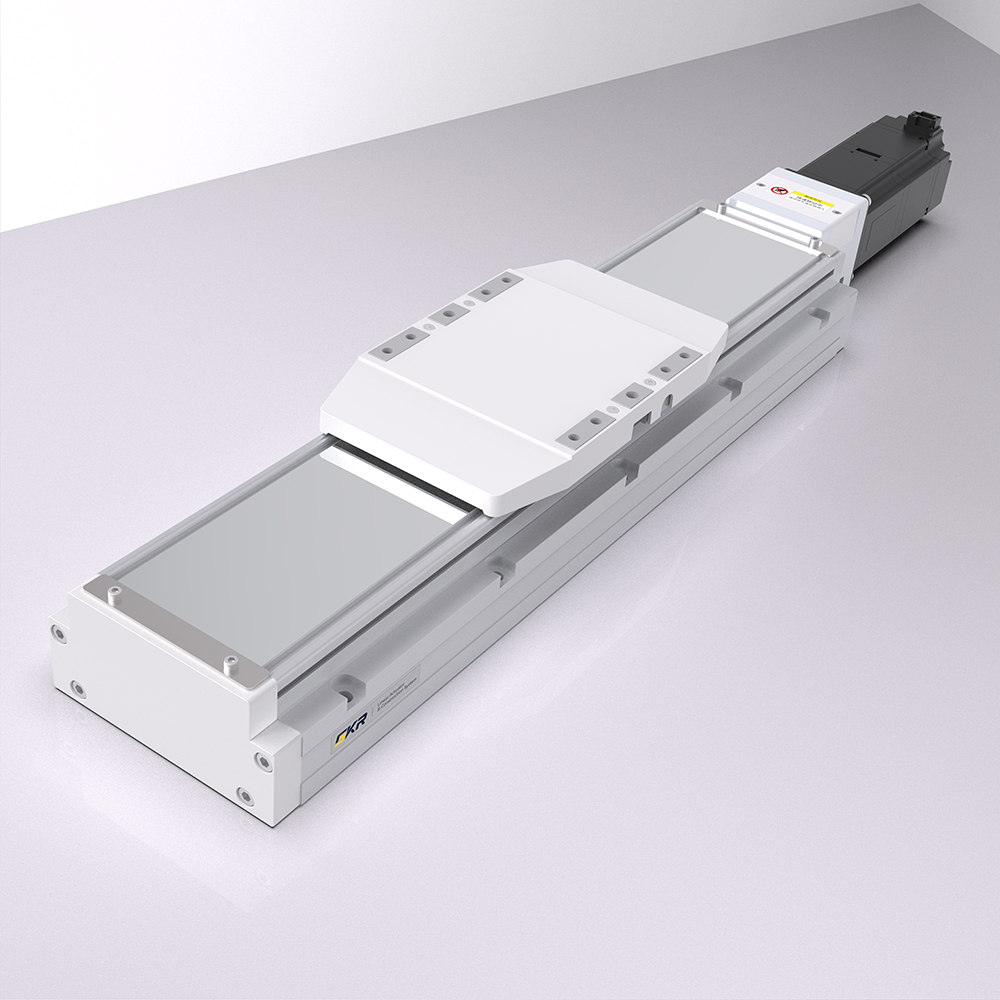

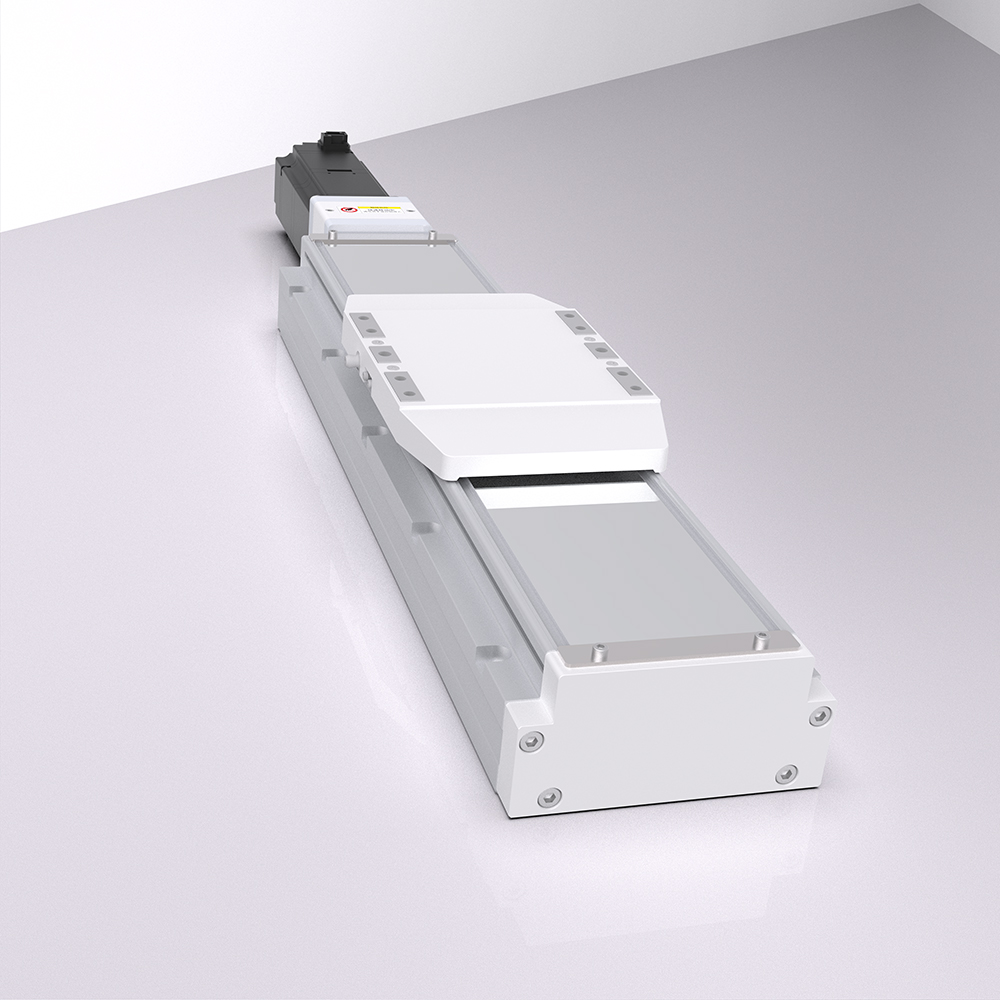

PSH12 series, a brand new fully enclosed slide module

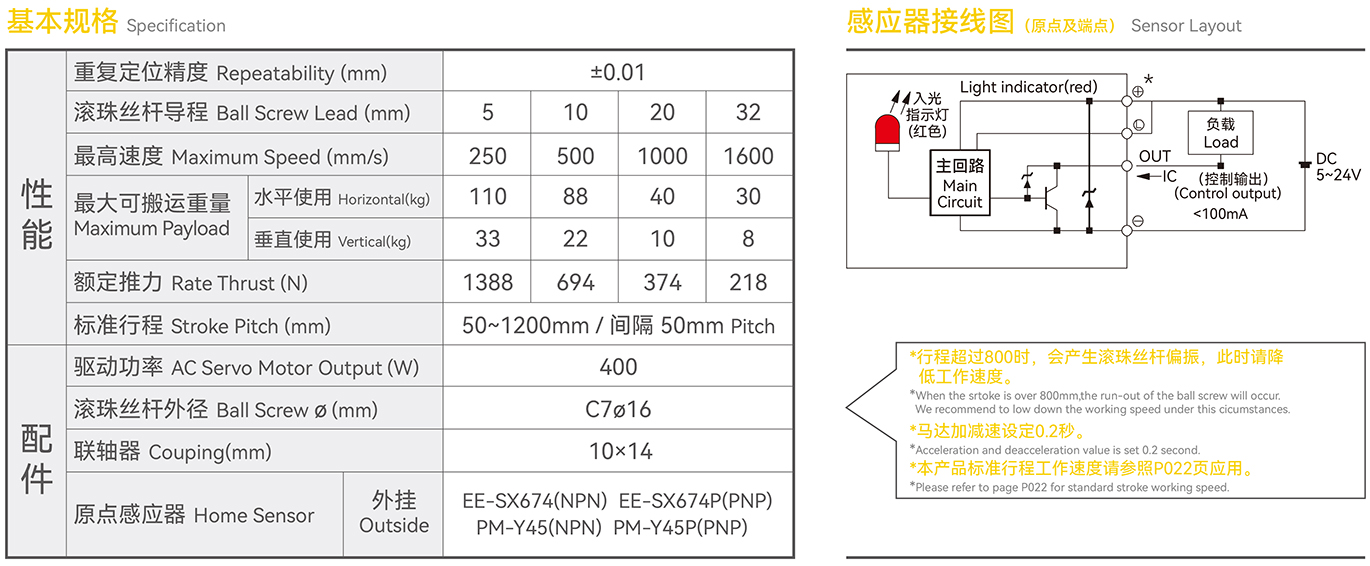

Embedded linear slide of large specifications, with carrying capacity equivalent to PSS140;- Repeatability±0.01mm
- Ball Screw øC7ø16
- Ball Screw Lead5mm/10mm/20mm/32mm

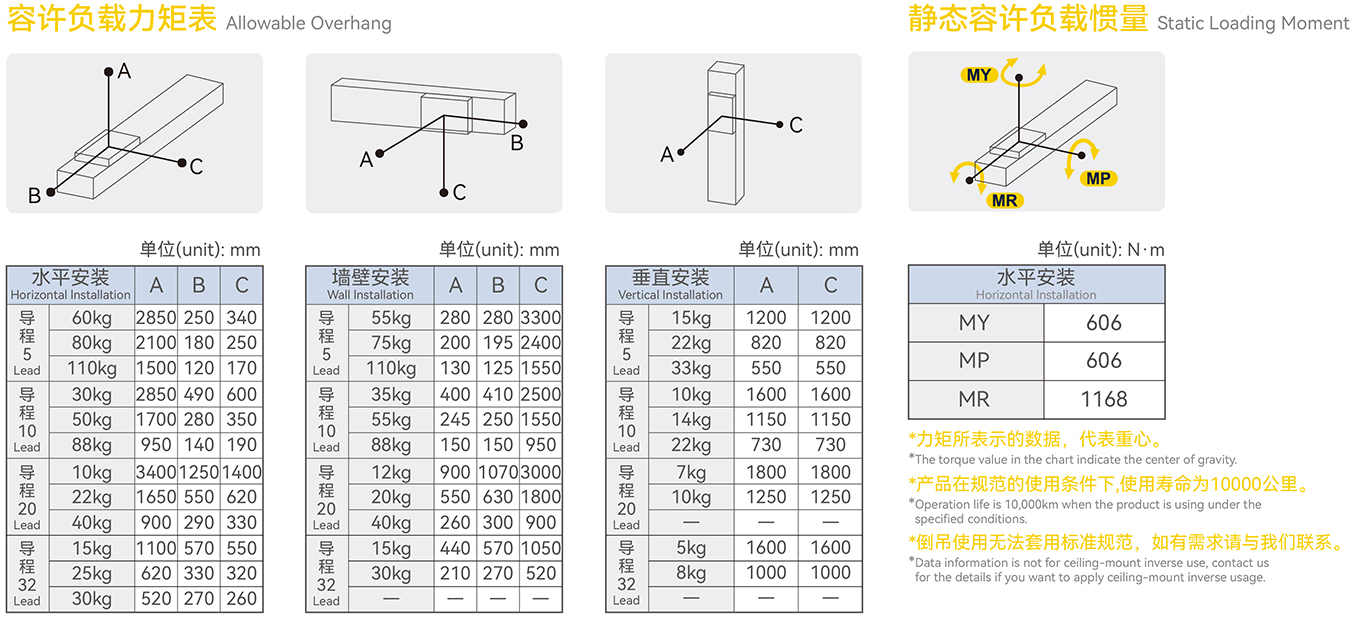

- Horizontal Handling Weight110kg/88kg/40kg/30kg
- Vertical Handling Weight33kg/22kg/10kg/8kg

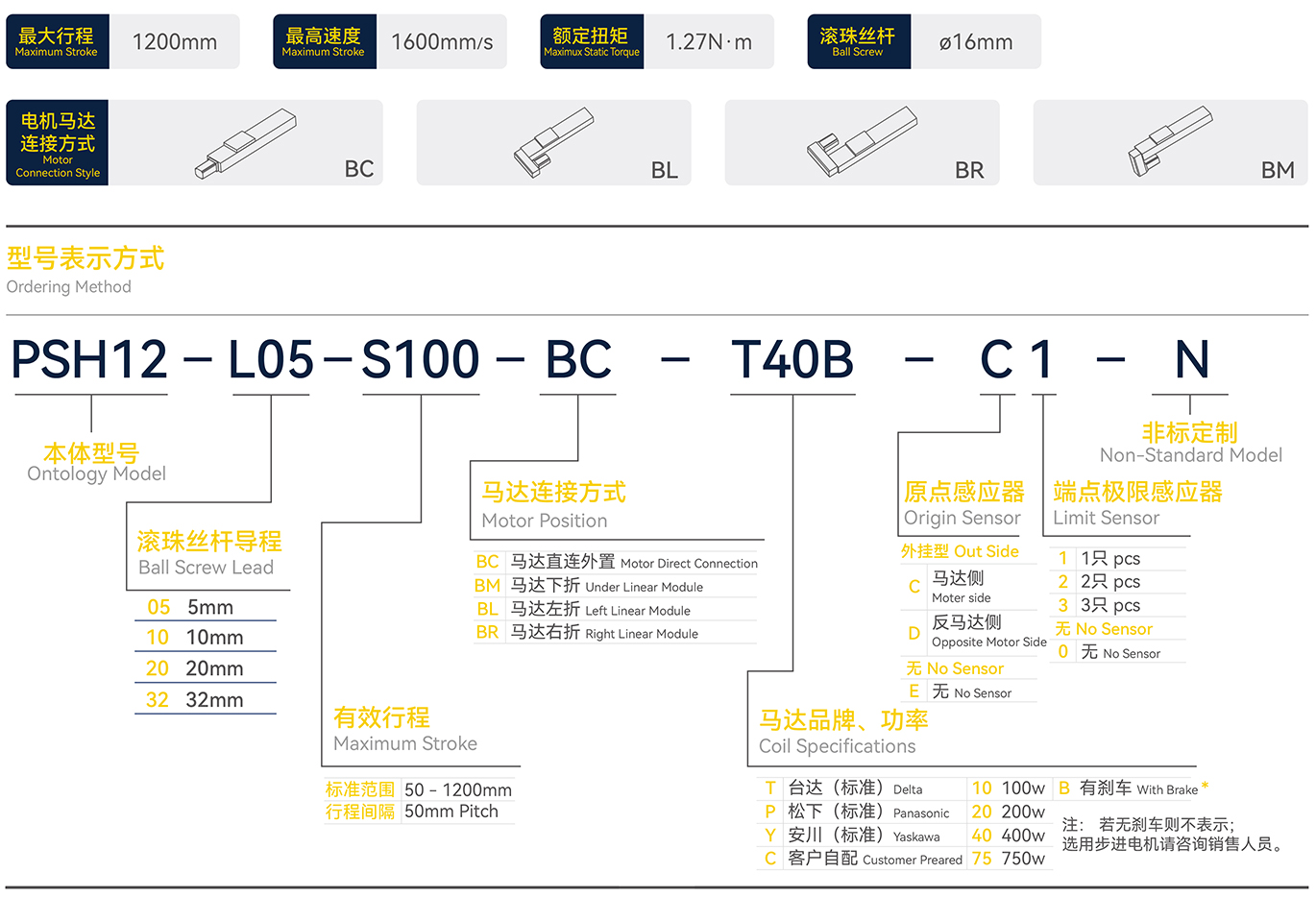

- Motor Connection Method

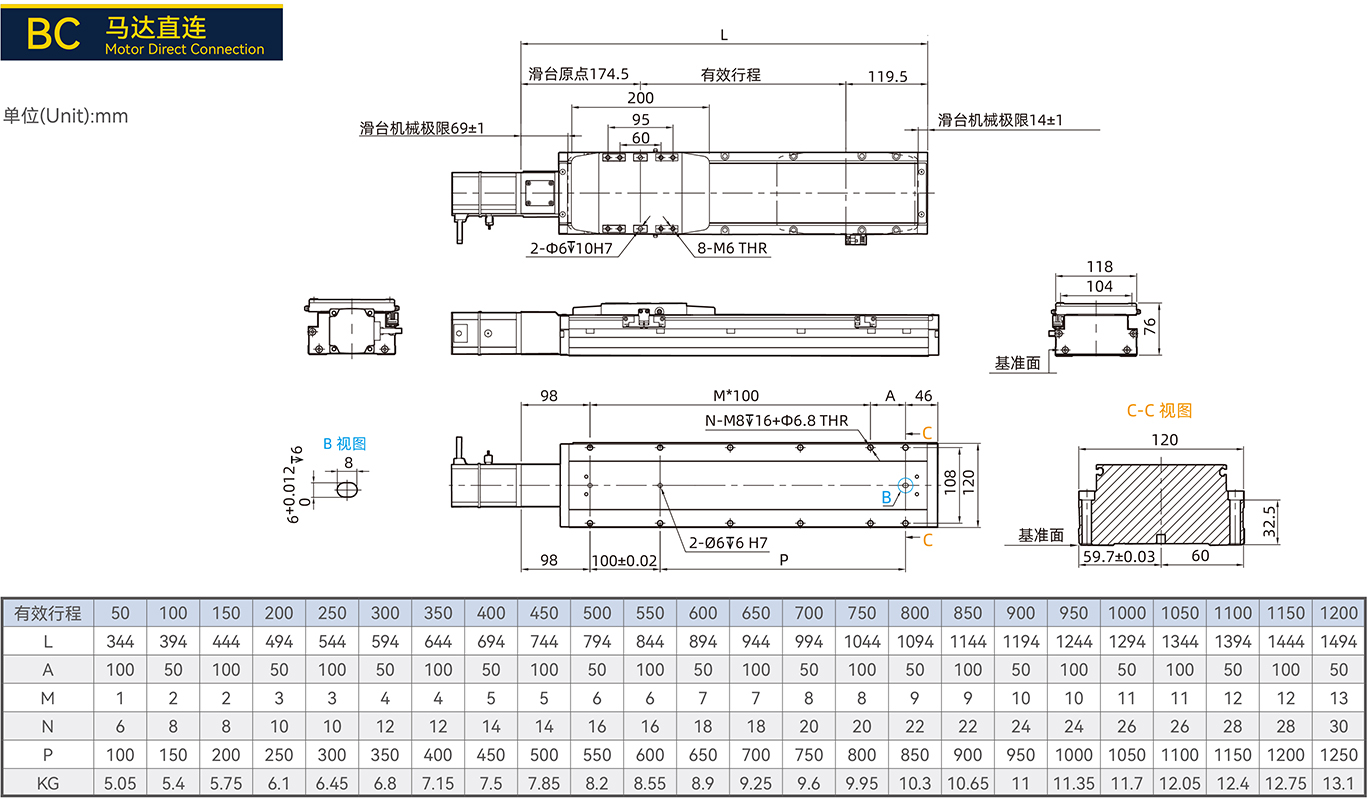

BC Direct Motor Connection

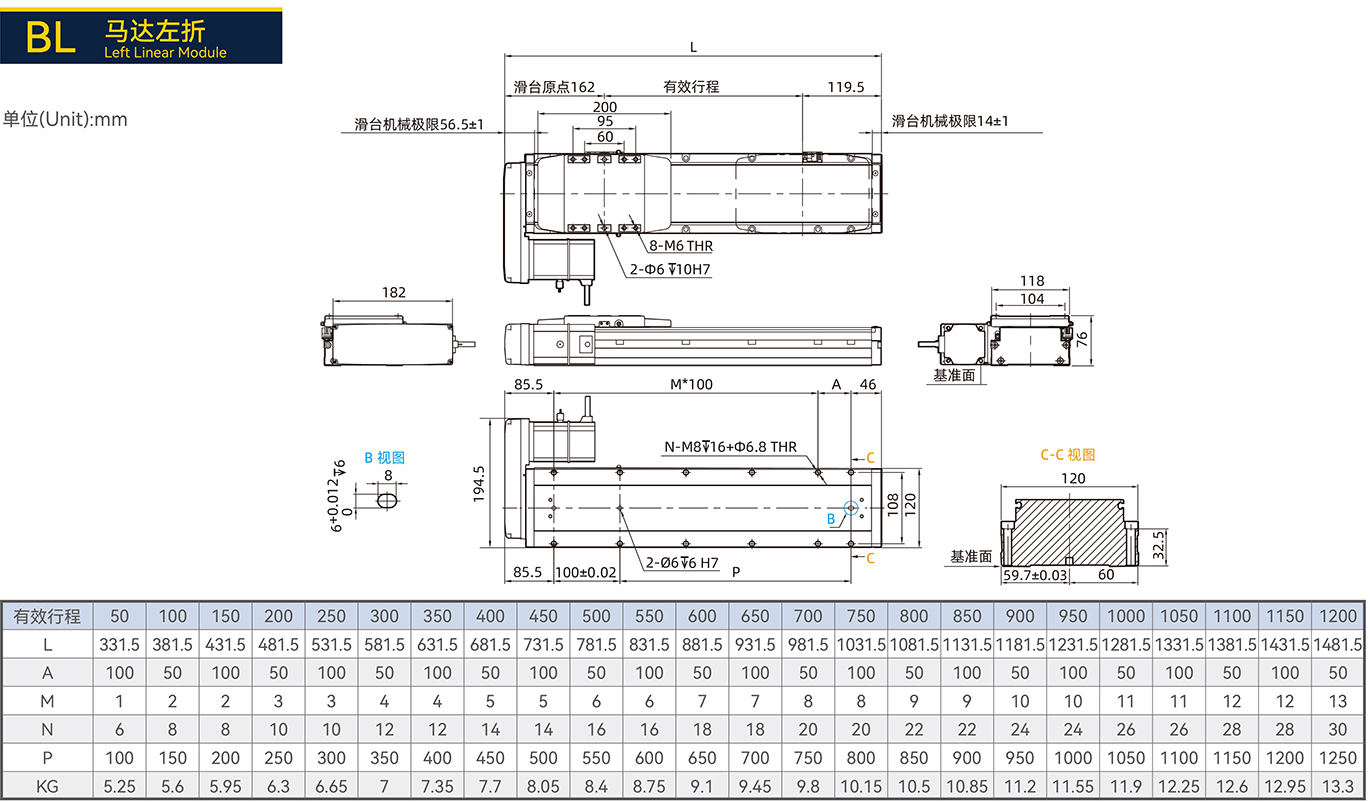

BL Motor Left Bend

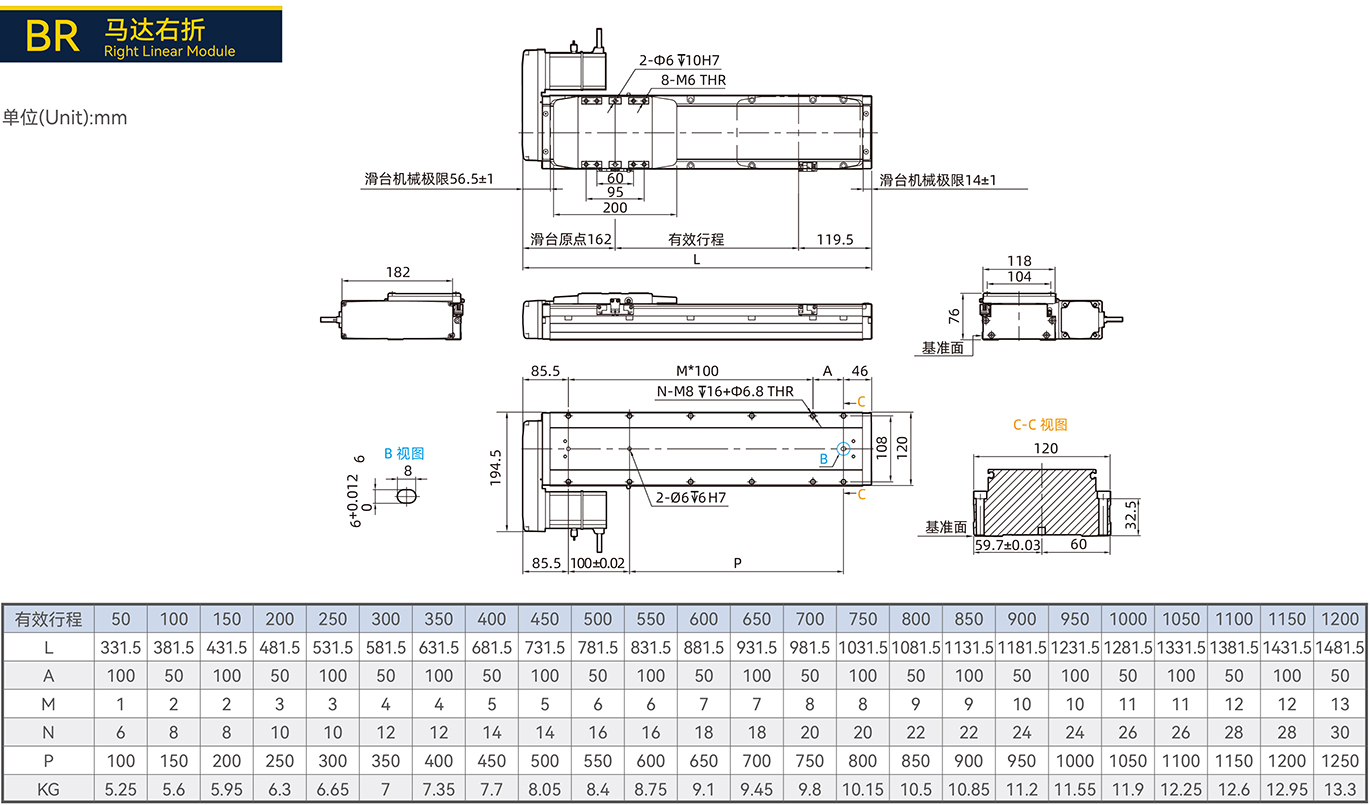

BR Motor Right Bend

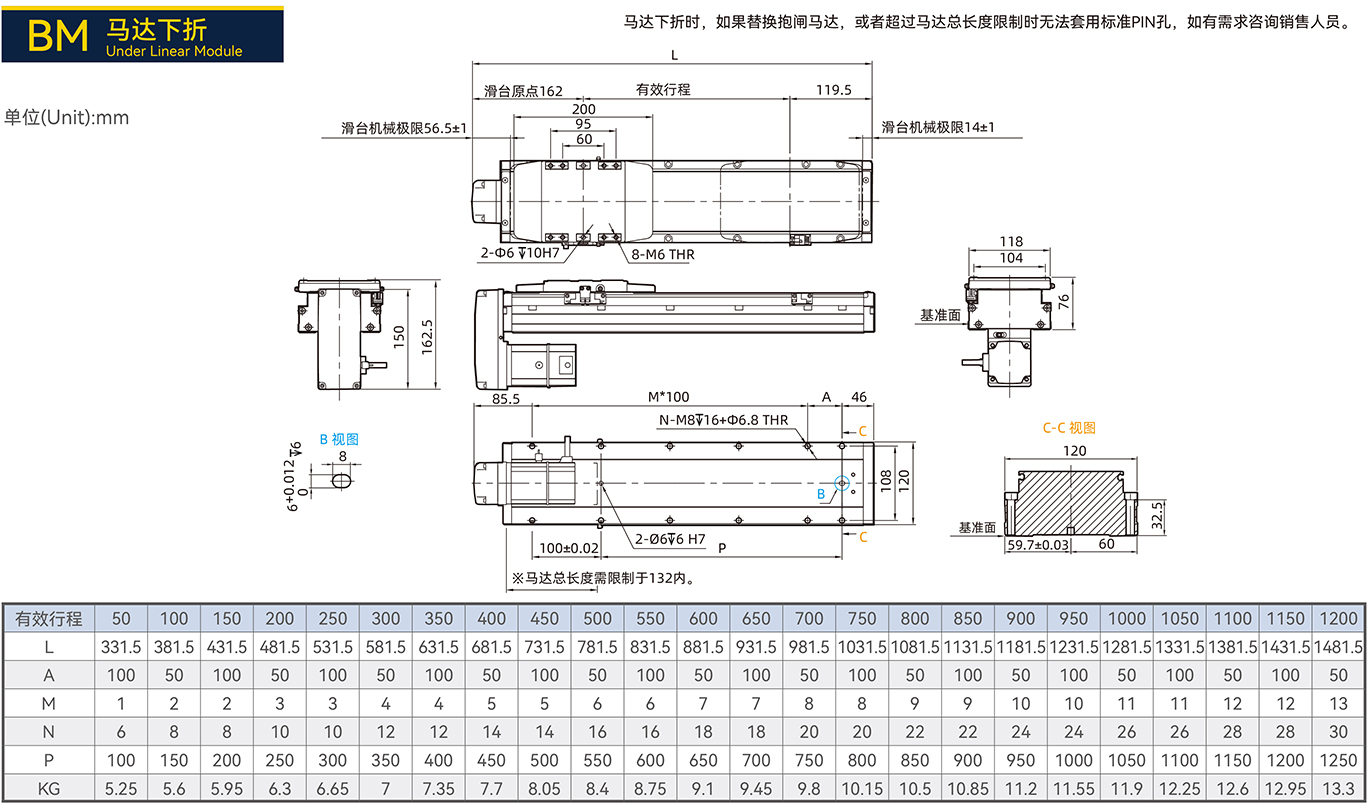

BM Motor Down Bend - Linear Guide ModelEmbedded Integrated Double Guide Rail
- Body Size Reference Width:120mm， Height:76mm

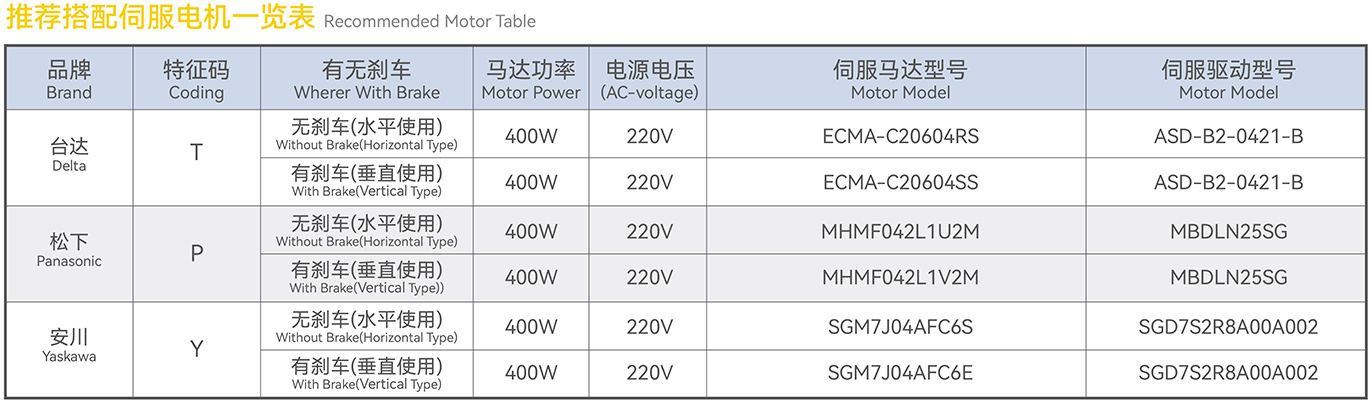

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke50~1200mm(Interval 50mm)
Product Data Download
Product Description
