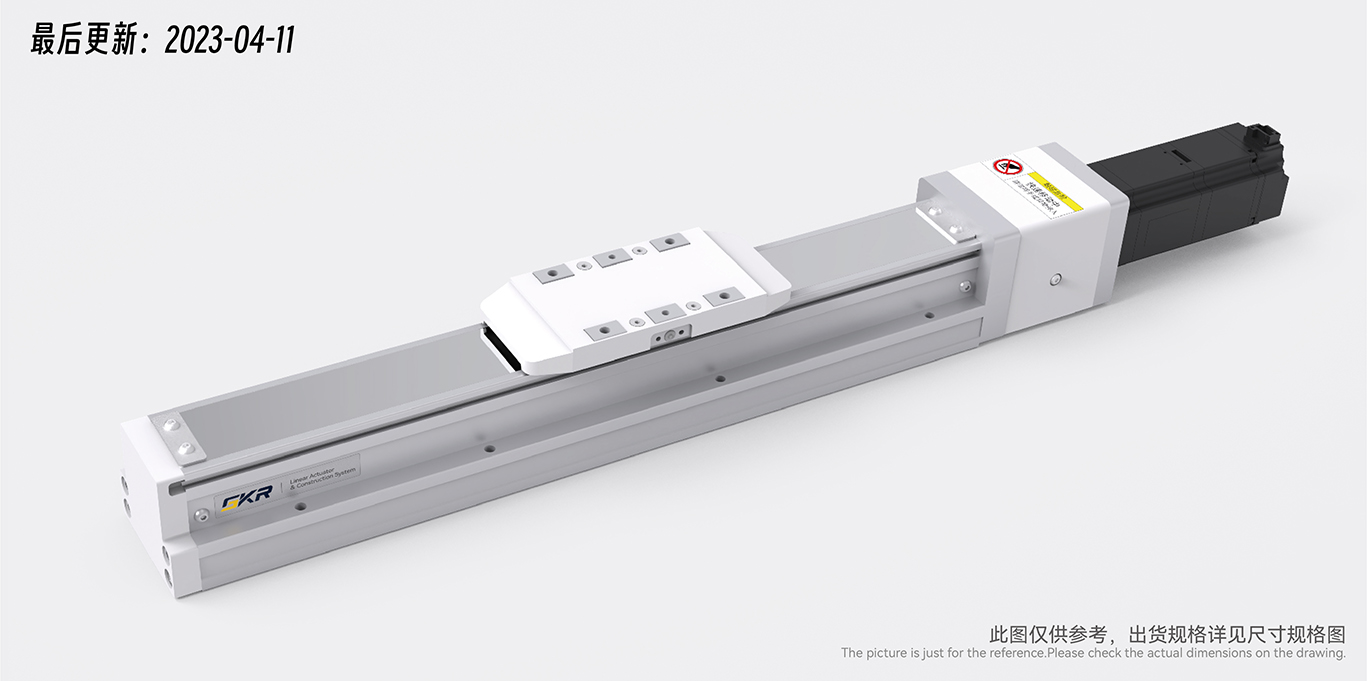

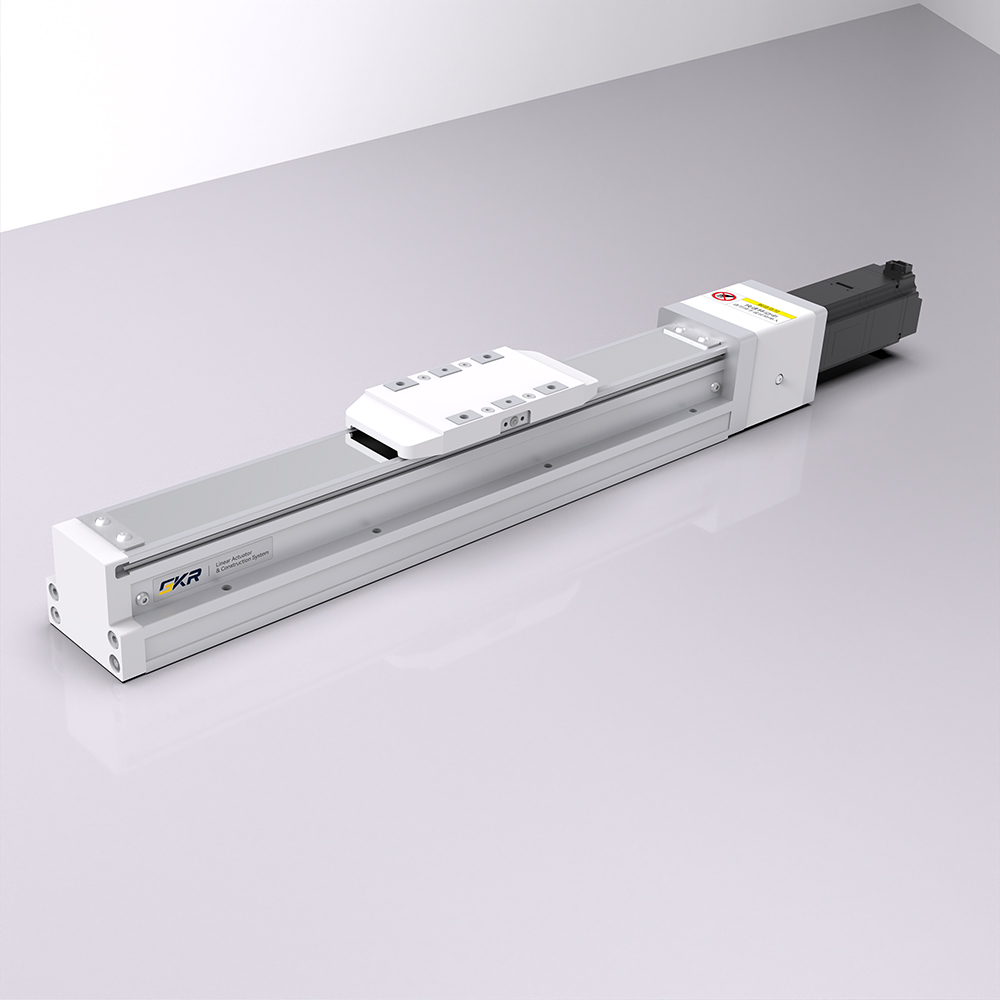

PSH5 series, a brand new fully enclosed slide module
PSH5 series, a brand new fully enclosed slide module
PSH5 series, a brand new fully enclosed slide module
PSH5 series, a brand new fully enclosed slide module
PSH5 series, a brand new fully enclosed slide module
PSH5 series, a brand new fully enclosed slide module

PSH5 series, a brand new fully enclosed slide module

Small size, powerful capabilities; embedded dual-rail slide; the upgraded replacement for PSC50.

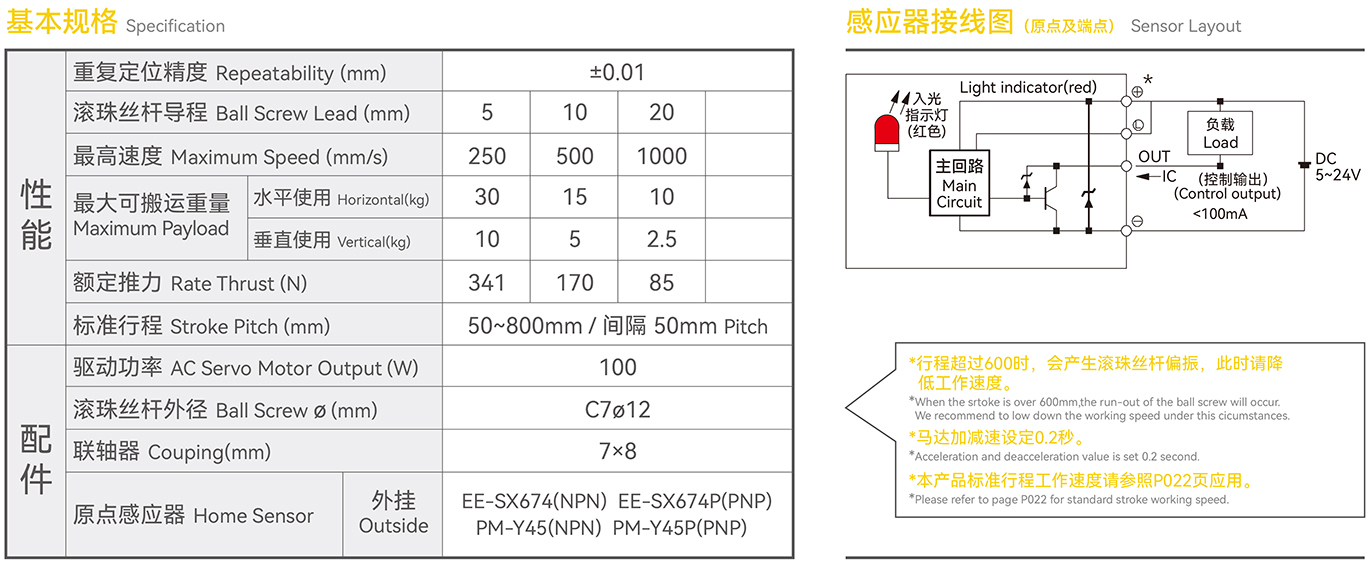

  • Repeatability±0.01mm
  • Ball Screw øC7ø12
  • Ball Screw Lead5mm/10mm/20mm
  • Horizontal Handling Weight30kg/15kg/10kg
  • Vertical Handling Weight10kg/5kg/2.5kg

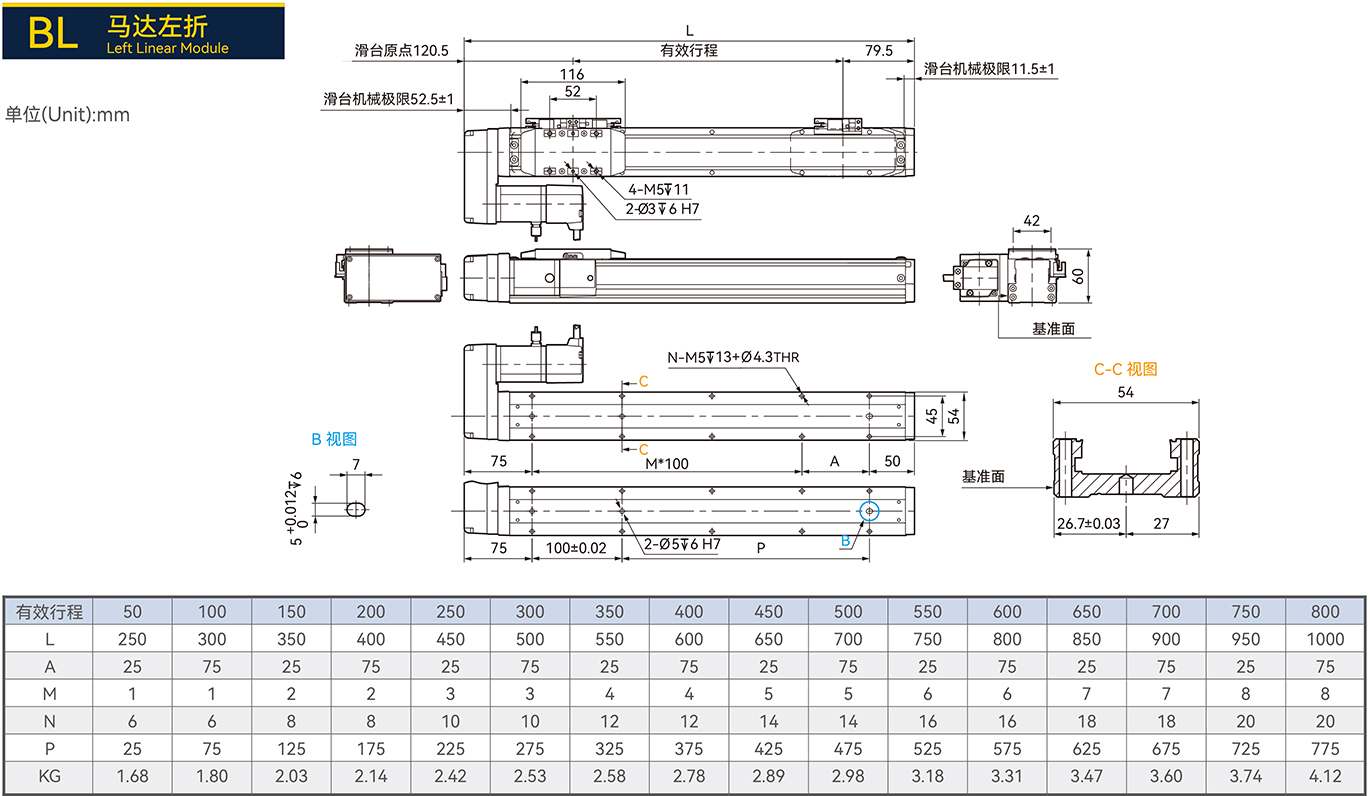

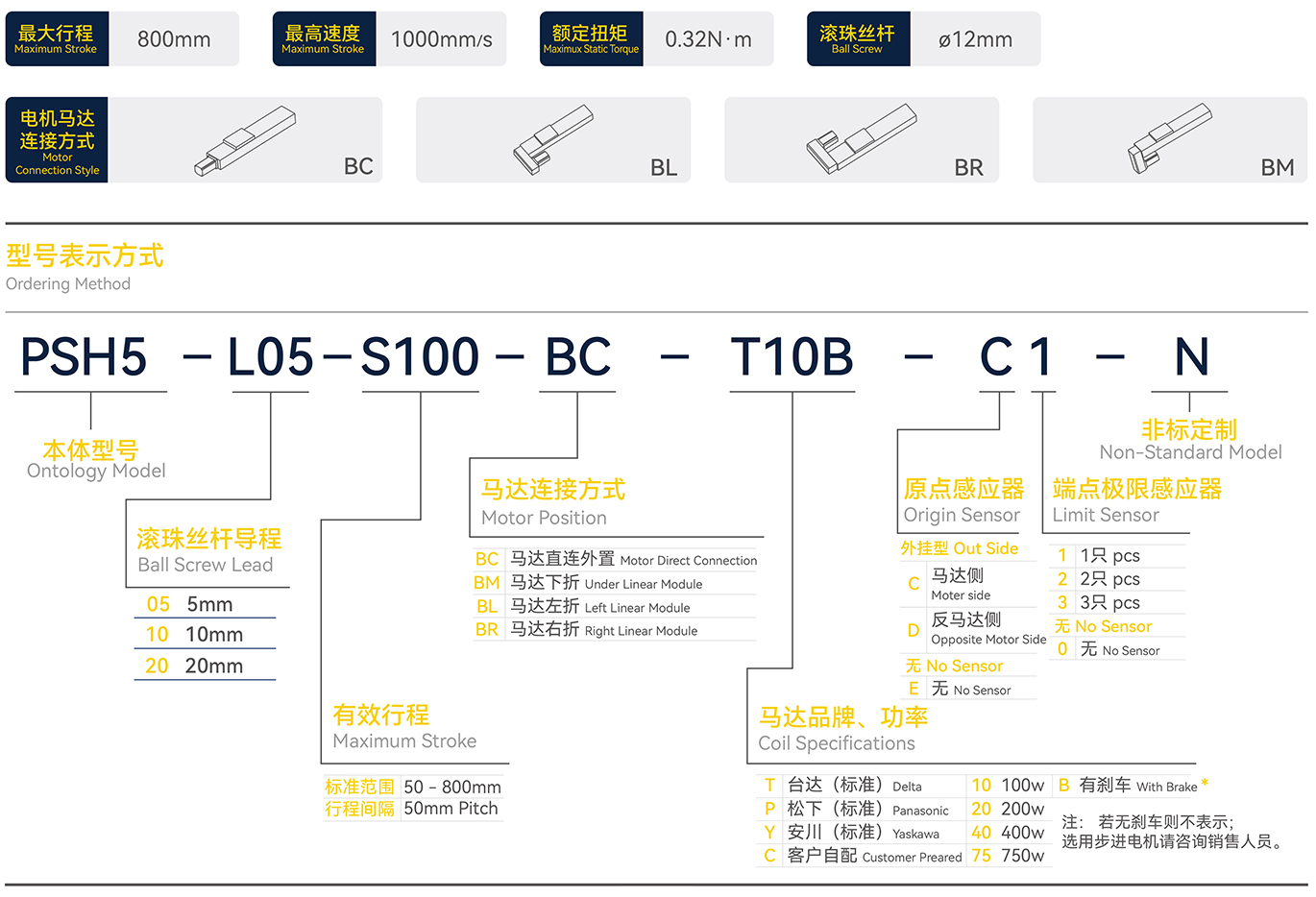

  • Motor Connection MethodBC Direct Motor ConnectionBC Direct Motor ConnectionBL Motor Left BendBL Motor Left BendBR Motor Right BendBR Motor Right BendBM Motor Down BendBM Motor Down Bend
  • Linear Guide ModelEmbedded Integrated Double Guide Rail
  • Body Size Reference Width54mm, Height 60mm

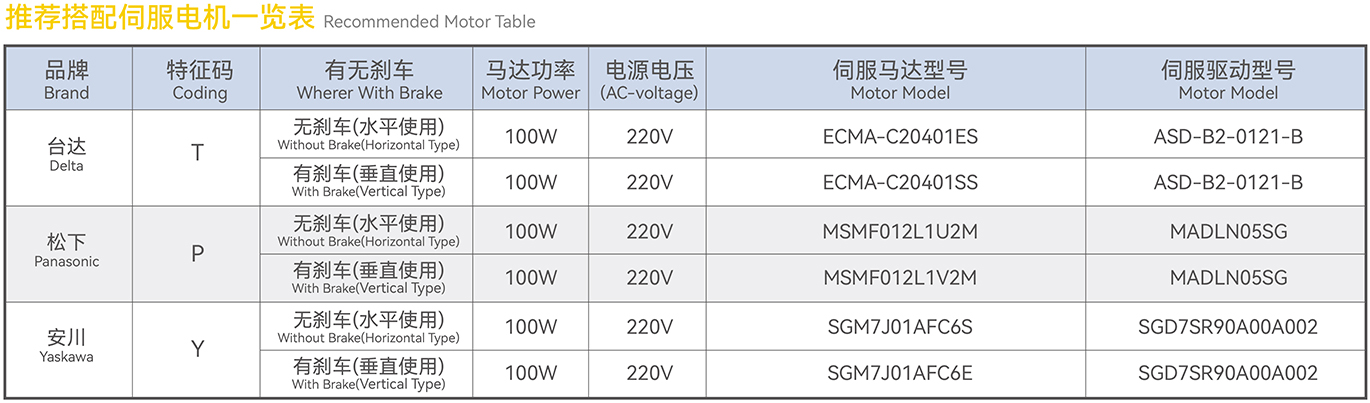

  • Drive Specification100W/3000r·min/0.32N·m
  • Standard Stroke50~800mm(Interval50mm)

Product Data Download

Product Description

Product Features

Embedded dual-rail design, suitable for both dust-free and general environments.Compact structure with outstanding performance;

PSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide modulePSH5 series, a brand new fully enclosed slide module
