〔SKR〕Linear Module

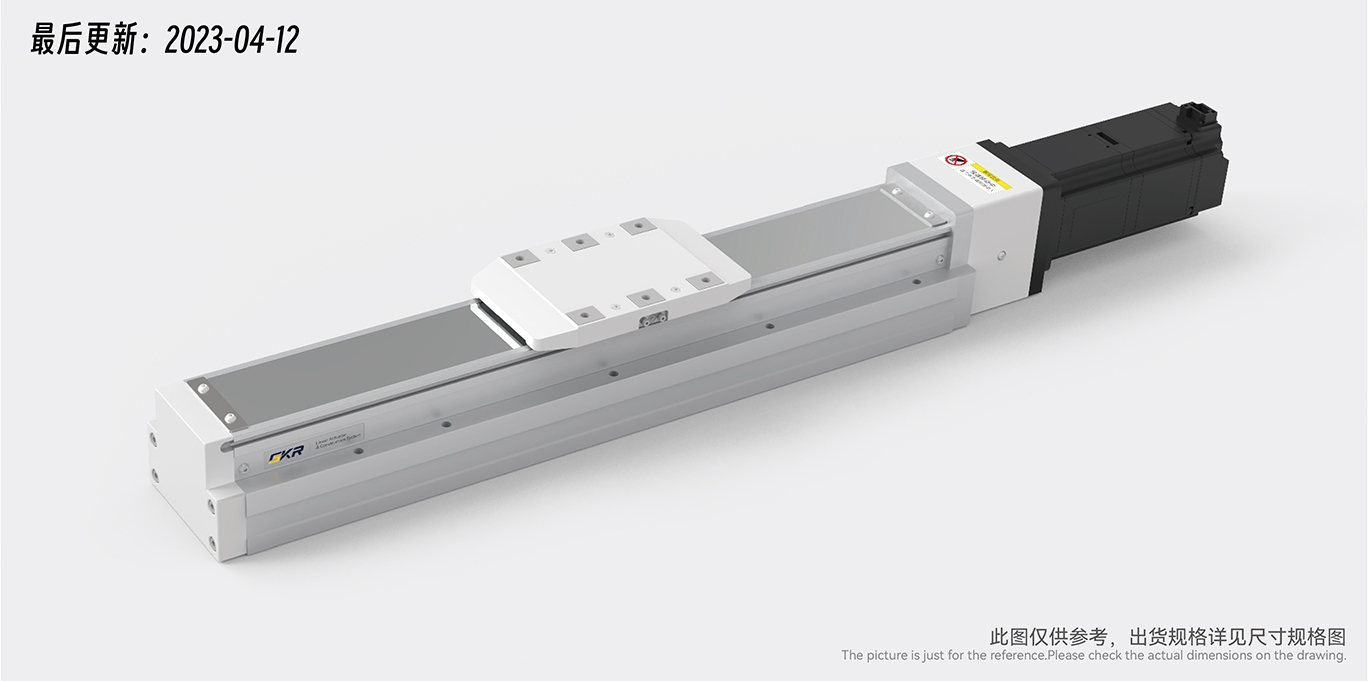

PSH8 series, a brand new fully enclosed slide module
Medium Specification Embedded Double Guide Rail Slide;PSC65 Replacement Upgrade Product.- Repeatability±0.01mm
- Ball Screw øC7ø16
- Ball Screw Lead5mm/10mm/20mm
- Horizontal Handling Weight50kg/30kg/12kg
- Vertical Handling Weight15kg/10kg/2.5kg
- Motor Connection Method
BCDirect Motor Connection
BLMotor Left Bend

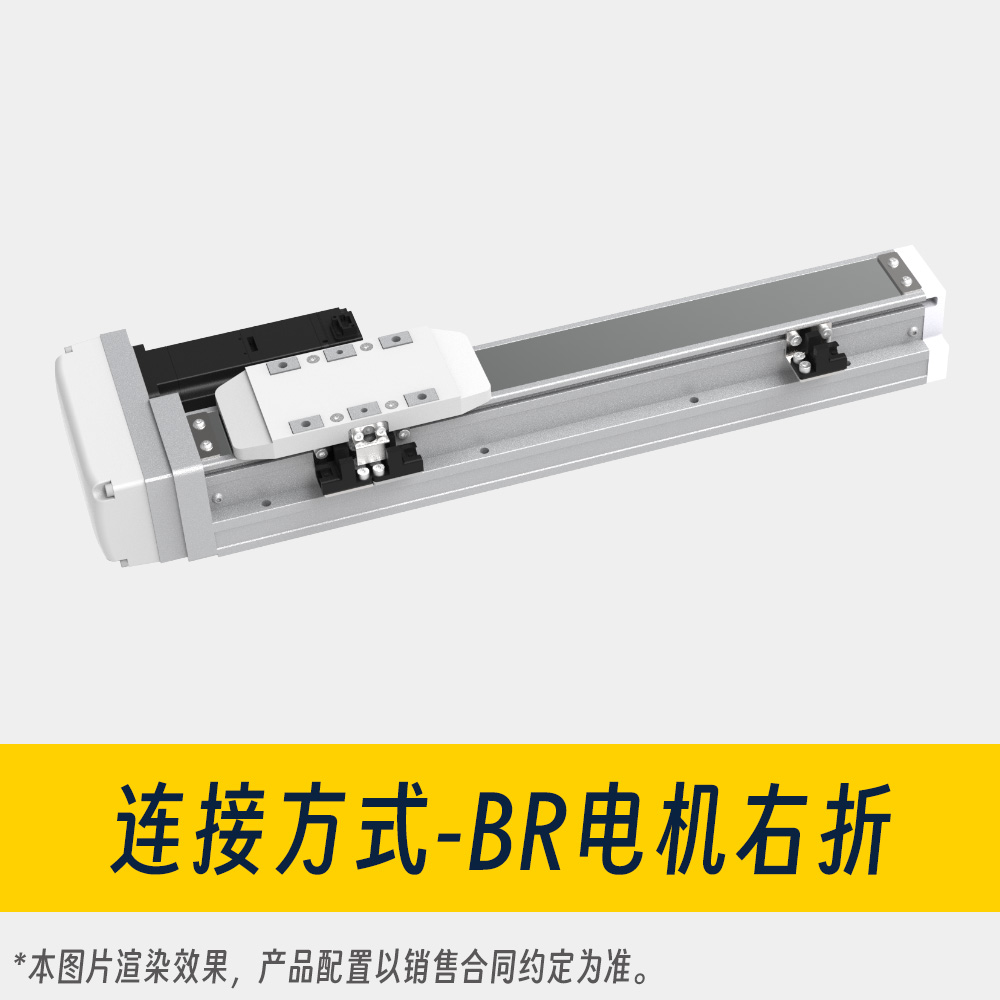

BRMotor Right Bend
BMMotor Down Bend - Linear Guide ModelEmbedded Integrated Double Guide Rail
- Body Size ReferenceWidth82mm，Height78mm
- Drive Specification200W/3000r·min/0.64N·m
- Standard Stroke50~1100mm(Interval50mm)
Product Data Download
Product Description
