PSS200 Series, ball screw type slide module
PSS200 Series, ball screw type slide module
PSS200 Series, ball screw type slide module
PSS200 Series, ball screw type slide module
PSS200 Series, ball screw type slide module
PSS200 Series, ball screw type slide module

PSS200 Series, ball screw type slide module

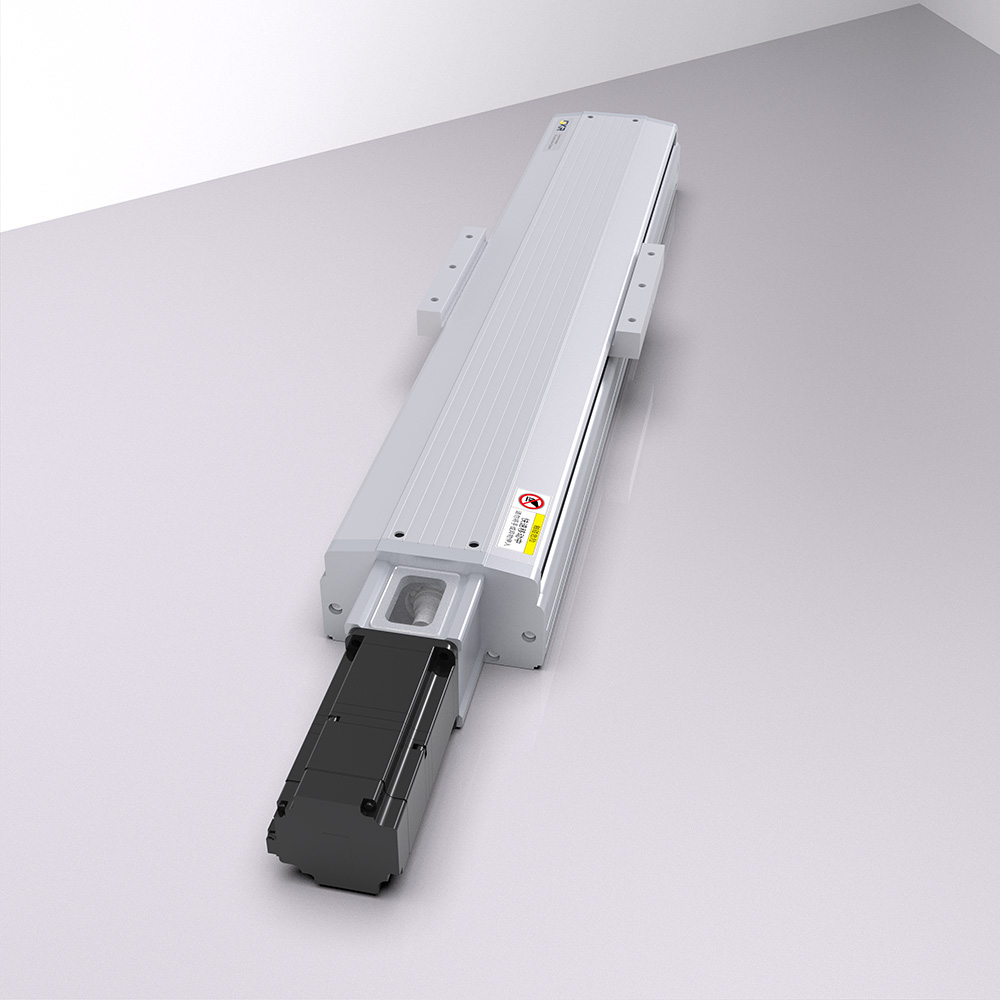

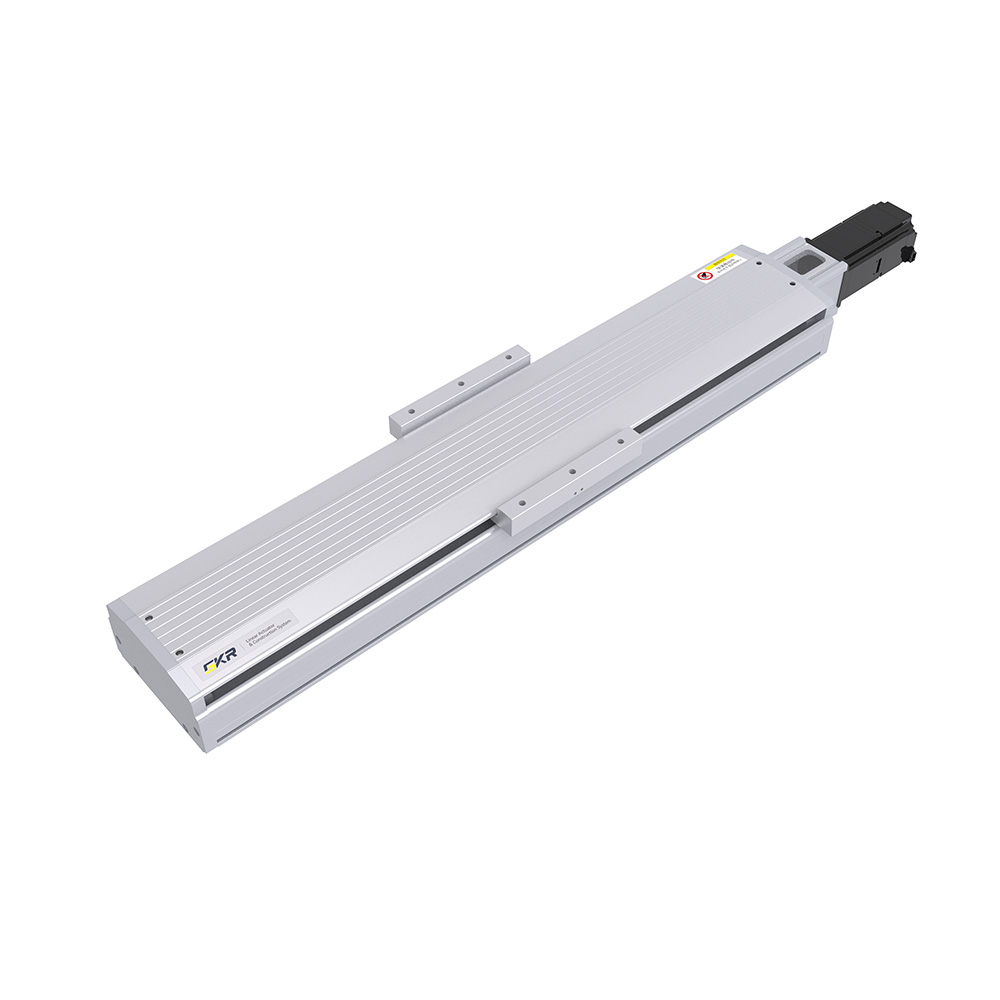

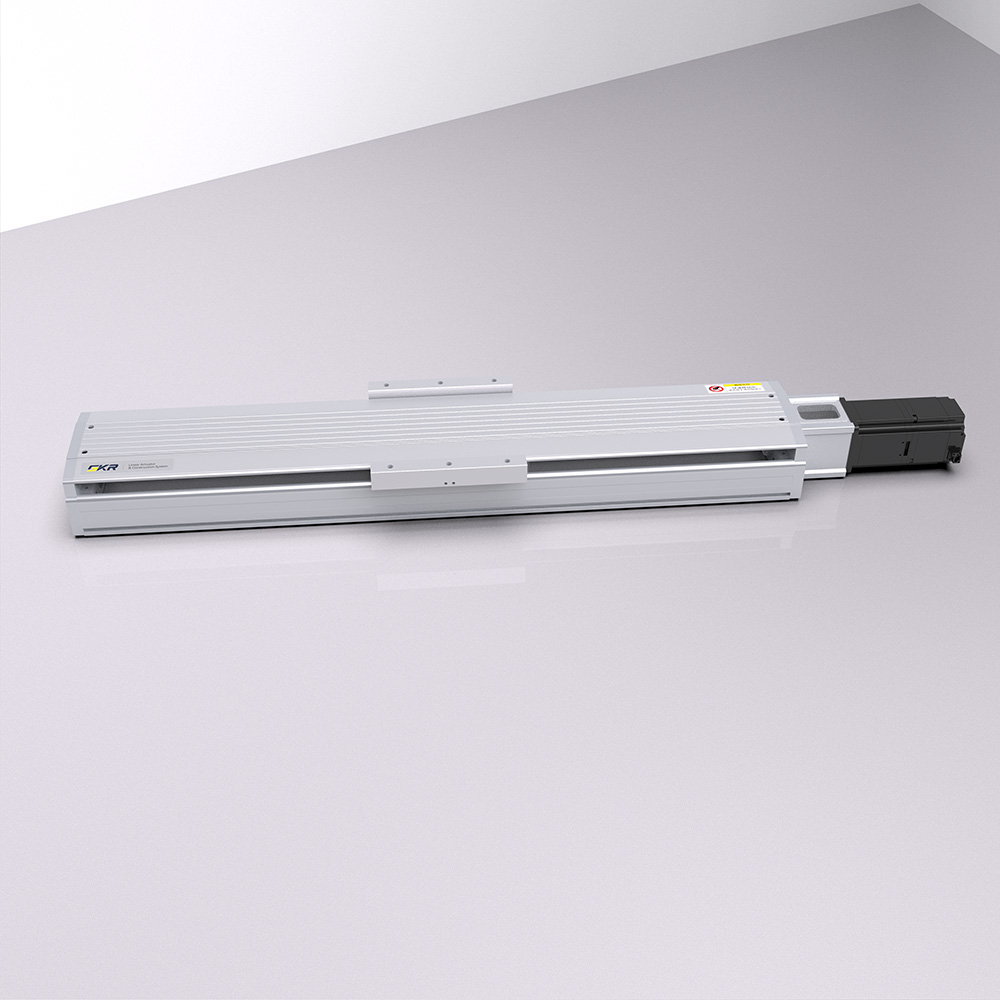

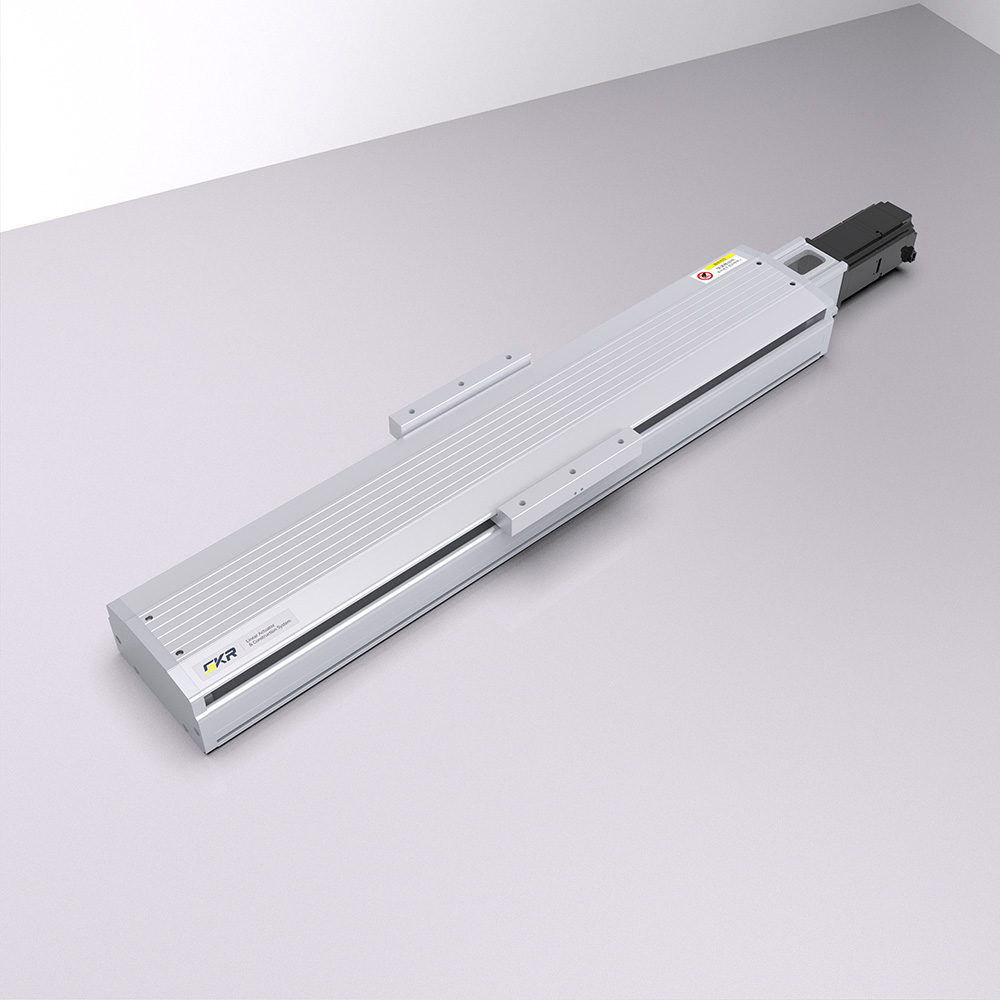

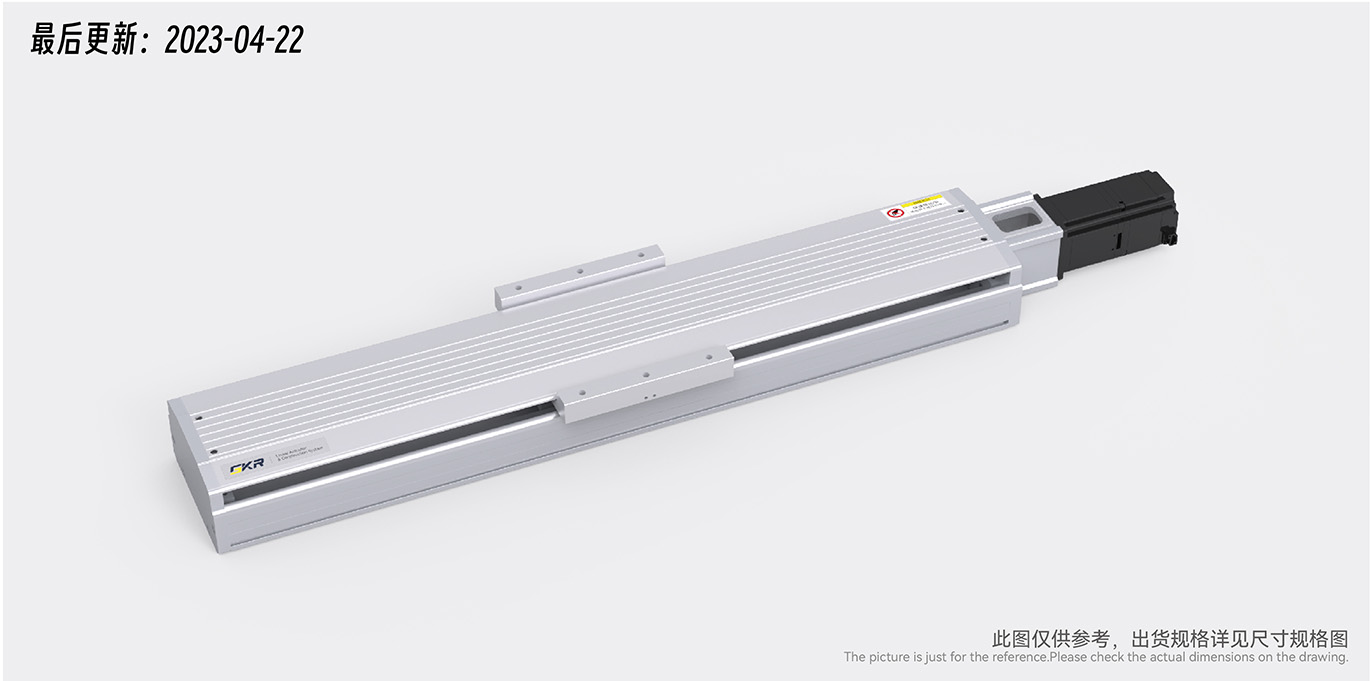

Large heavy-duty linear slides, driven by 25mm diameter ball screws;

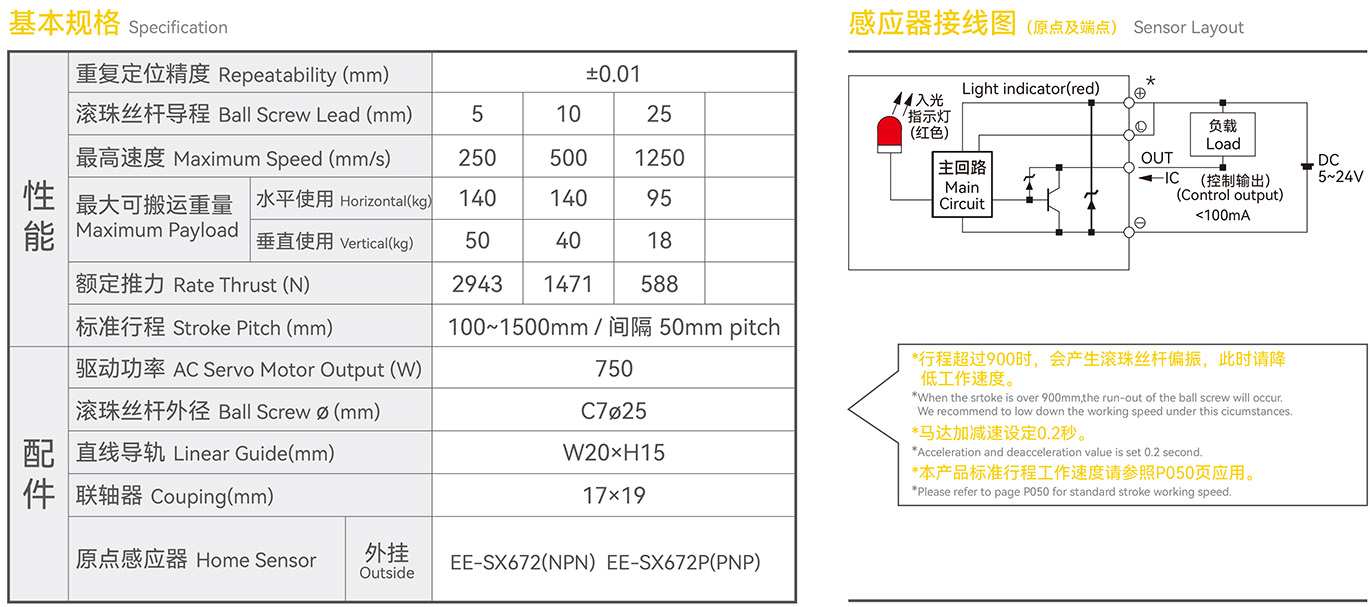

  • Repeatability±0.01mm
  • Ball Screw øC7ø25
  • Ball Screw Lead5mm/10mm/20mm/32mm
  • Horizontal Handling Weight140kg/140kg/95kg
  • Vertical Handling Weight50kg/40kg/18kg

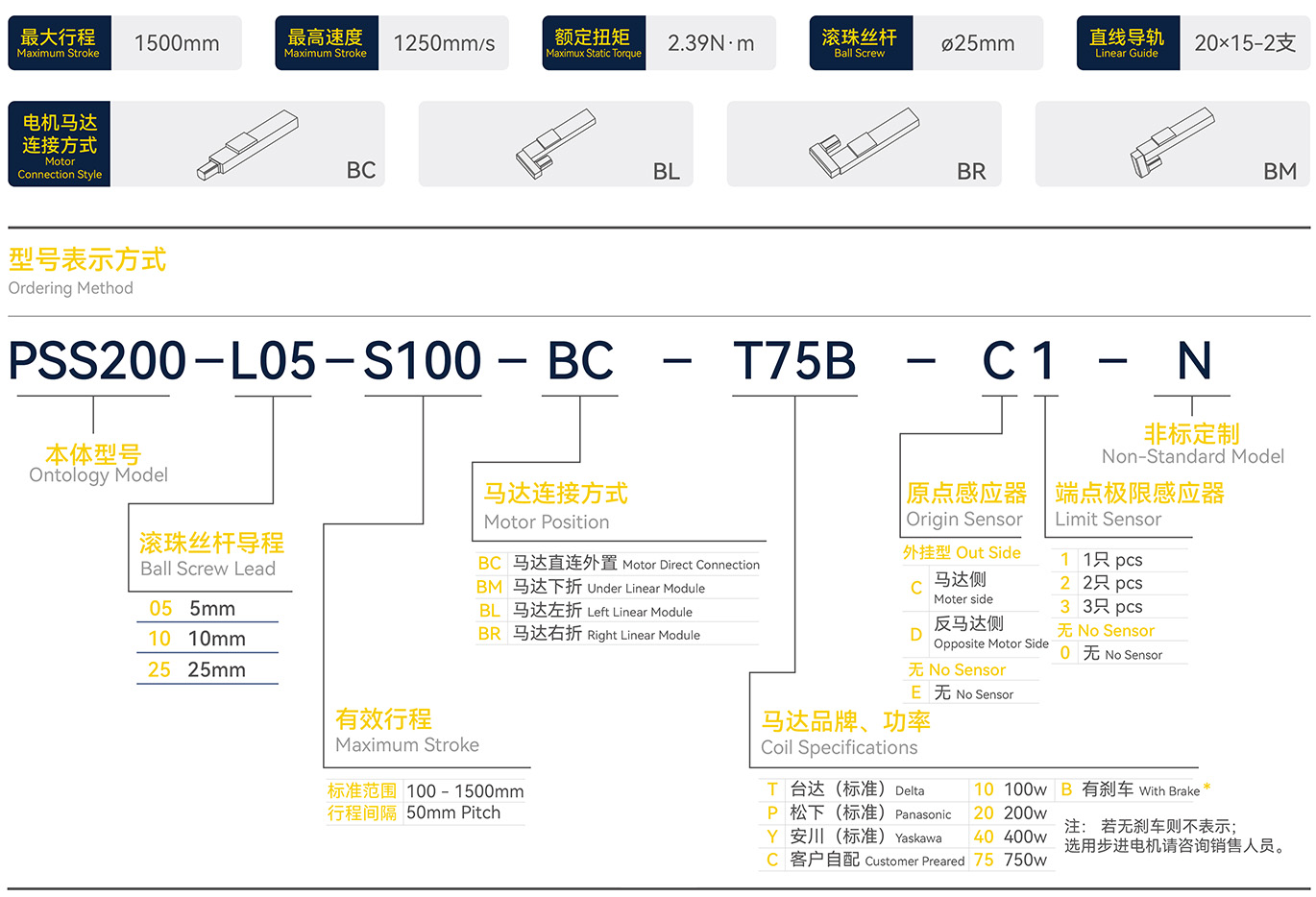

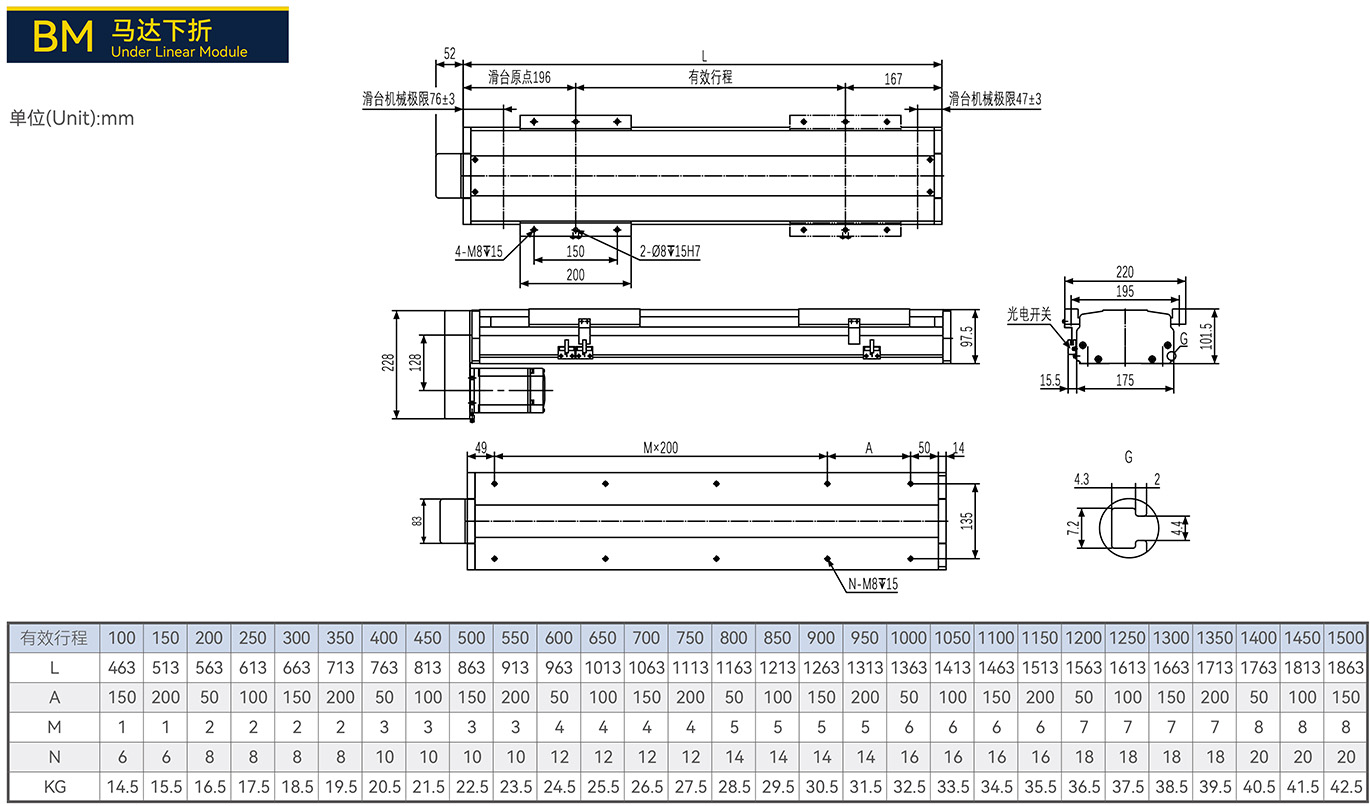

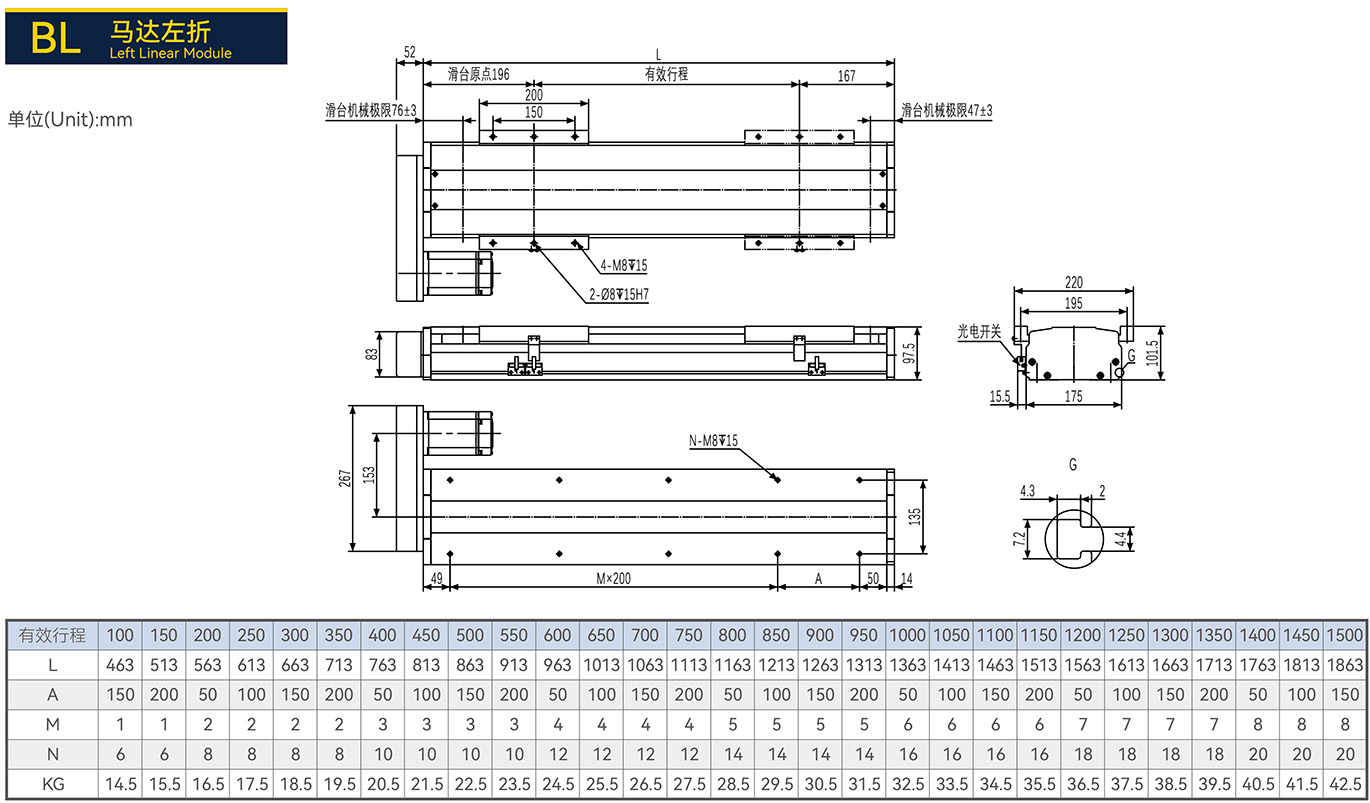

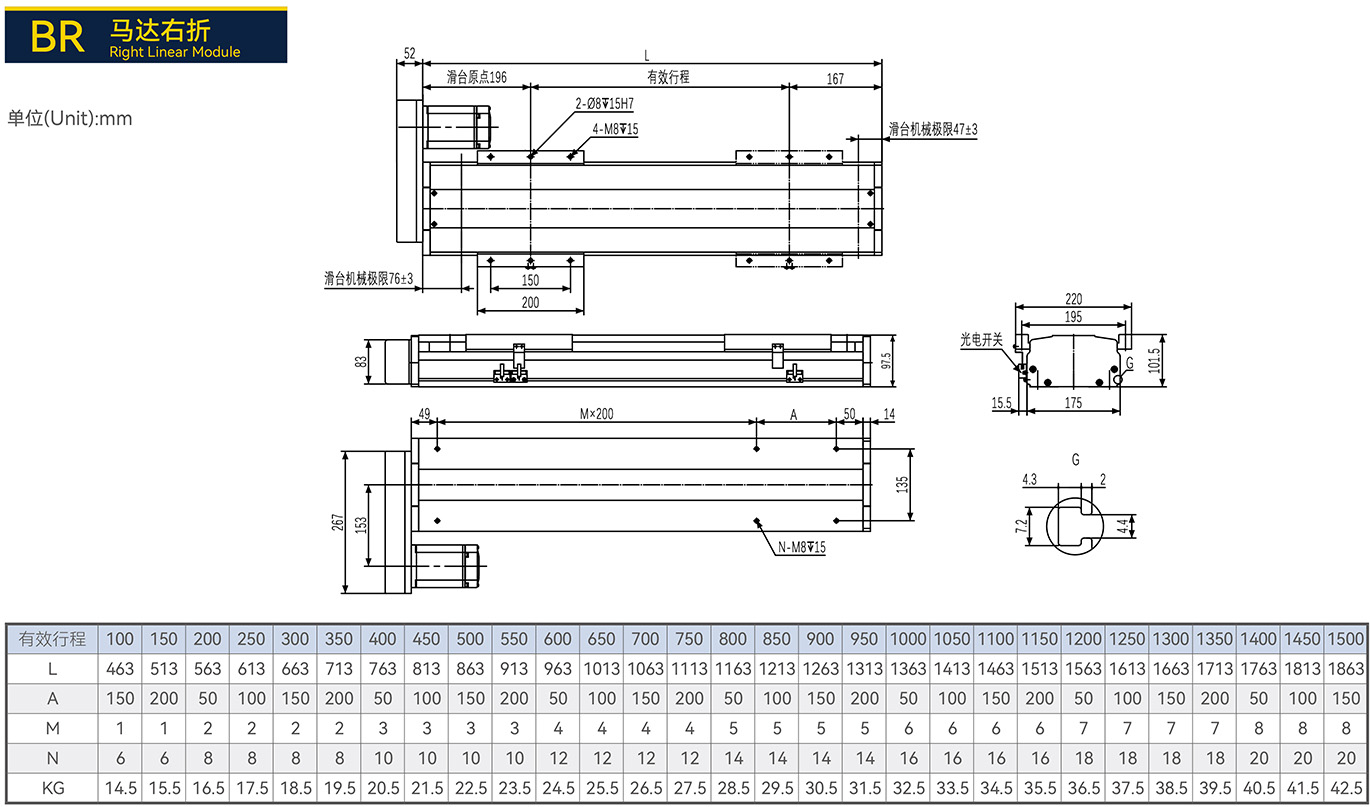

  • Motor Connection MethodBC Direct Motor ConnectionBC Direct Motor ConnectionBL Motor Left BendBL Motor Left BendBM Motor Down BendBM Motor Down BendBR Motor Right BendBR Motor Right Bend
  • Linear Guide Model20×15-2pcs

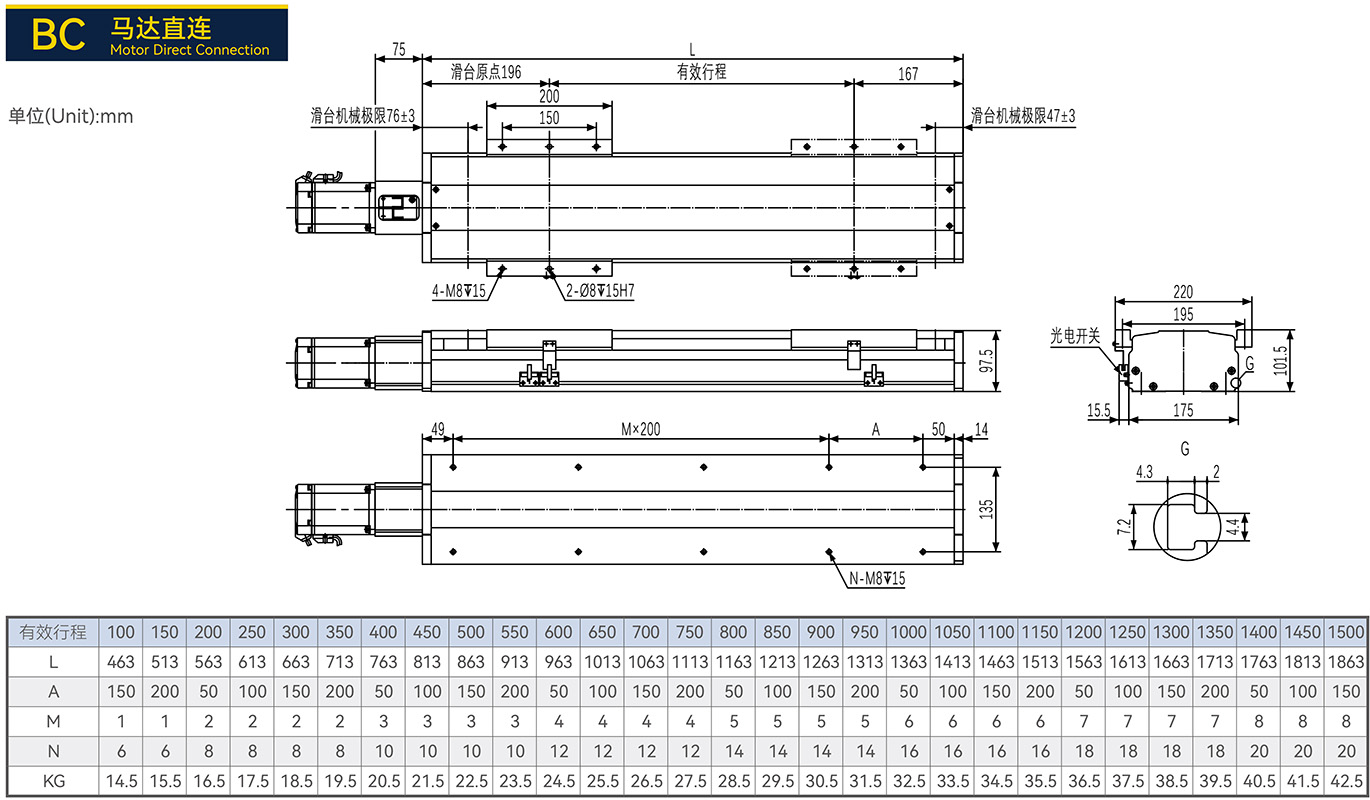

  • Body Size Reference Width:175mm, Height:101.5mm

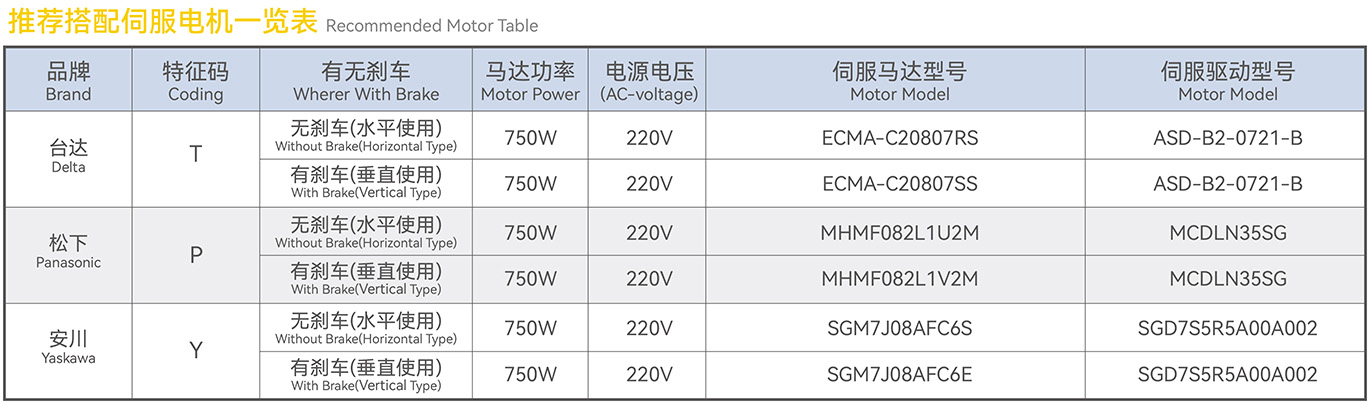

  • Drive Specification750W/3000r·min/2.39N·m
  • Standard Stroke100~1050mm(Interval 50mm)

Product Data Download

Product Description

Product Features

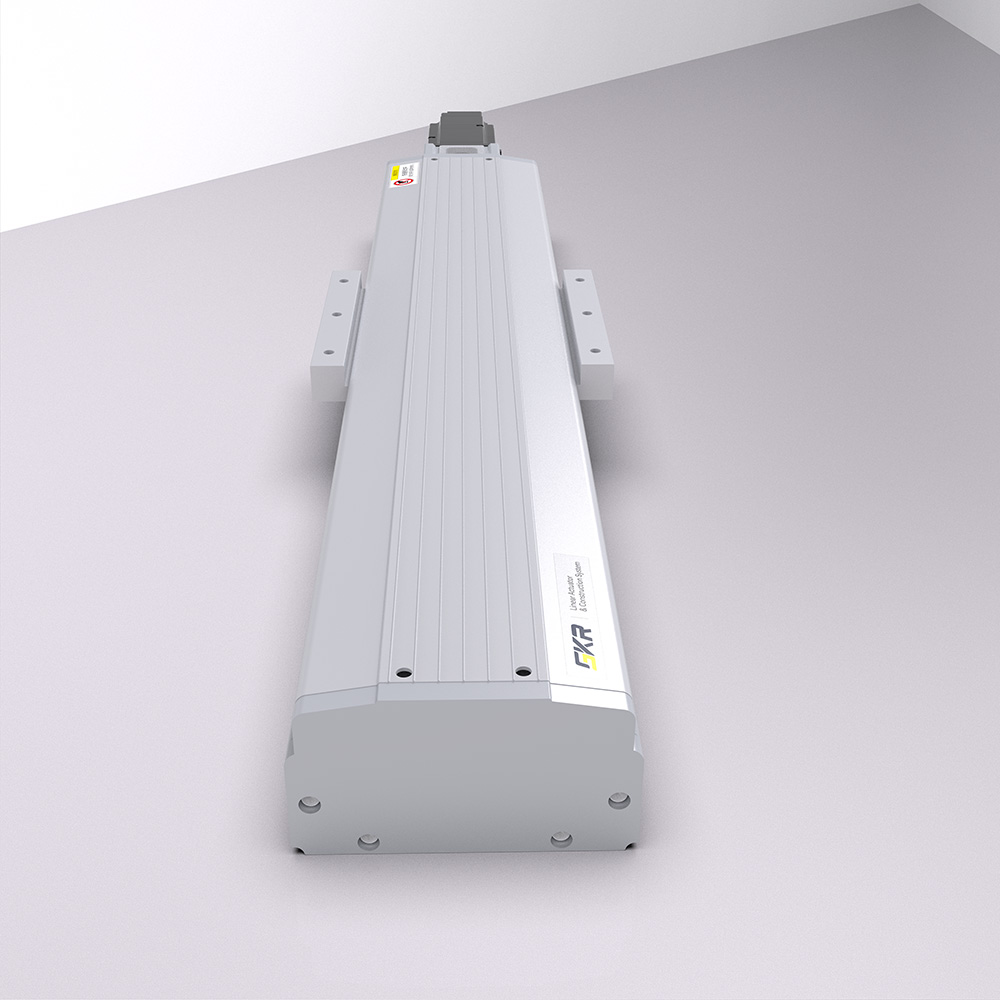

Large semi-enclosed linear modules. The base width is consistent with the old NSS175;
