〔SKR〕Linear Module

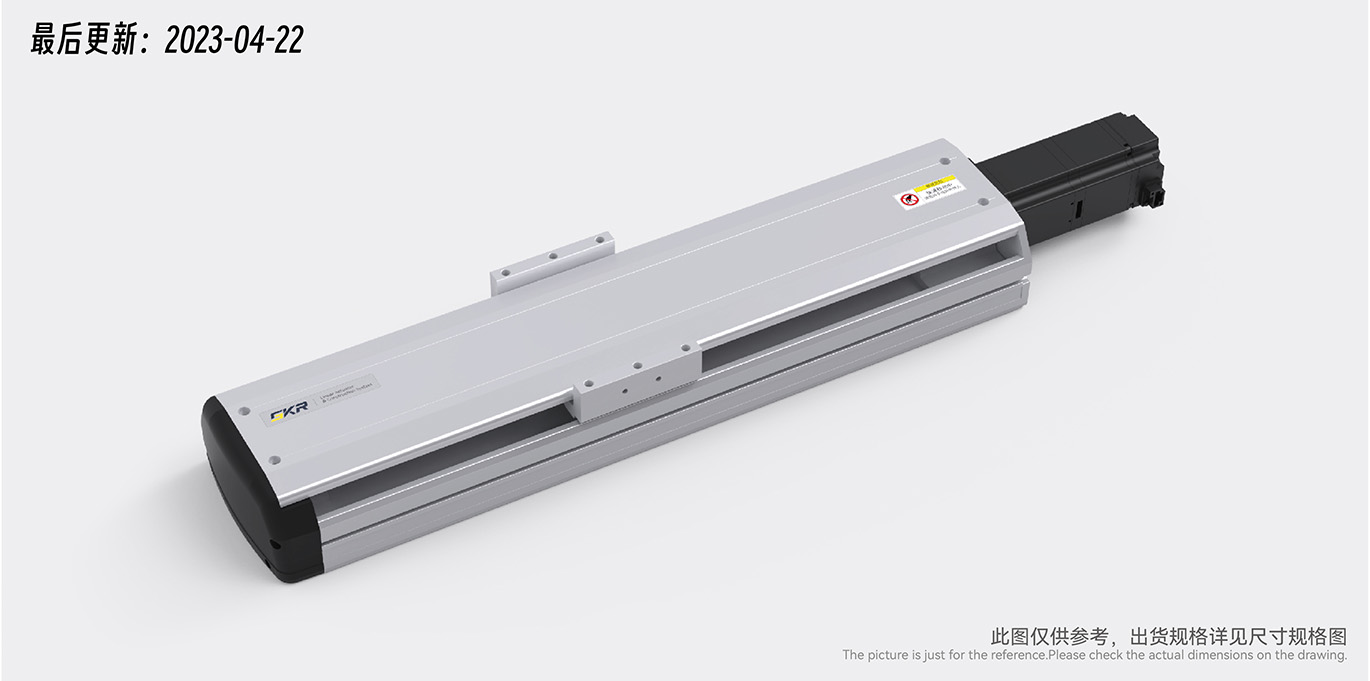

PSS130 Series, ball screw type slide module
The difference between the medium-sized PSS general linear slide and PSS140 is that the load table is shorter;- Repeatability±0.01mm
- Ball Screw øC7ø16
- Ball Screw Lead5mm/10mm/20mm/32mm

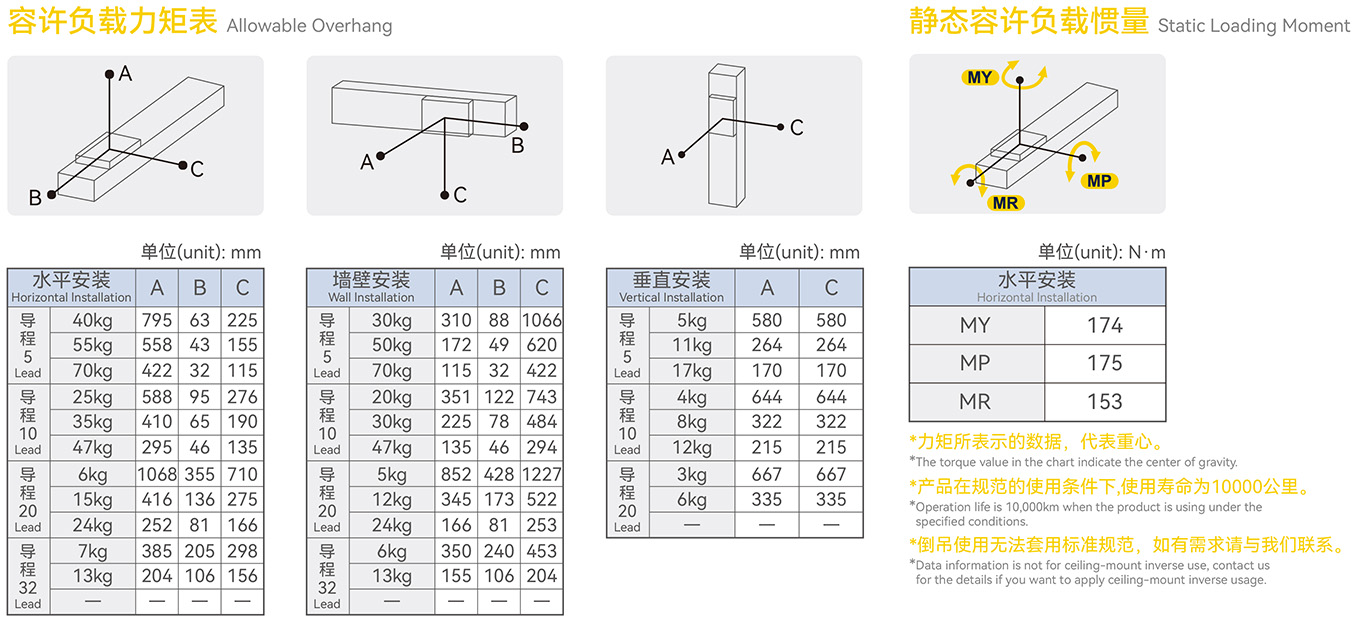

- Horizontal Handling Weight70kg/47kg/24kg/13kg
- Vertical Handling Weight17kg/12kg/6kg/0kg

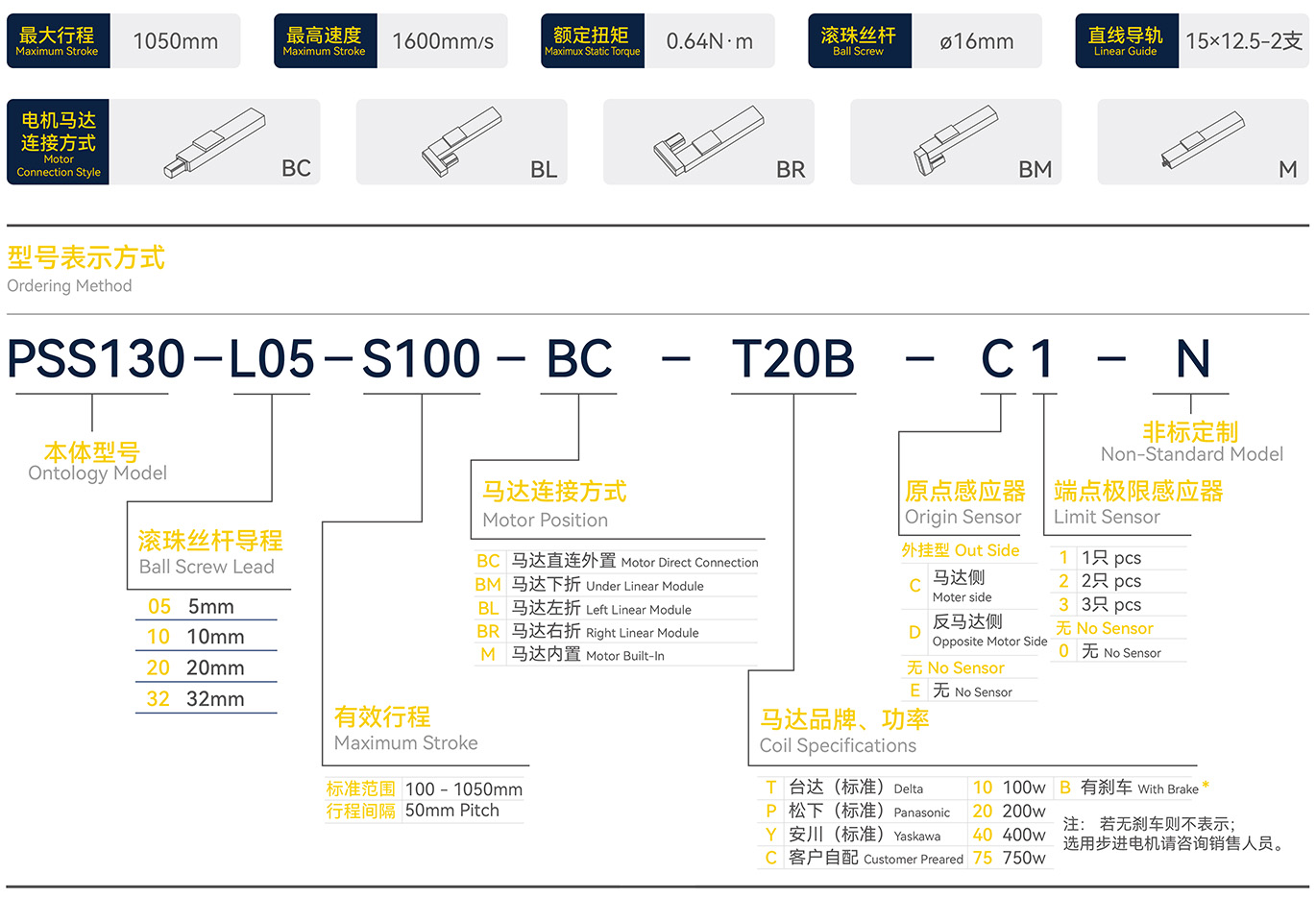

- Motor Connection Method

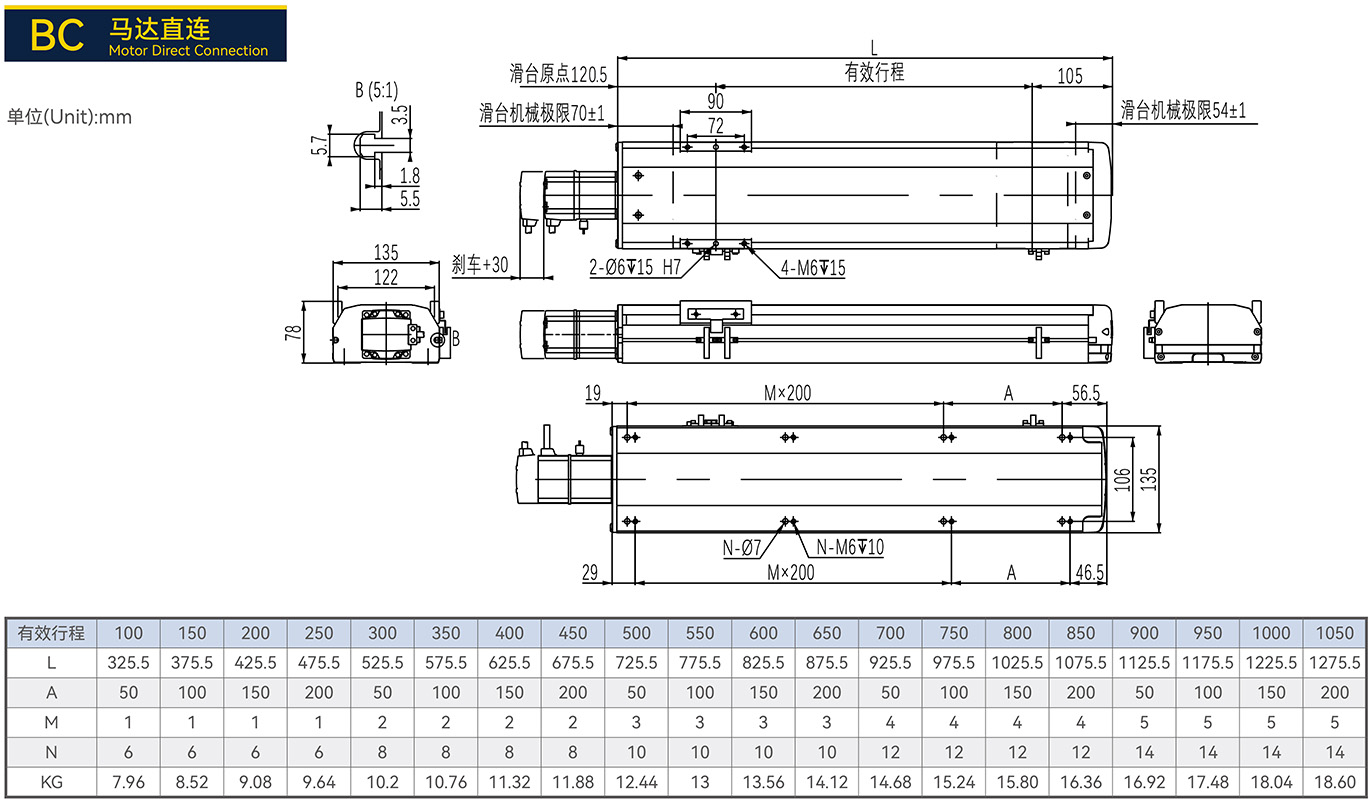

BC Direct Motor Connection

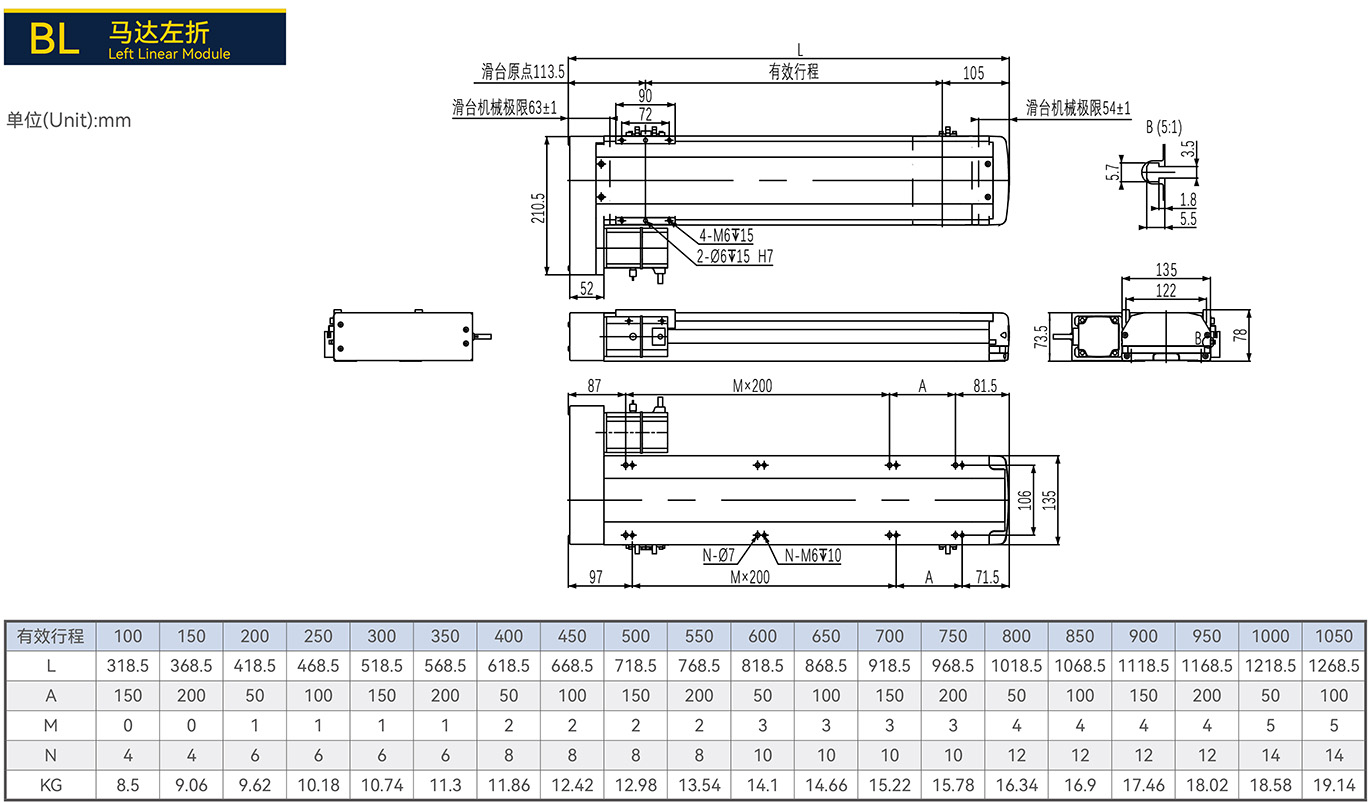

BL Motor Left Bend
BM Motor Down Bend

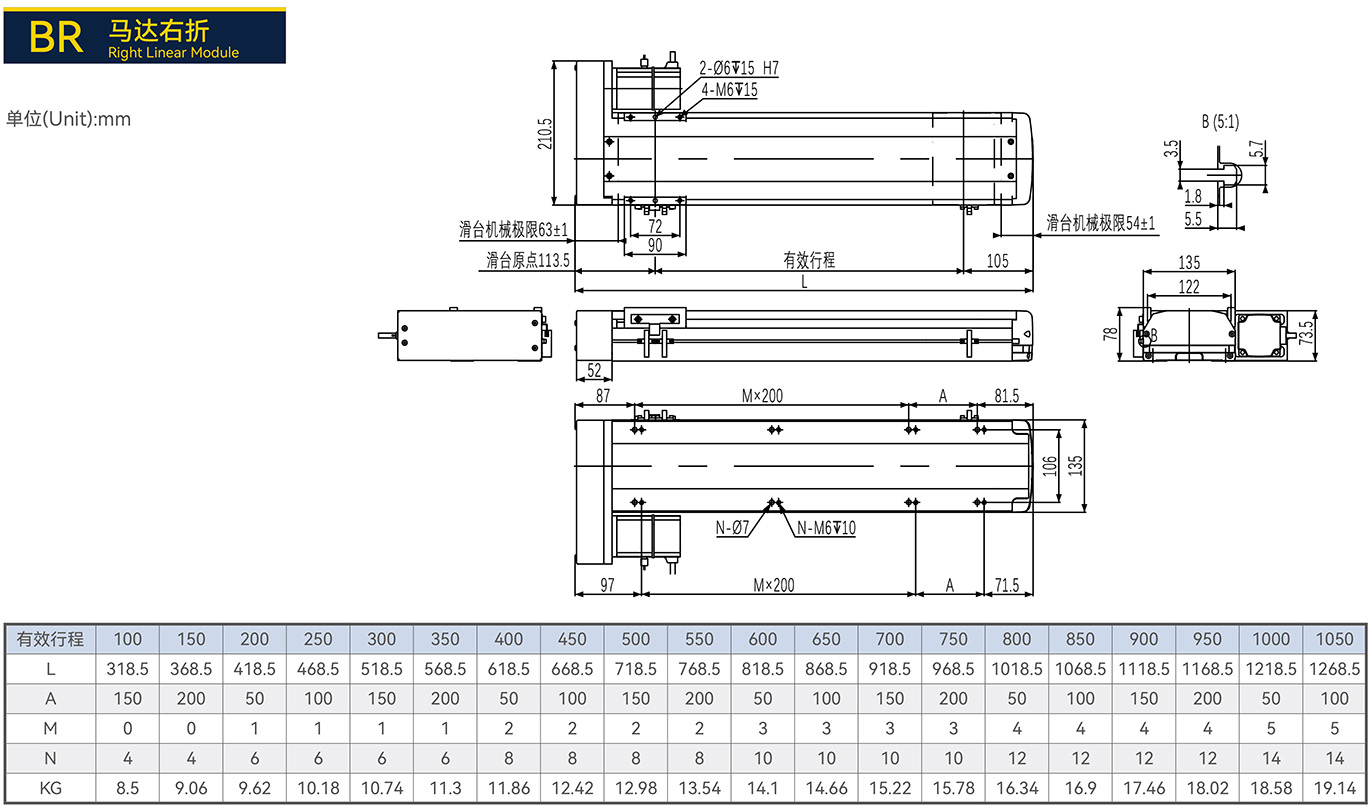

BR Motor Right Bend

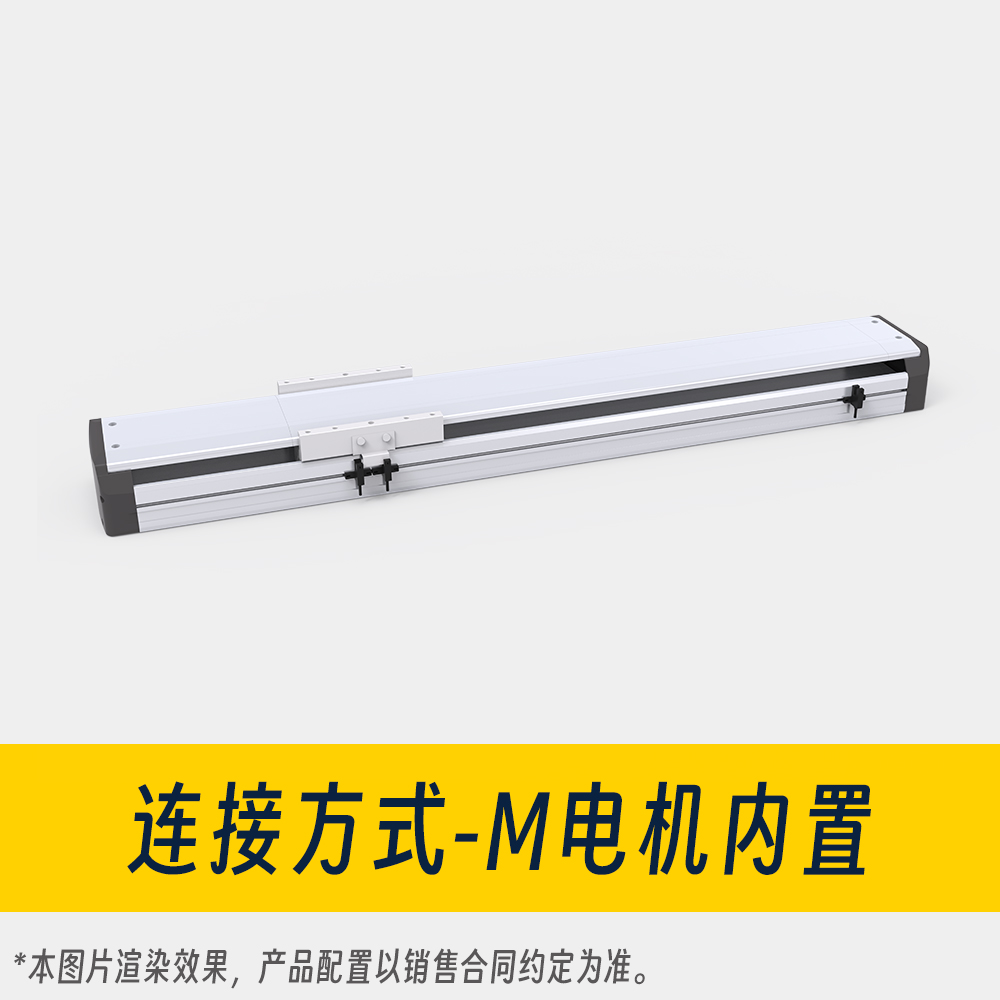

M电机内置 - Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm， Height:78mm

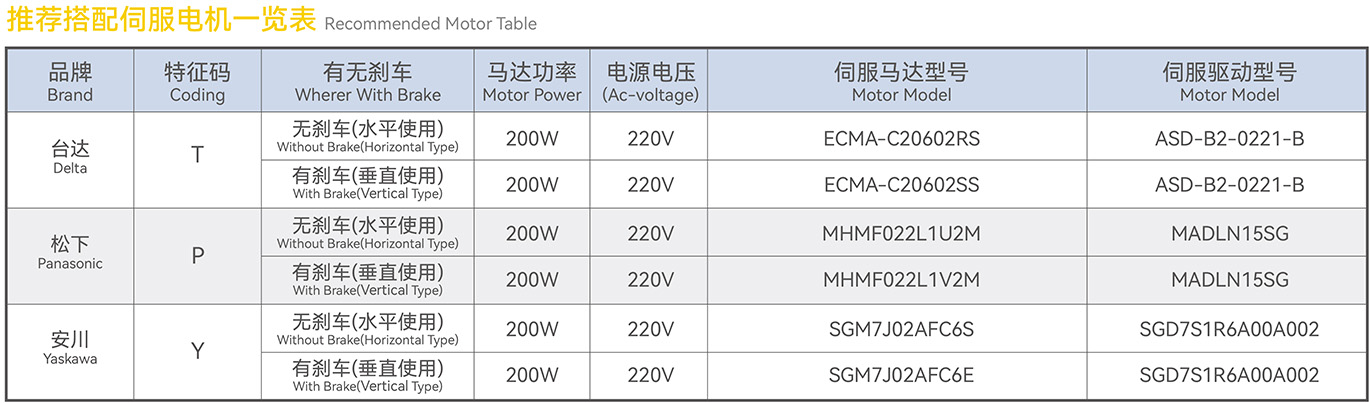

- Drive Specification200W/3000r·min/0.64N·m
- Standard Stroke100~1050mm(Interval 50mm)
Product Data Download
Product Description
