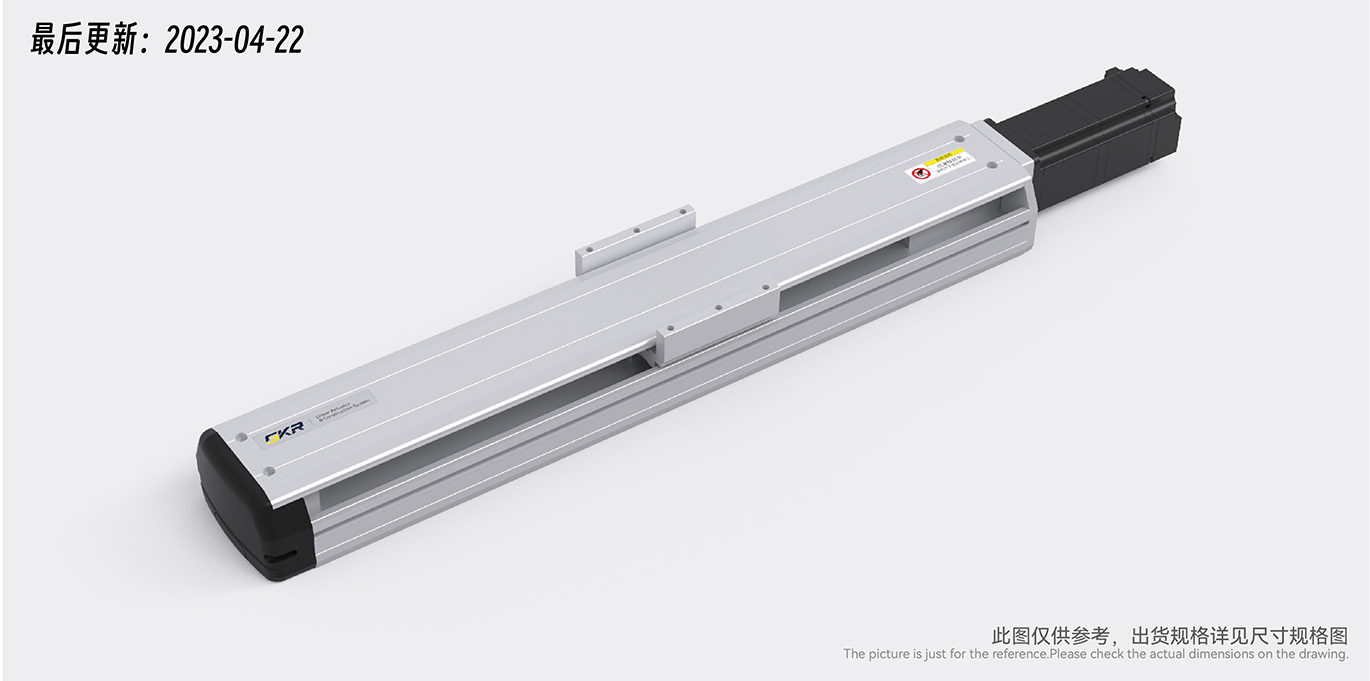

PSS120 Series, ball screw type slide module
PSS120 Series, ball screw type slide module
PSS120 Series, ball screw type slide module
PSS120 Series, ball screw type slide module
PSS120 Series, ball screw type slide module
PSS120 Series, ball screw type slide module

PSS120 Series, ball screw type slide module

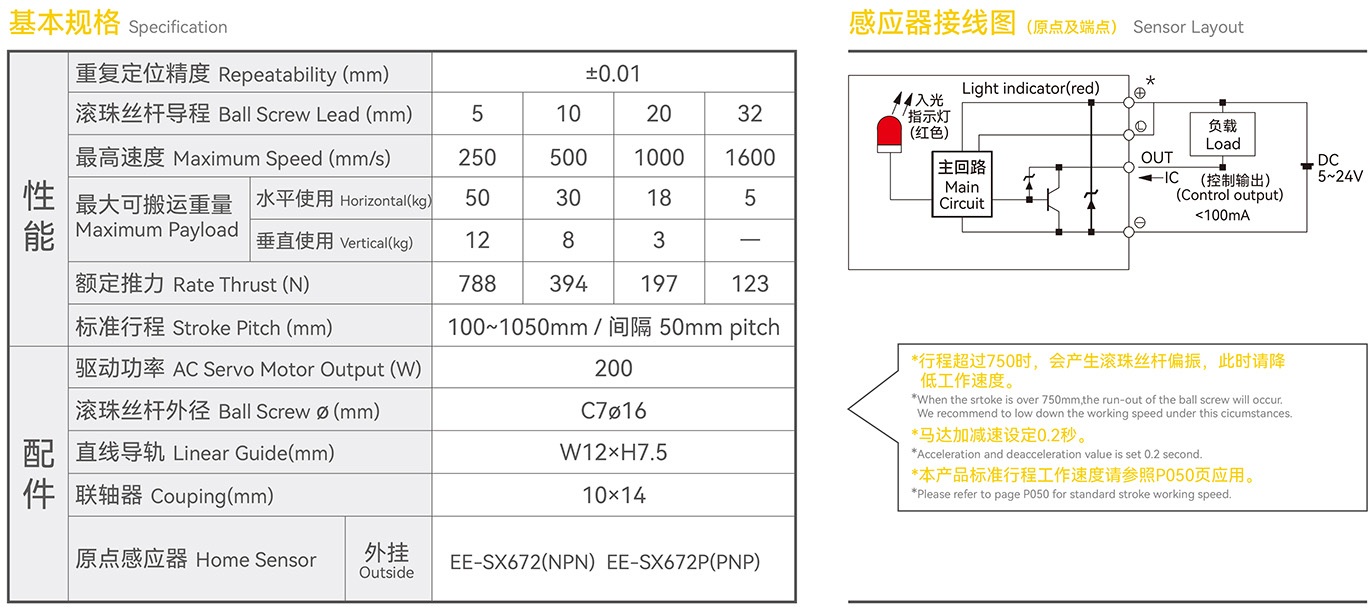

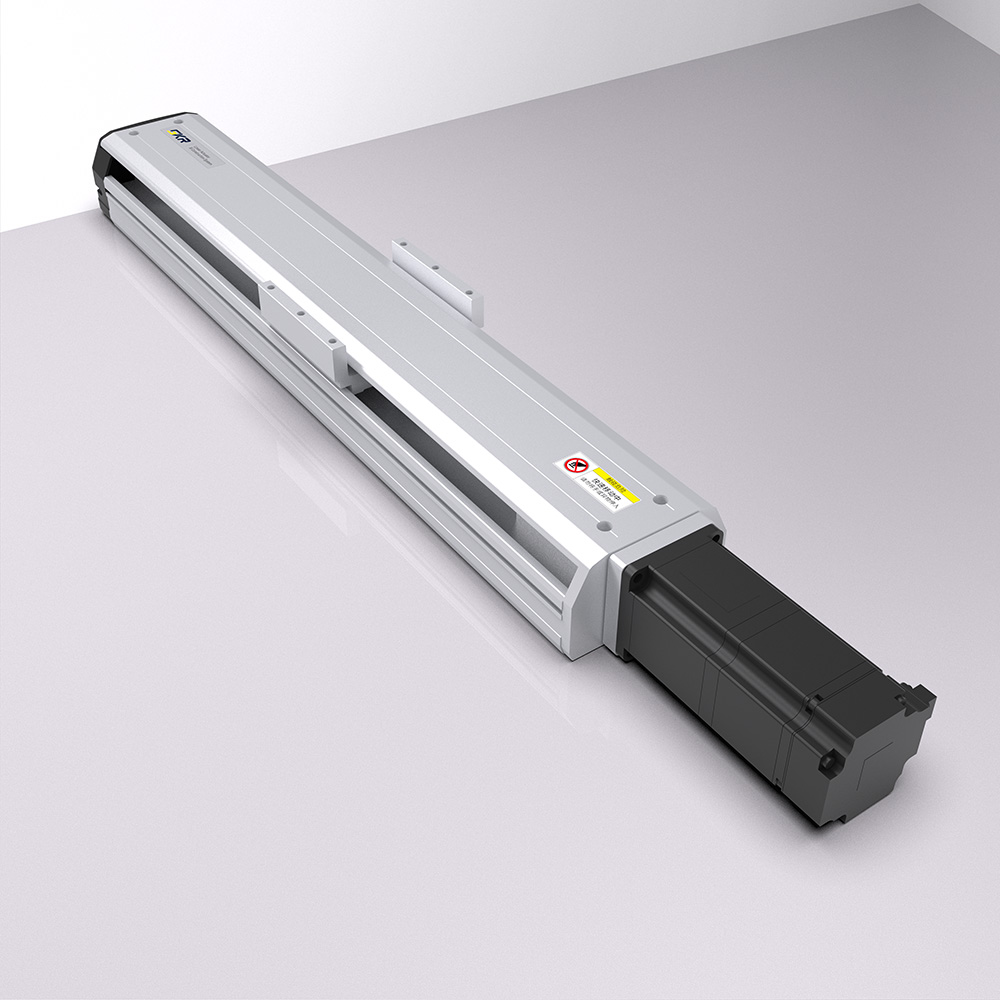

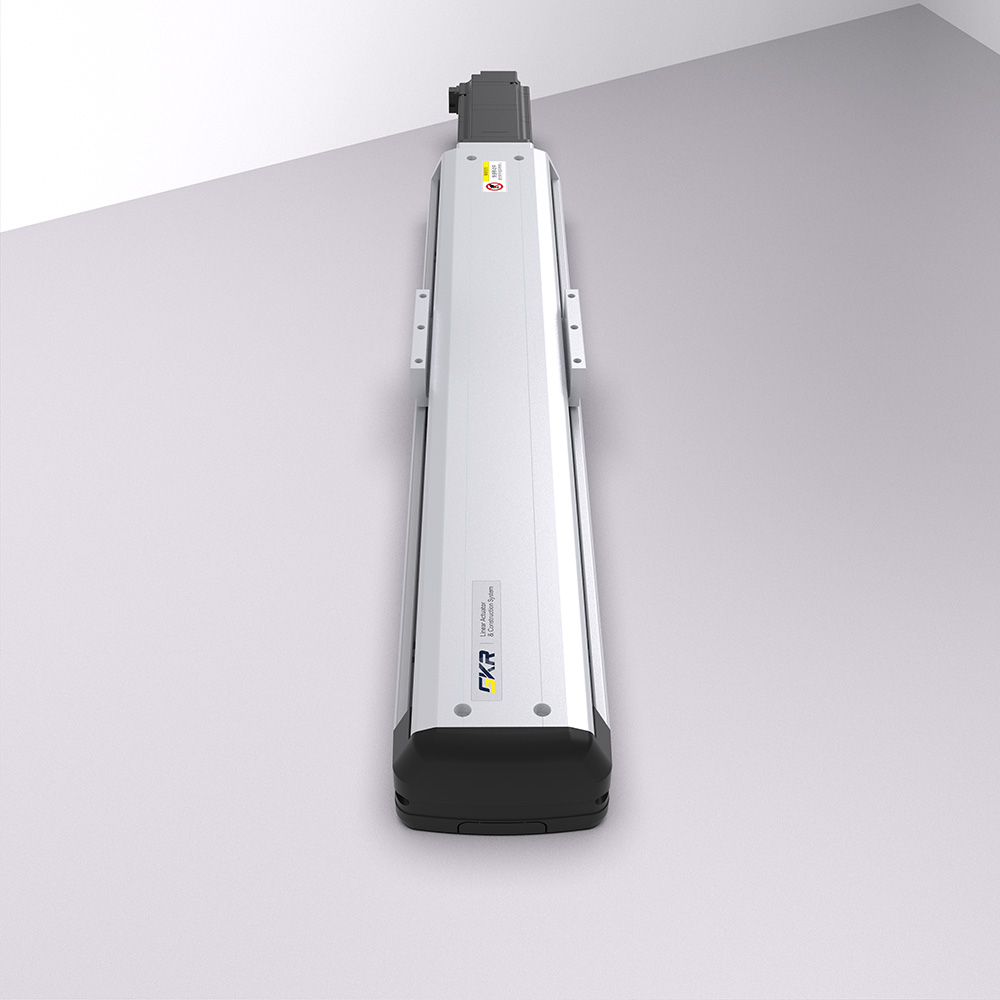

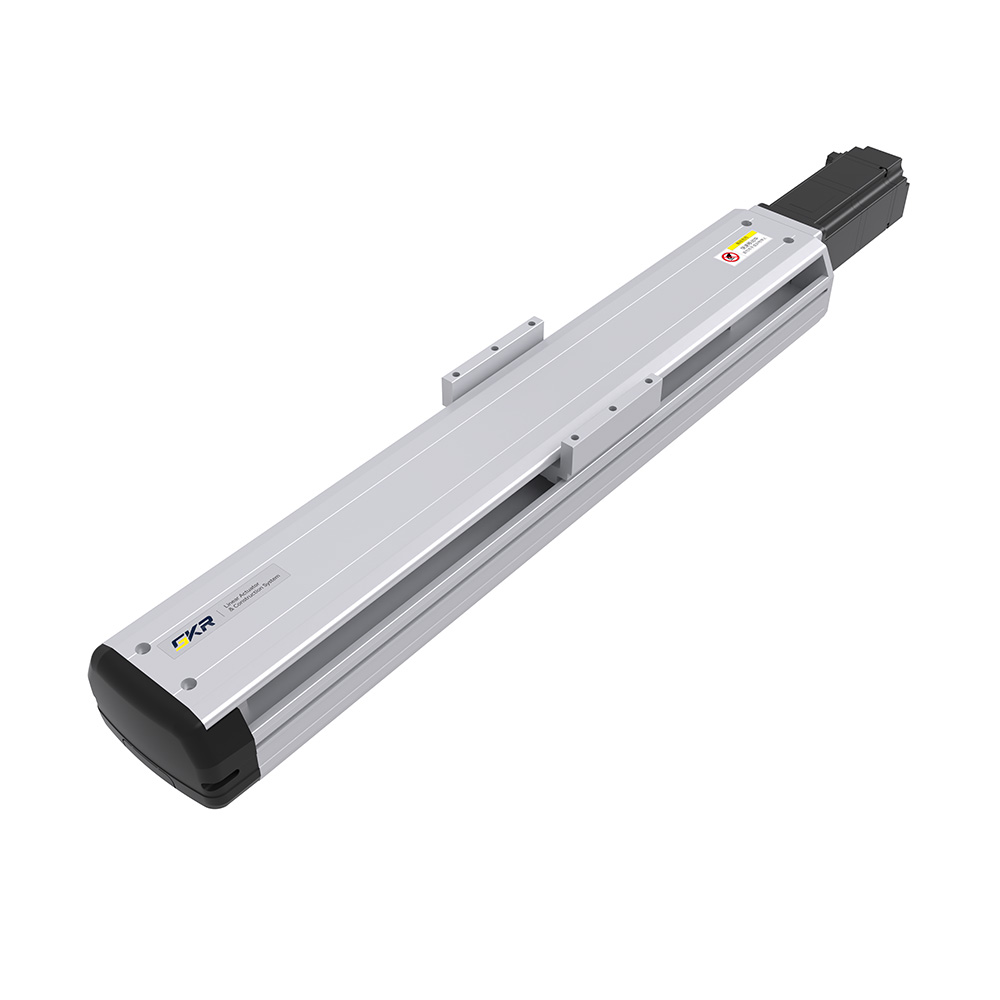

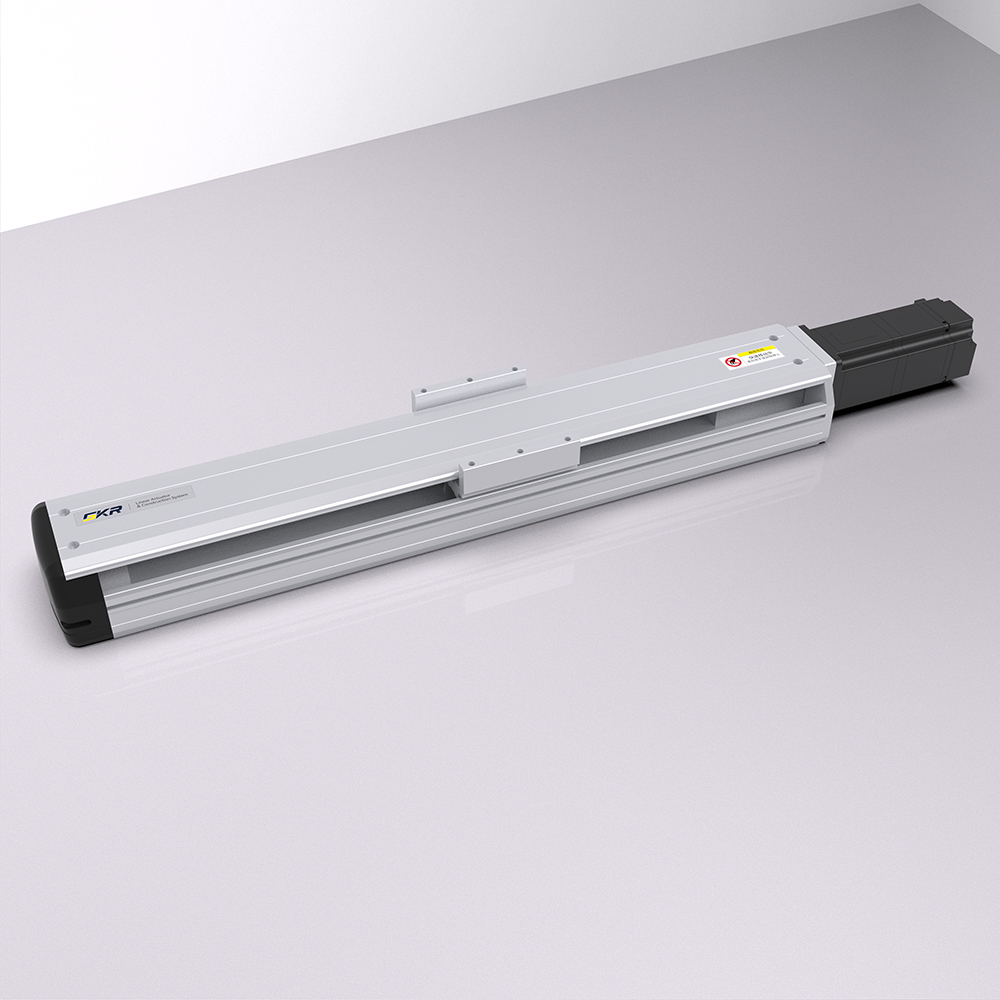

The smallest PSS product. The width is 102mm;
  • Repeatability±0.01mm
  • Ball Screw øC7ø16
  • Ball Screw Lead5mm/10mm/20mm/32mm
  • Horizontal Handling Weight50kg/30kg/18kg/5kg
  • Vertical Handling Weight12kg/8kg/3kg/0kg

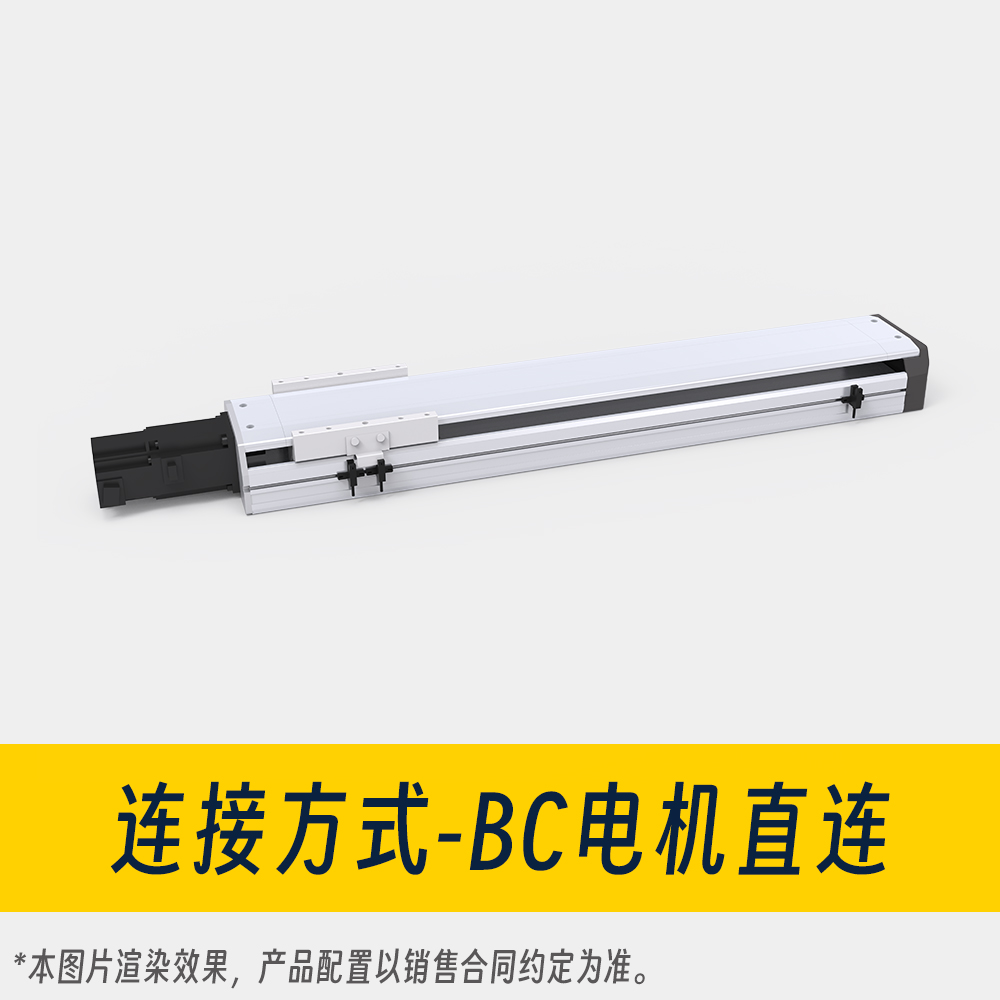

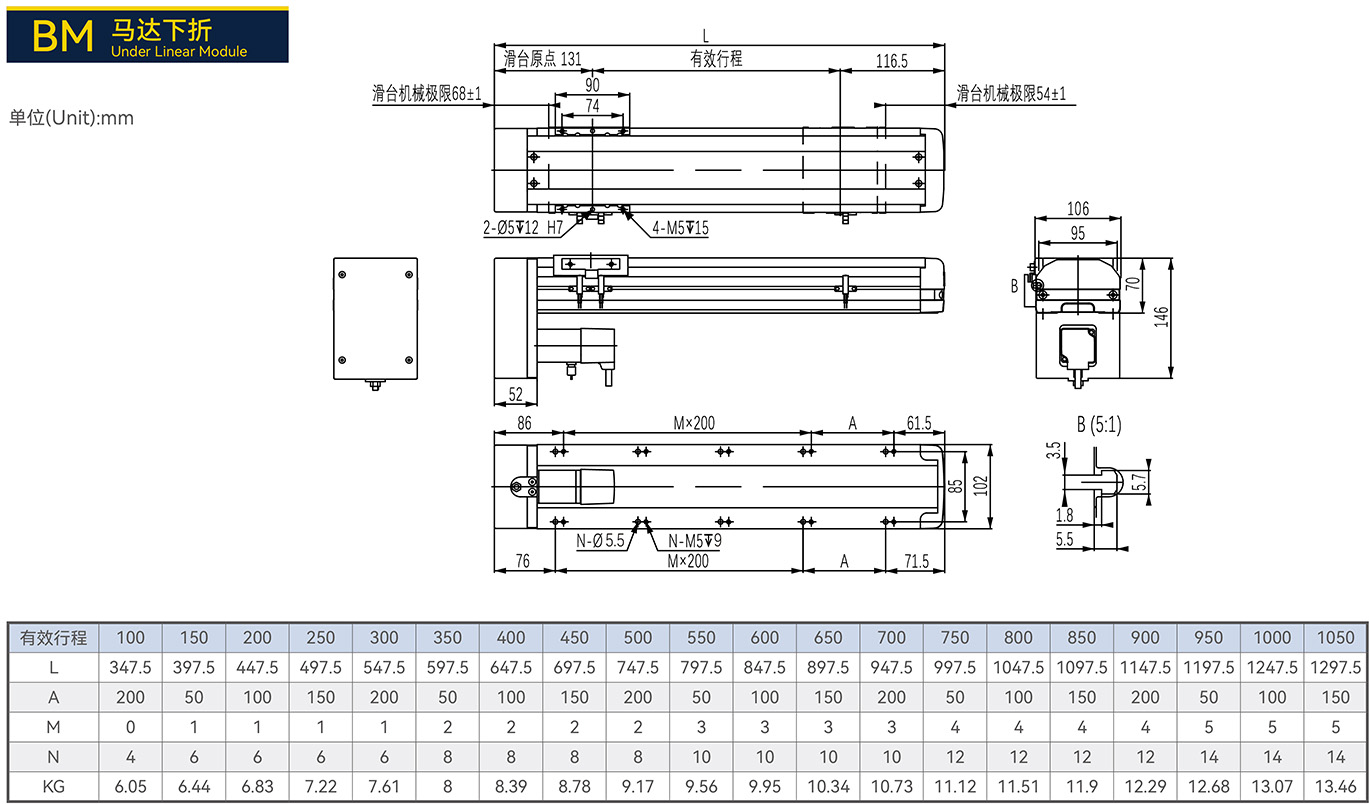

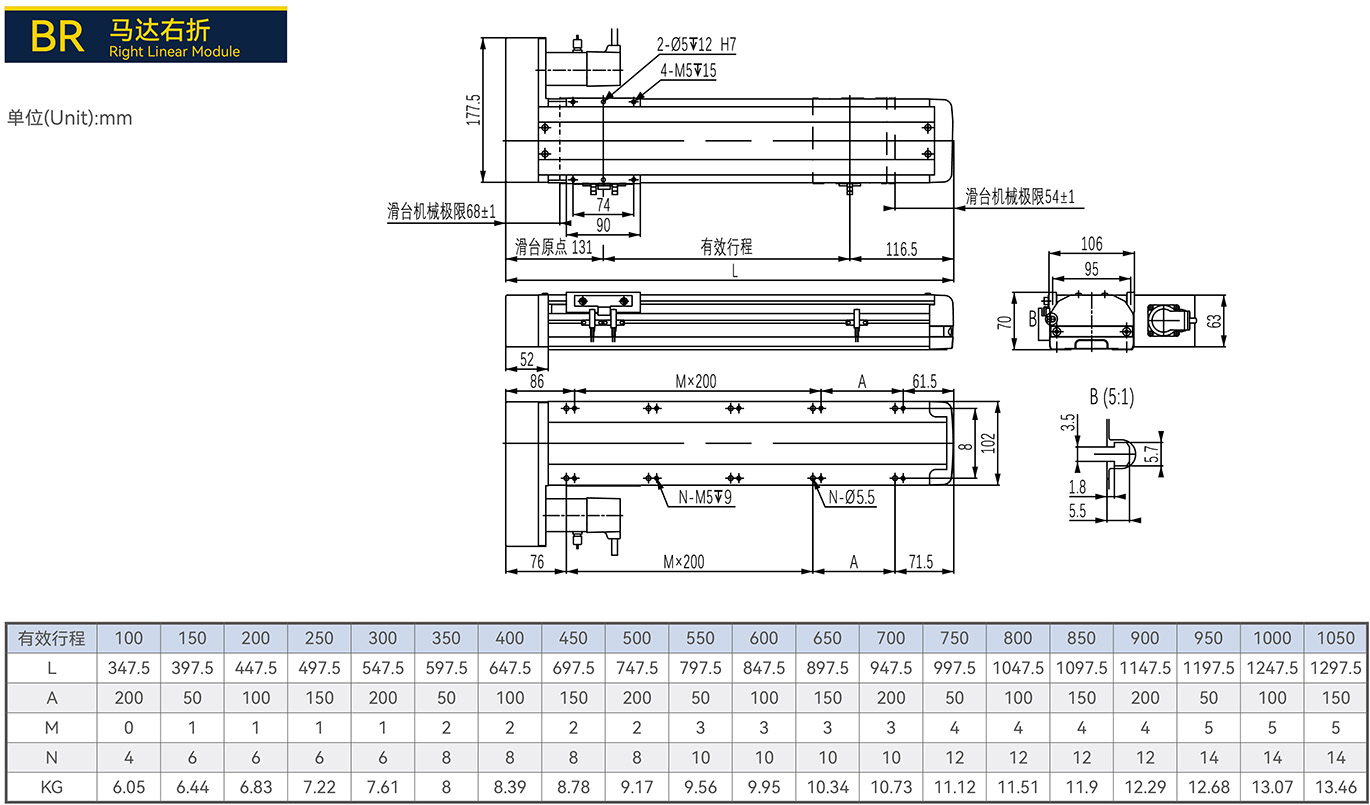

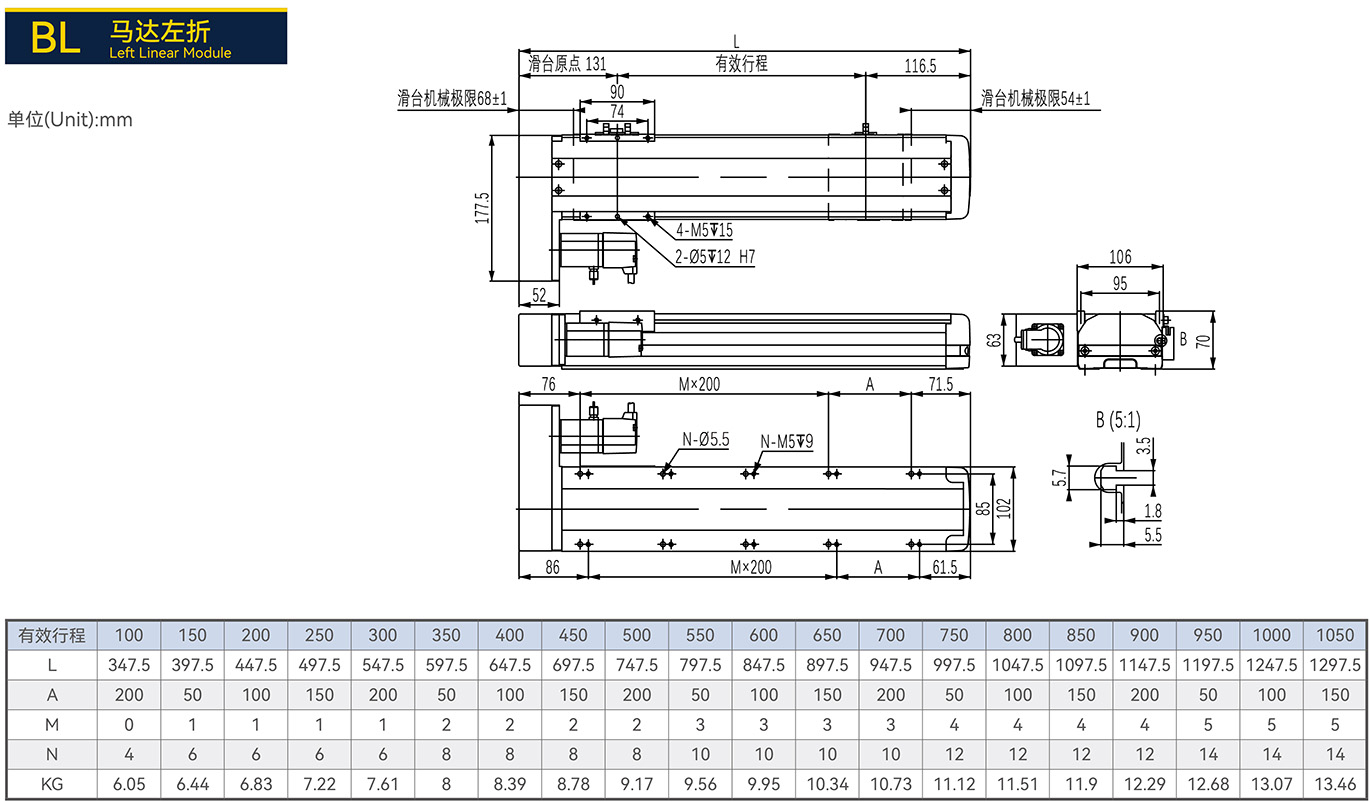

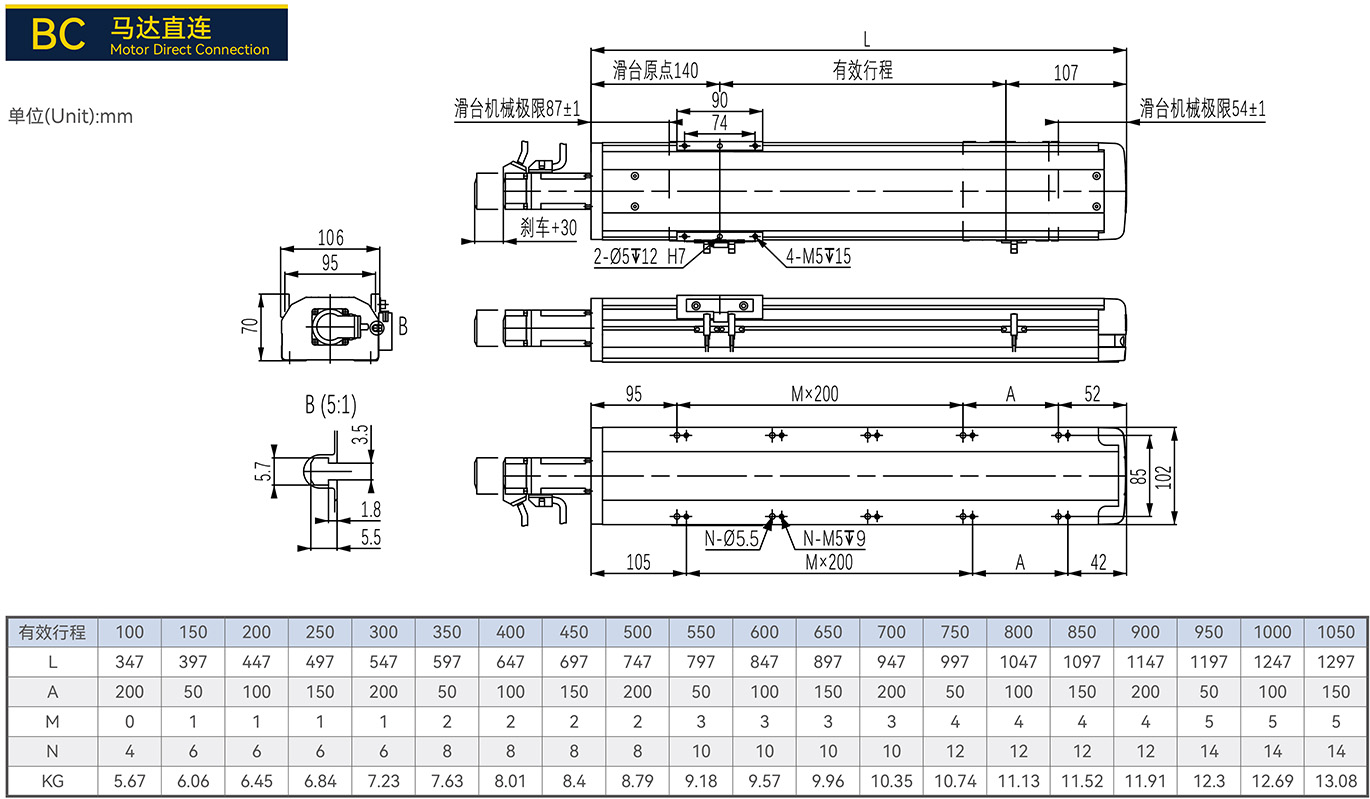

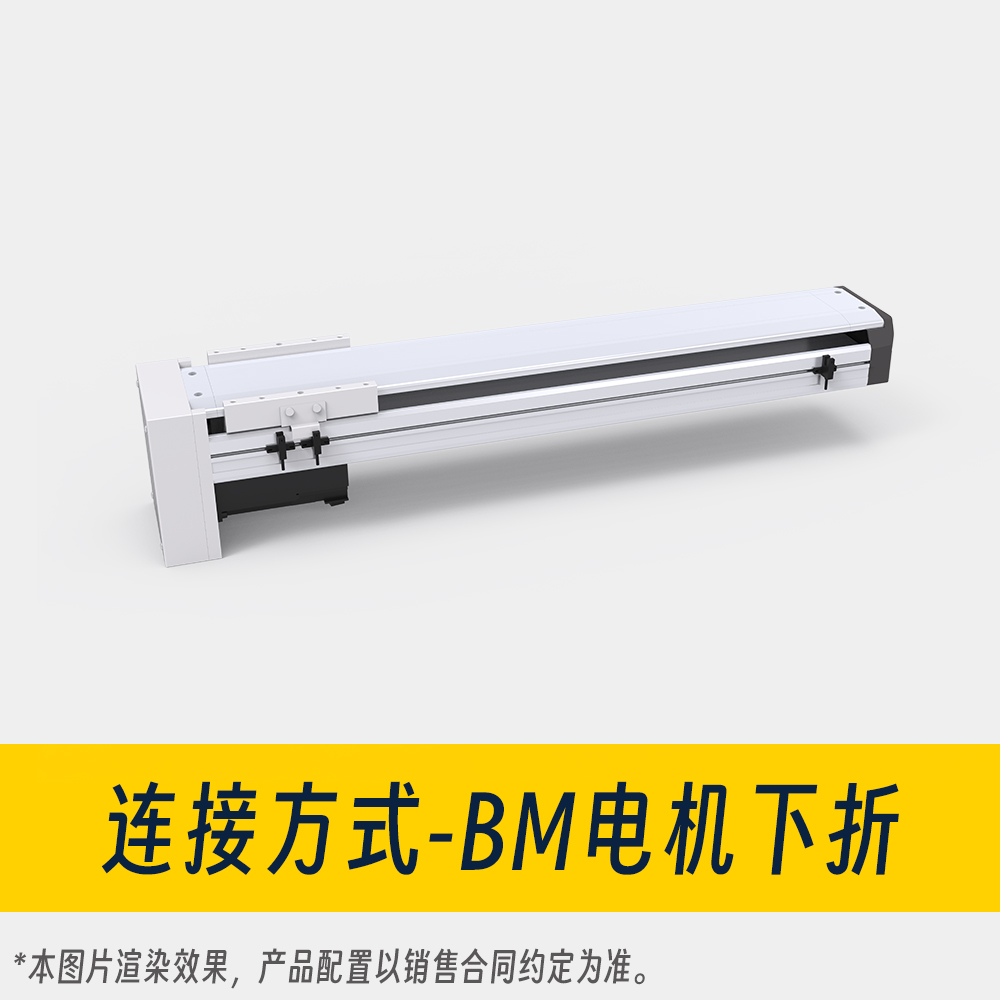

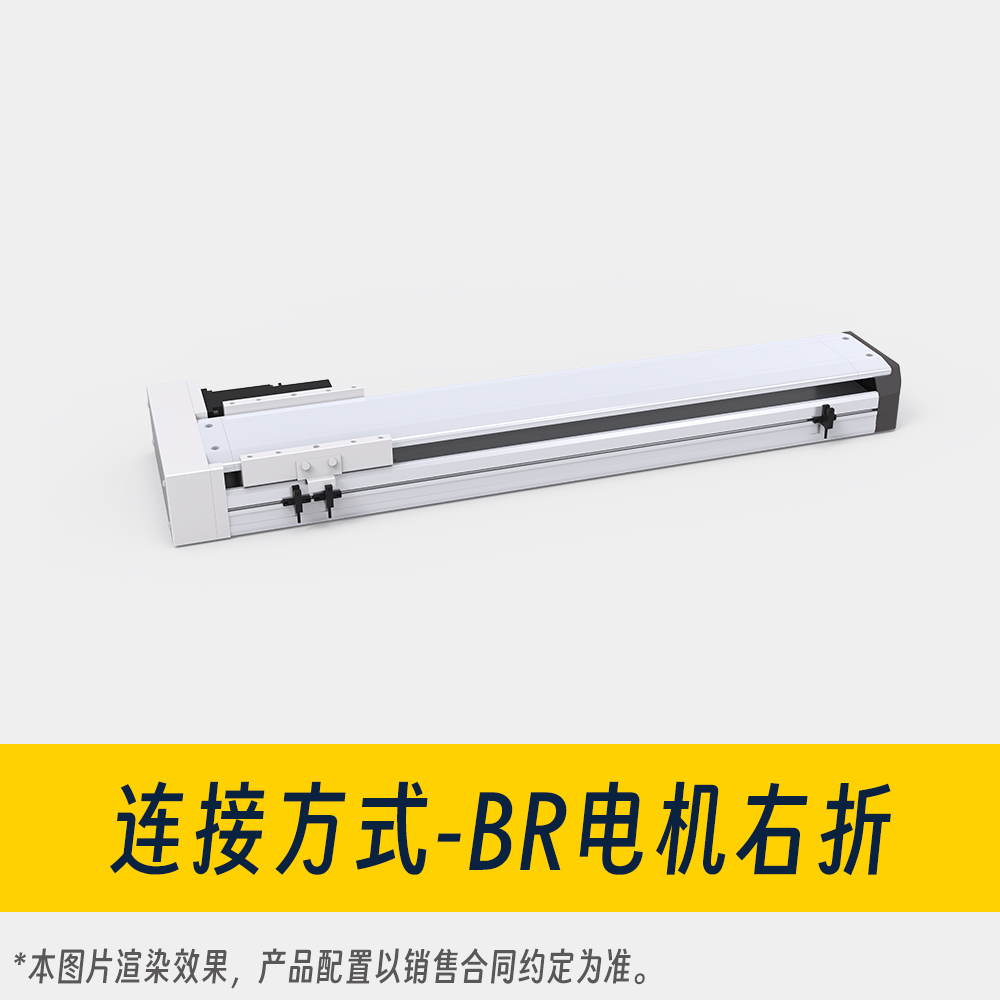

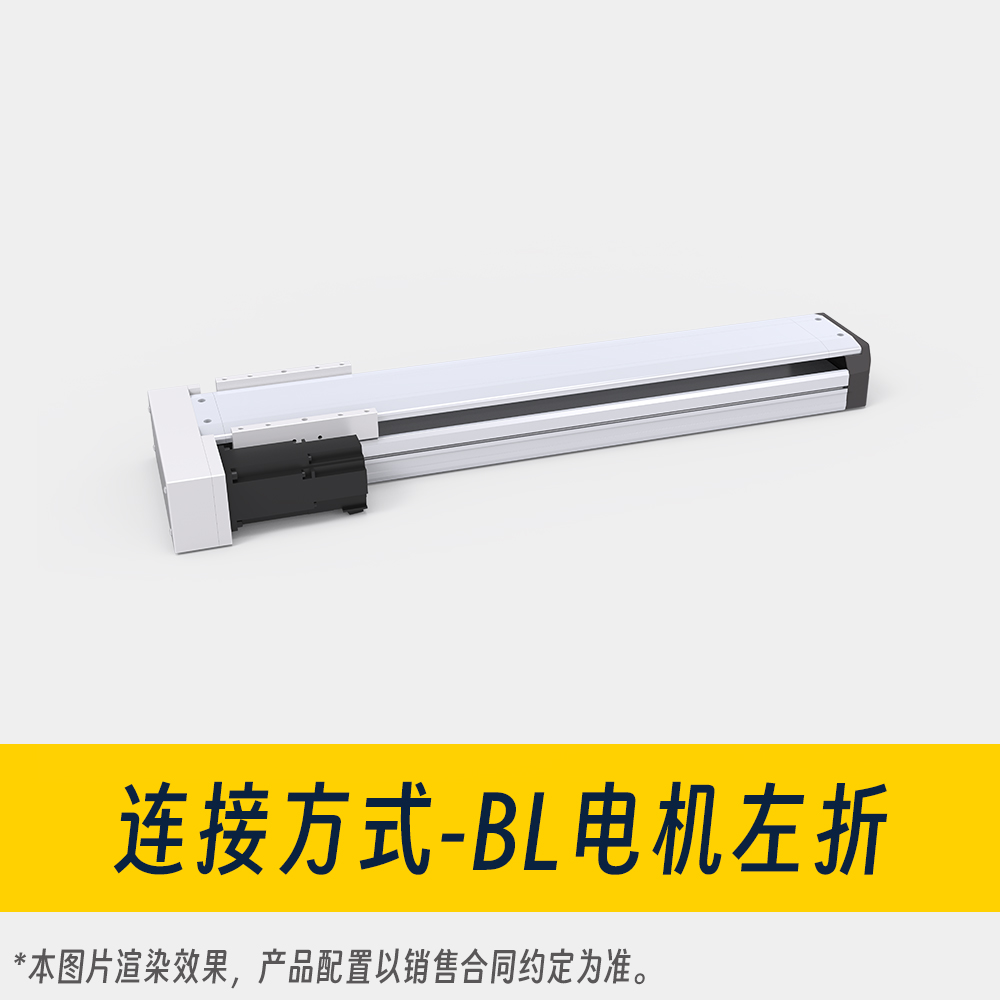

  • Motor Connection MethodBC Direct Motor ConnectionBC Direct Motor ConnectionBL Motor Left BendBL Motor Left BendBM Motor Down BendBM Motor Down BendBR Motor Right BendBR Motor Right Bend
  • Linear Guide Model12×7.5-2pcs
  • Body Size Reference Width:102mm， Height:70mm

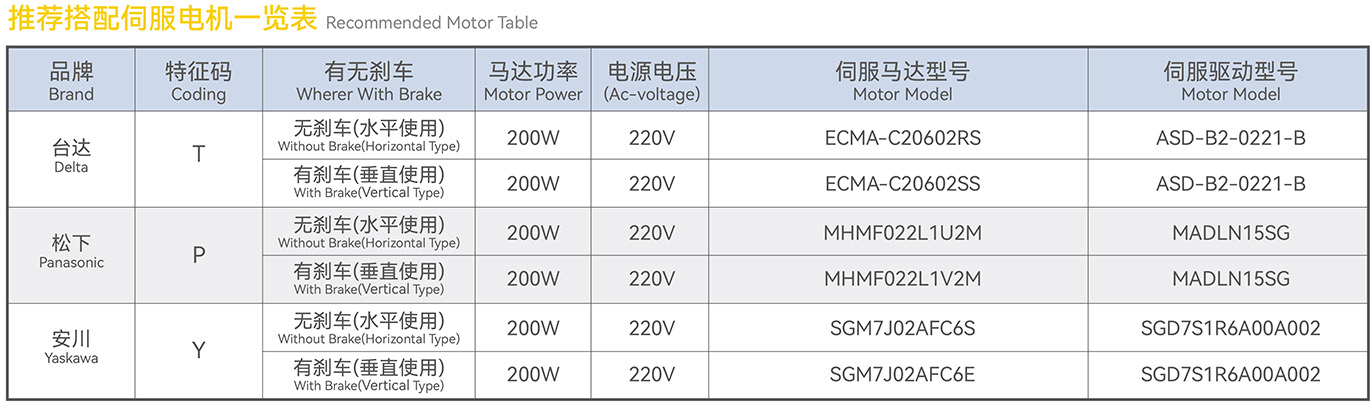

  • Drive Specification200W/3000r·min/0.64N·m
  • Standard Stroke100~1050mm(Interval 50mm)
Inquire This Product
Go to Official Flagship Store to Buy

Product Data Download

Product Description

Product Features

Standard semi-enclosed linear module, with two built-in 12 miniature linear guides.

PSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide modulePSS120 Series, ball screw type slide module
