〔SKR〕Linear Module

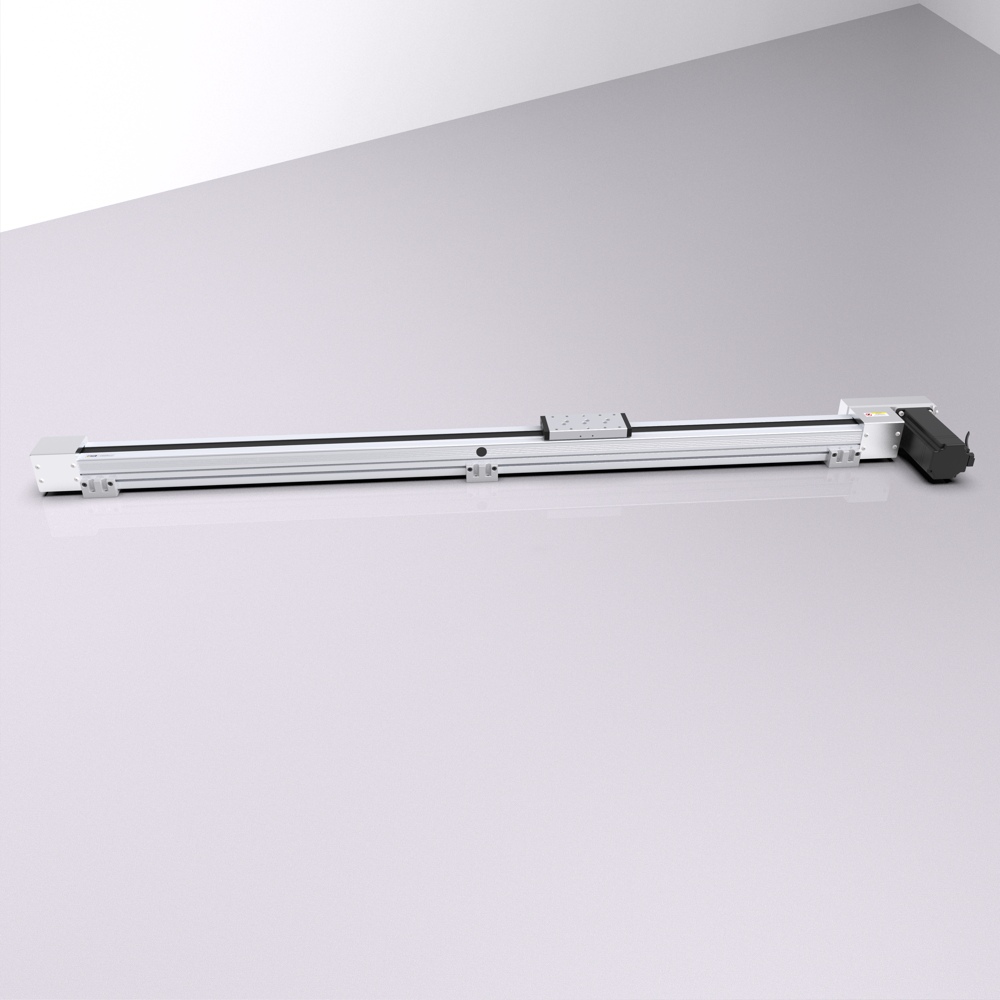

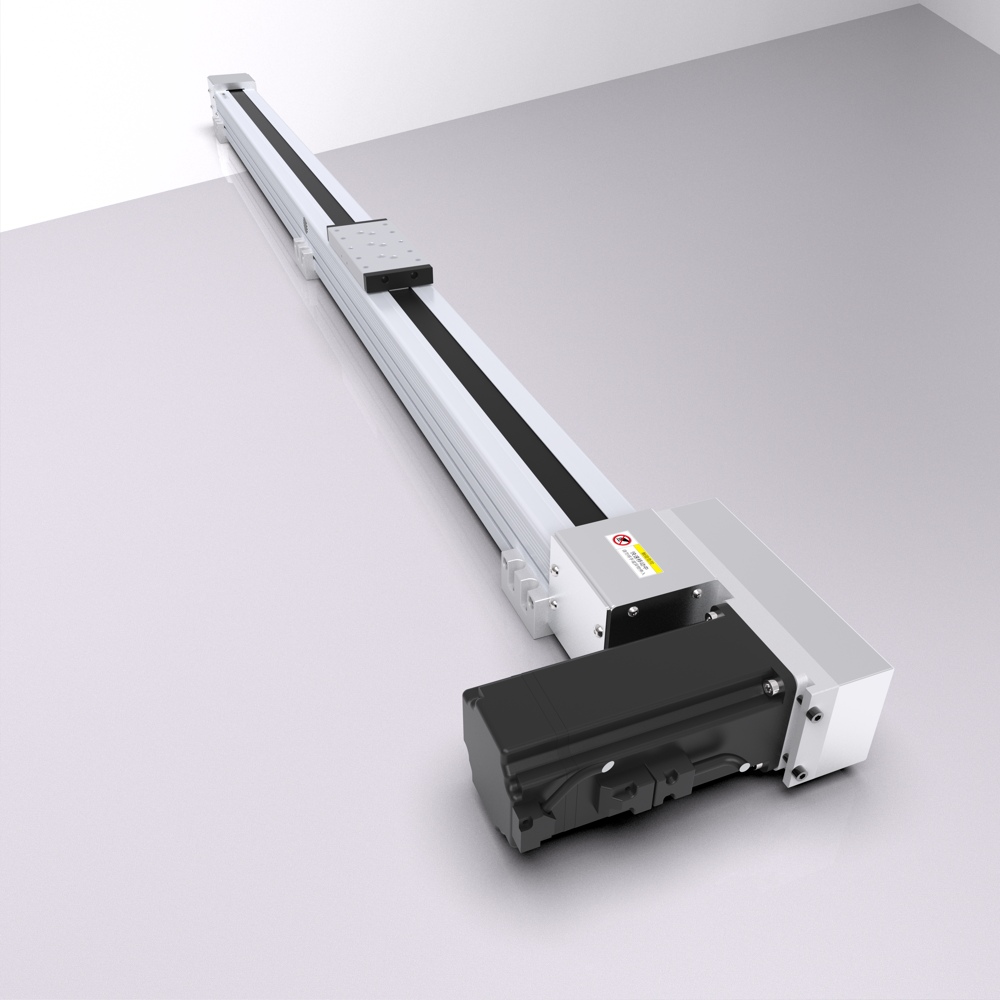

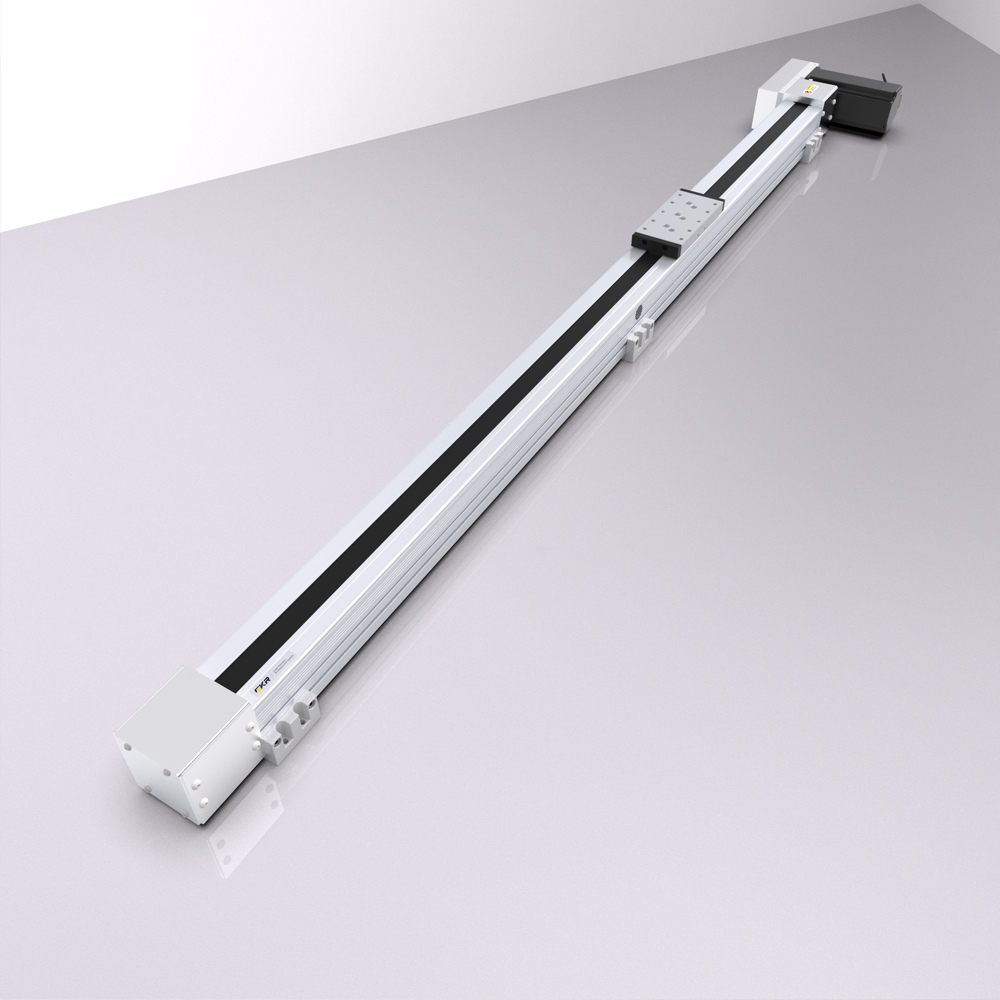

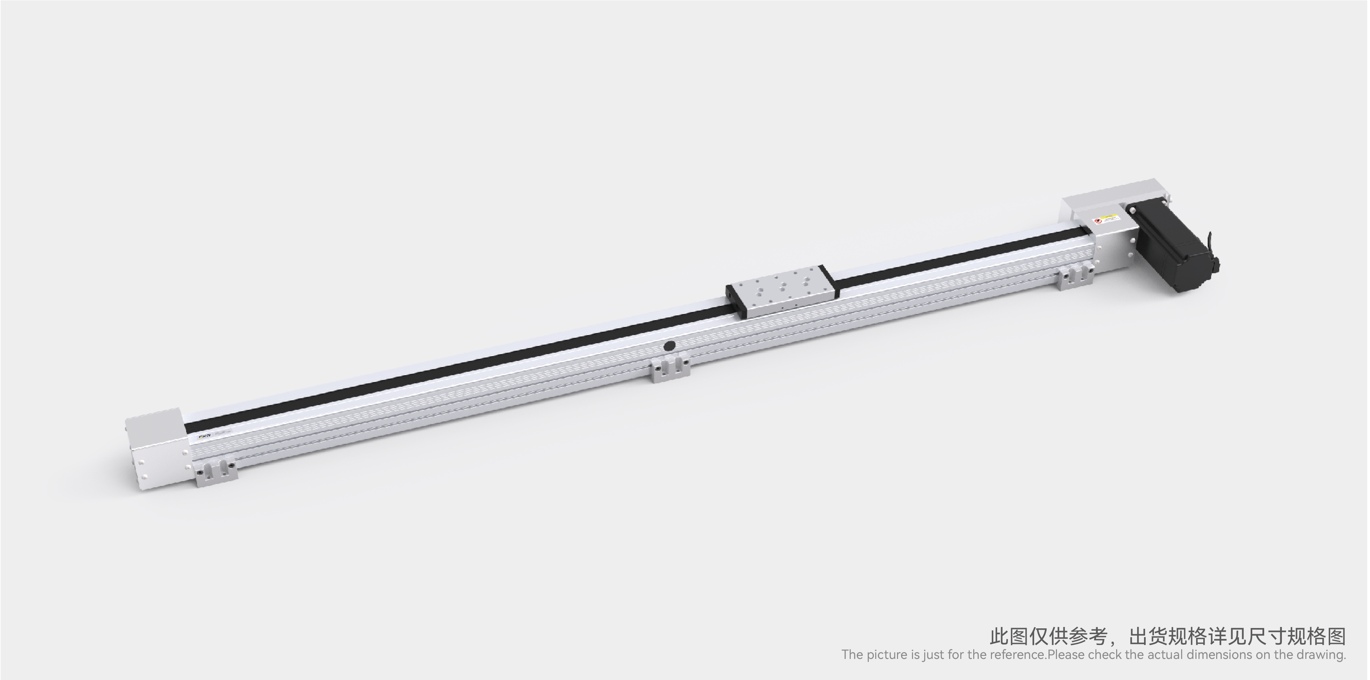

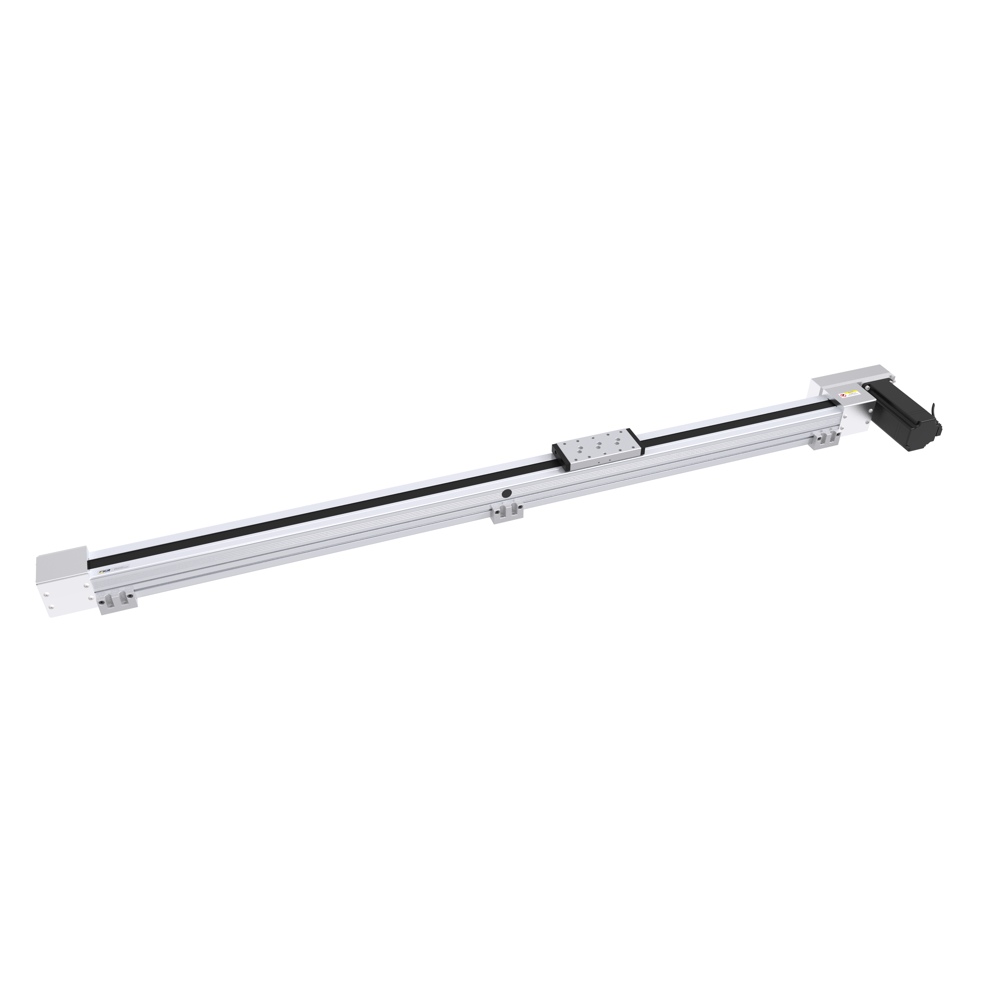

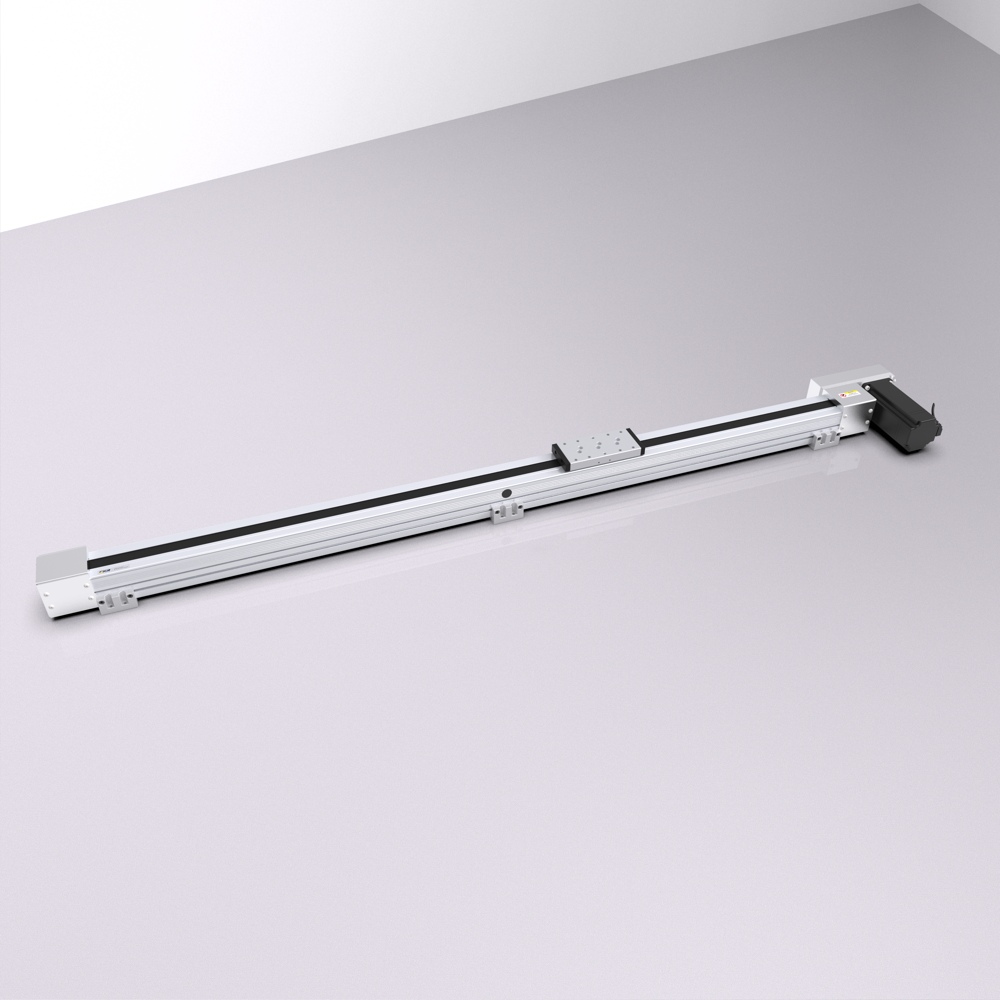

SK80 Series, European Standard Synchronous Belt Slide Table Module

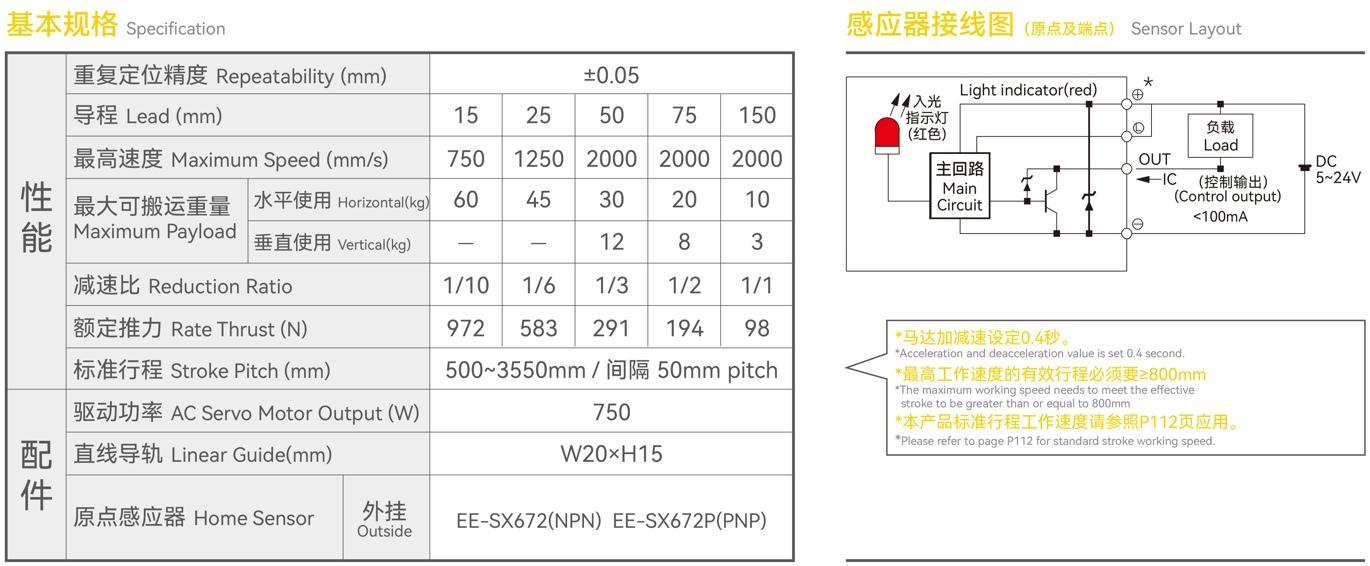

Economical, Medium Size, Long Stroke, European Standard Slide Table- Repeatability±0.05mm
- Synchronous Belt Diameter30mm
- Horizontal Handling Weight10kg
- Vertical Handling Weight3kg
- Lead150mm（Other leads require the installation of a speed reduction mechanism）
- Linear Guide Model20×15-1pcs

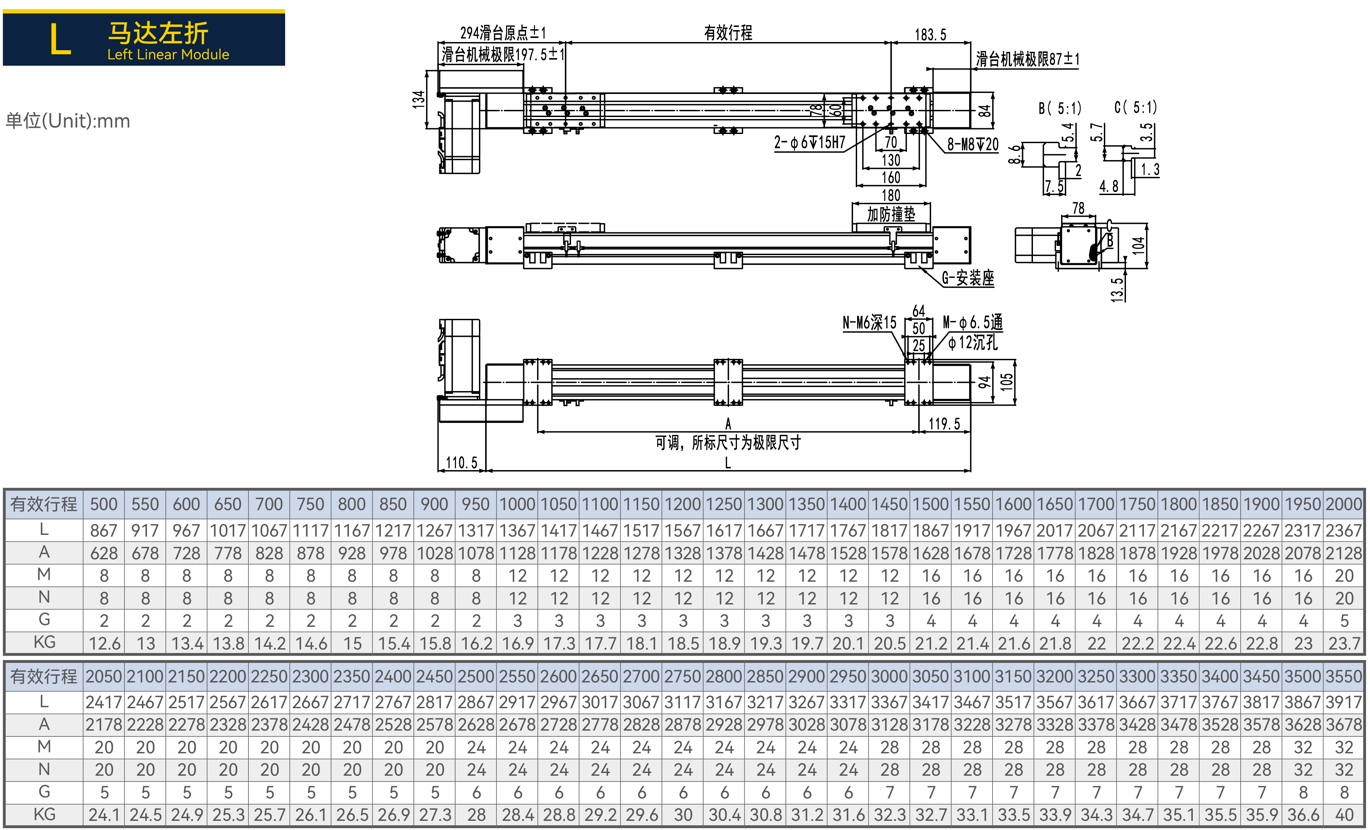

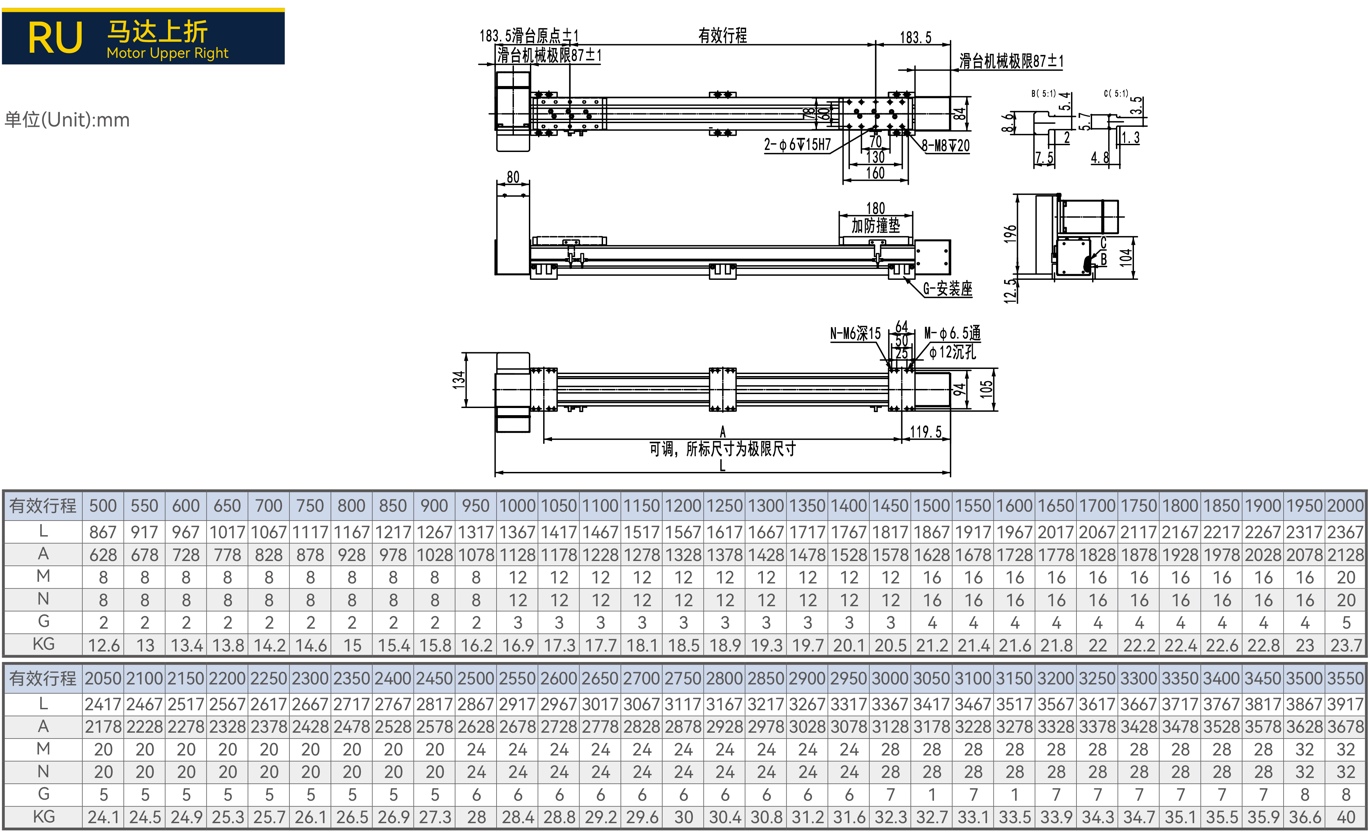

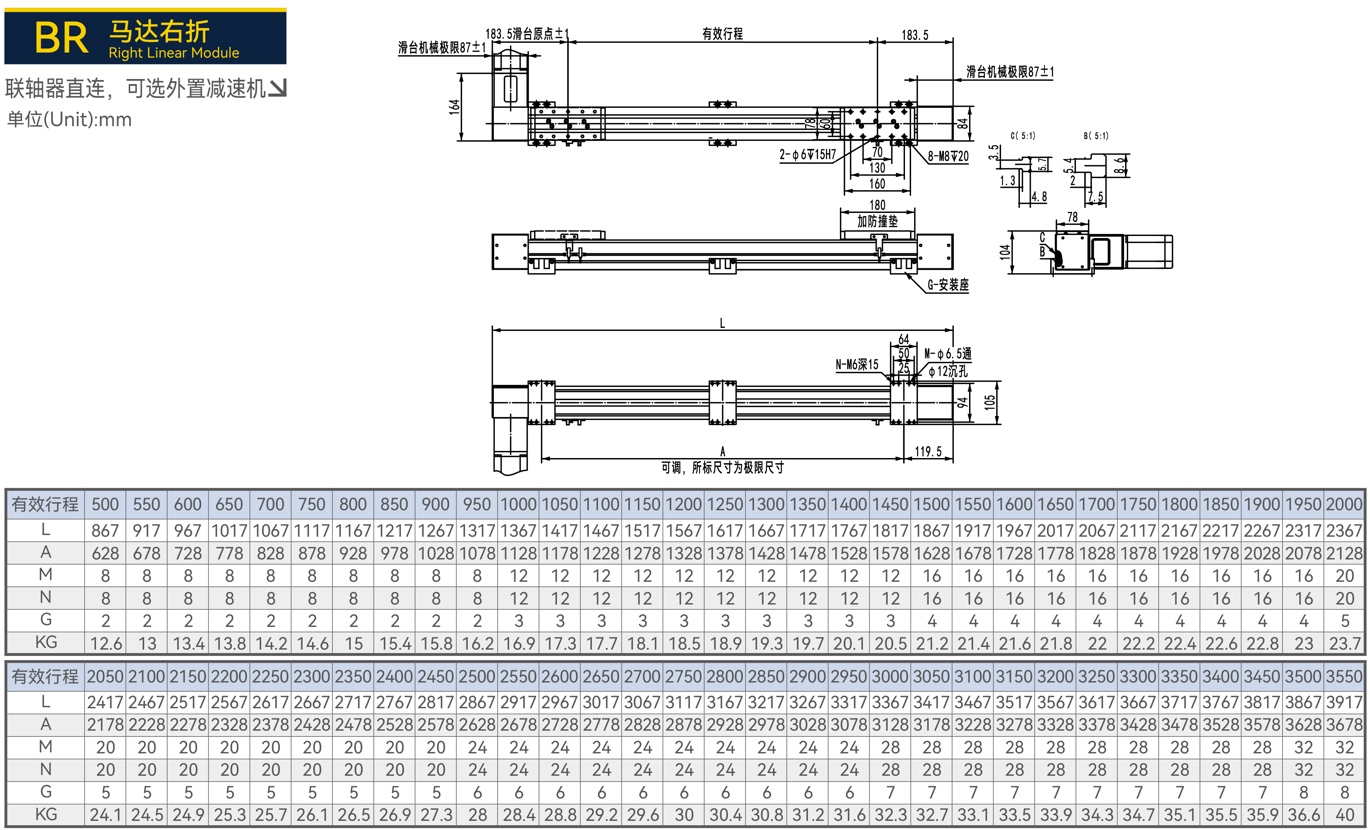

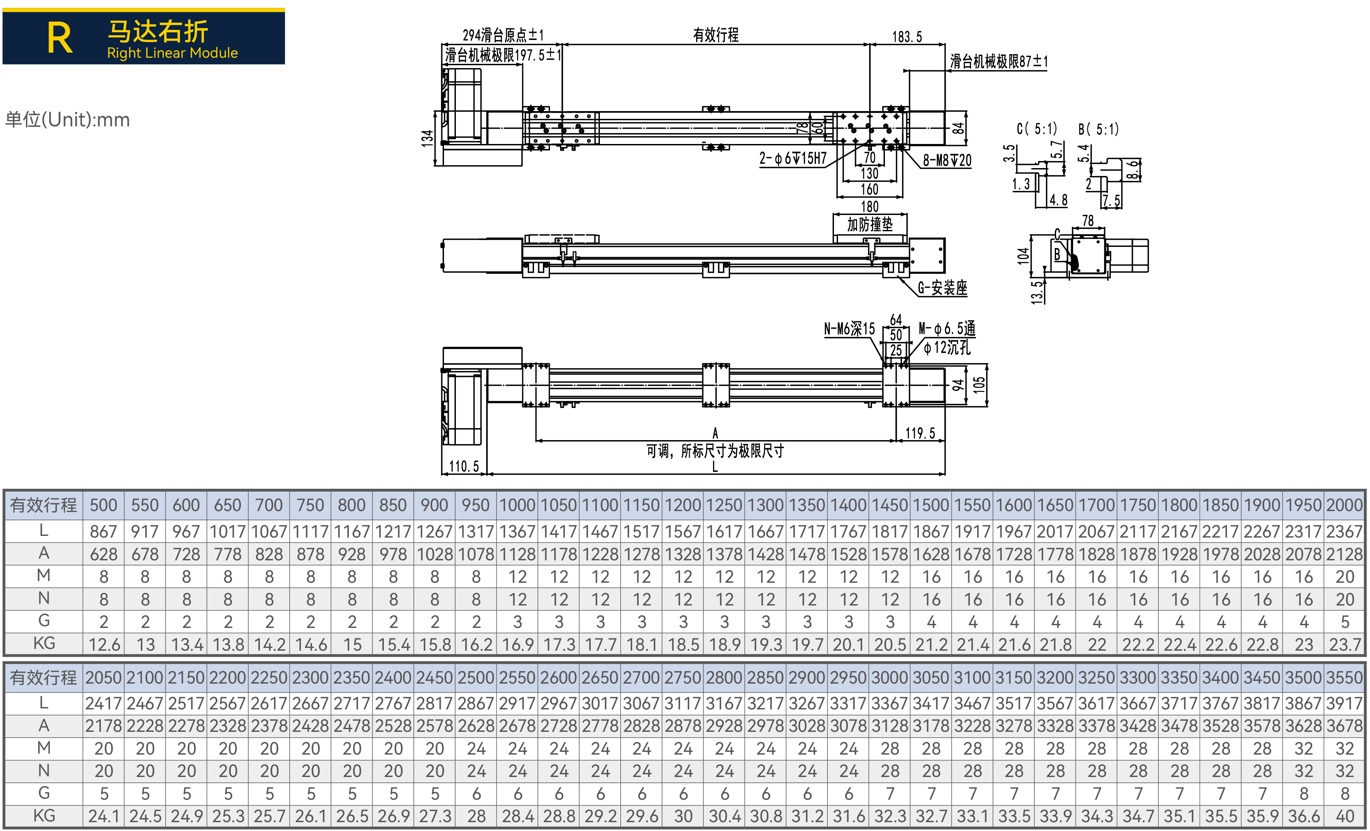

- Body Size Reference Width:84mm（Not including the installation block）， Height:104mm

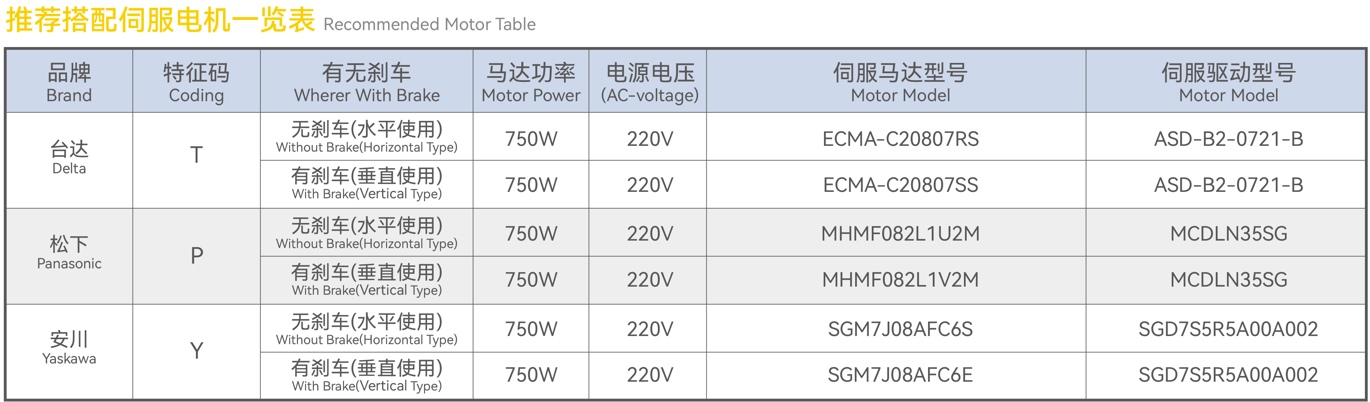

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke5000~3550mm(Interval 50mm)
Product Data Download
Product Description
