〔SKR〕Linear Module

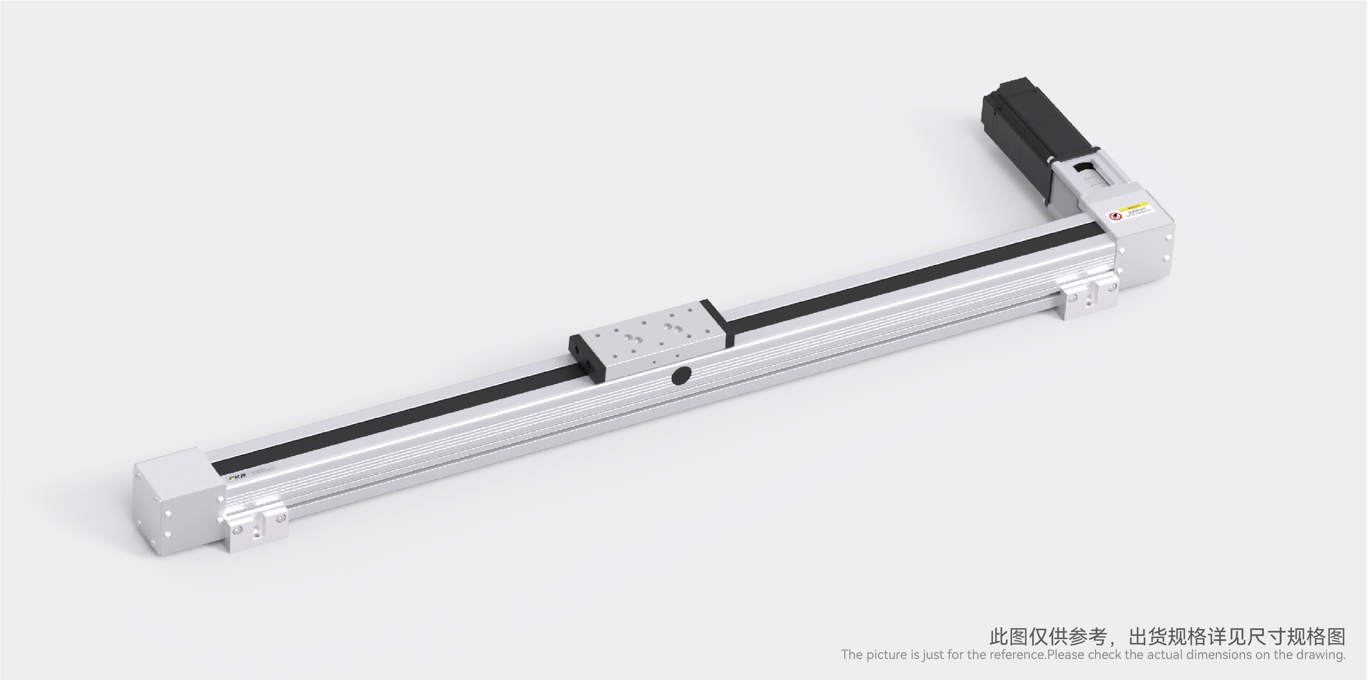

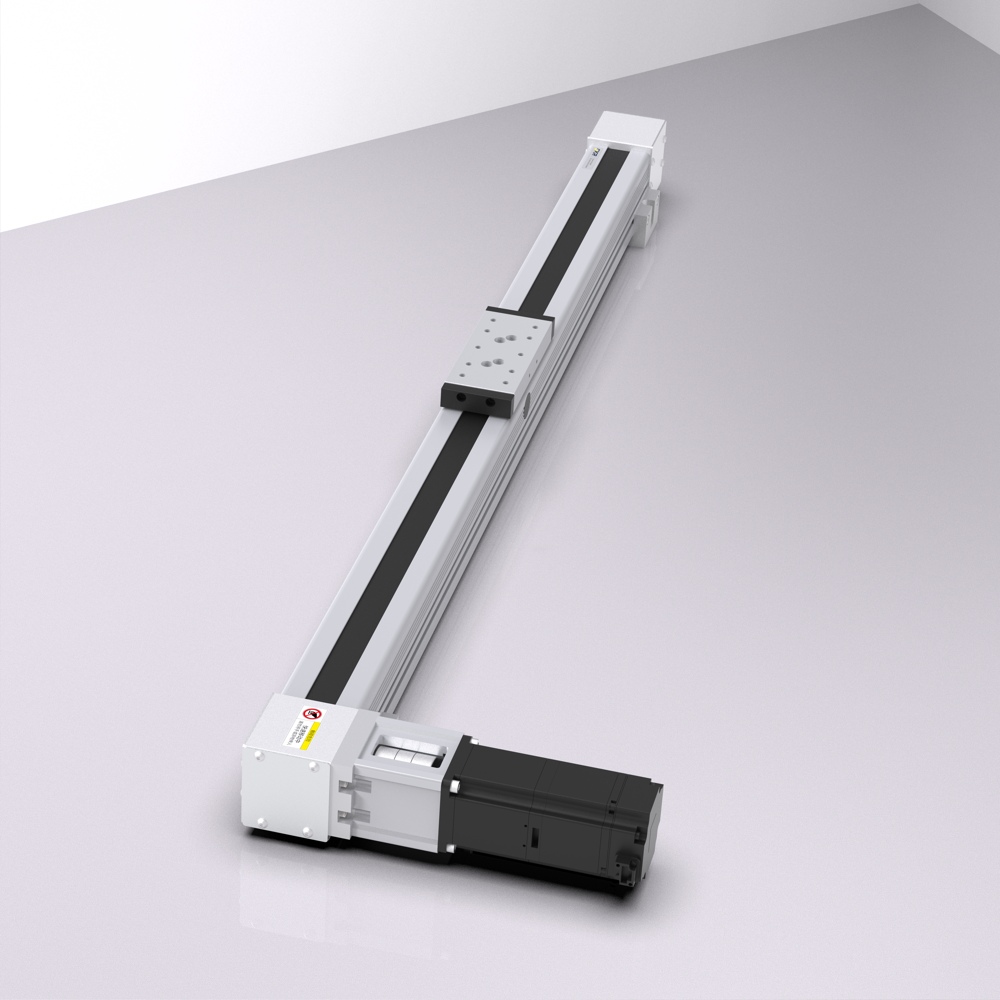

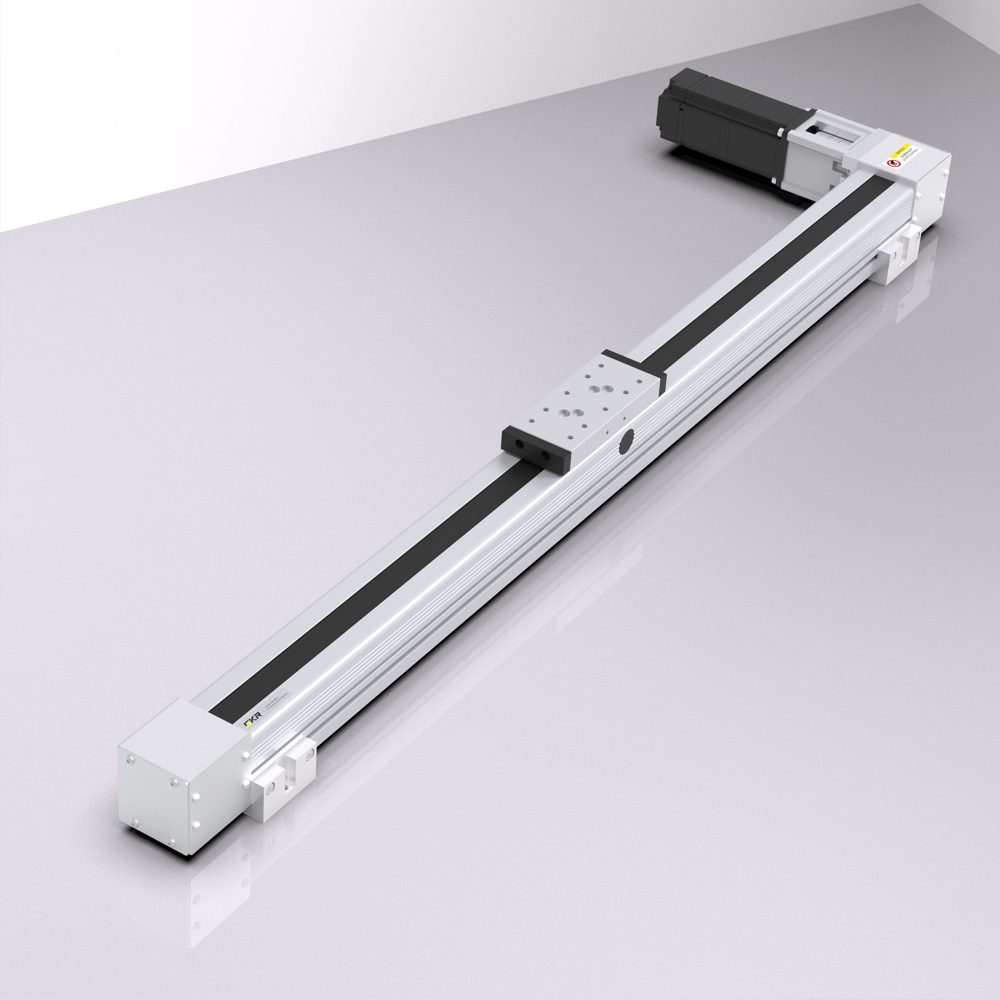

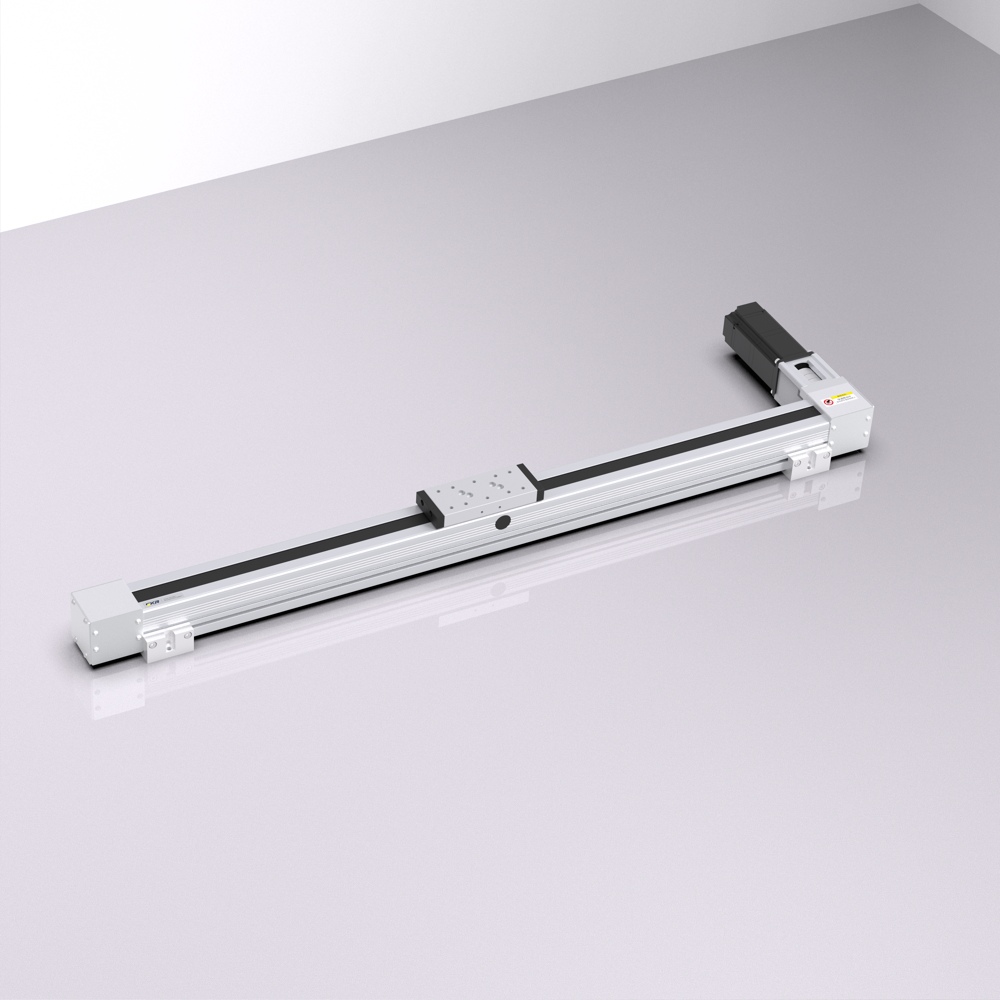

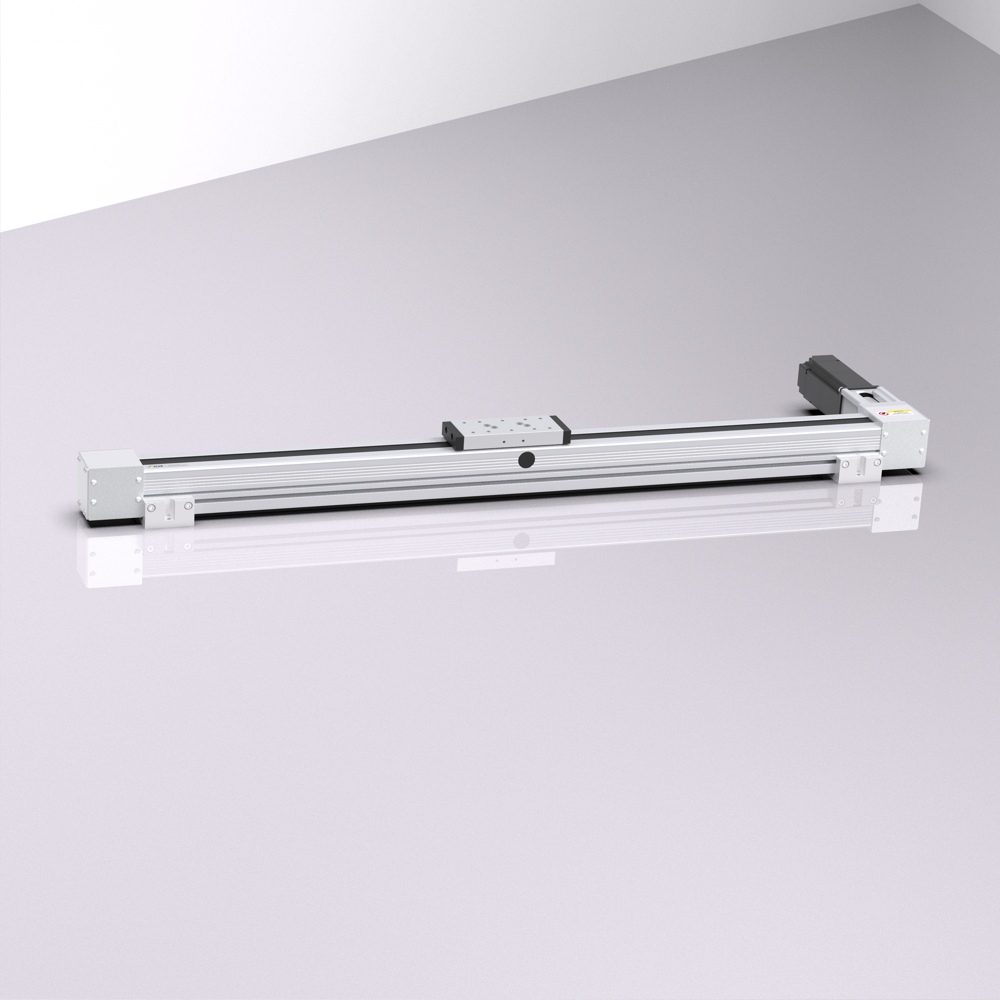

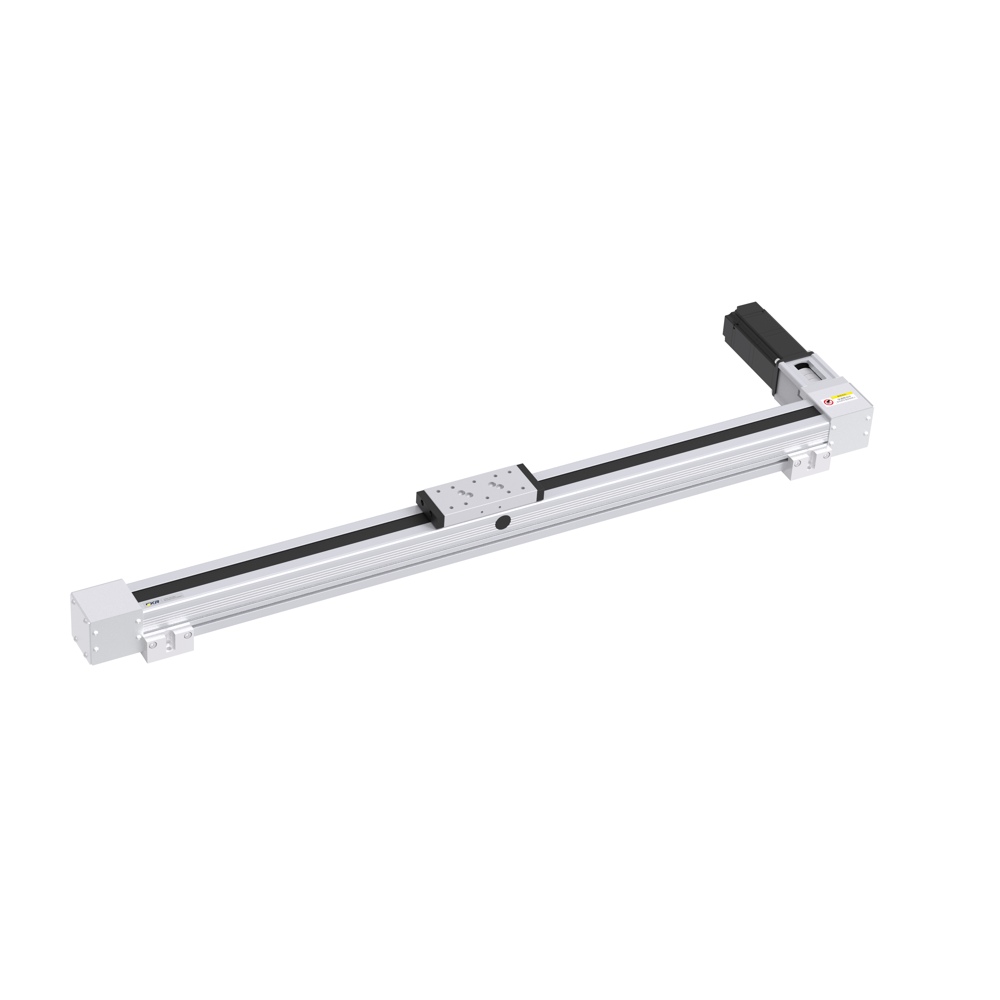

SK60 Series, European Standard Synchronous Belt Slide Table Module

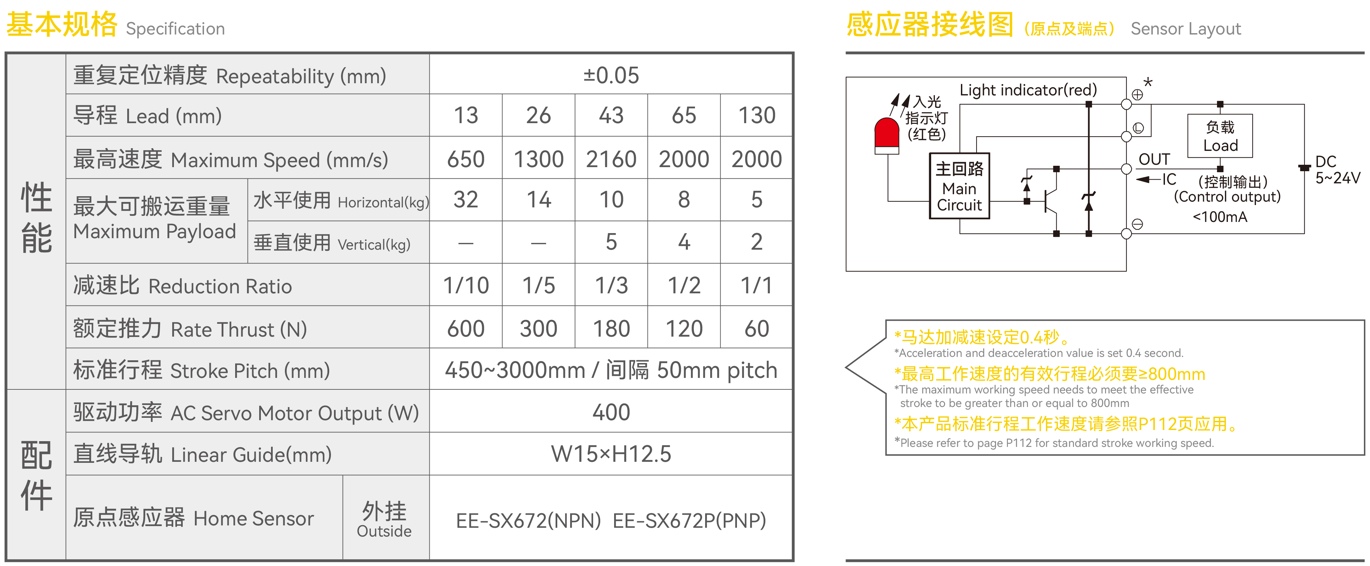

European Standard Synchronous Belt Slide Table, Small Size, Suitable for Various Scenarios- Repeatability±0.05mm
- Synchronous Belt Diameter20mm
- Horizontal Handling Weight5kg
- Vertical Handling Weight2kg
- Lead130mm（Other leads require the installation of a speed reduction mechanism）
- Linear Guide Model15×12.5-1pcs
- Body Size Reference Width:63mm（Not including the installation block）， Height:90mm

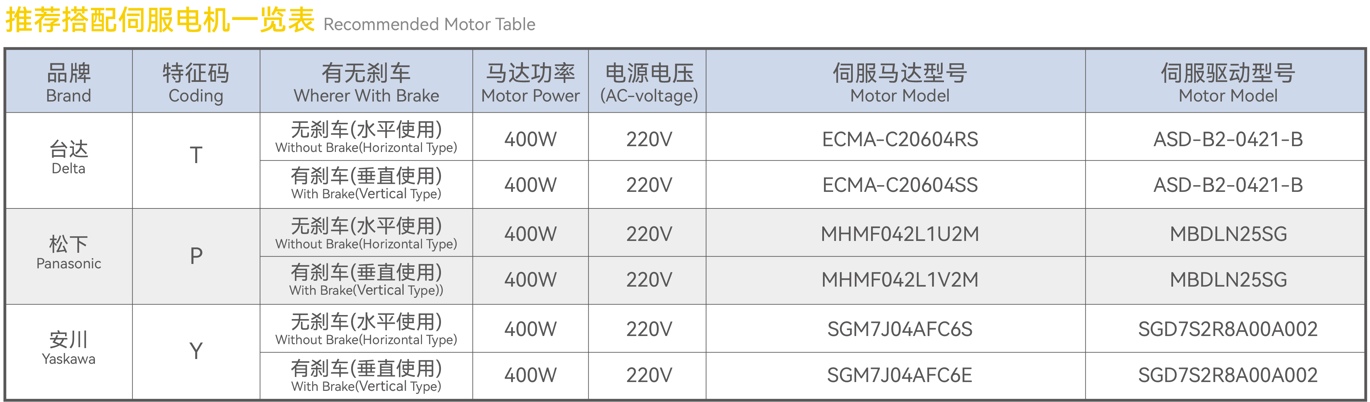

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke450~3000mm(Interval 50mm)
Product Data Download
Product Description
