〔SKR〕Linear Module

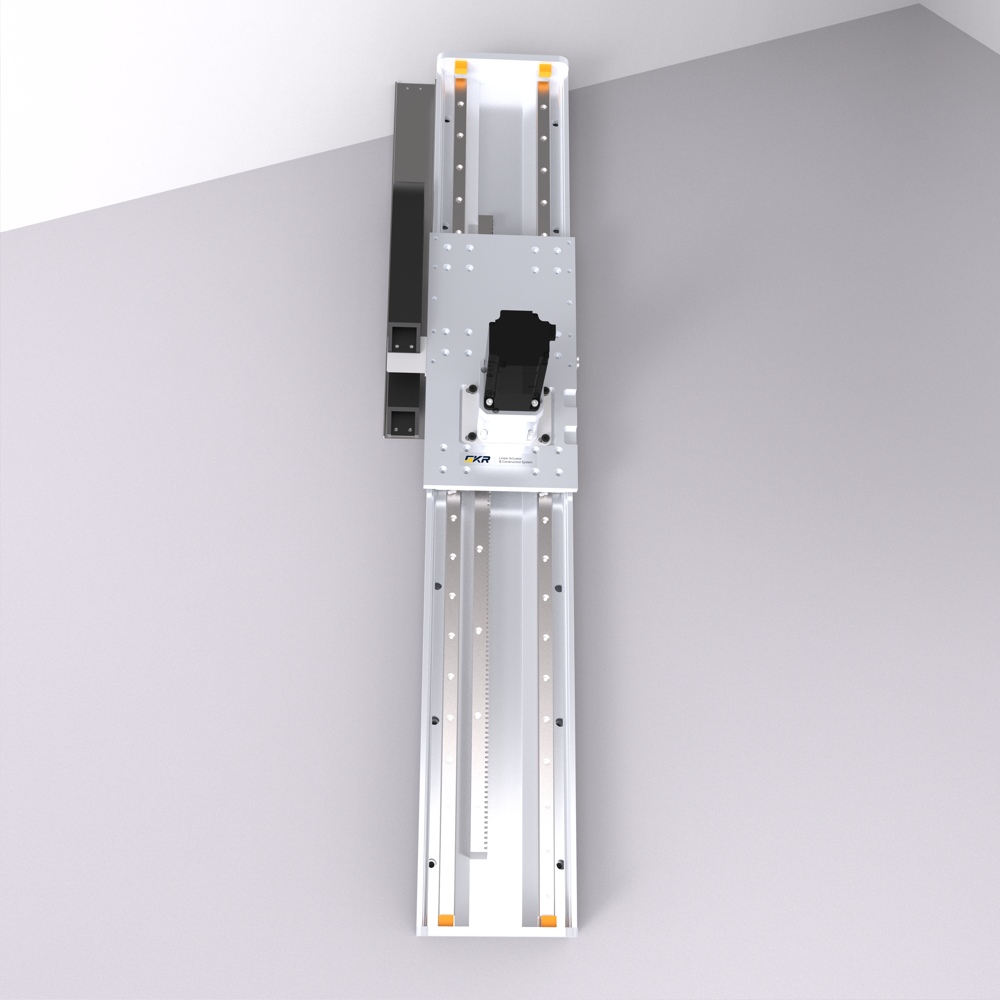

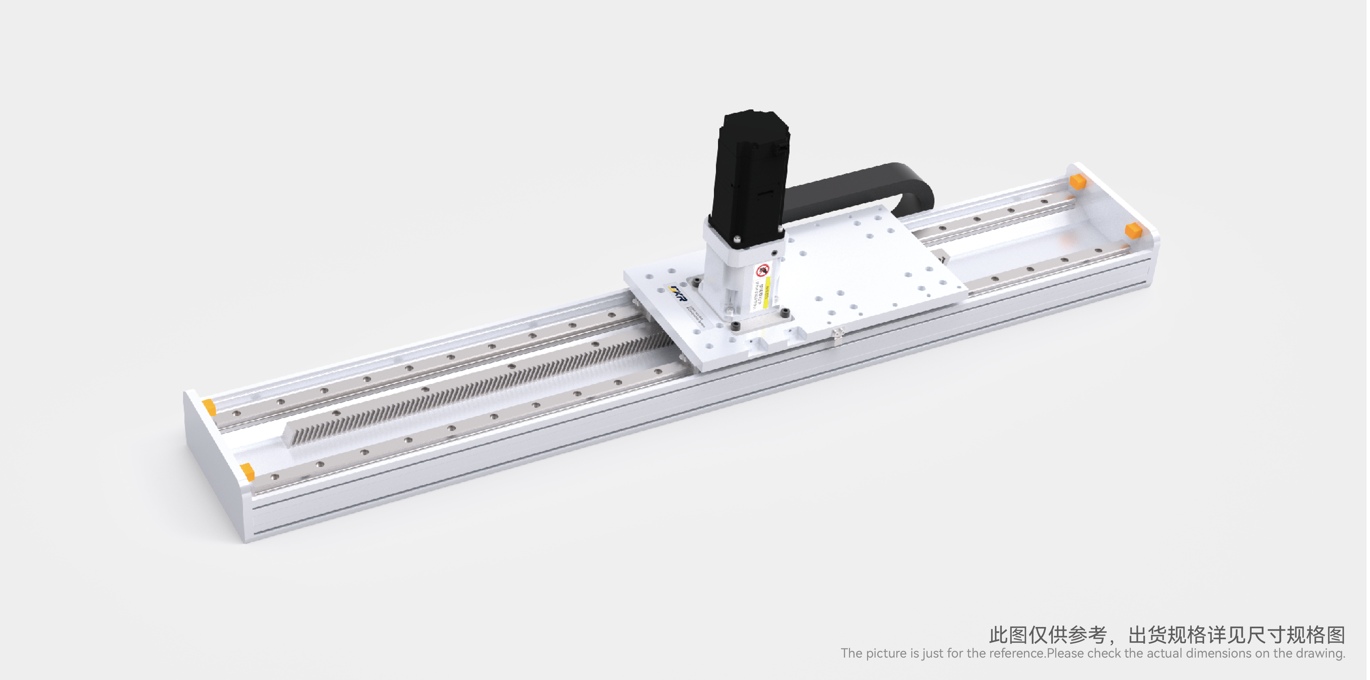

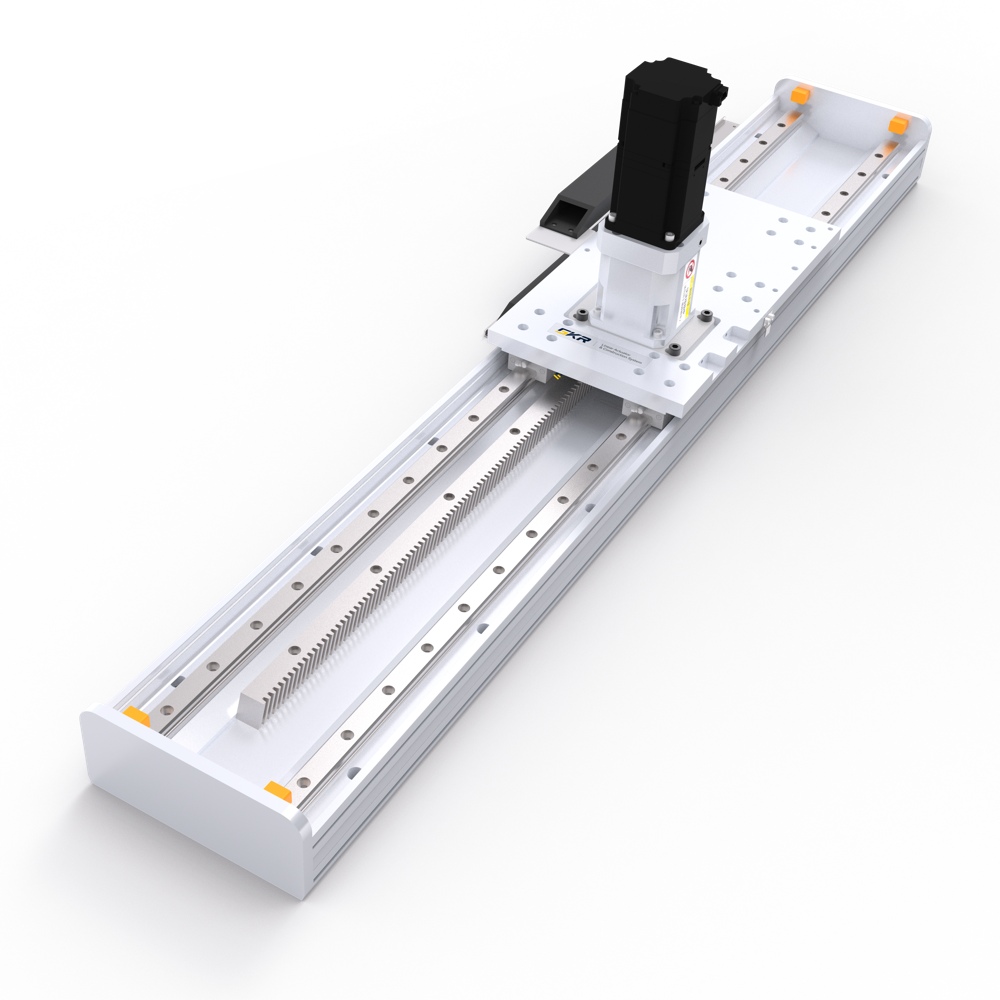

SHS22 Series, Gear Rack Slide Table Module

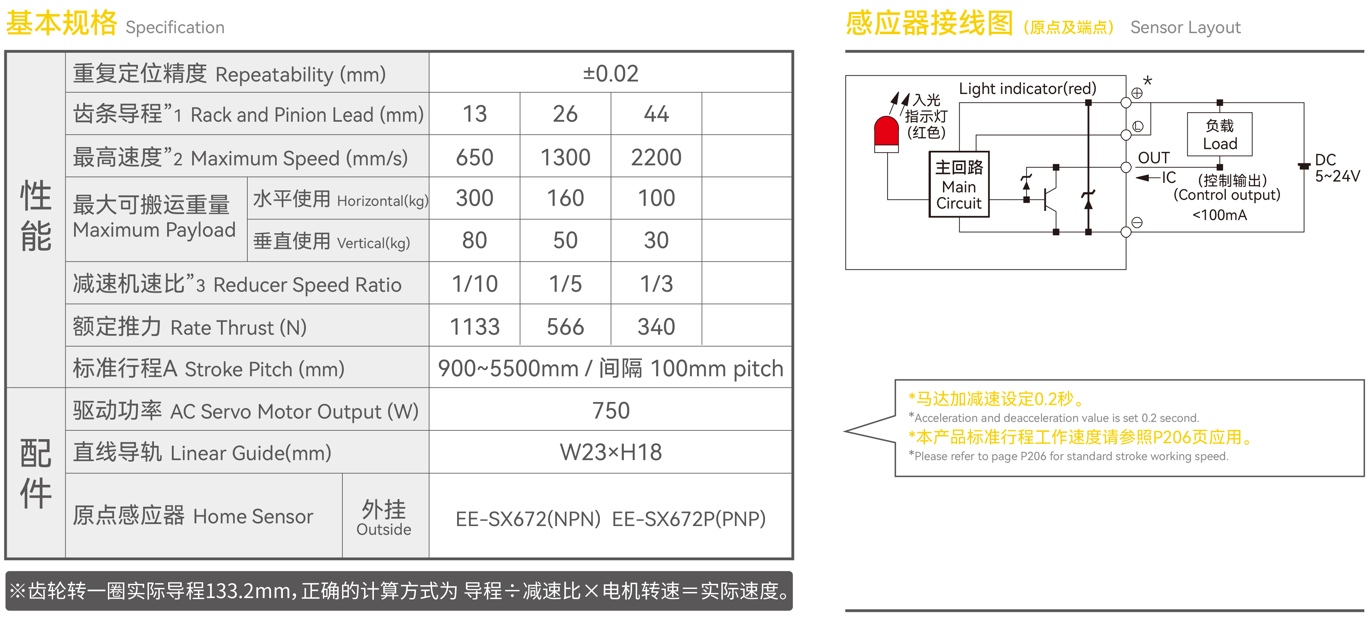

Gear rack slide table, specification size base width is consistent with PSS220.- Repeatability±0.02mm
- Gear rack modulus2M
- Product optional lead13mm/26mm/44mm
- Horizontal Handling Weight300kg/160kg/100kg
- Vertical Handling Weight80kg/50kg/30kg
- Linear Guide Model23×18-2pcs

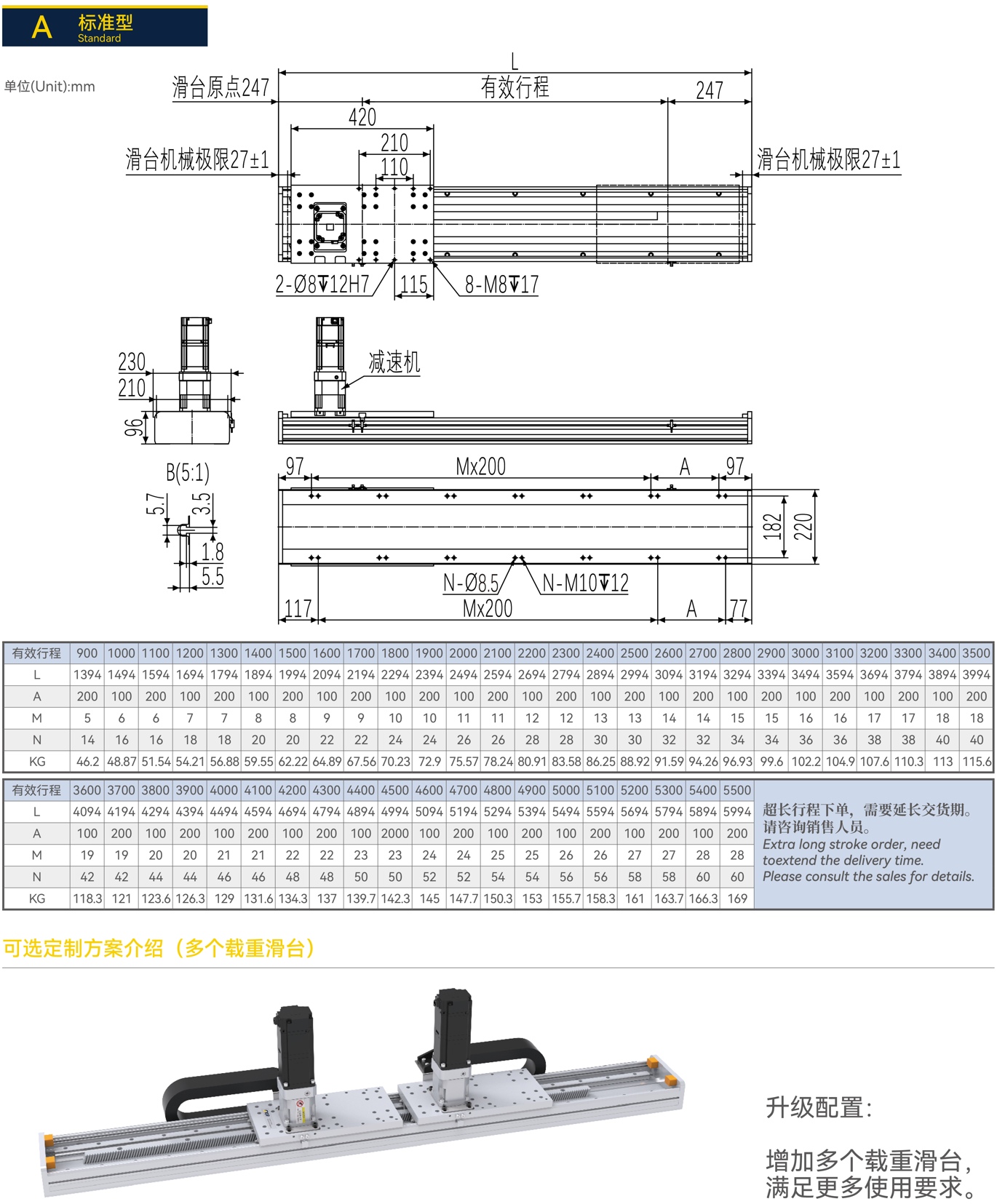

- Body Size Reference Width:220mm，Body:Height:96mm

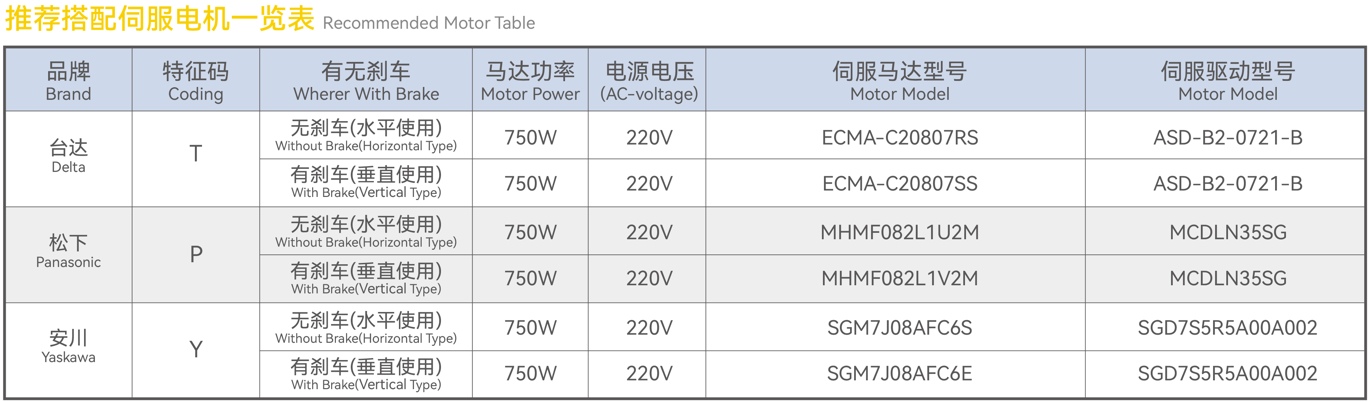

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke900~5500mm(Interval 100mm)
Product Data Download
Product Description
