〔SKR〕Linear Module

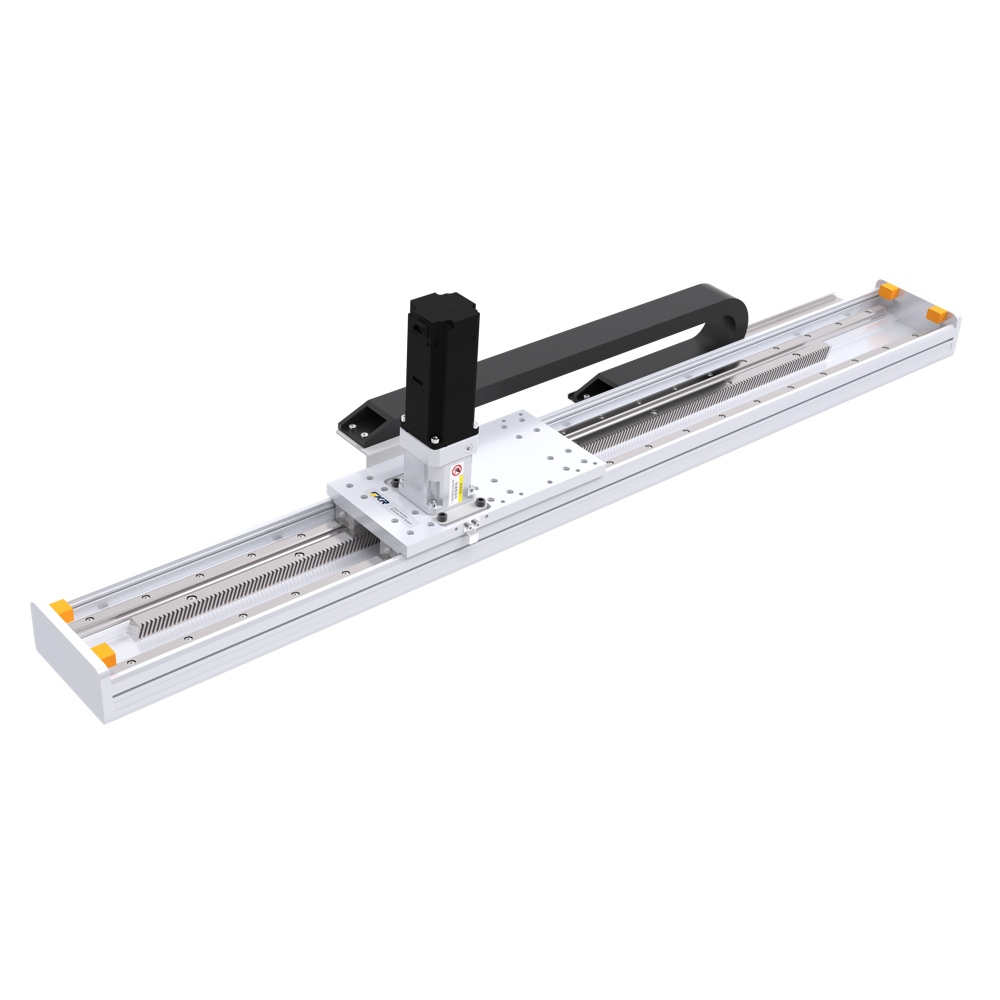

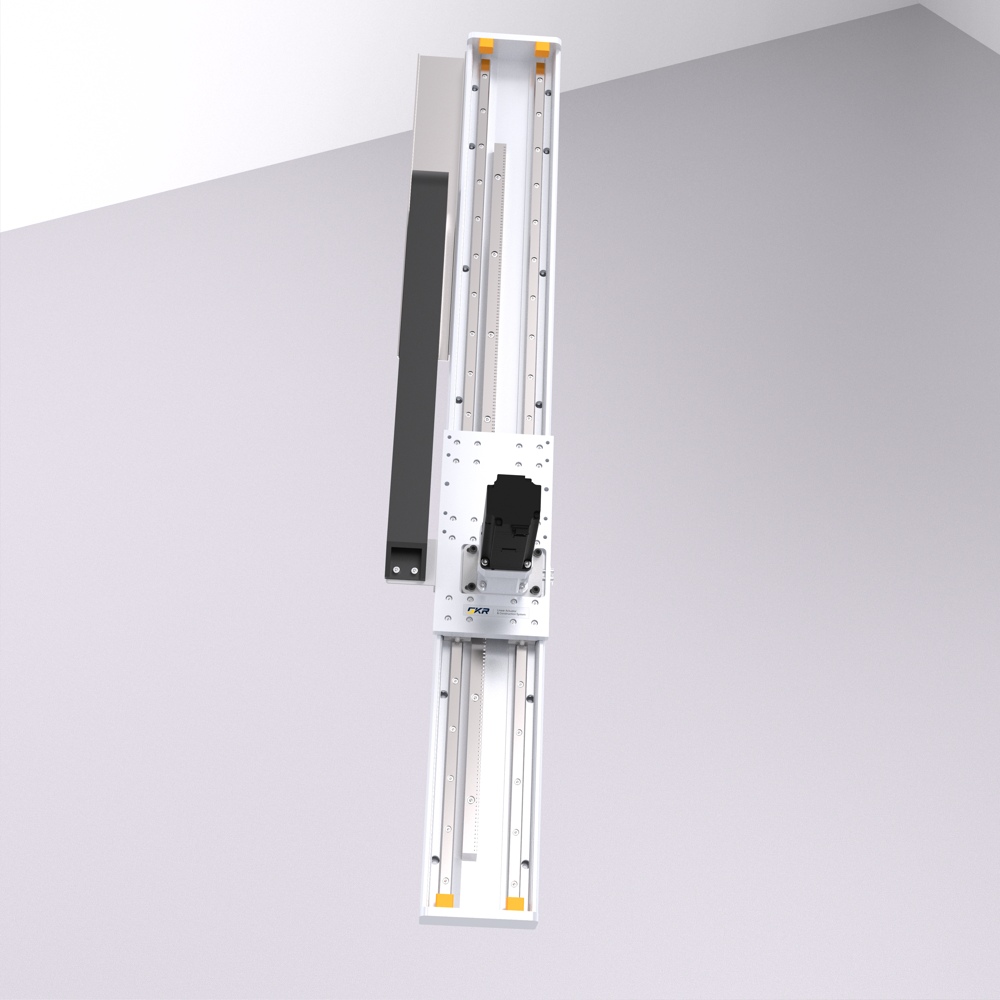

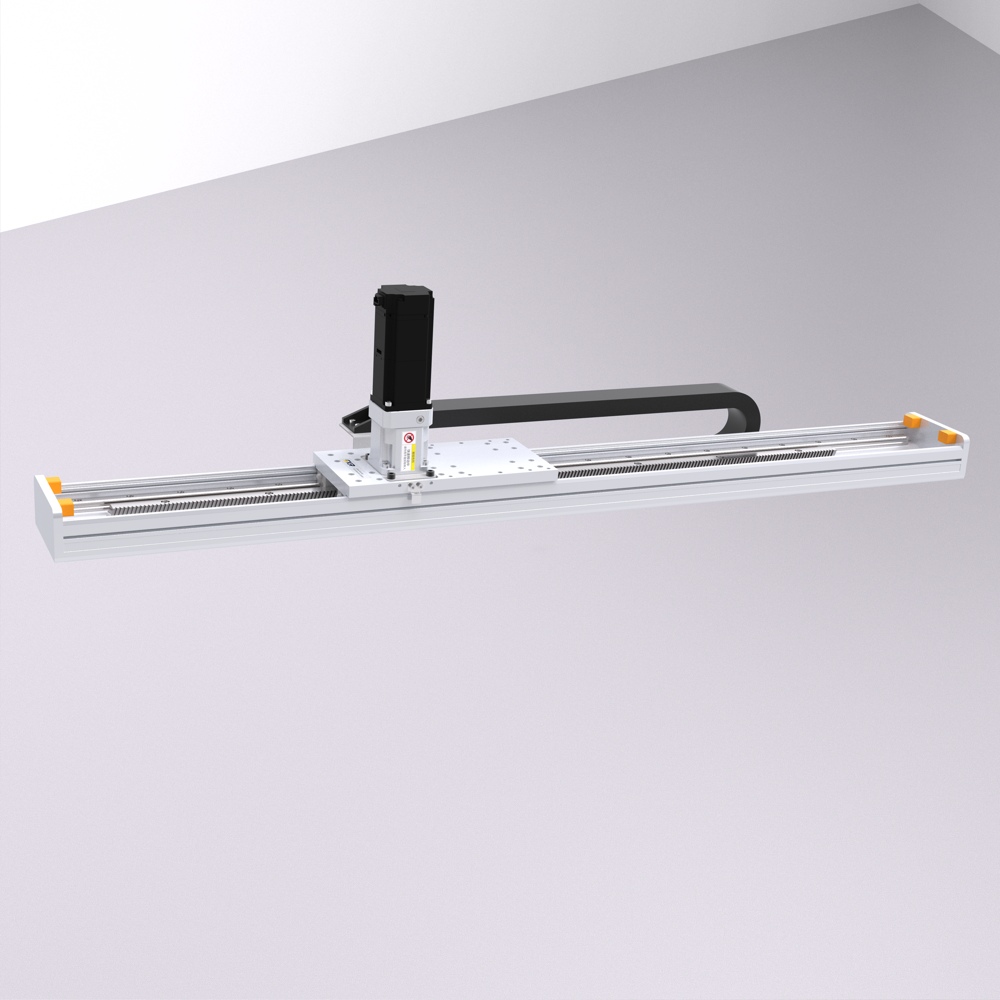

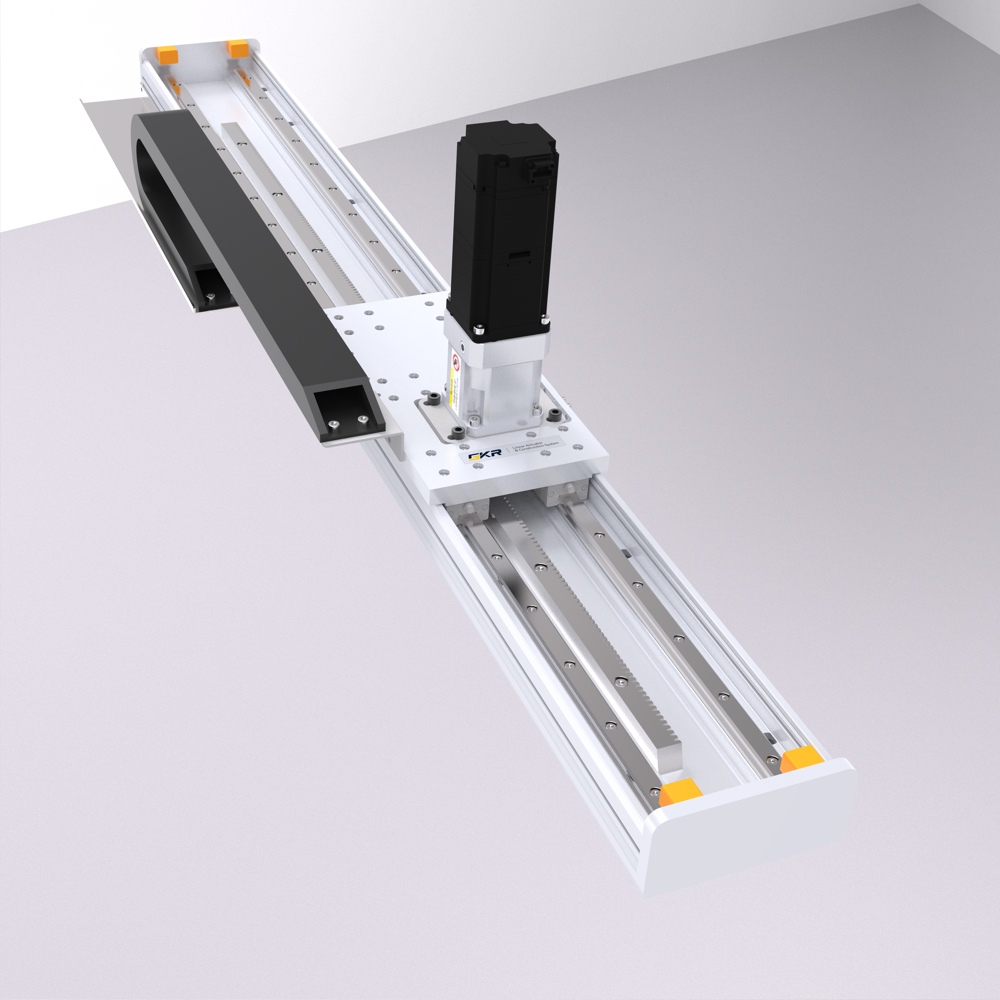

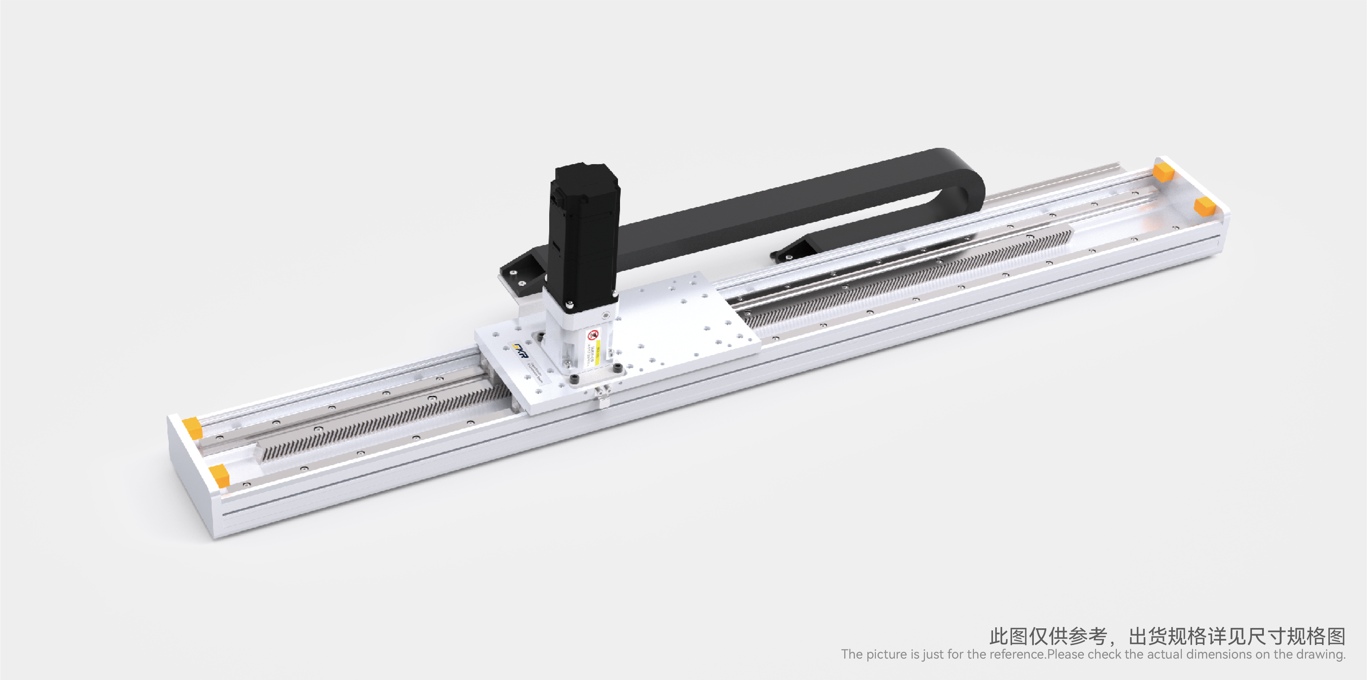

SHS14 Series, Gear Rack Slide Table Module.
Gear rack slide table, specification size base width is consistent with PSS140.- Repeatability±0.02mm
- Gear rack modulus1.5M
- Product optional lead10mm/22mm/33mm
- Horizontal Handling Weight200kg/110kg/70kg
- Vertical Handling Weight40kg/30kg/20kg
- Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm，Body:Height:63mm
- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke900~3500mm(Interval 100mm)
Product Data Download
Product Description
