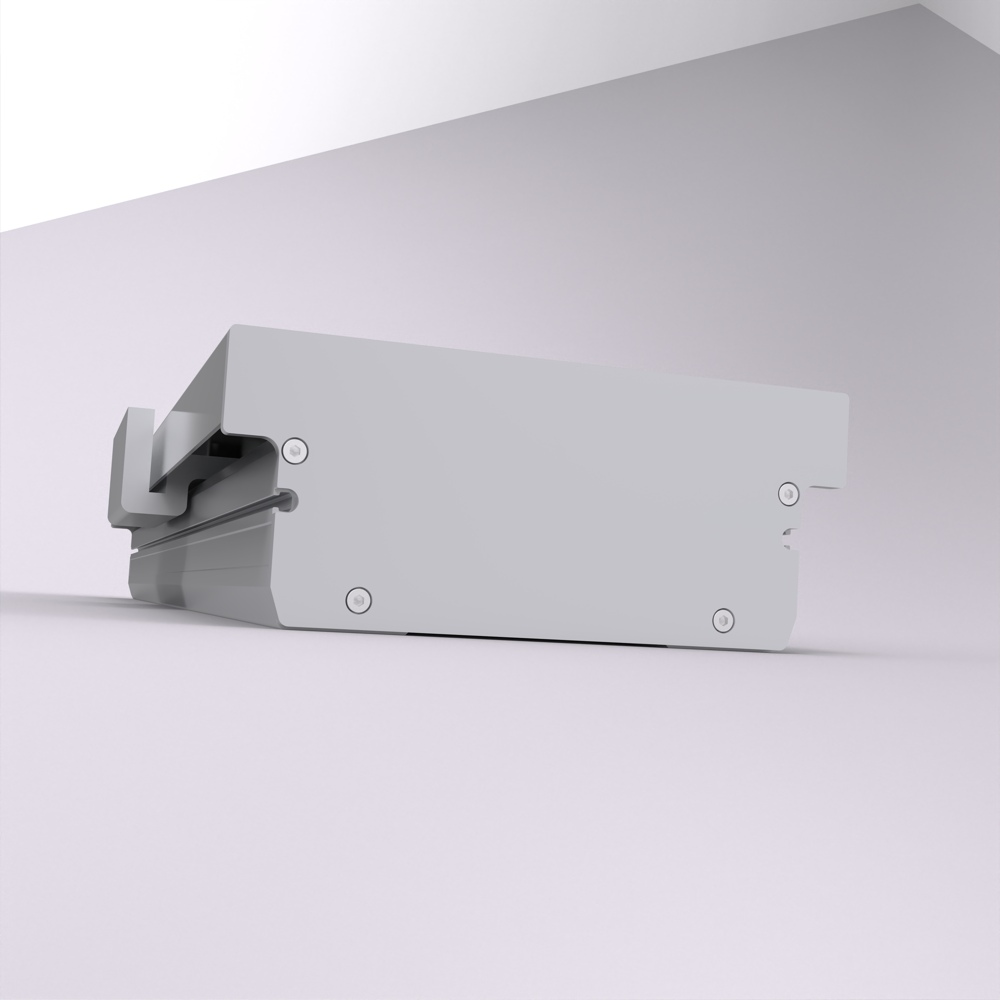

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

Larger PSM products. Driven by 20mm diameter screws;

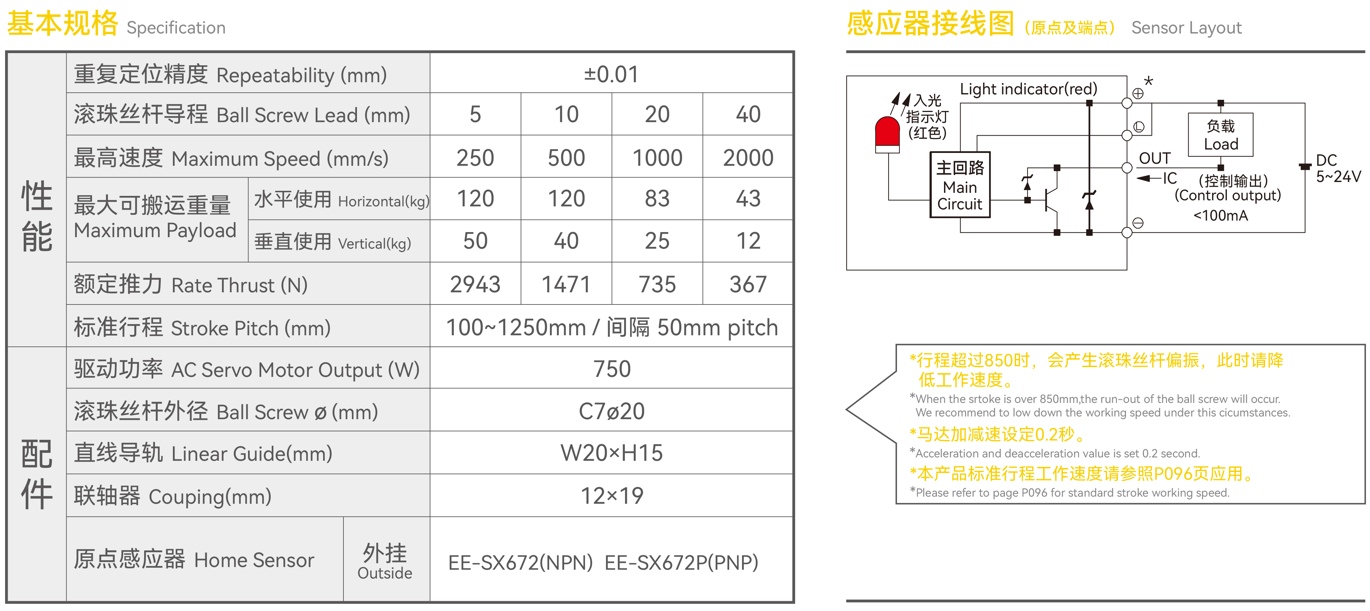

Repeatability±0.01mm
Ball Screw øC7ø20
Ball Screw Lead5mm/10mm/20mm/40mm

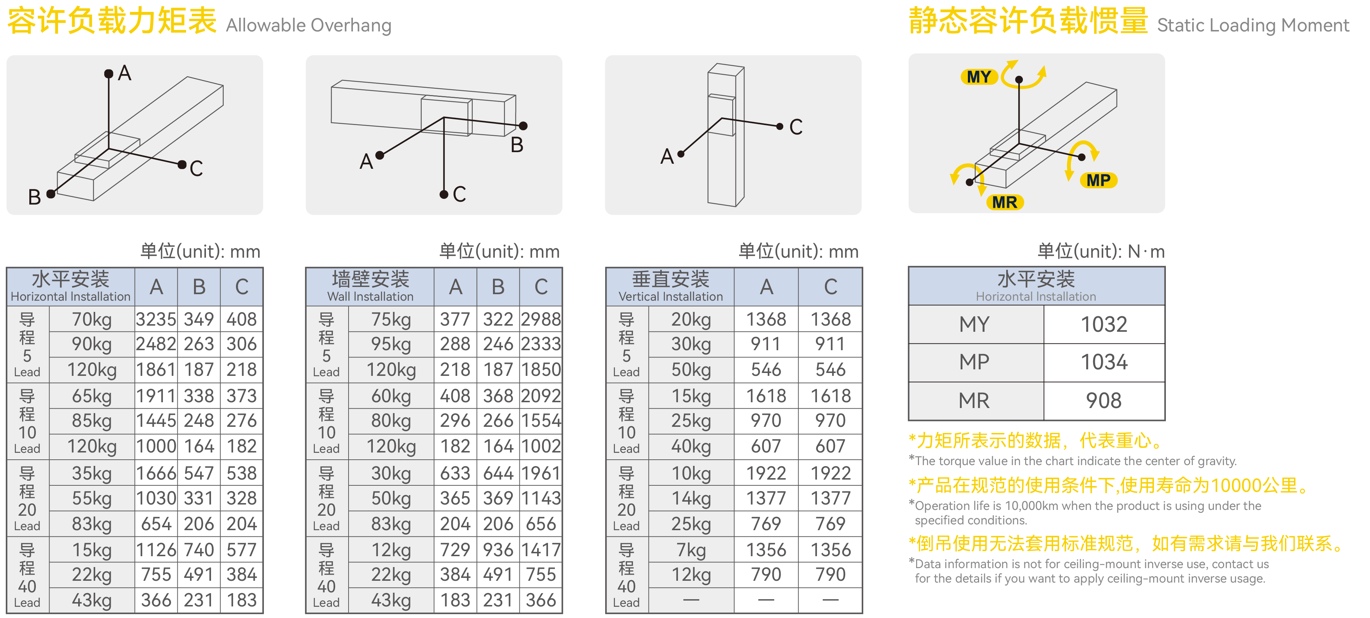

Horizontal Handling Weight120kg/120kg/83kg/43kg
Vertical Handling Weight50kg/40kg/25kg/12kg
Linear Guide Model20×15-2pcs

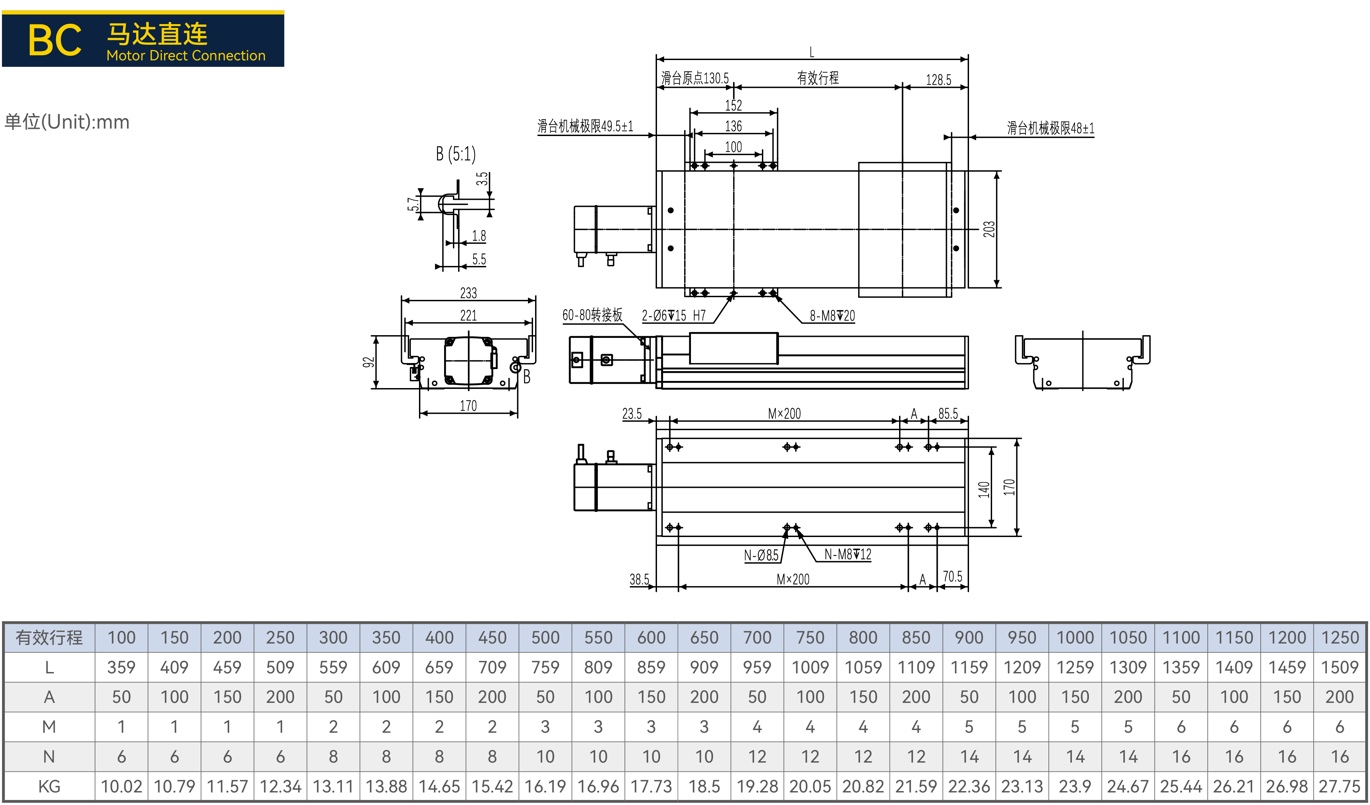

Body Size Reference Width:170mm， Height:92mm

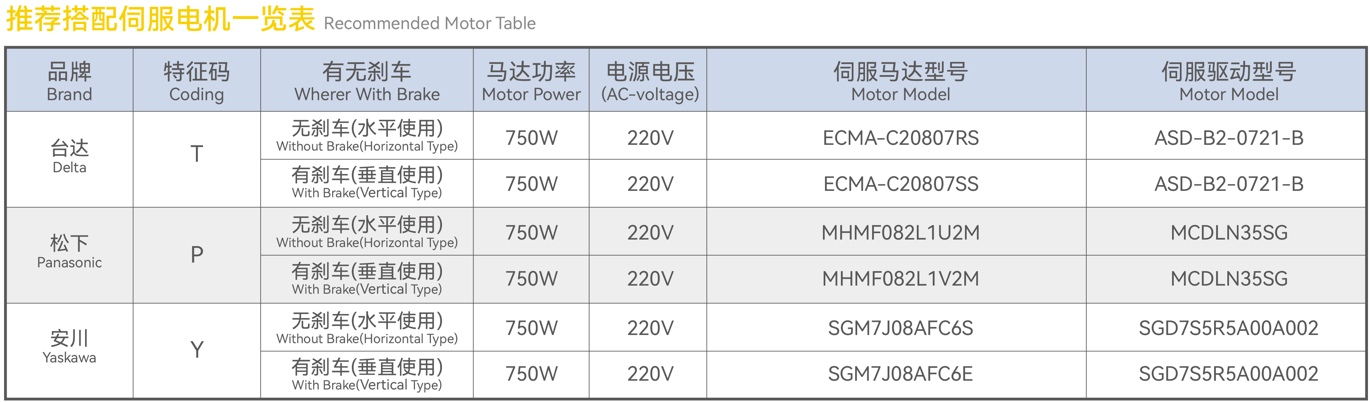

Drive Specification750W/3000r·min/2.39N·m
Standard Stroke100~1250mm(Interval 50mm)

Inquire This Product

Go to Official Flagship Store to Buy

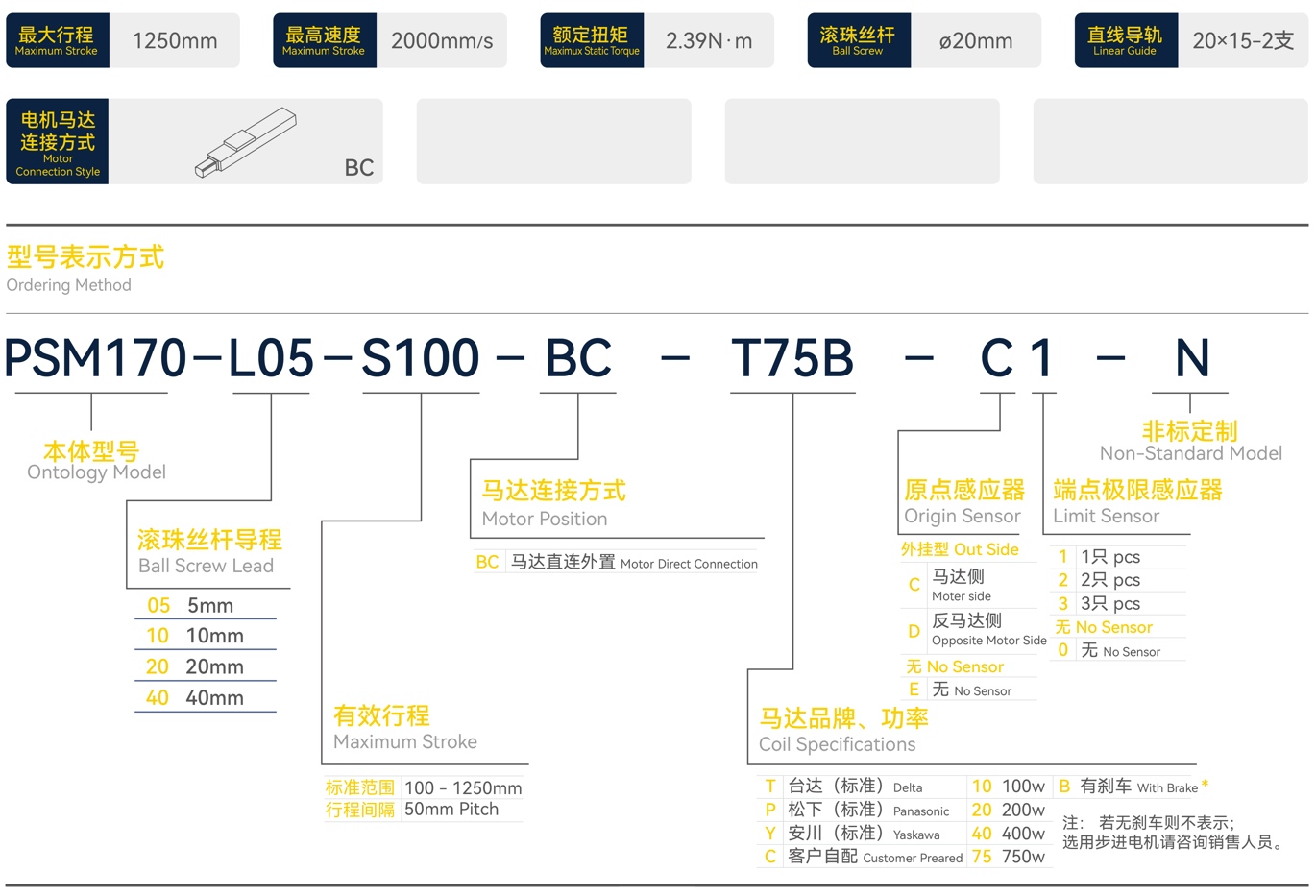

Product Data Download

Product Description

Product Features

Innovative structure! Physical barrier design;

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

PSM170 series New physical blocking linear slide

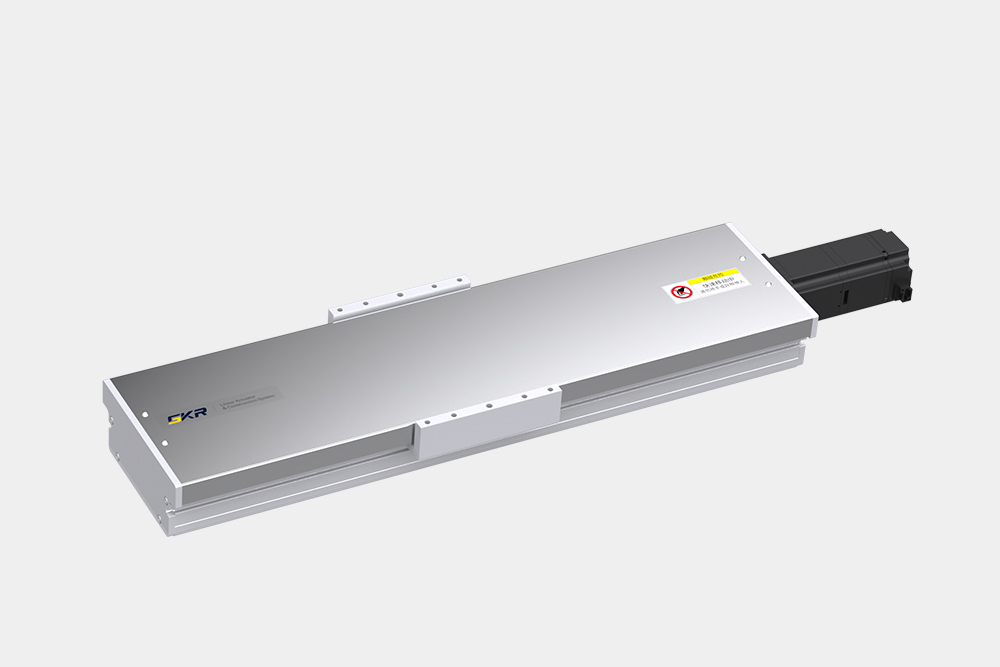

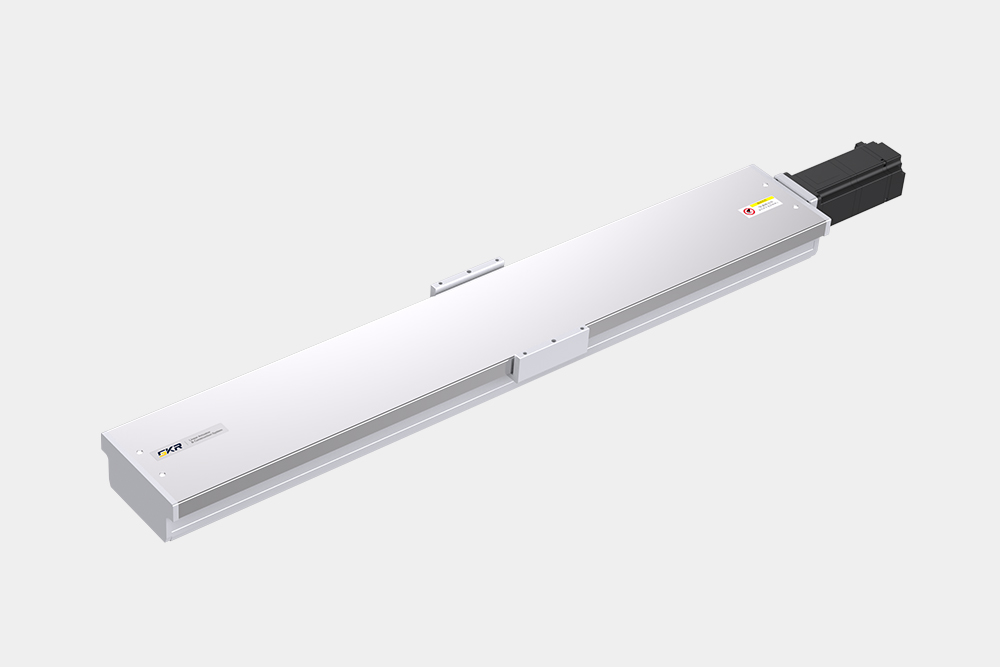

PSM SeriesOther Products
