〔SKR〕Linear Module

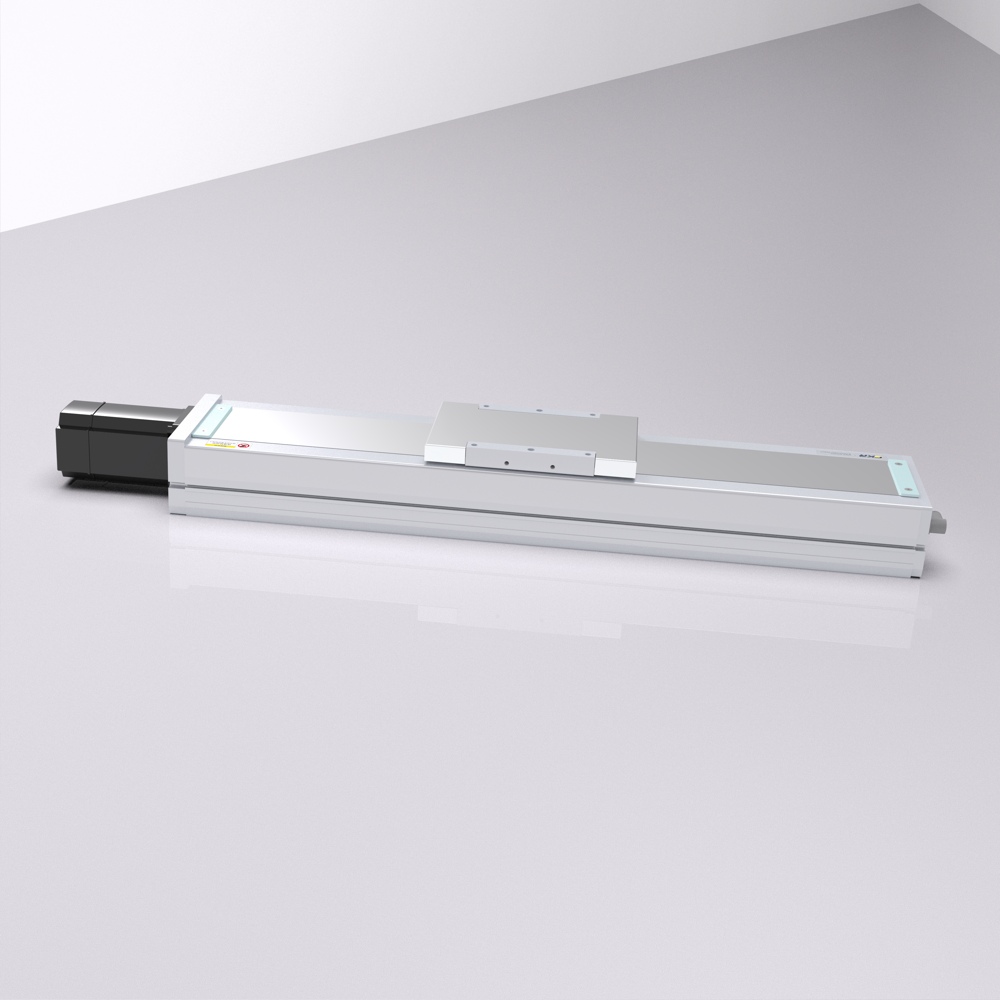

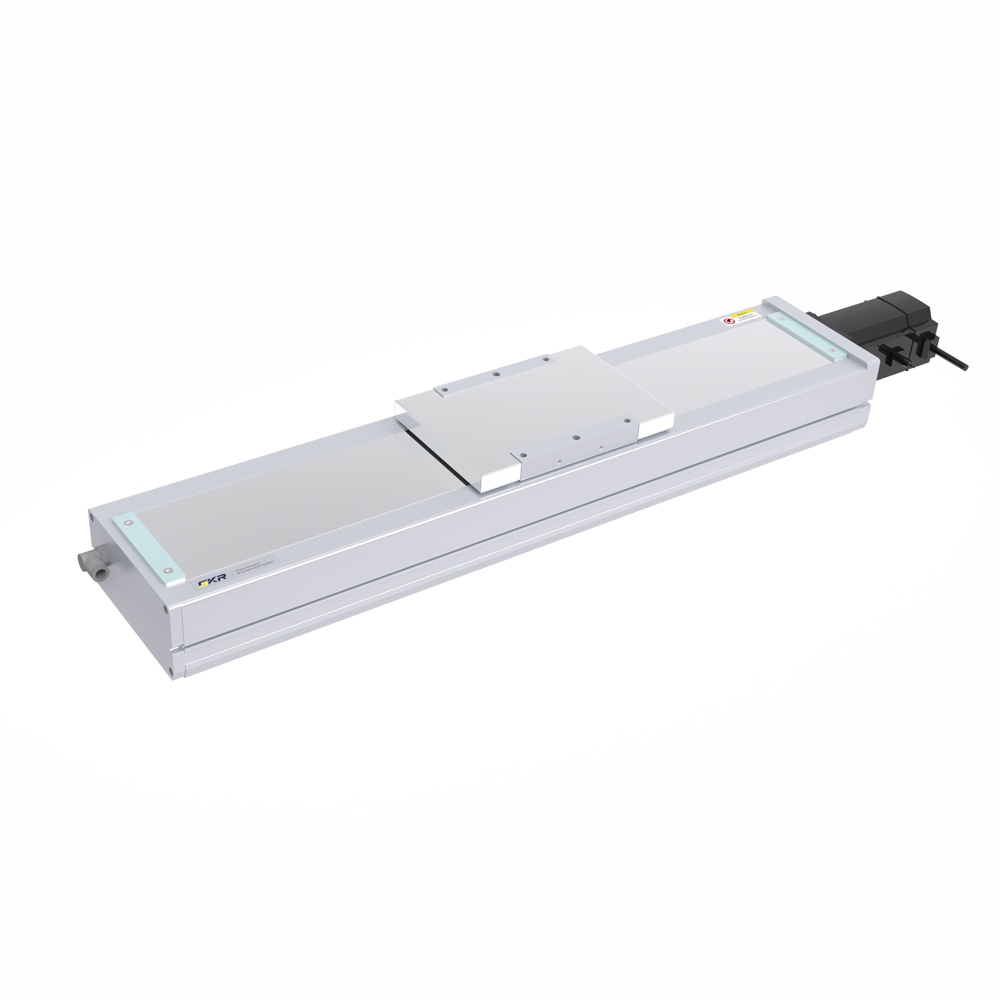

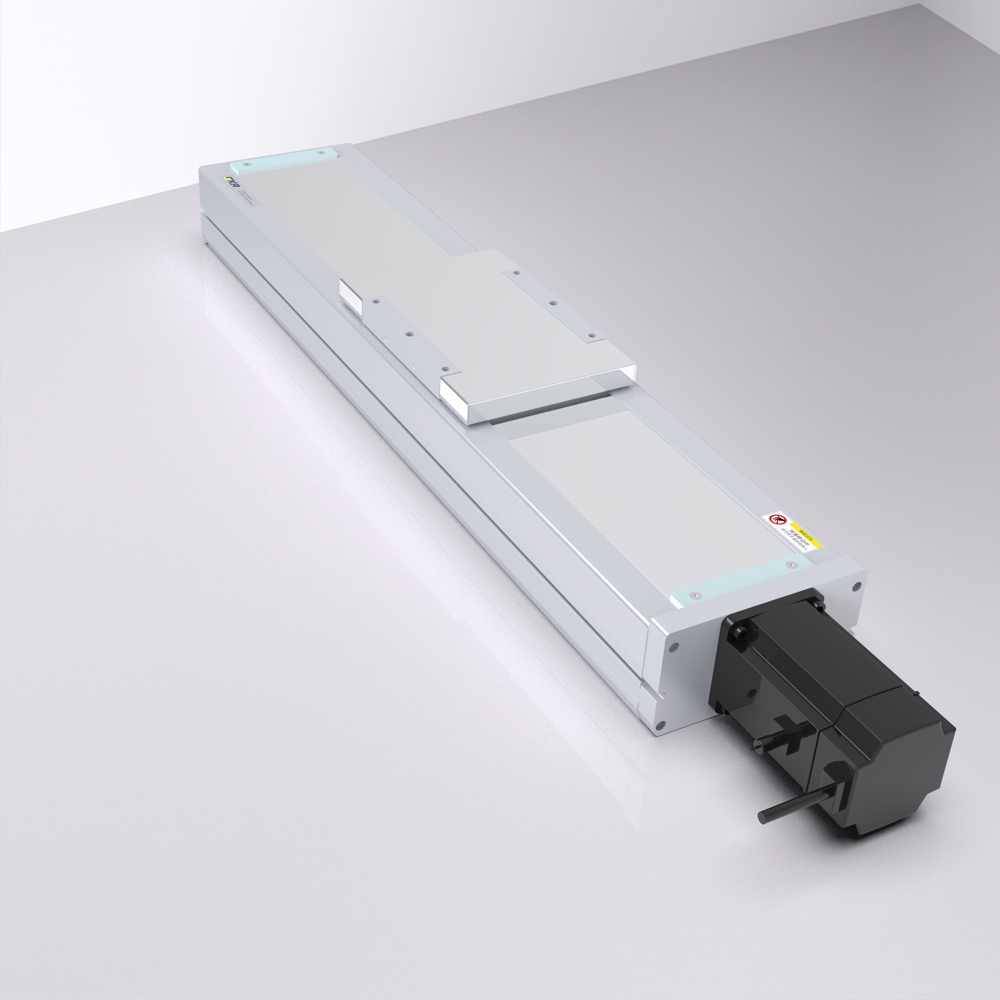

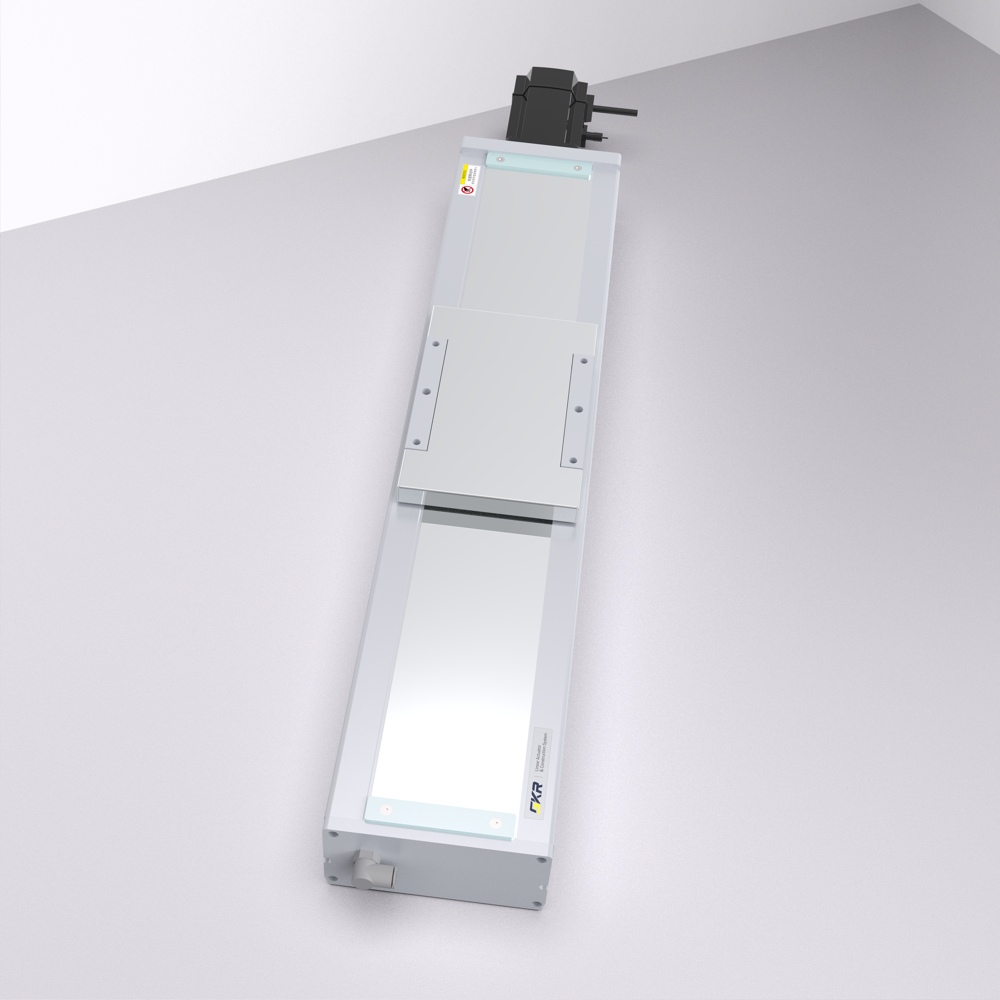

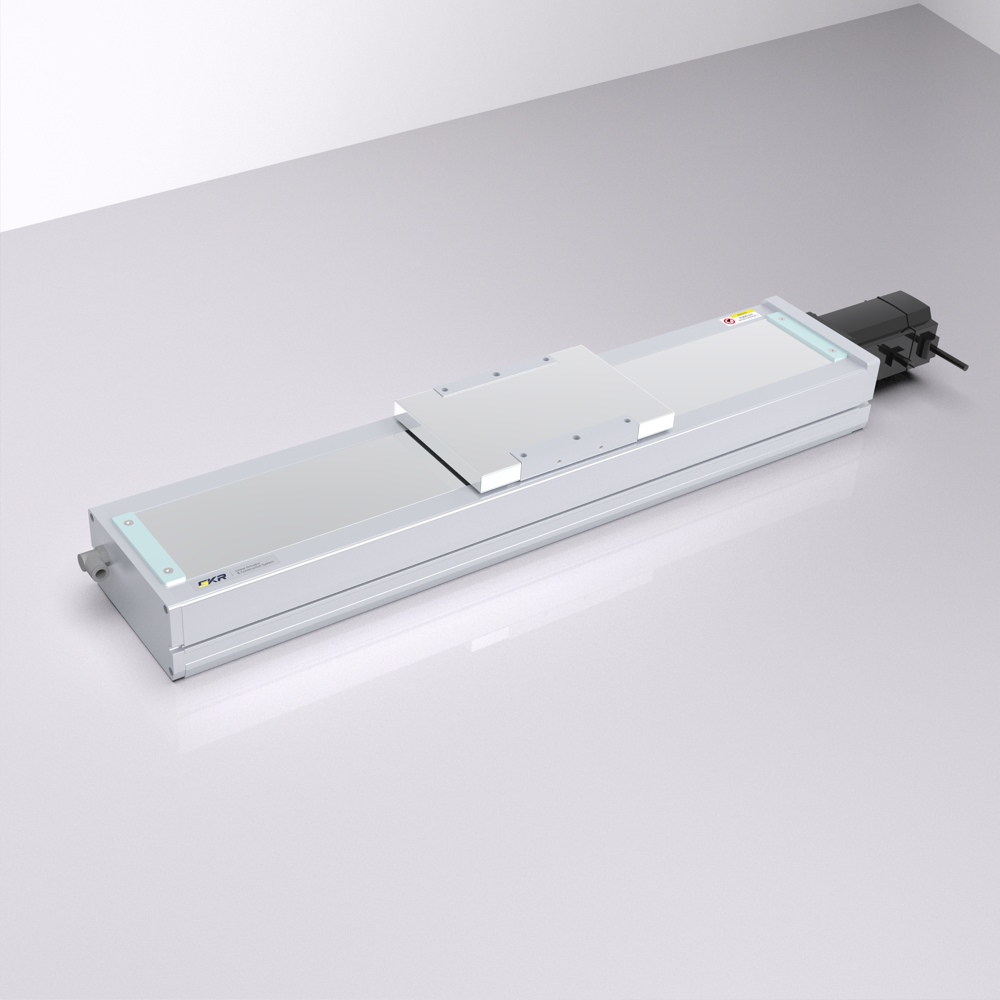

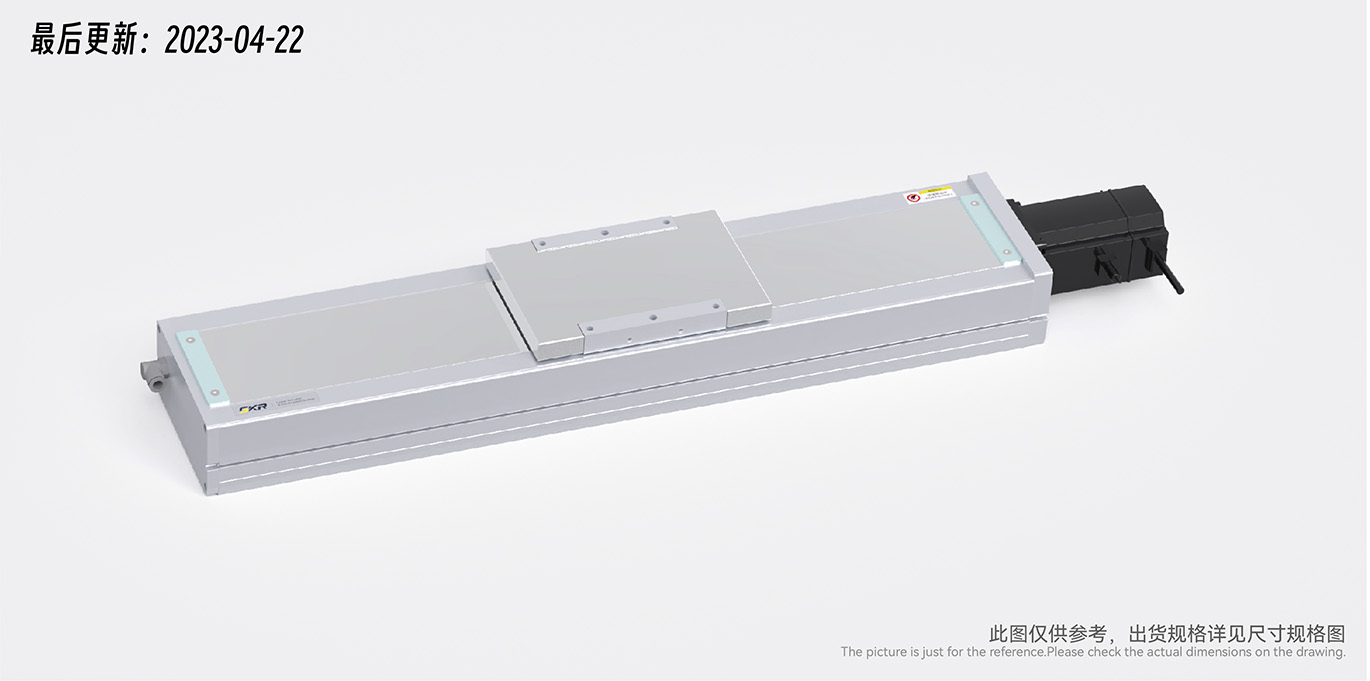

PSC170 Series, fully enclosed slide module

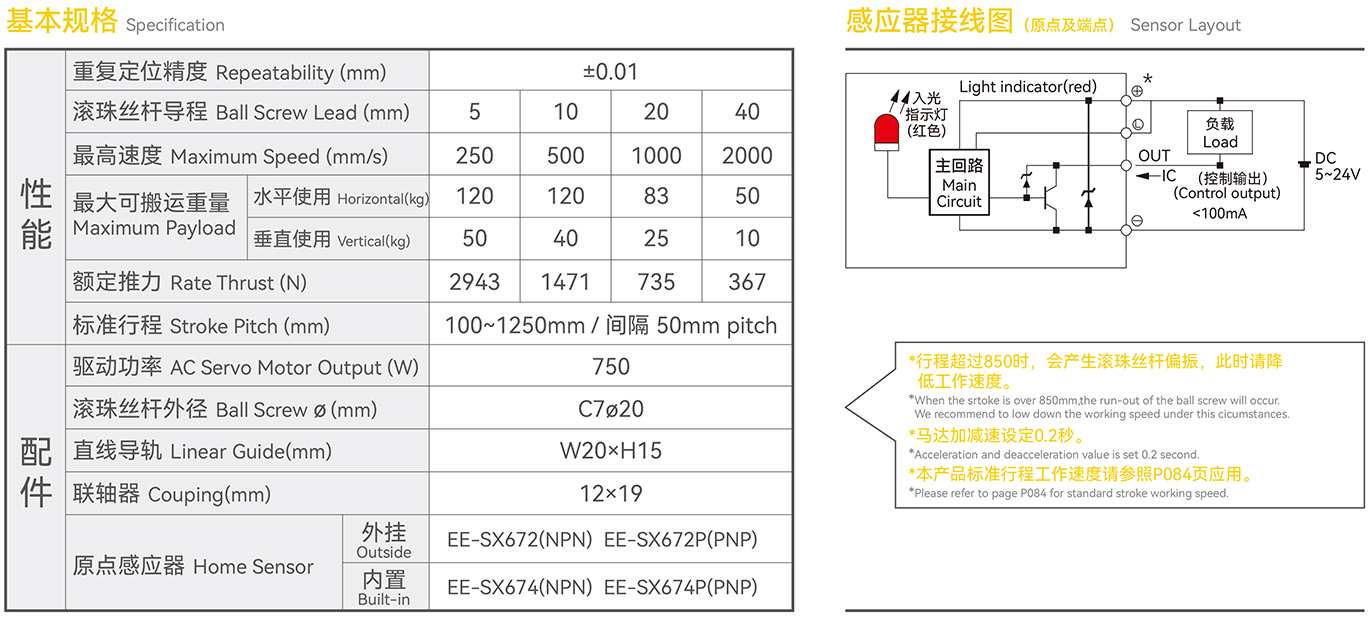

Large PSC products. Driven by 20mm diameter screws;- Repeatability±0.01mm
- Ball Screw øC7ø20
- Ball Screw Lead5mm/10mm/20mm/40mm

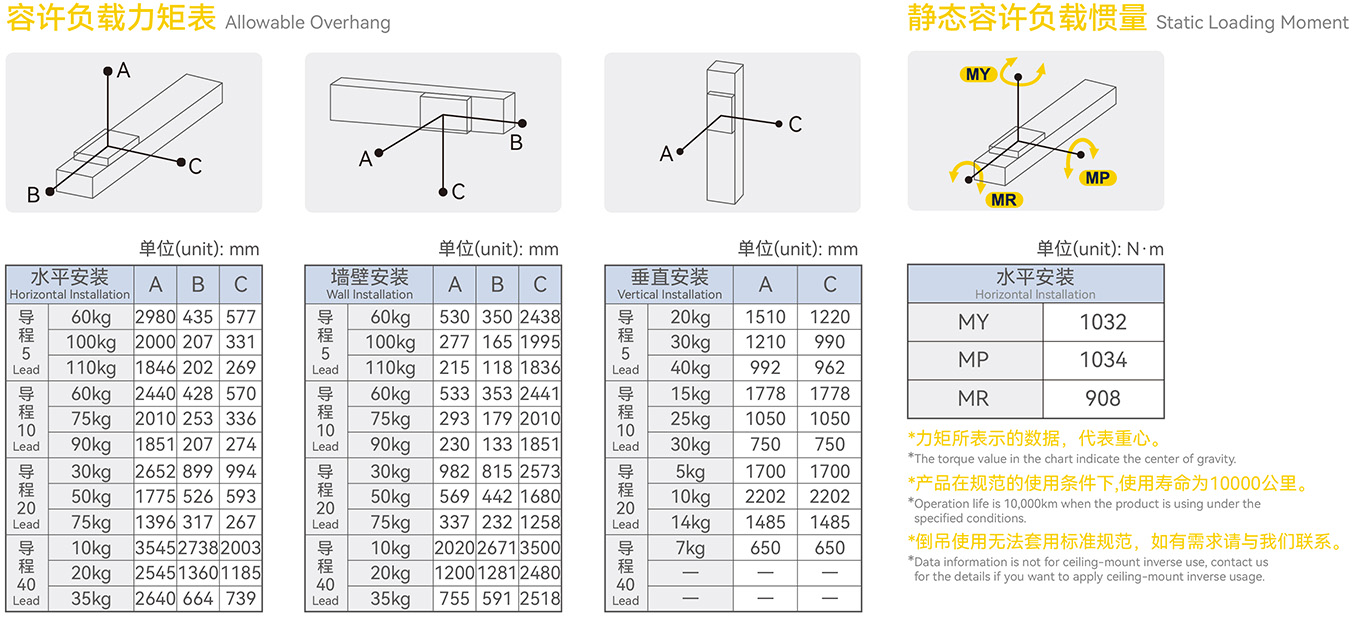

- Horizontal Handling Weight120kg/120kg/83kg/50kg
- Vertical Handling Weight50kg/40kg/25kg/10kg
- Linear Guide Model20×15-2pcs
- Body Size Reference Width:170mm， Height:97mm

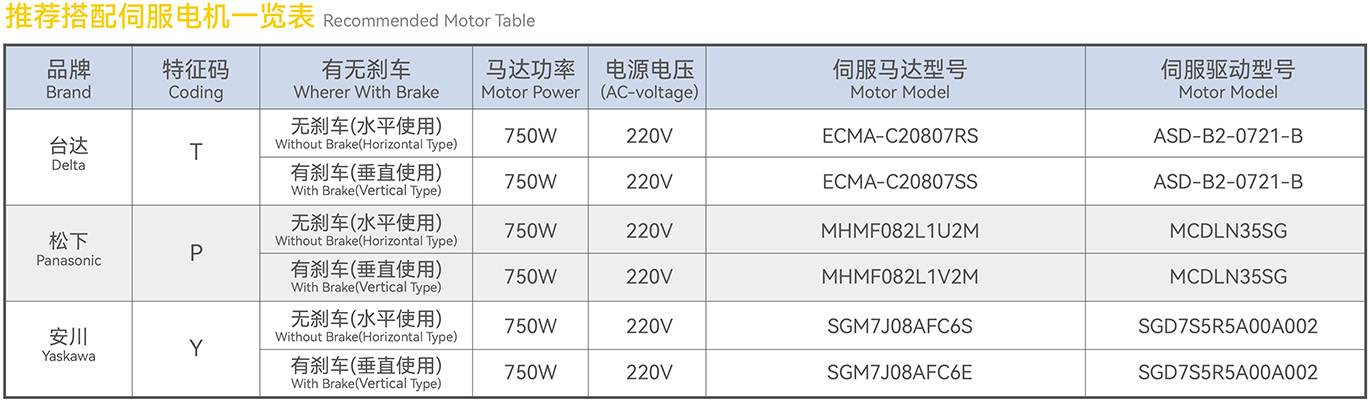

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke100~1250mm(Interval 50mm)
Product Data Download
Product Description
