〔SKR〕Linear Module

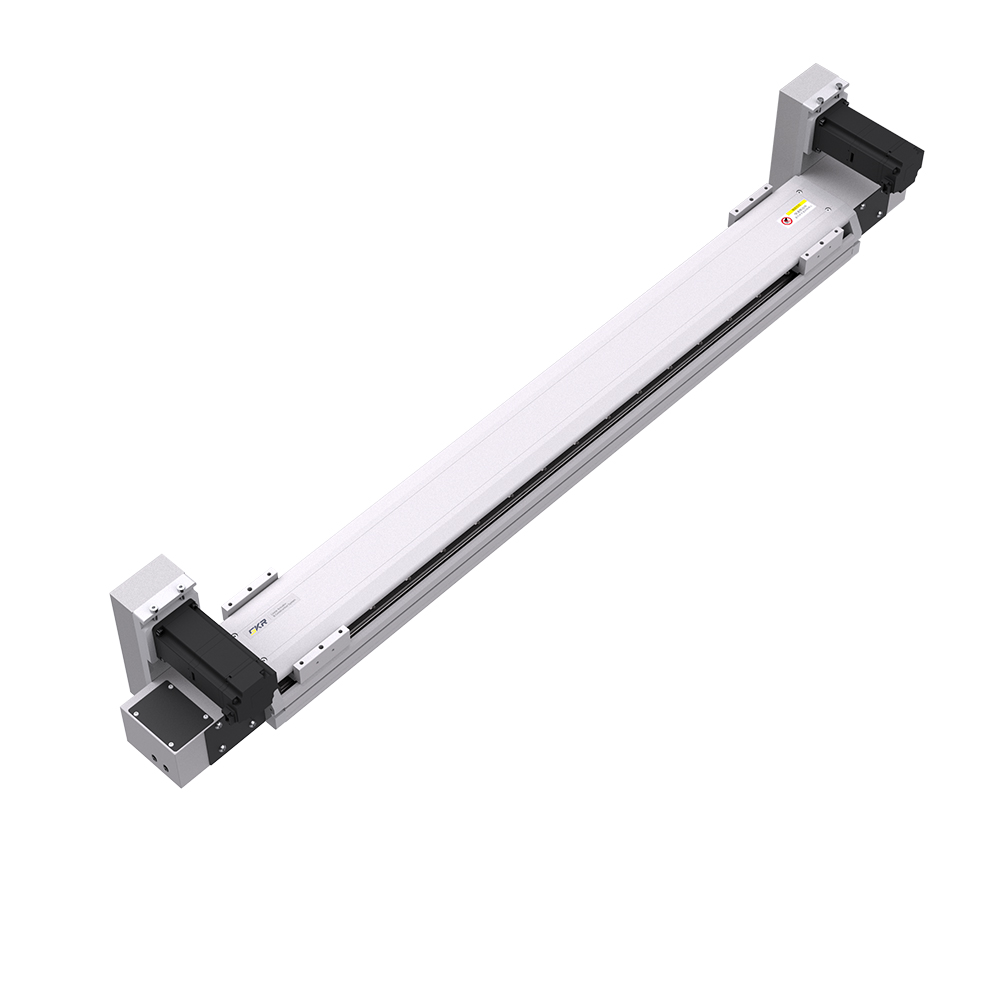

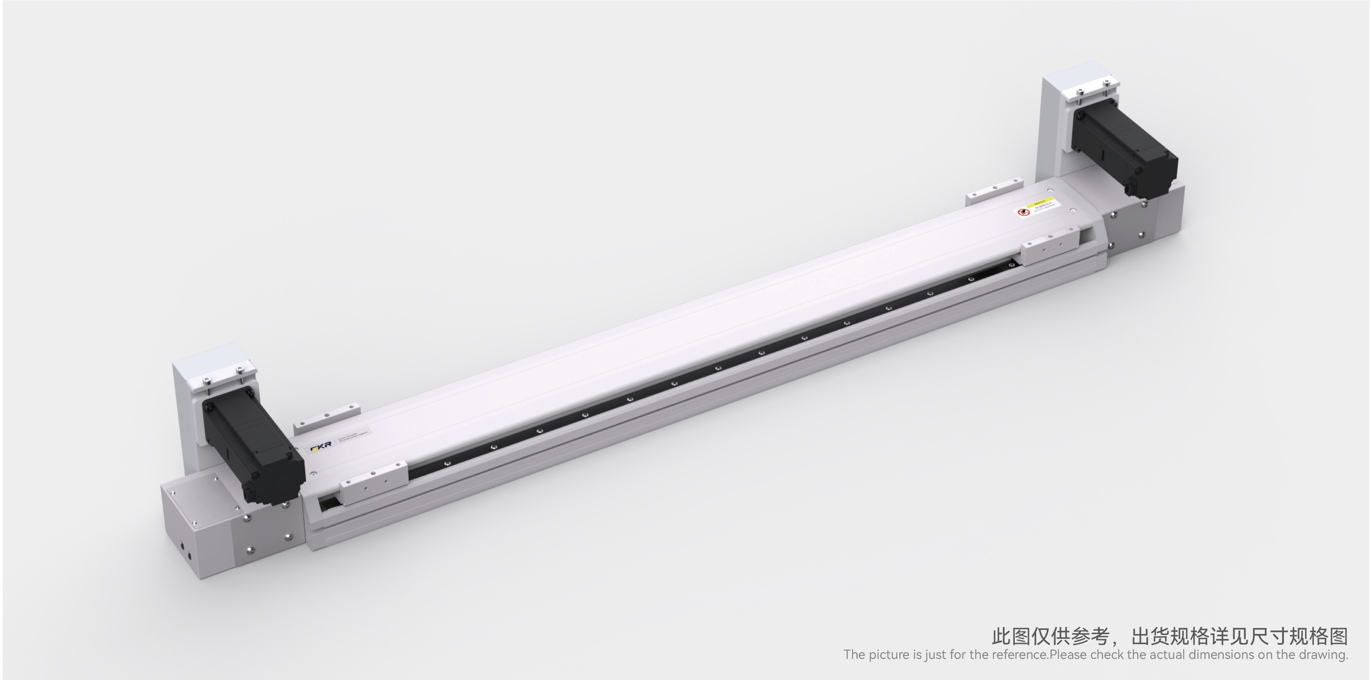

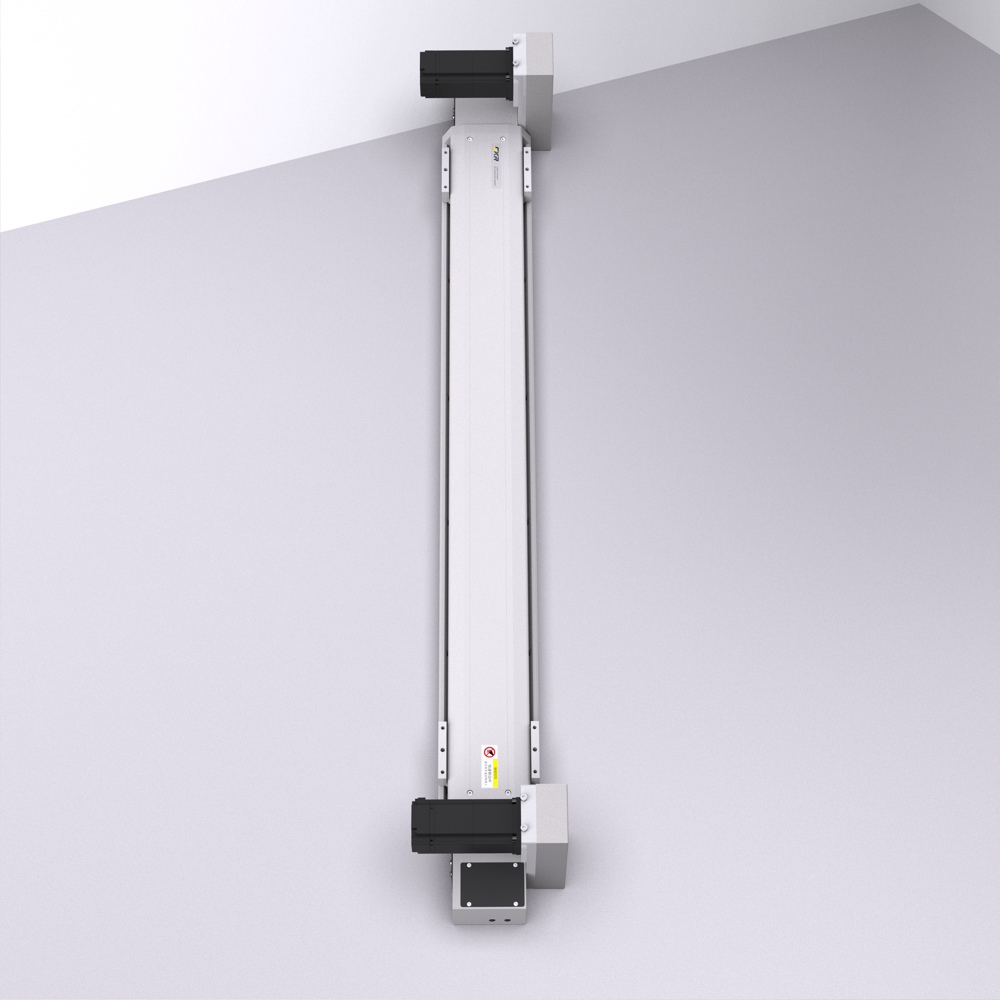

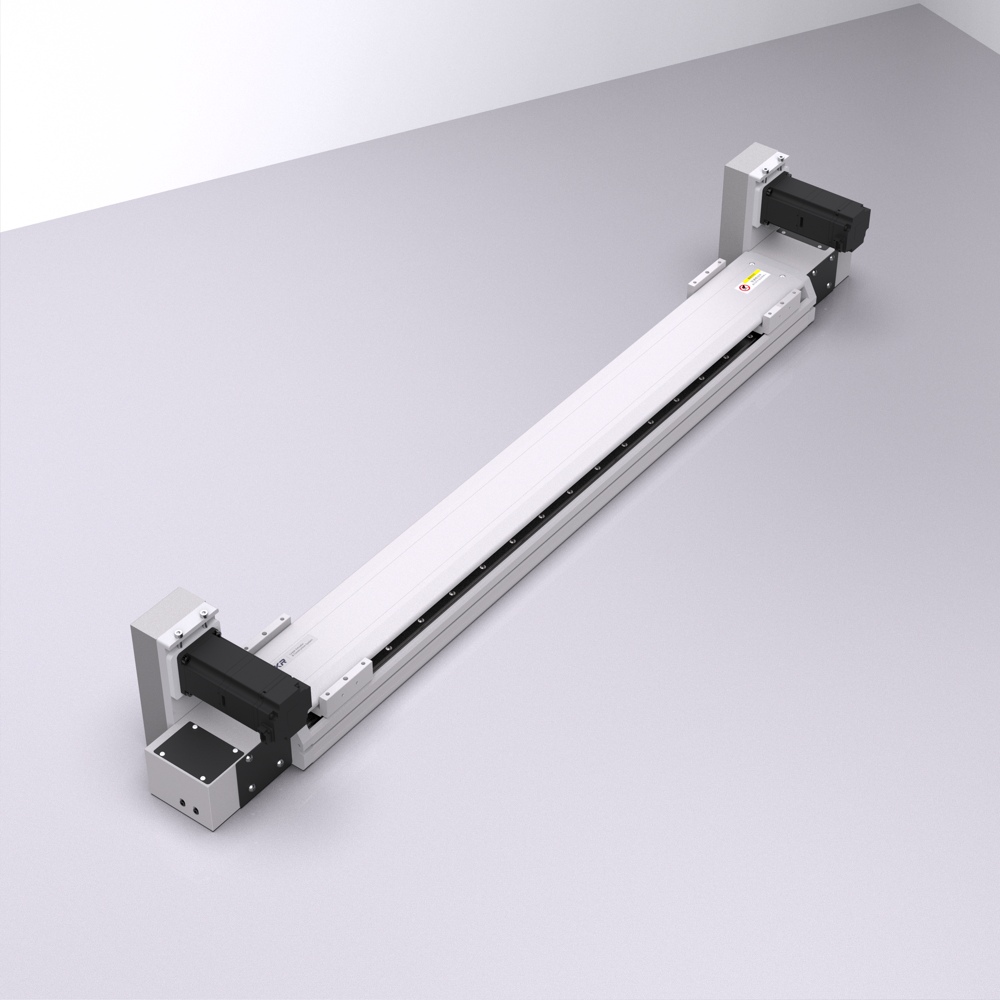

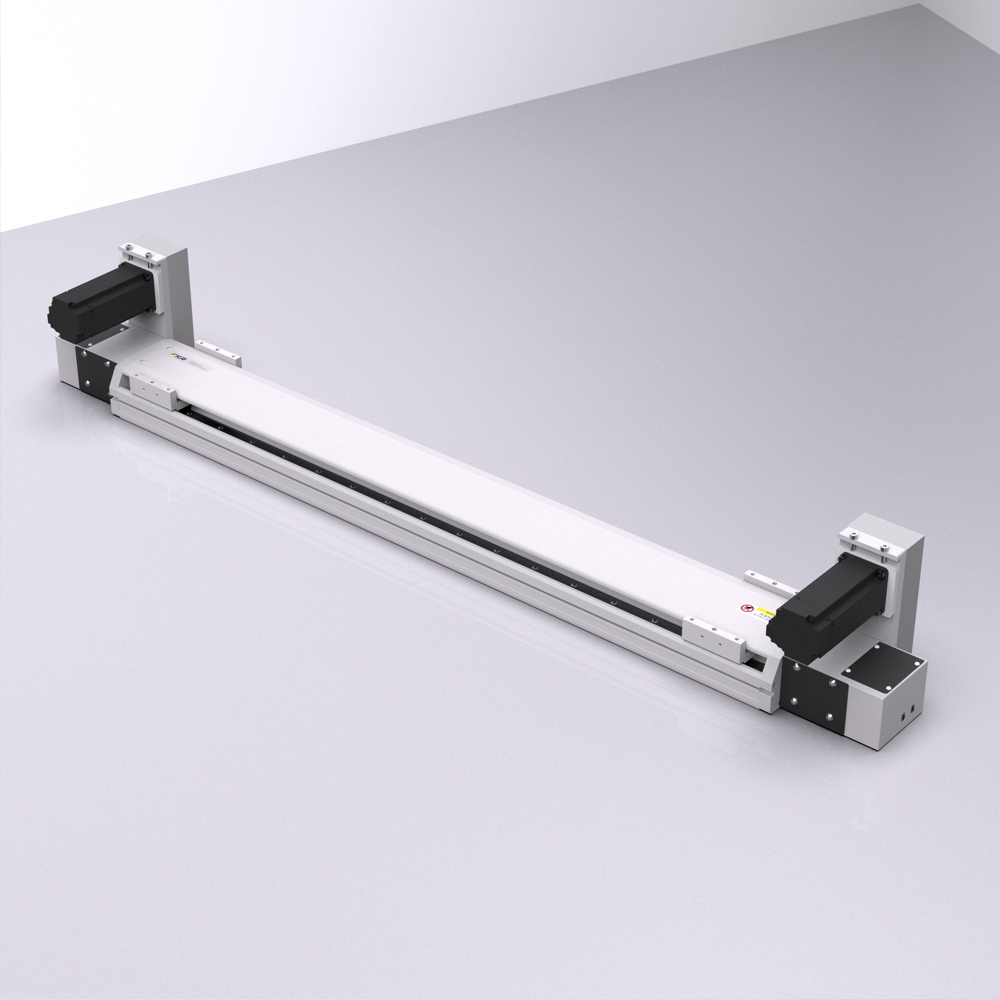

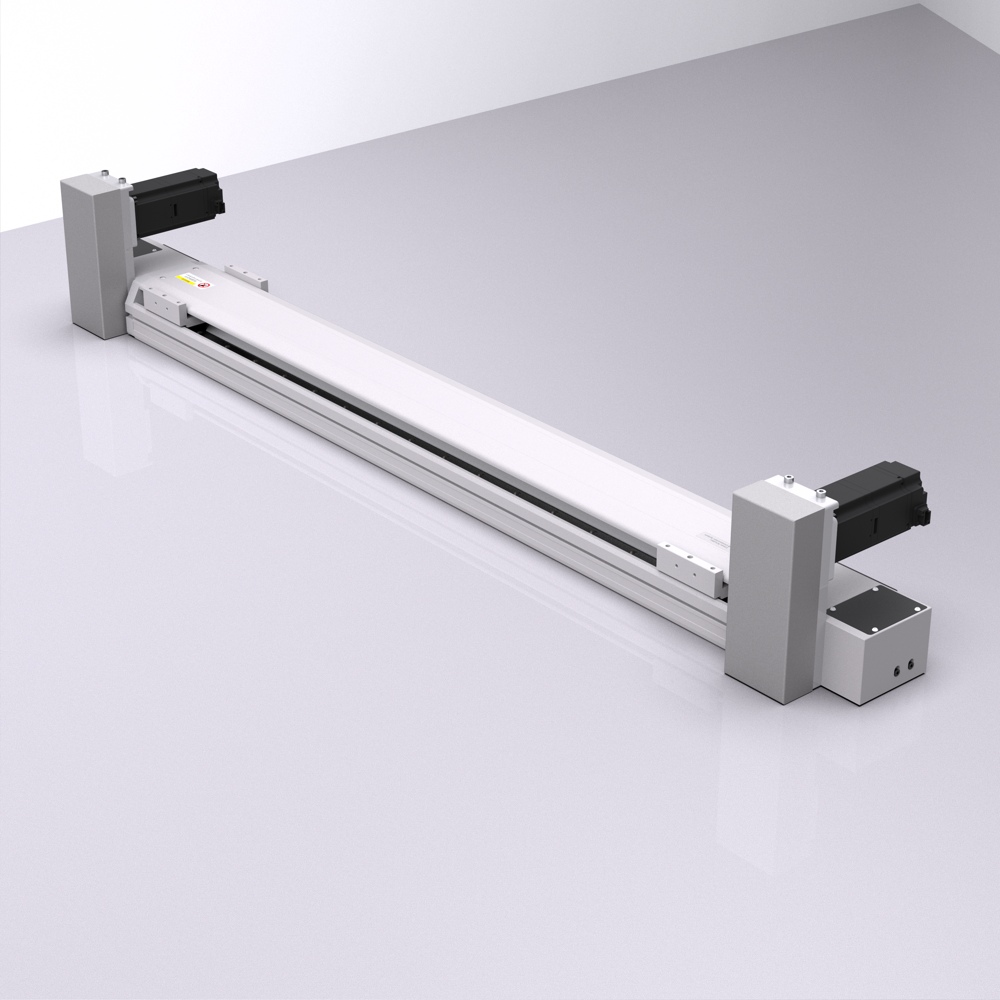

PPB140 Series, Dual-drive Asynchronous Synchronous Belt Semi-closed Module

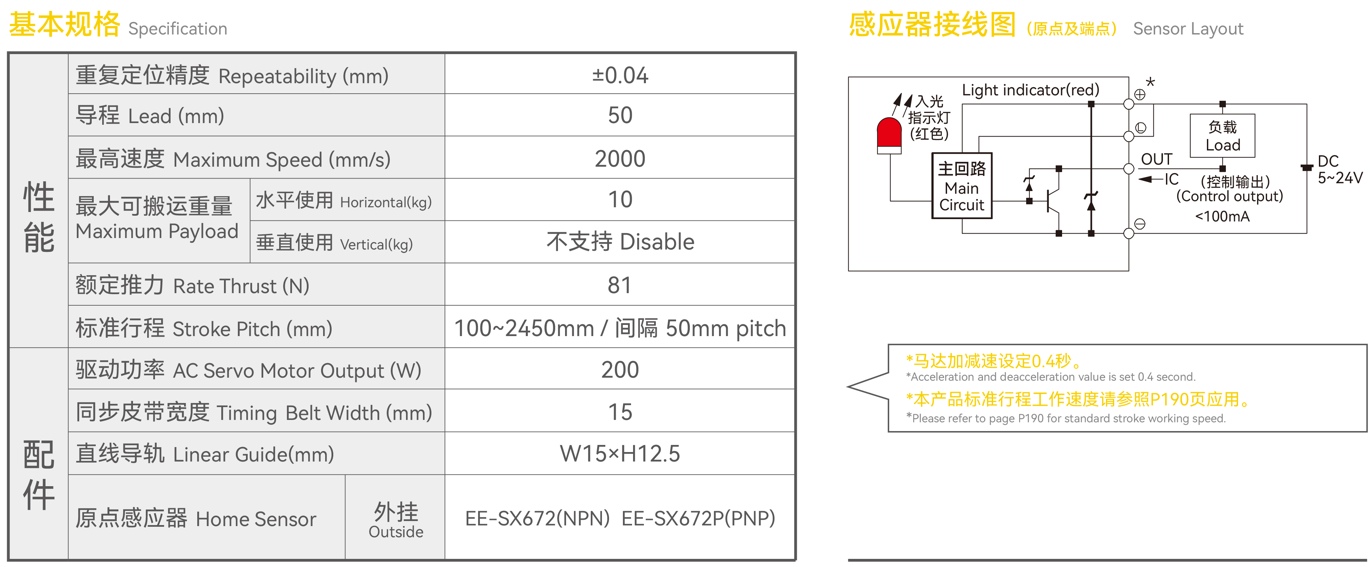

Dual-drive asynchronous, synchronous belt slide table. High-speed multi-purpose.- Repeatability±0.04mm
- Synchronous Belt Diameter15mm-2pcs
- Lead50mm
- Horizontal Handling Weight10kg
- Vertical Handling WeightThis series is not supported
- Linear Guide Model15×12.5-2pcs

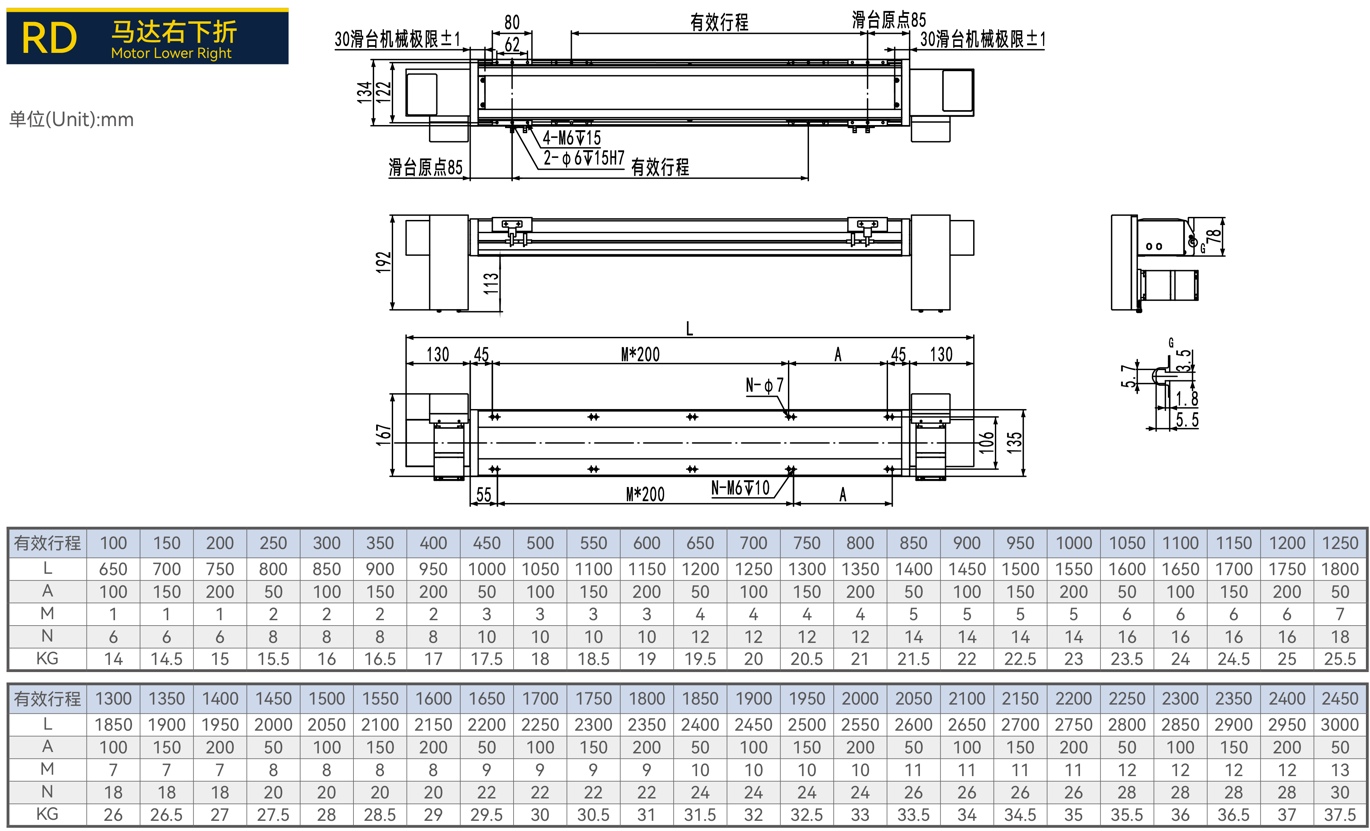

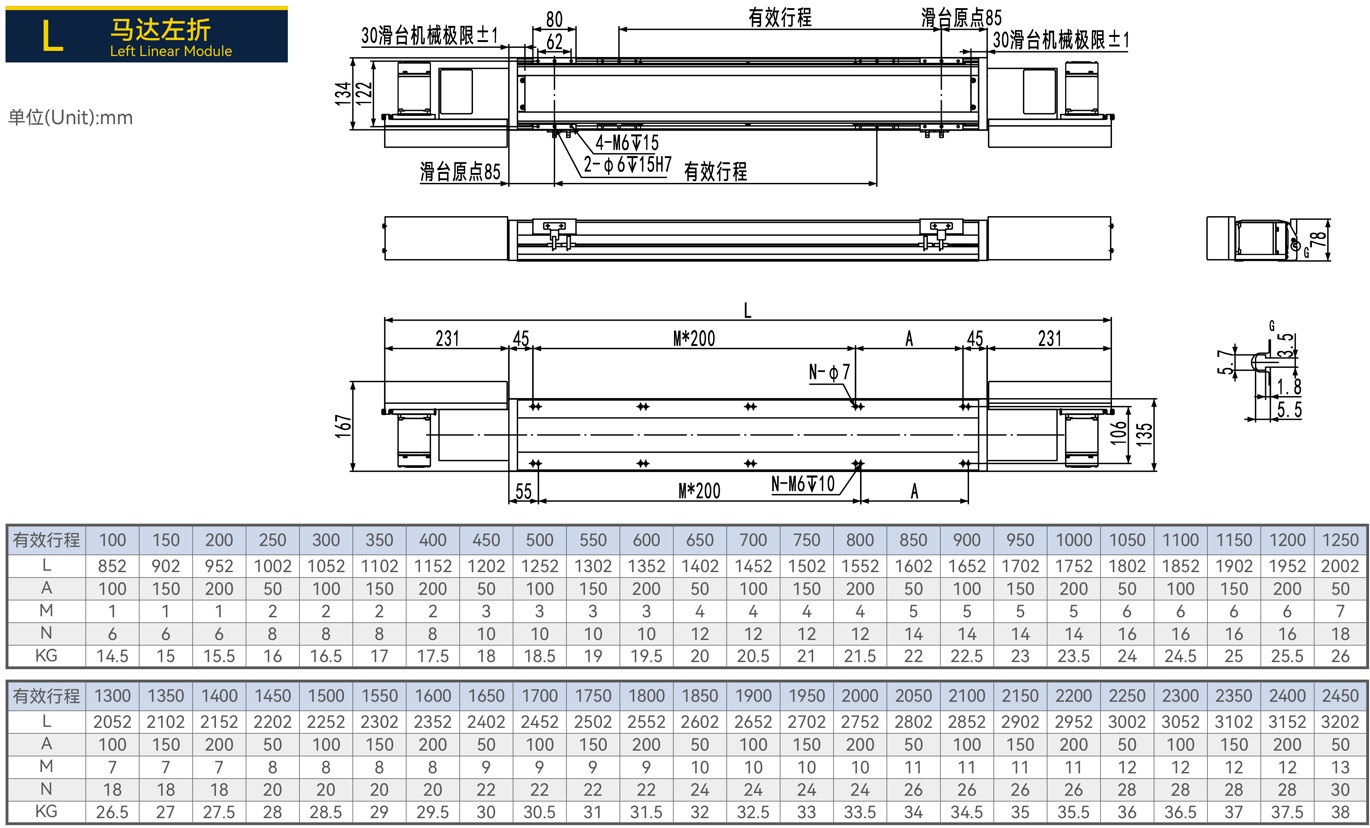

- Body Size Reference Width:135mm， Height:78mm
- Drive Specification200W/3000r·min/0.64N·m
- Standard Stroke100~2450mm(Interval 50mm)
Product Data Download
Product Description
